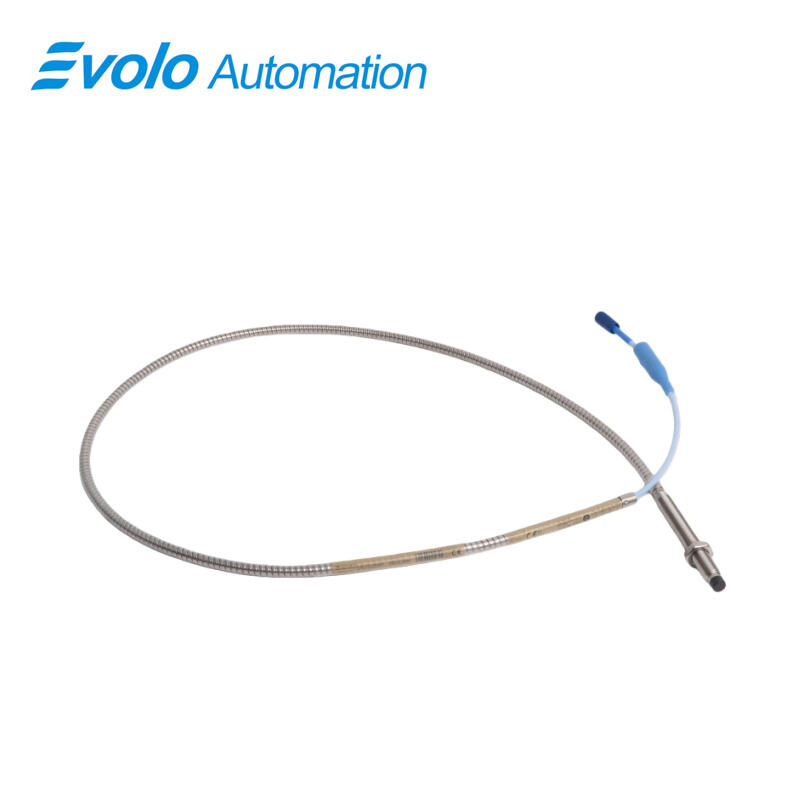

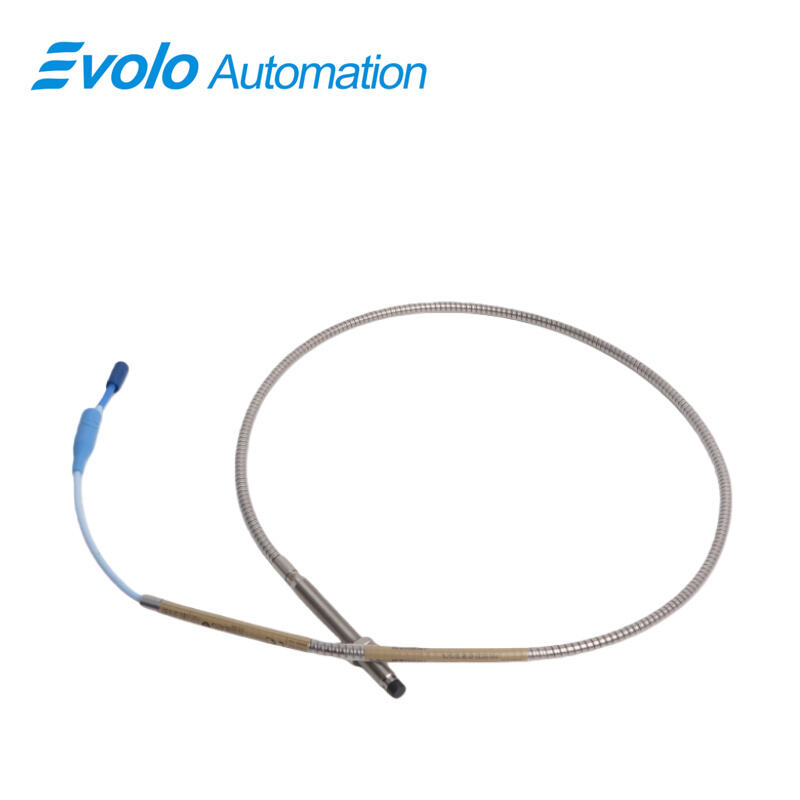

330104-00-08-10-01-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-10-01-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-10-01-CN 3300 XL 8 mm Proximity Probes are precision eddy current transducers designed for industrial automation and machinery monitoring. The 330104-00-08-10-01-CN provides a linear range of 2 mm (80 mils) with output voltage proportional to the distance between the probe tip and conductive surfaces. Operating from −52 °C to +177 °C and storing up to the same range, these probes handle vibration, axial position, and Keyphasor speed measurements in fluid-film bearing machines.

The 330104-00-08-10-01-CN features an M10x1 probe thread, 15 mm maximum thread engagement, 50 Ω output resistance, and extension cable capacitance of 69.9 pF/m. The miniature coaxial ClickLoc connector with protector and standard cable ensures reliable connection, supporting field wiring of 0.2–1.5 mm² (16–24 AWG). With CSA, ATEX, and IECEx approvals, the 330104-00-08-10-01-CN meets API 670 requirements and allows backward-compatible integration with existing 3300 series 5 mm and 8 mm probes. Optional FluidLoc cables prevent leakage of oil or other liquids, ensuring operational reliability in harsh industrial environments.

Applications

Measure shaft vibration in fluid-film bearing machines

The 330104-00-08-10-01-CN 3300 XL 8 mm Proximity Probes provide a linear range of 2 mm (80 mils) and output voltage proportional to shaft displacement. Engineers use 330104-00-08-10-01-CN for real-time vibration monitoring on turbines, compressors, and pumps, enabling predictive maintenance.

Monitor axial and radial position of rotating machinery

With M10x1 threading and 15 mm maximum thread engagement, the 330104-00-08-10-01-CN accurately measures shaft position. Its output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m ensure precise position data for control loops.

Provide Keyphasor reference and speed measurement

The 330104-00-08-10-01-CN supports Keyphasor signal generation for speed and phase reference. The probe operates from −52 °C to +177 °C, allowing use in high-temperature turbines and compressors without signal degradation.

Integrate with Proximitor and automation systems

The 330104-00-08-10-01-CN connects via miniature coaxial ClickLoc connectors with 0.2–1.5 mm² field wiring. It is compatible with extension cables and 3300 series sensors, allowing seamless integration into 3500 racks and automation systems.

Specifications

Competitive Advantage

High linear accuracy and signal consistency

The 330104-00-08-10-01-CN maintains linearity over 2 mm range with less than 2 mV output change per volt input variation, providing precise data for automated machinery control and vibration analysis.

Wide operating temperature for harsh environments

Rated from −52 °C to +177 °C, the 330104-00-08-10-01-CN functions reliably in extreme industrial conditions, allowing continuous monitoring of turbines and high-temperature pumps.

Robust mechanical and cable design

The 330104-00-08-10-01-CN features patented TipLoc molding for probe tip bonding and CableLoc design for 330 N pull strength. Optional FluidLoc cables prevent oil leakage, protecting both the probe and machine internals.

Backward-compatible and interchangeable with 3300 series

The 330104-00-08-10-01-CN integrates with 3300 5 mm and 8 mm transducers, extension cables, and Proximitor sensors, allowing replacement or upgrade without recalibration or bench testing.

Compliance with industrial standards

The 330104-00-08-10-01-CN is CSA, ATEX, and IECEx approved and meets API 670 requirements for mechanical configuration, linear range, and accuracy, ensuring consistent performance in automation systems.
