Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-07-10-01-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
70 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x114cm |
|
Weight: |
0.1kg |
Description

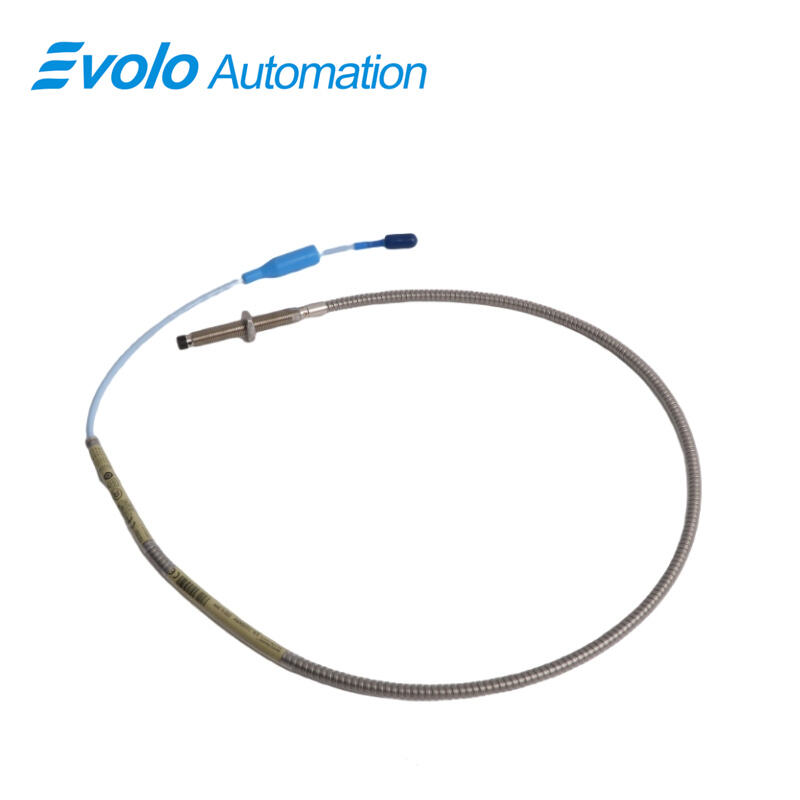

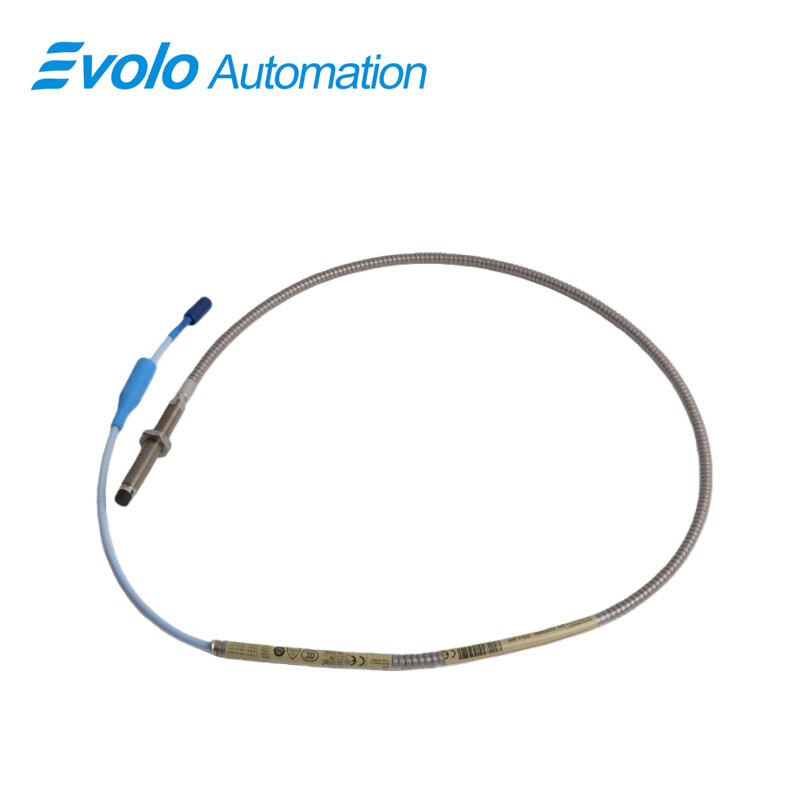

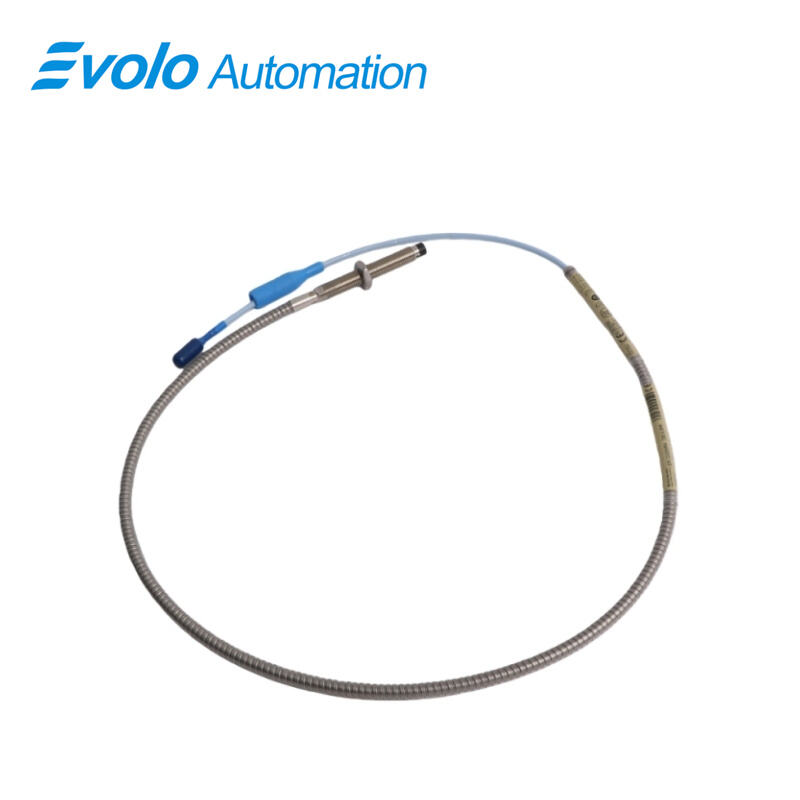

The 330104-00-07-10-01-CN 3300 XL 8 mm Proximity Probe converts displacement into output voltage proportional to the distance between the probe tip and the measured conductive surface. With a 70 mm case length, M10x1 thread, 1-meter standard cable, 50 Ω output resistance, <2 mV/V supply sensitivity, 69.9 pF/m cable capacitance, and 2 mm linear range, the 330104-00-07-10-01-CN 3300 XL enables precise monitoring of vibration and position in fluid-film bearings and rotating machinery. It operates in temperatures from -52°C to +177°C, making it suitable for automated predictive maintenance systems. The miniature ClickLoc connector with protector ensures secure signal transmission, while optional FluidLoc cabling prevents oil ingress, maintaining uninterrupted automated data acquisition for Keyphasor and speed reference applications.
Applications
Monitor Shaft Vibration in Fluid-Film Bearings
The 330104-00-07-10-01-CN 3300 XL 8 mm probe measures vibration with a 2 mm linear range and 50 Ω output resistance, capturing micro-displacements in fluid-film bearing machines. Its supply sensitivity of <2 mV/V ensures precise readings for automated condition monitoring systems.
Track Shaft Position for Automation Feedback
Using the 330104-00-07-10-01-CN 3300 XL, position measurements are delivered directly proportional to the distance of the probe tip from the conductive surface. The 70 mm case length and M10x1 thread enable secure mounting in turbine and pump systems for automated control loops.
Keyphasor and Speed Reference Detection
The 330104-00-07-10-01-CN 3300 XL outputs phase-synchronized pulses for Keyphasor measurements. With a 69.9 pF/m extension cable capacitance, it reliably transmits signals to automation controllers to calculate rotational speed and timing events.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High Measurement Accuracy
The 330104-00-07-10-01-CN 3300 XL features <2 mV/V supply sensitivity and a 50 Ω output resistance. These parameters minimize signal fluctuation and provide repeatable data for automated vibration analysis.
Extended Temperature Capability
Operating between -52°C and +177°C, the 330104-00-07-10-01-CN 3300 XL maintains performance in extreme industrial environments, reducing downtime for automated processes.
Reliable Mechanical Mounting
The TipLoc molded probe tip and M10x1 threaded case ensure that the 330104-00-07-10-01-CN 3300 XL remains accurately positioned under high vibration, critical for automated monitoring reliability.
Secure Signal Transmission
Miniature ClickLoc connector with protector, paired with optional FluidLoc cabling, ensures the 330104-00-07-10-01-CN 3300 XL provides consistent signal output without interruption from environmental liquids.
