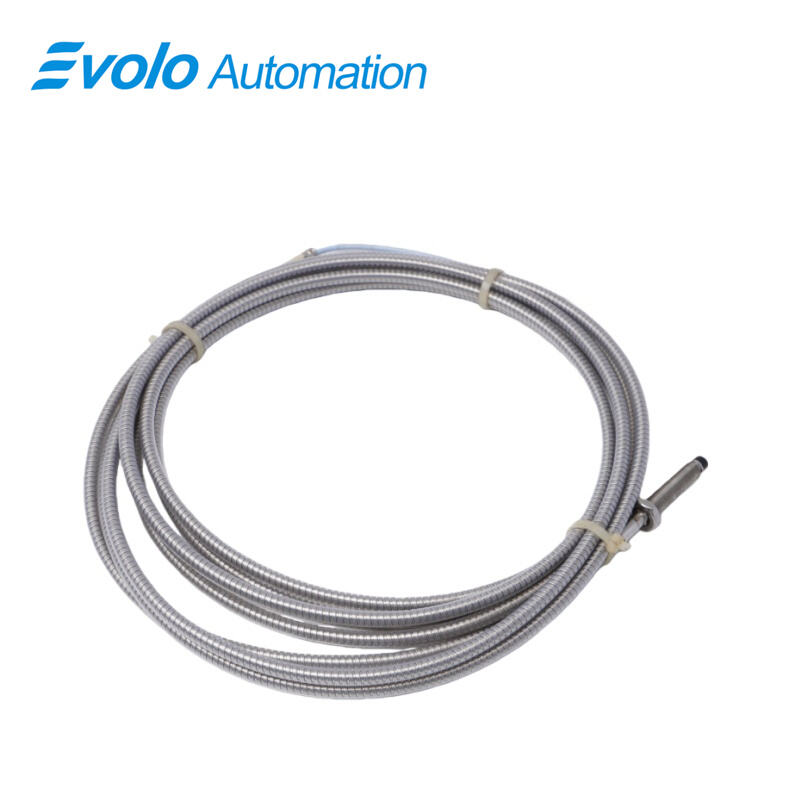

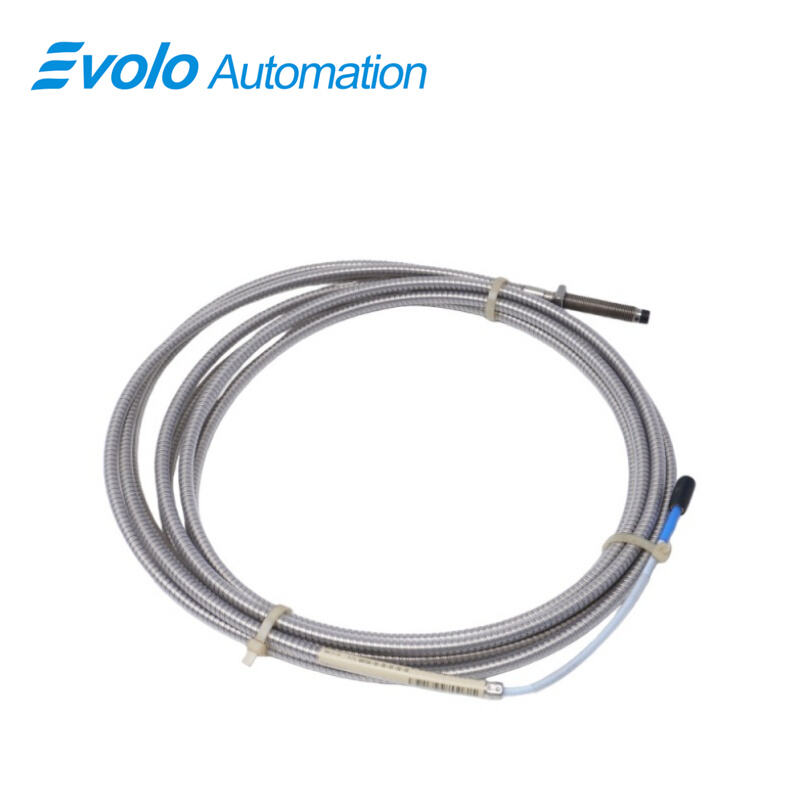

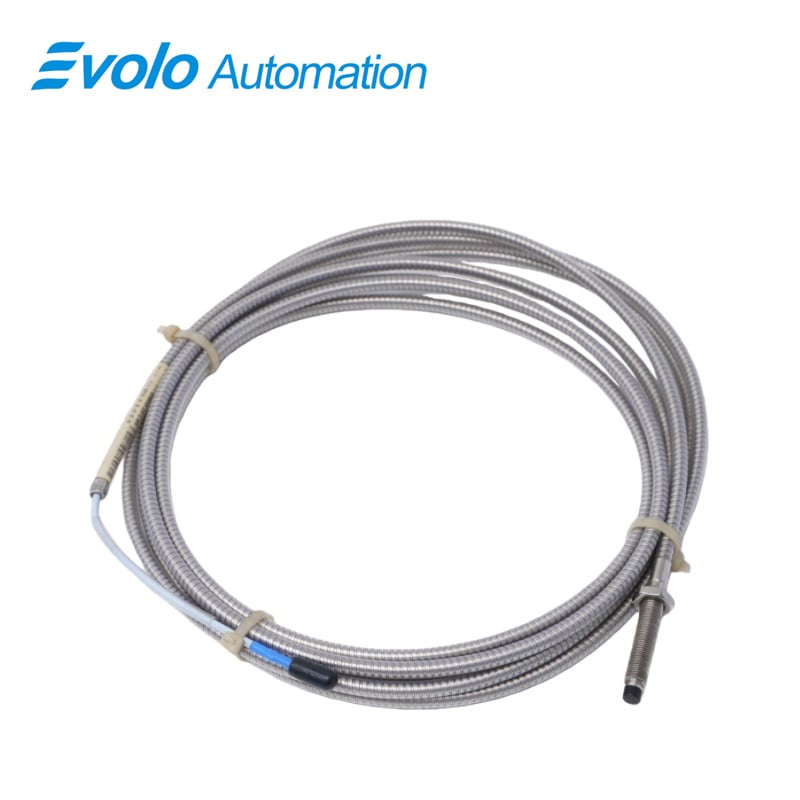

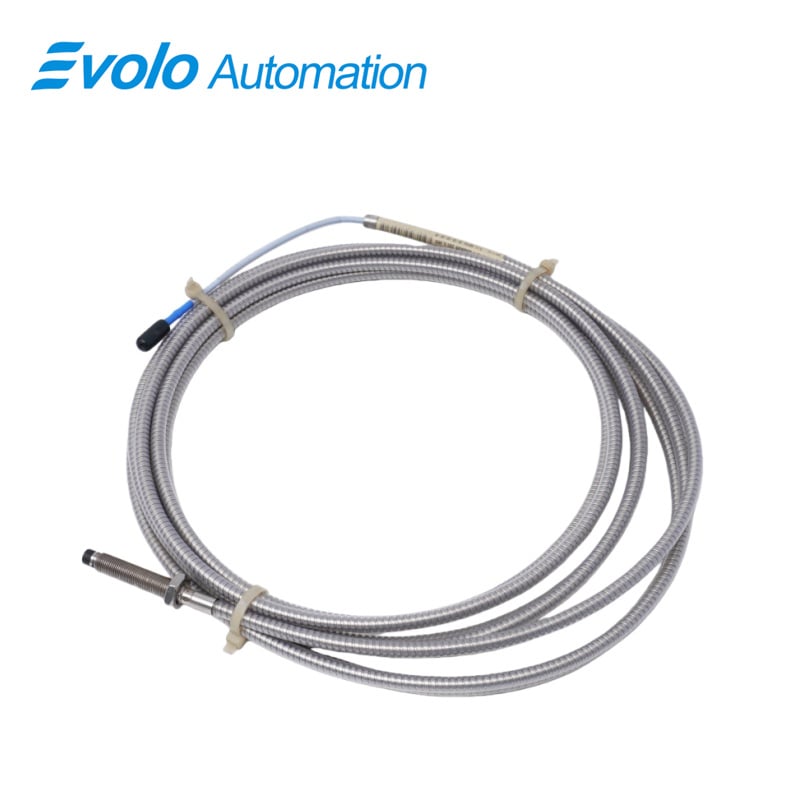

330104-00-05-50-11-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-05-50-11-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-05-50-11-00 3300 XL 8 mm Proximity Probe provides a voltage output proportional to the distance between the probe tip and conductive surfaces, enabling precise measurement of both static positions and dynamic vibrations. Designed for automated monitoring of fluid-film bearing machines, the 330104-00-05-50-11-00 supports Keyphasor reference and speed measurement in real-time systems. Its 50 mm case length, M10x1 thread, and 15 mm thread engagement make installation straightforward in automated machinery. The 5.0-meter FluidLoc extension cable ensures reliable signal transmission over long distances with 69.9 pF/m capacitance and 50 Ω output resistance. Field wiring accommodates 0.2–1.5 mm² conductors, and the ClickLoc connector with protector secures connections in automated setups. Operating between -52°C and +177°C, the 330104-00-05-50-11-00 maintains accurate readings despite temperature variations. Optional FluidLoc cable prevents leakage of oil or liquids into automated systems, while patented TipLoc and CableLoc designs provide strong probe-to-cable attachment. Fully compatible with other 3300 XL and standard 3300 series components, the 330104-00-05-50-11-00 ensures easy integration and replacement in automated monitoring networks.

Applications

Monitor Bearing Vibration on Automated Turbines
The 330104-00-05-50-11-00 measures vibration on fluid-film bearings in turbines, feeding data into automated monitoring systems for real-time alerts. Its 2 mm linear range and 50 mm case make it ideal for precise, high-frequency vibration detection.

Measure Shaft Position in Rotating Machinery
The 330104-00-05-50-11-00 captures static shaft positions in rotating machines, allowing automated alignment checks and reducing unplanned downtime.

Provide Keyphasor Reference for Speed Measurement
The 330104-00-05-50-11-00 delivers accurate Keyphasor signals for speed control loops in automated systems, integrating directly with PLCs or DCS systems.

Long-Distance Signal Transmission in Automation
Using the 5.0-meter FluidLoc extension cable, the 330104-00-05-50-11-00 securely transmits signals across automated equipment without signal degradation.

Specifications

Competitive Advantage

Quick Installation in Automated Machines
The 50 mm case and M10x1 thread of 330104-00-05-50-11-00 allow easy mounting in automated setups with minimal adjustment.

Leak-Resistant Operation
The optional FluidLoc cable of 330104-00-05-50-11-00 prevents oil or liquids from escaping through probe connections, maintaining clean automation environments.

High Pull Strength Probe Attachment
Patented TipLoc and CableLoc designs in the 330104-00-05-50-11-00 provide 330 N pull strength, securing probe-to-cable connections during high-vibration automated monitoring.

Seamless Integration with 3300 Series
The 330104-00-05-50-11-00 is backward compatible with other 3300 XL and standard 3300 series components, supporting automated system upgrades without recalibration.

Wide Operating Temperature Range
The 330104-00-05-50-11-00 operates from -52°C to +177°C, enabling continuous measurement in diverse industrial automation environments.

Field Wiring Flexibility
Supporting 0.2–1.5 mm² field wiring (16–24 AWG) and miniature ClickLoc connectors, the 330104-00-05-50-11-00 adapts easily to existing automated machine layouts.
