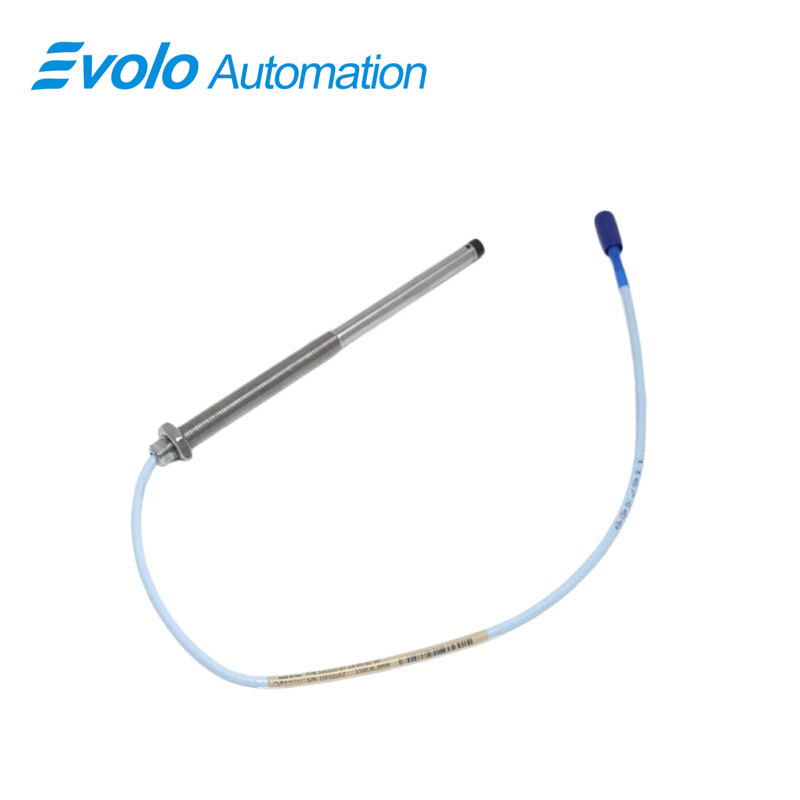

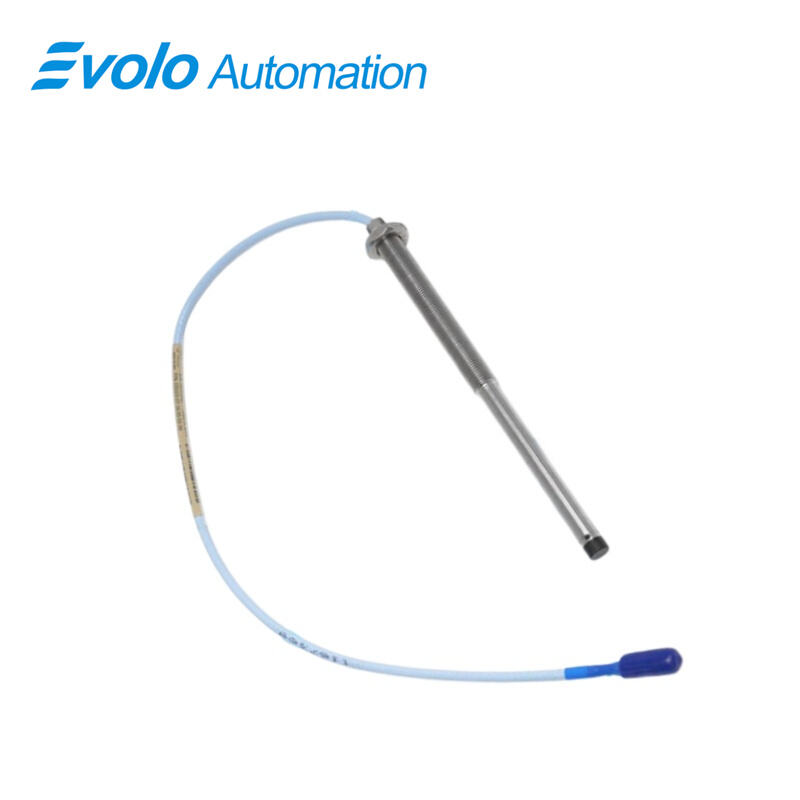

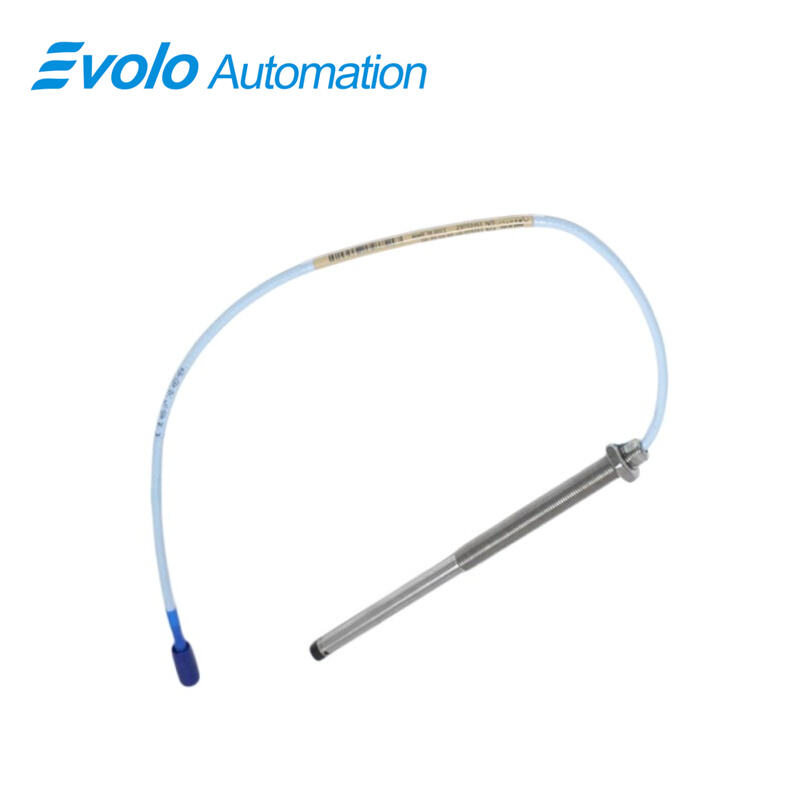

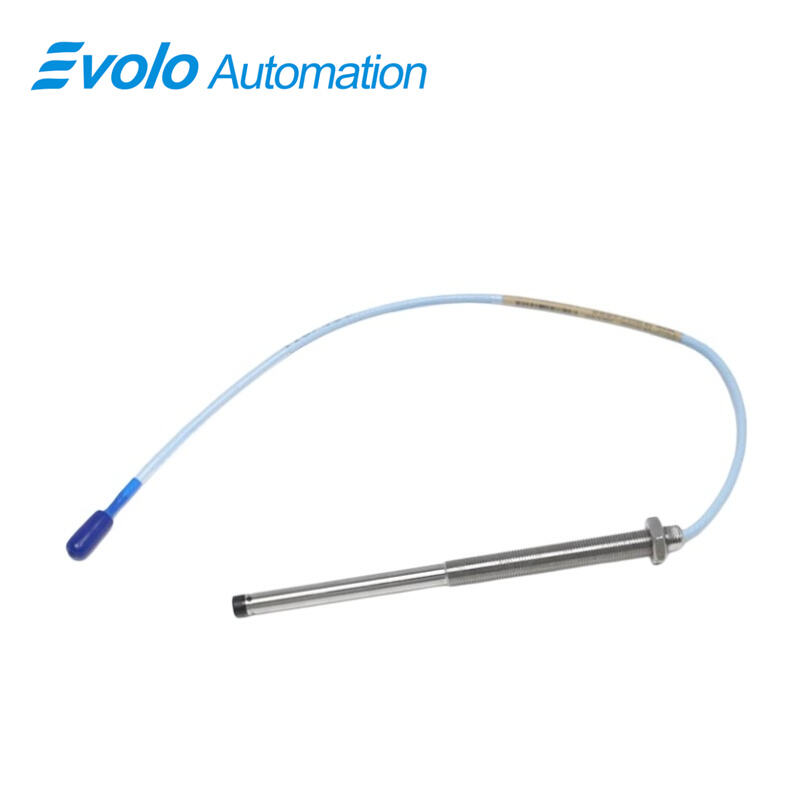

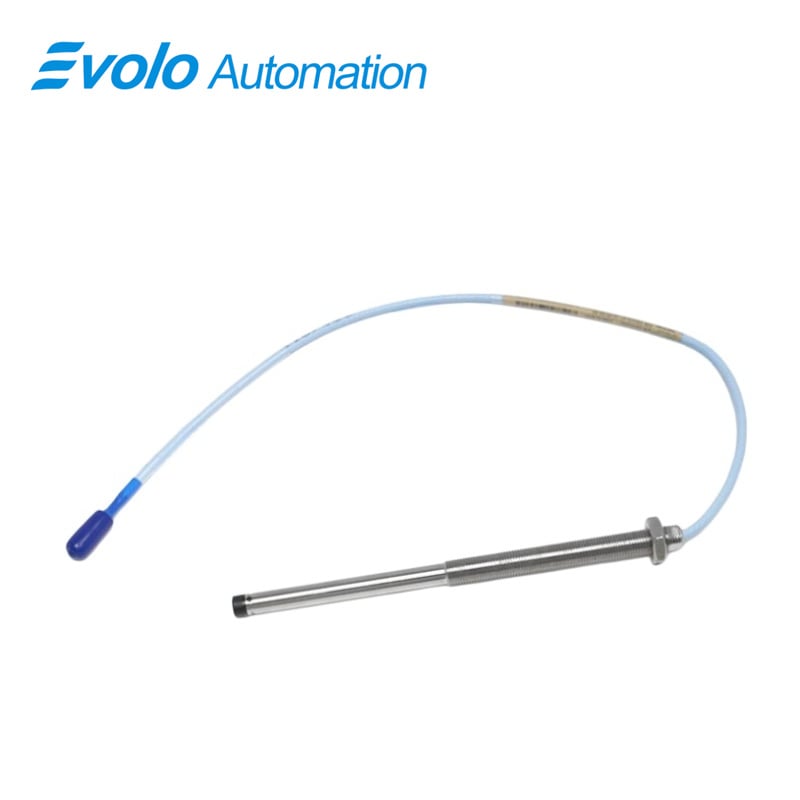

330103-07-16-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-07-16-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-07-16-05-02-00 3300 XL 8 mm Proximity Probe is designed for industrial automation systems that require direct shaft displacement and vibration measurement. 330103-07-16-05-02-00 features a 70 mm unthreaded length, 160 mm minimum case length, and M10x1 threaded body with 15 mm maximum engagement, allowing secure mounting on bearing housings. The 0.5 meter standard cable with miniature coaxial ClickLoc connector supports compact panel routing.

330103-07-16-05-02-00 provides a 2 mm linear range (80 mils) and 50 Ω output resistance, with typical extension cable capacitance of 69.9 pF/m. Operating from -52°C to +177°C, 330103-07-16-05-02-00 fits turbine, compressor, and pump control environments. Supply sensitivity is less than 2 mV output change per volt input variation, enabling direct integration with PLC and DCS monitoring modules. In automation machinery, 330103-07-16-05-02-00 converts shaft distance into proportional voltage signals for position tracking, vibration alarms, and speed reference input.

Applications

Shaft vibration measurement on fluid film bearings
330103-07-16-05-02-00 converts dynamic shaft displacement within 2 mm linear range into proportional voltage, allowing vibration monitors to detect movement exceeding 0.1 mm thresholds for automated trip logic.

Axial shaft position monitoring for thrust bearing control
330103-07-16-05-02-00 measures axial displacement up to ±2 mm with 50 Ω output, providing continuous signals for control systems to trigger corrective actions when movement exceeds 1 mm.

Speed and Keyphasor signal generation
By detecting rotational events, 330103-07-16-05-02-00 generates one pulse per revolution with ±0.01 mm positioning accuracy, supporting real-time speed and phase analysis in automation systems.

Displacement input for DCS trending
With 0.2–1.5 mm² field wiring support and <2 mV/volt supply sensitivity, 330103-07-16-05-02-00 provides consistent voltage output for trending shaft movement and automated alarms.

Specifications

Competitive Advantage

Direct M10x1 threaded mounting for precise installation
330103-07-16-05-02-00 can engage threads up to 15 mm, allowing secure mounting without custom brackets and minimizing installation errors.

Compact 0.5 meter ClickLoc cable for fast panel wiring
330103-07-16-05-02-00 reduces wiring length while supporting typical extension capacitance of 69.9 pF/m, improving signal quality in control racks.

Extended temperature operation
Rated from -52°C to +177°C, 330103-07-16-05-02-00 maintains voltage output within ±2 mV even in extreme thermal conditions.

Low supply sensitivity for predictable automation signals
330103-07-16-05-02-00 maintains output voltage variations below 2 mV per volt input change, ensuring reliable integration with industrial PLC and DCS modules.

TipLoc and CableLoc design for mechanical security
330103-07-16-05-02-00 improves probe tip bond strength and cable pull strength to 330 N, reducing detachment risk in high-vibration machinery environments.
