330103-05-10-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-05-10-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

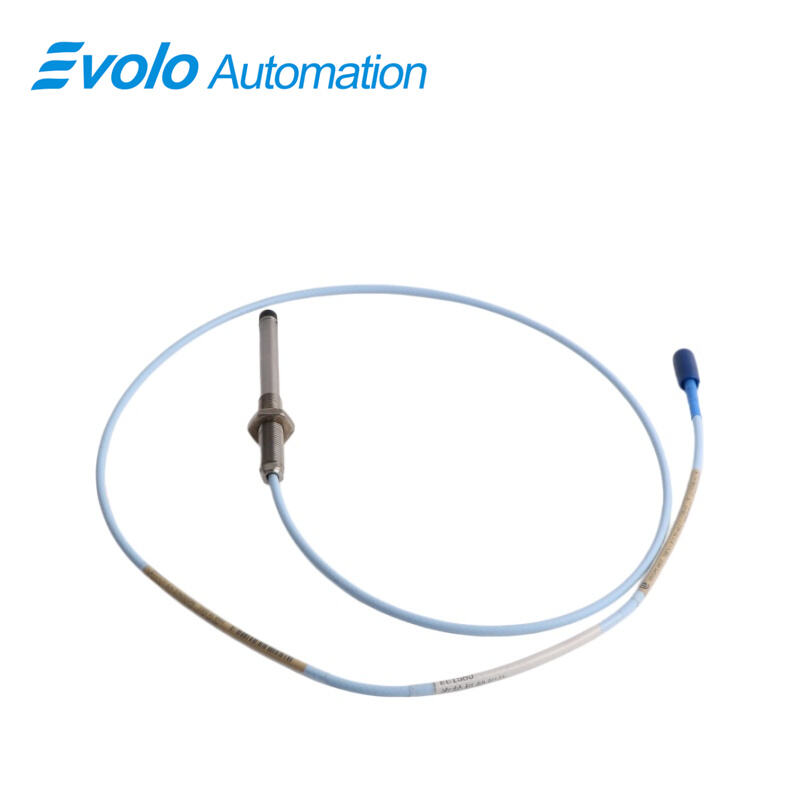

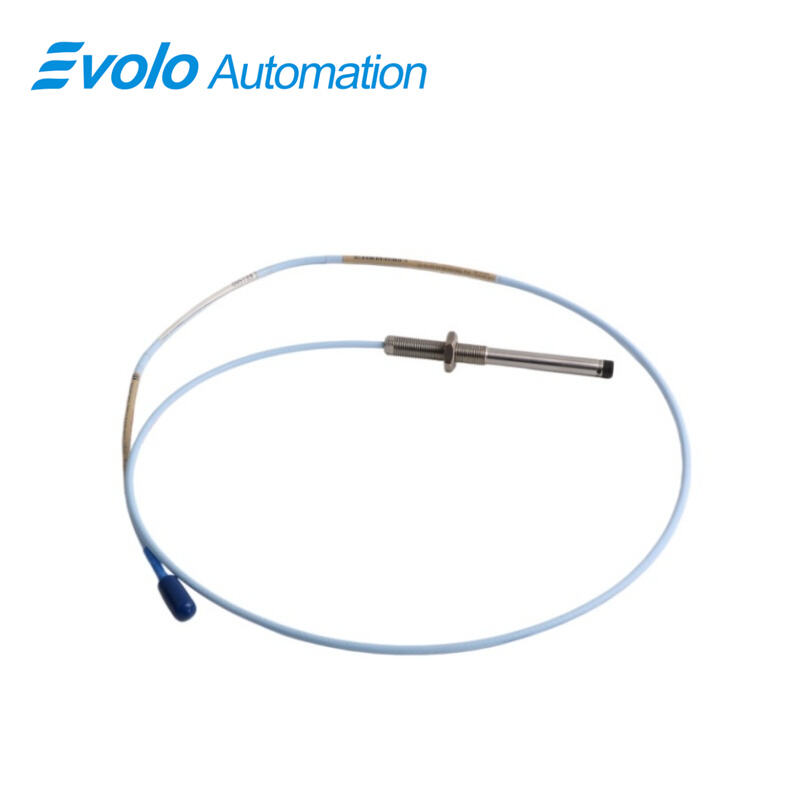

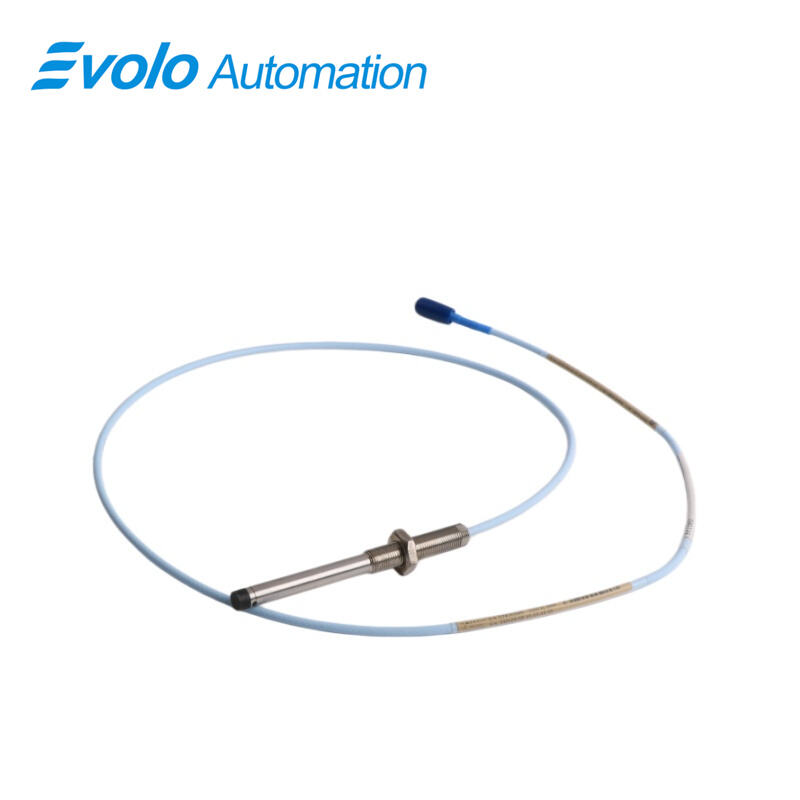

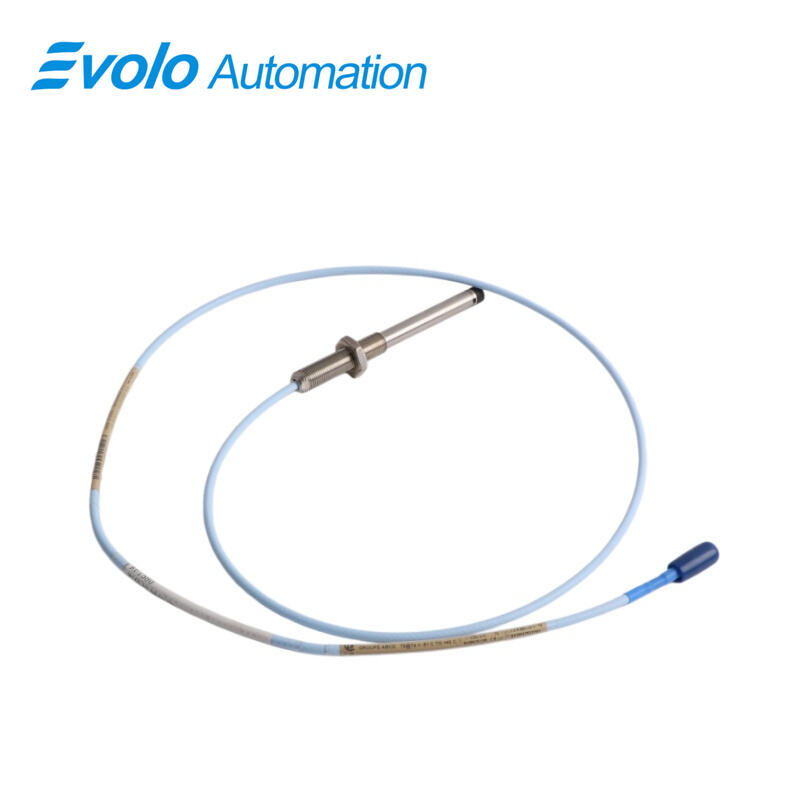

330103-05-10-10-02-00 is a 3300 XL 8 mm proximity probe designed for shaft vibration and position measurement in industrial automation systems. 330103-05-10-10-02-00 uses an M10x1 threaded case with 50 mm minimum unthreaded length and 100 mm minimum case length, allowing direct mounting into bearing housings. The total cable length is 1.0 meter with a miniature coaxial ClickLoc connector and standard cable.

330103-05-10-10-02-00 provides a 2 mm linear measurement range (80 mils). Output resistance is 50 Ω, ensuring direct connection to monitoring modules. Extension cable capacitance is 69.9 pF/m, supporting accurate signal transmission over standard installation distances. Supply sensitivity is less than 2 mV change per volt variation, maintaining consistent voltage output during power fluctuation. The probe operates from −52°C to +177°C, making 330103-05-10-10-02-00 suitable for turbines and compressors exposed to high process temperatures. Maximum thread engagement is 15 mm, and field wiring supports 0.2–1.5 mm² (16–24 AWG).

Applications

Measure Radial Shaft Vibration Within 2 mm Linear Range
330103-05-10-10-02-00 measures radial shaft displacement up to 2 mm (80 mils) inside journal bearing machines. When shaft movement remains inside the 2 mm linear range, 330103-05-10-10-02-00 outputs proportional voltage directly related to gap change. With 50 Ω output resistance and 69.9 pF/m cable capacitance, 330103-05-10-10-02-00 maintains clear signal transmission over its 1.0 meter cable length, allowing accurate vibration data input into monitoring modules.

Detect Axial Thrust Position in Turbines Using M10x1 Mounting
Installed with M10x1 thread and up to 15 mm thread engagement, 330103-05-10-10-02-00 fits directly into thrust bearing housings. The 50 mm unthreaded length and 100 mm case length allow correct probe gap adjustment. In steam and gas turbines operating up to +177°C, 330103-05-10-10-02-00 continues measuring axial displacement without additional cooling devices.

Generate Keyphasor Pulses for Speed Calculation
330103-05-10-10-02-00 detects once-per-revolution marks on rotating shafts and converts distance variation into voltage pulses. With supply sensitivity less than 2 mV per volt change, 330103-05-10-10-02-00 limits output deviation even if input voltage fluctuates, ensuring accurate rotational speed calculation in automation control racks.

Monitor Equipment in Low Temperature Outdoor Installations
Operating down to −52°C, 330103-05-10-10-02-00 can be installed in outdoor compressor stations and pipeline pump units. The 1.0 meter standard cable and ClickLoc connector enable quick connection while maintaining consistent signal transmission through 16–24 AWG wiring.

Specifications

Competitive Advantage

Maintain Signal Accuracy with <2 mV/V Supply Sensitivity
When power supply varies by 1 V, 330103-05-10-10-02-00 changes output by less than 2 mV. This quantified limit ensures that measurement deviation remains minimal in automation cabinets where voltage variation may occur.

Support Direct Integration with 50 Ω Output
The fixed 50 Ω output resistance of 330103-05-10-10-02-00 matches standard monitoring inputs, reducing signal reflection and loss. Combined with 69.9 pF/m capacitance, 330103-05-10-10-02-00 provides predictable electrical performance over the 1.0 meter extension.

Operate Across −52°C to +177°C Range
With a total temperature span of 229°C, 330103-05-10-10-02-00 can function in cold outdoor facilities and high-temperature turbine enclosures. This wide range allows one probe type to cover multiple installation zones in automation projects.

Enable Precise Mechanical Installation with Defined Dimensions
The 50 mm minimum unthreaded length, 100 mm case length, and maximum 15 mm thread engagement of 330103-05-10-10-02-00 provide measurable installation depth control. These defined dimensions help engineers set accurate probe gap within the 2 mm linear measurement range.
