330103-03-12-05-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-03-12-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

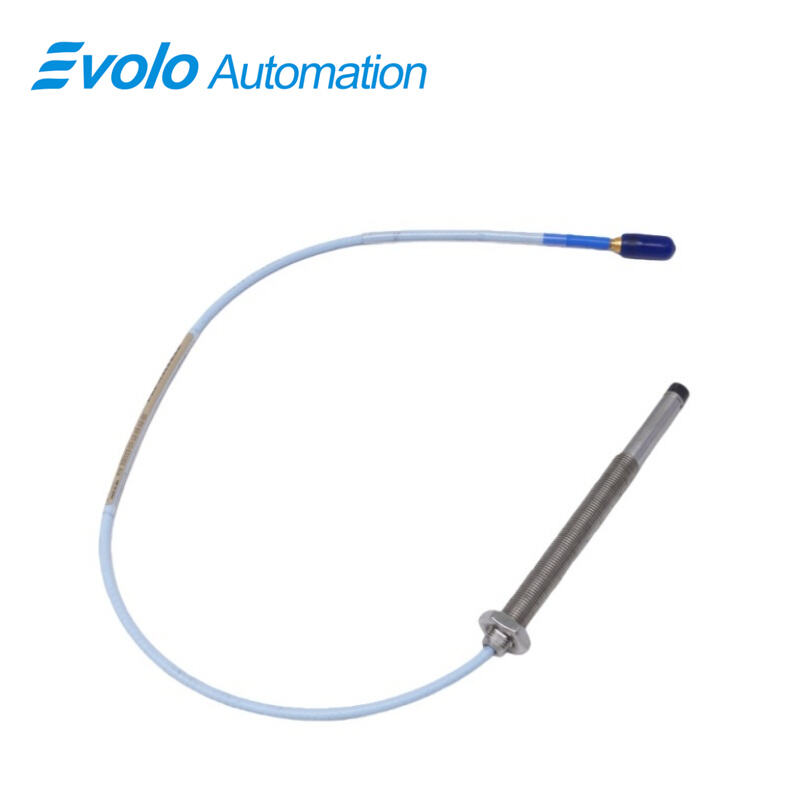

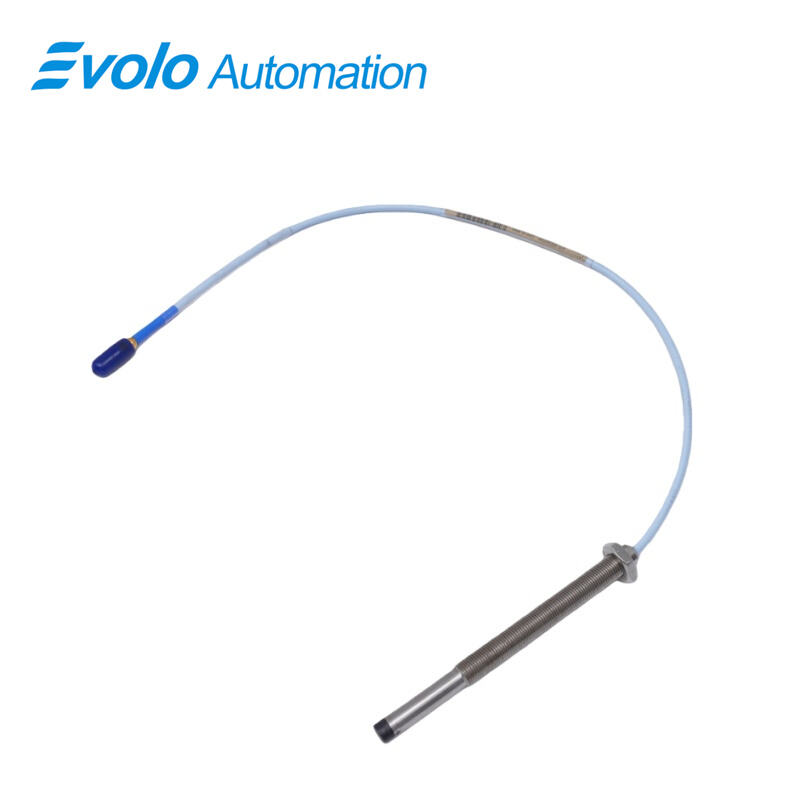

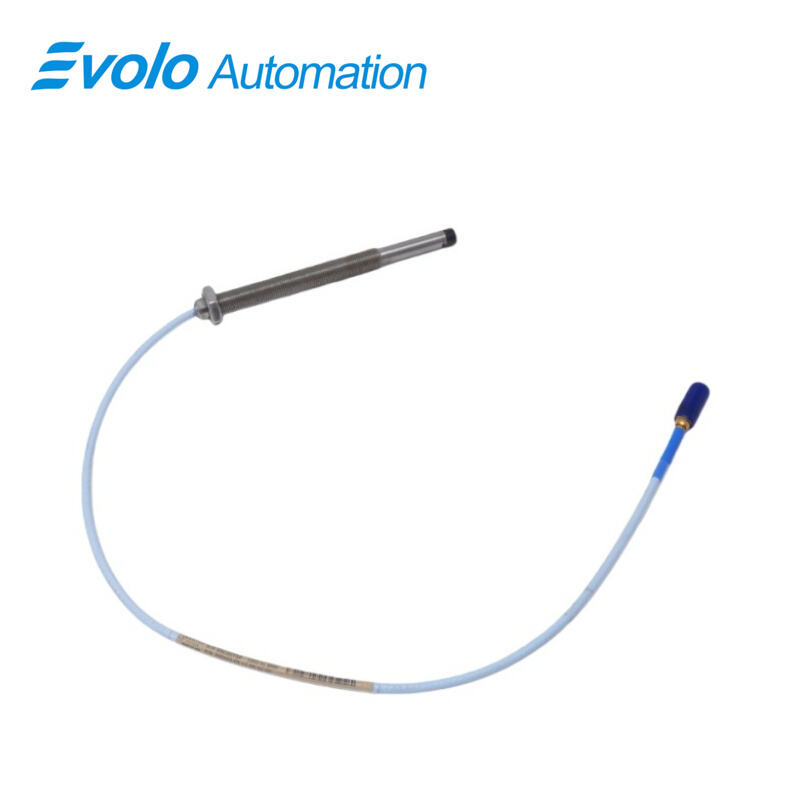

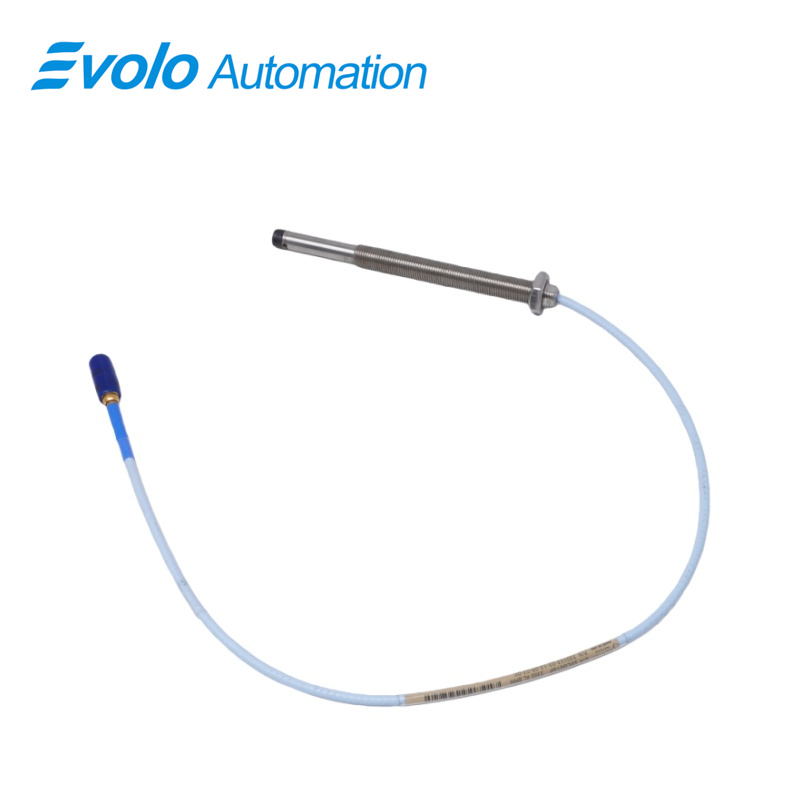

The 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe delivers precise measurement of position and vibration for automation systems. With a linear range of 2 mm, output resistance of 50 Ω, and supply sensitivity under 2 mV/V, the 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe converts distance to output voltage directly proportional to the conductive target. The probe features a 30 mm unthreaded length, M10x1 thread, and 0.5-meter total length with ClickLoc miniature coaxial connector. Operating from -52°C to +177°C, the 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe supports both static and dynamic monitoring on fluid-film bearings, Keyphasor, and speed measurement applications. Extension cable capacitance is 69.9 pF/m, field wiring 0.2–1.5 mm², and thread engagement up to 15 mm. The 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe incorporates TipLoc molding for a strong tip-body bond and CableLoc design for 330 N pull strength, ensuring secure installation in industrial automation systems. Optional FluidLoc cables prevent fluid leakage. Fully API 670 compliant, 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe allow component interchange with other 3300 series systems, enabling flexible integration in vibration and position sensing setups across automated machinery.

Applications

Position Measurement on Fluid-Film Bearings
The 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe measures rotor shaft displacement with a linear range of 2 mm. Its M10x1 thread and 30 mm unthreaded length allow precise mounting in confined bearing housings for accurate shaft position detection.

Vibration Monitoring of Rotating Machinery
Using the 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe, dynamic vibration signals are captured with output resistance of 50 Ω and supply sensitivity below 2 mV/V. The 0.5-meter extension cable ensures flexible placement in pumps, turbines, or compressors for real-time vibration monitoring.

Keyphasor Signal Generation
The 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe produces a reliable output proportional to rotor position, serving as a Keyphasor reference for speed calculation and phase tracking in automated control systems.

Speed Measurement of Rotating Shafts
With ClickLoc miniature coaxial connector and extension cable capacitance of 69.9 pF/m, the 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe converts distance changes into voltage signals to calculate RPM in fluid-film bearings and other high-speed machinery.

Specifications

Competitive Advantage

Secure Probe Installation
The 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe uses patented CableLoc design with 330 N pull strength, ensuring the probe cable and tip remain firmly attached during machine operation.

Tip Bond Reinforcement
TipLoc molding on the 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe creates a durable bond between tip and probe body, reducing maintenance needs and preventing signal loss in automation systems.

API 670 Compliance for Installation
The 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe meets API 670 mechanical configuration and linear range requirements, allowing direct replacement and integration with other 3300 series probes without bench calibration.

Extended Temperature Operation
Operating from -52°C to +177°C, the 330103-03-12-05-02-00 3300 XL 8 mm Proximity Probe functions reliably in extreme heat or cold environments, supporting automated monitoring of industrial equipment in diverse conditions.
