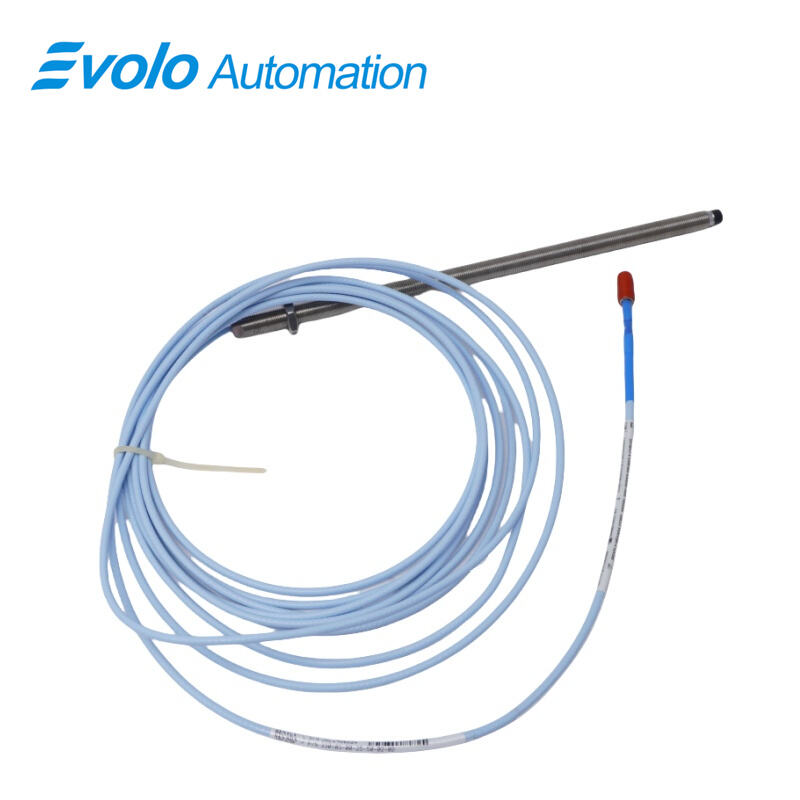

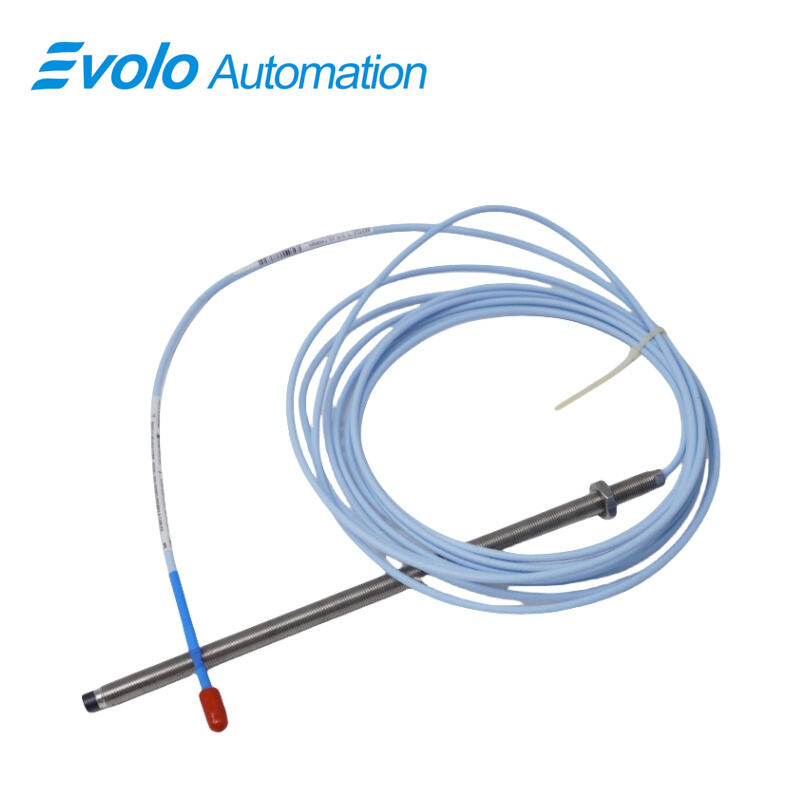

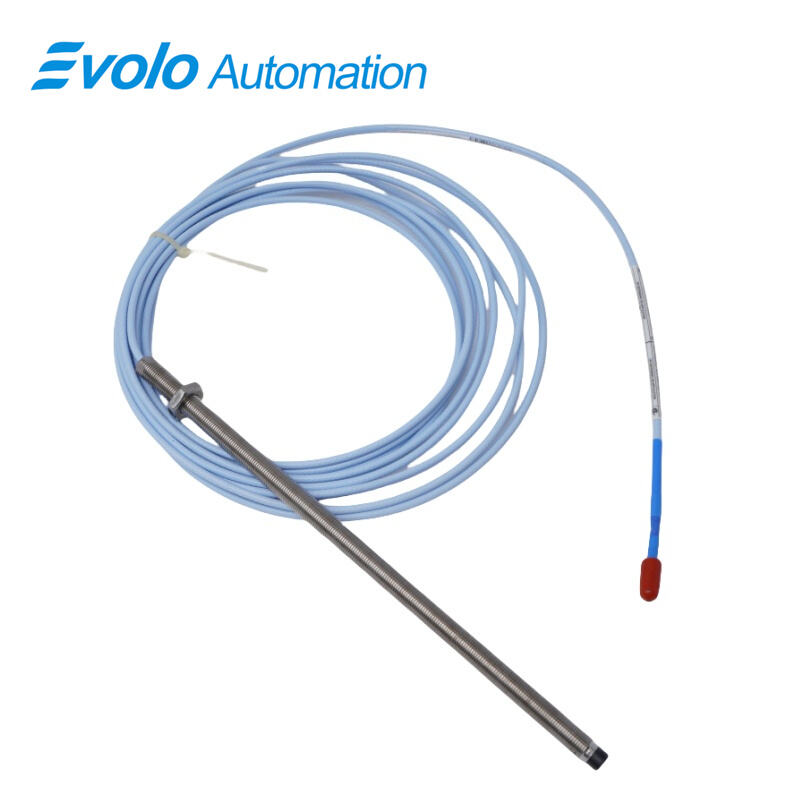

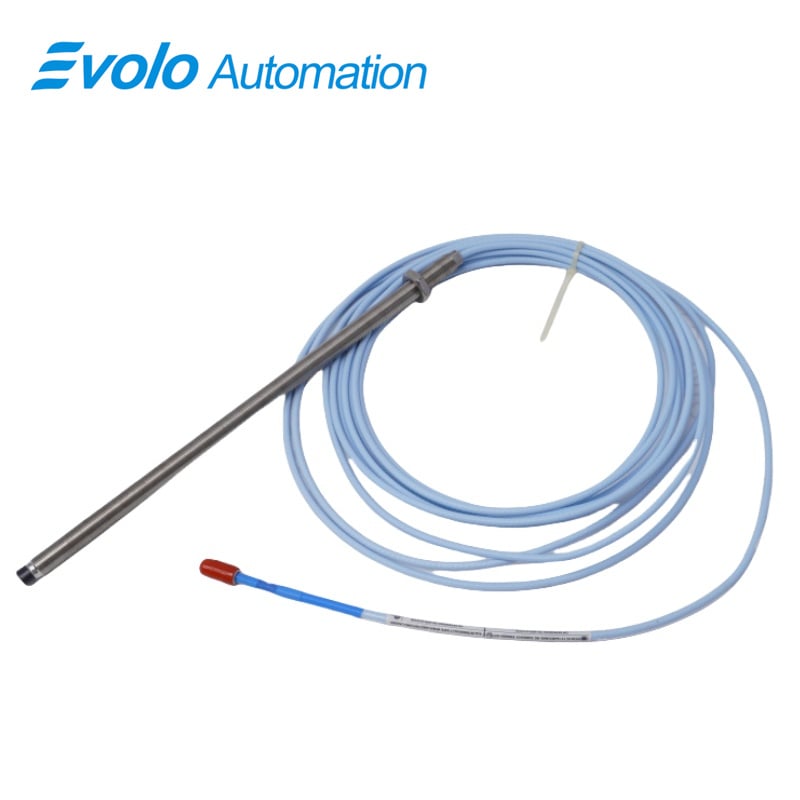

330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-25-50-02-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes deliver precise position and vibration measurements for fluid-film bearing machines, providing voltage output directly proportional to the distance between the probe tip and conductive surfaces. With an unthreaded length of 0 mm, overall case length of 250 mm, and total length of 5.0 meters, the 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes connect via a miniature coaxial ClickLoc connector with standard cable. Its M10x1 threaded case engages up to 15 mm, and the probes operate between -52°C and +177°C. Output resistance is 50 Ω, extension cable capacitance is 69.9 pF/m, and field wiring supports 0.2–1.5 mm². The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes linear range is 2 mm, suitable for Keyphasor reference and speed monitoring. Patented TipLoc probe tips and CableLoc connectors deliver up to 330 N pull strength, while optional FluidLoc cables prevent fluid leakage. CSA, ATEX, and IECEx approvals ensure safe operation. The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes support interchangeable deployment with other 3300 series components, providing high-resolution automation measurement for industrial machinery.

Applications

Position Monitoring on Fluid-Film Bearings
The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes measure shaft displacement by generating voltage proportional to the probe tip distance from conductive surfaces. With a linear range of 2 mm and supply sensitivity below 2 mV per volt, operators can detect small positional changes accurately.

Vibration Measurement on Rotating Equipment
The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes detect dynamic vibrations on turbines and compressors. Operating from -52°C to +177°C and supporting both static and dynamic measurements, these probes capture vibration signals in extreme industrial environments.

Speed Reference Signal for Keyphasor Systems
The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes provide a Keyphasor output for speed measurement. Their 50 Ω output resistance and optional 5-meter extension cable allow integration with automation control systems for accurate rotational monitoring.

Specifications

Competitive Advantage

Direct Distance-to-Voltage Measurement
The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes output voltage changes less than 2 mV per volt of input, providing precise measurement of shaft displacement within a 2 mm linear range. This ensures small positional deviations are captured accurately in automation control systems.

High Pull Strength Probe and Cable Connection
TipLoc molded tips and CableLoc connectors on the 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes provide up to 330 N pull strength. This quantifiable attachment force secures the probe and cable during high-vibration operation of turbines and compressors.

Interchangeable with 3300 Series Components
The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes are fully compatible with 5 mm and 8 mm 3300 series probes and extension cables. The 5.0-meter total length and 50 Ω output resistance allow seamless integration without bench calibration, saving installation and maintenance time.

Flexible Wiring Integration
The 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes support field wiring from 0.2 to 1.5 mm² (16–24 AWG) and extension cable capacitance of 69.9 pF/m. These measurable specifications simplify connection to automation control and monitoring systems.

Extended Temperature Operation
Operating from -52°C to +177°C, the 330103-00-25-50-02-02 3300 XL 8 mm Proximity Probes reliably monitor equipment under extreme temperatures. The quantitative operating range ensures the probe maintains linear response and output voltage consistency in harsh industrial environments.
