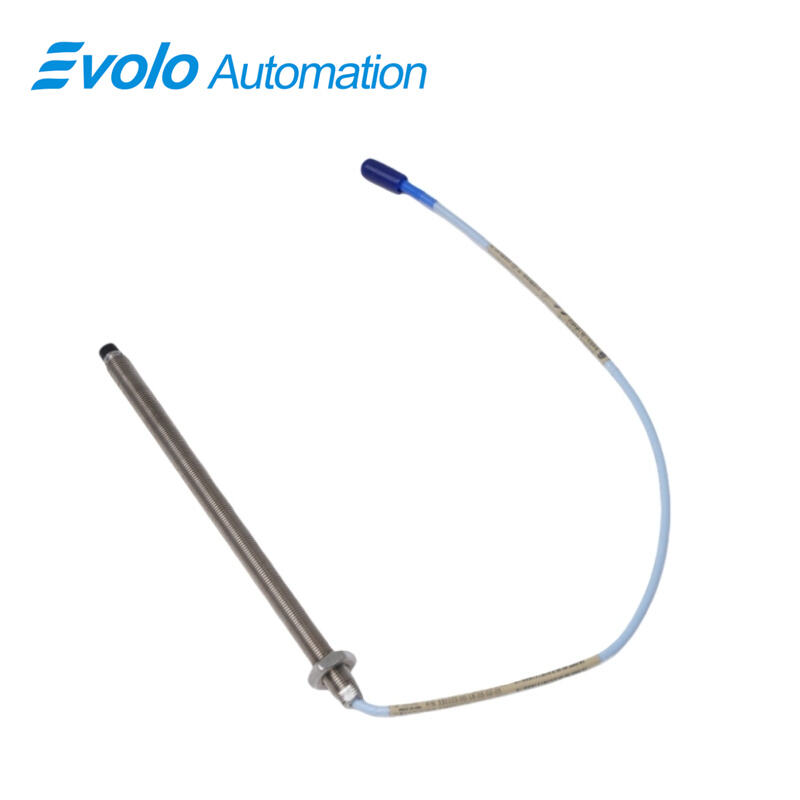

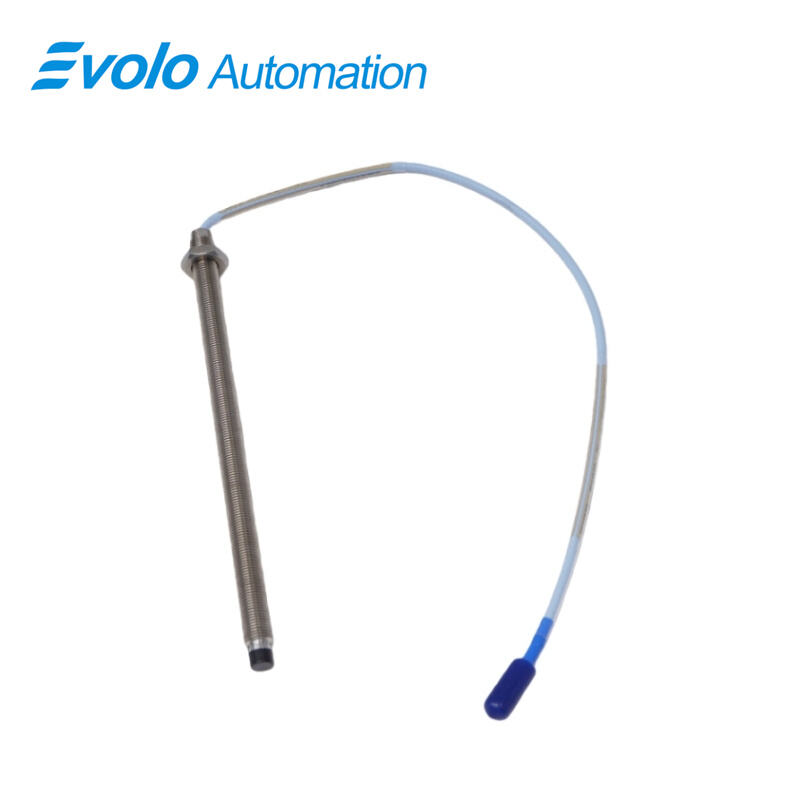

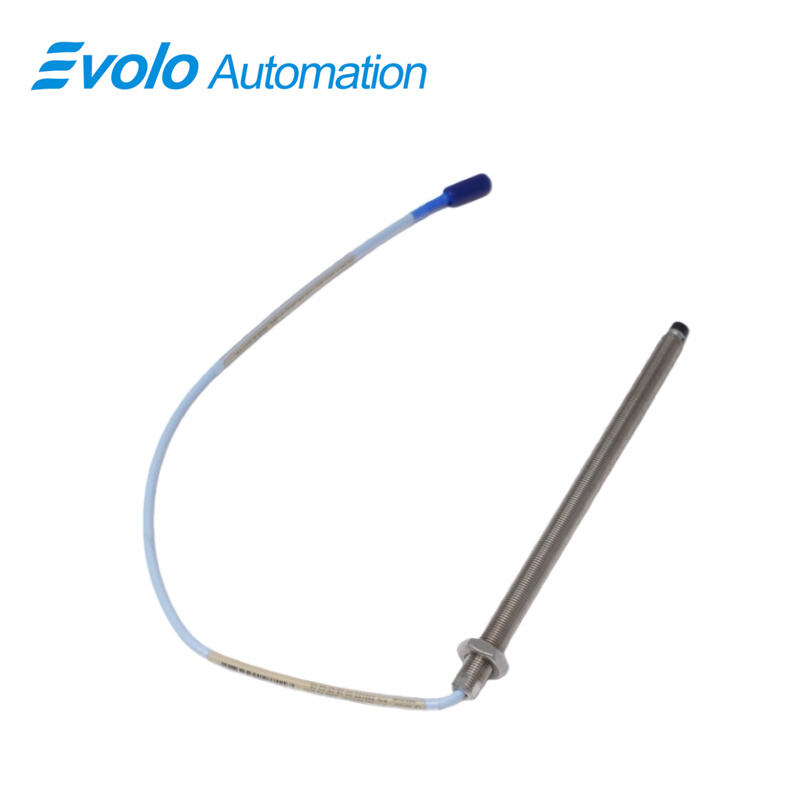

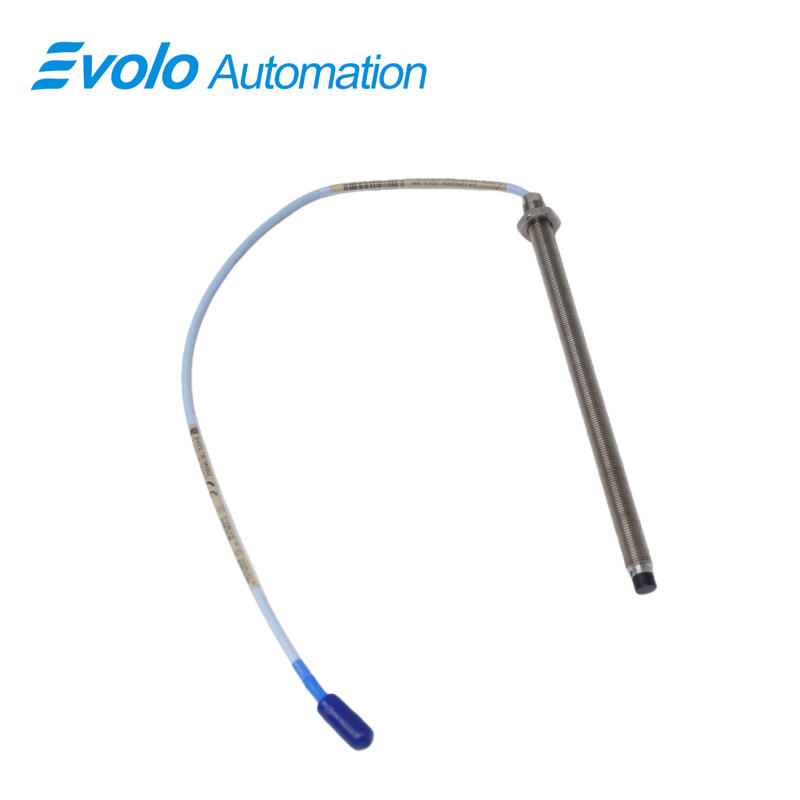

330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-18-05-02-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes deliver precise position and vibration measurements for fluid-film bearing machines, providing output voltage proportional to the probe tip distance from conductive surfaces. Featuring an unthreaded length of 0 mm, overall case length of 180 mm, and total length of 0.5 m, the 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes connect via a miniature coaxial ClickLoc connector with standard cable. Its M10x1 threaded case engages up to 15 mm, while operating across temperatures from -52°C to +177°C. Output resistance is 50 Ω, with extension cable capacitance of 69.9 pF/m, and field wiring supports 0.2–1.5 mm². The 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes linear range is 2 mm, suitable for Keyphasor reference and speed measurements. Approved by CSA, ATEX, and IECEx, the 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes integrate easily with existing 3300 series systems, allowing probe, extension cable, and Proximitor sensor interchangeability without recalibration. The probe’s TipLoc molded tip and CableLoc connector deliver secure attachment up to 330 N, while optional FluidLoc cable prevents liquid leakage. The 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes ensure repeatable, high-resolution automation measurements, making them ideal for industrial control applications requiring precise position and vibration monitoring.

Applications

Position Measurement on Fluid-Film Bearings
The 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes measure shaft displacement by providing an output voltage proportional to the distance between the probe tip and conductive surface. With a linear range of 2 mm and high input voltage sensitivity below 2 mV per volt, it enables precise monitoring of bearing positions.

Vibration Analysis on Rotating Machinery
Using the 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes, dynamic vibrations of turbines and compressors can be detected accurately. The probe supports both static and dynamic measurements, operating across -52°C to +177°C, making it suitable for industrial machinery under extreme temperatures.

Keyphasor Signal Generation for Speed Measurement
The 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes provide a reliable Keyphasor reference signal for speed control systems. With a 50 Ω output resistance and optional extension cables up to 0.5 m, it integrates directly with industrial speed monitoring and control equipment.

Specifications

Competitive Advantage

Secure Probe and Cable Connection
TipLoc molded probe tips and CableLoc connectors provide up to 330 N pull strength, ensuring the probe tip and cable remain firmly attached during machine operation.

Interchangeable with Existing 3300 Series Components
The 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes can be swapped with 5 mm and 8 mm 3300 series probes and extension cables without recalibration, saving time during installation or replacement.

Field Wiring Flexibility
330103-00-18-05-02-05 Supports 0.2–1.5 mm² wiring (16–24 AWG) and extension cable capacitance of 69.9 pF/m, allowing quick integration into existing industrial automation wiring systems.

Wide Temperature Operation
Operating from -52°C to +177°C, the 330103-00-18-05-02-05 3300 XL 8 mm Proximity Probes can be deployed in extreme cold or hot industrial environments without affecting measurement output.
