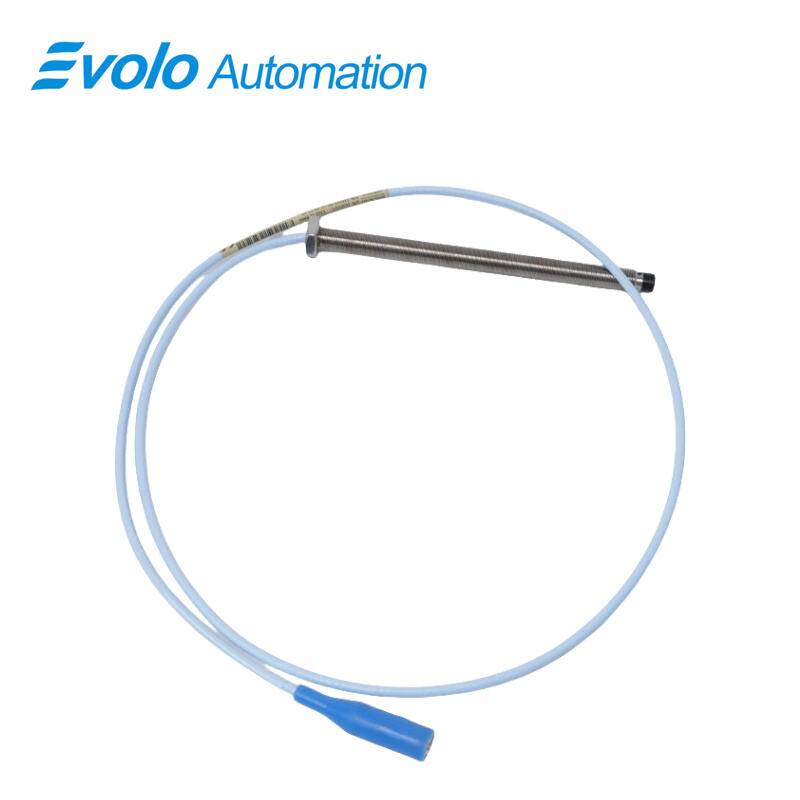

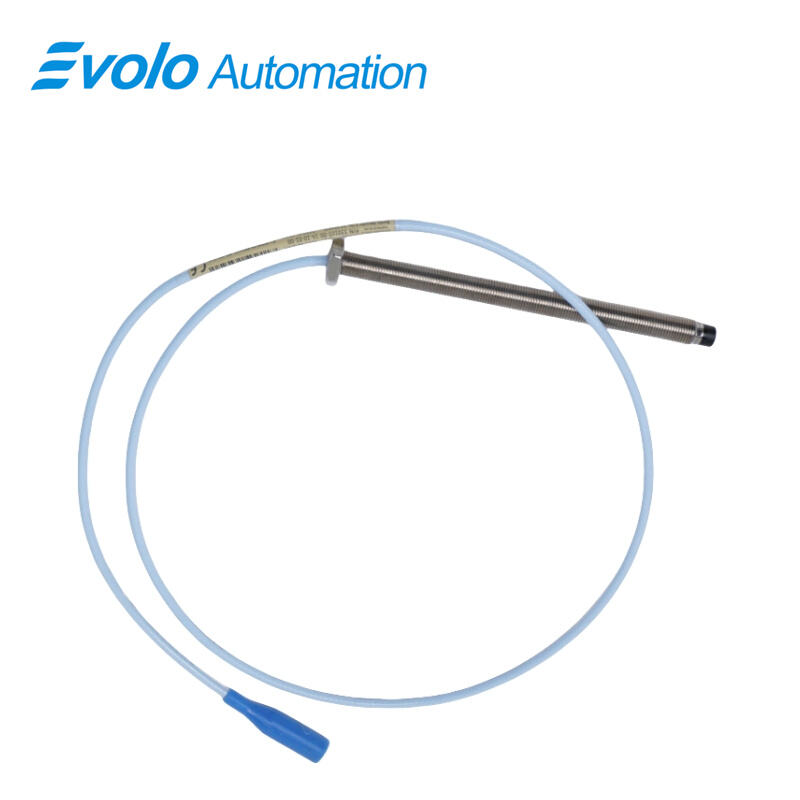

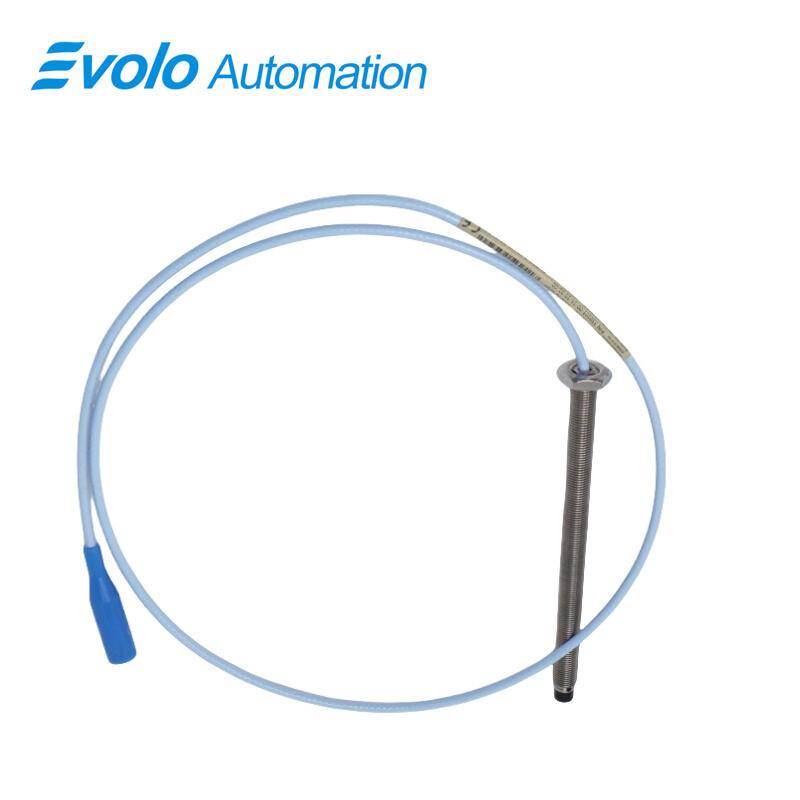

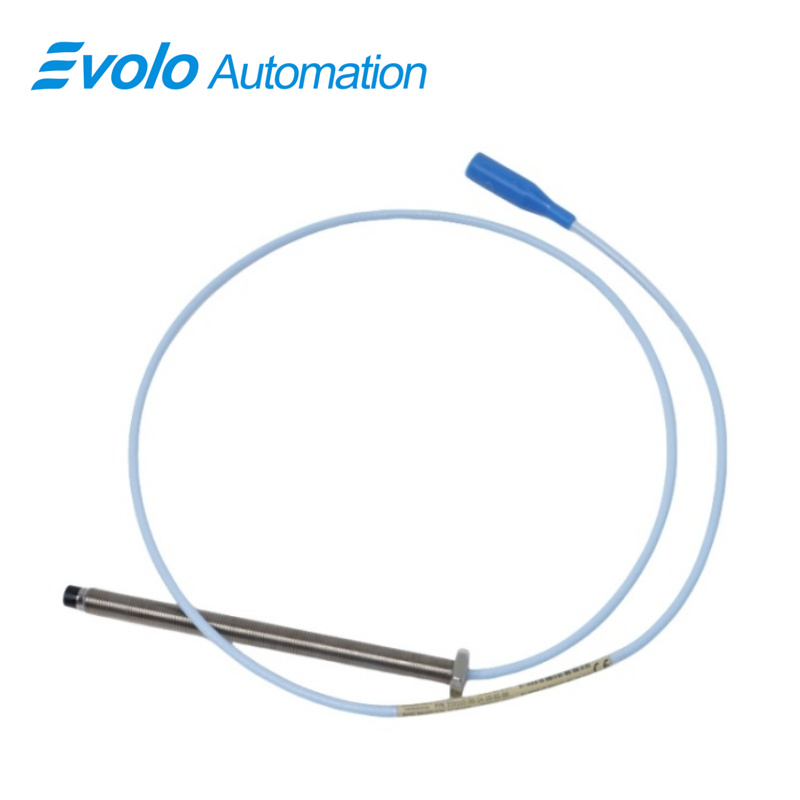

330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-14-50-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe delivers precise voltage output proportional to the distance between its probe tip and the target conductive surface, enabling accurate static (position) and dynamic (vibration) measurement in automated machinery. Designed for fluid-film bearing machines, the 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe supports Keyphasor reference and speed measurement applications with its 2 mm linear range and 50 Ω output resistance. The 140 mm case length and M10x1 thread facilitate secure installation, while the 5.0-meter total cable length with 69.9 pF/m capacitance ensures reliable signal transmission to remote Proximitor sensors. Supply sensitivity remains below 2 mV per volt, maintaining consistent output across voltage fluctuations. Field wiring accommodates 0.2 to 1.5 mm² conductors, and the miniature coaxial ClickLoc connector simplifies automated system integration. The patented TipLoc molding provides strong probe tip bonding, and the CableLoc design offers 330 N pull strength, preventing cable movement in high-vibration environments. Optional FluidLoc cables prevent fluid ingress, preserving electrical signal integrity. The 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe is fully interchangeable with other 3300 XL series components, supporting flexible automation setups and seamless integration into existing monitoring systems.

Applications

Radial vibration measurement on fluid-film bearings: The 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe measures radial shaft vibration with a 2 mm linear range and 50 Ω output resistance, enabling precise automated feedback for machinery protection.

Axial (thrust) position tracking: Using the 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe, automated control systems monitor axial position within a 2 mm linear range on compressors and turbines, supporting dynamic adjustment in real-time.

Keyphasor phase reference for rotational equipment: The 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe provides accurate phase and speed signals via its miniature coaxial ClickLoc connector, feeding PLCs and DCS systems for automation.

Automated speed measurement: With a total 5.0-meter cable length, the 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe integrates into remote monitoring setups, ensuring continuous speed feedback for process automation.

Small target monitoring: The probe’s 140 mm case and M10x1 thread allow installation in tight spaces, making the 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe ideal for compact automated machinery.

Specifications

Competitive Advantage

Reliable probe-cable connection: Patented TipLoc molding and CableLoc design provide 330 N pull strength, ensuring secure attachment for the 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe in high-vibration environments.

Fluid resistance for industrial automation: Optional FluidLoc cables prevent oil or liquids from entering the probe-cable system, preserving output voltage integrity for the 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe.

Extended reach for flexible deployment: The 5.0-meter cable length of the 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe allows placement in automated systems where direct access to the probe is limited.

High-precision output: With less than 2 mV change per volt of supply variation and 50 Ω output resistance, the 330103-00-14-50-02-00 3300 XL 8 mm Proximity Probe delivers reliable data for automated control loops.
