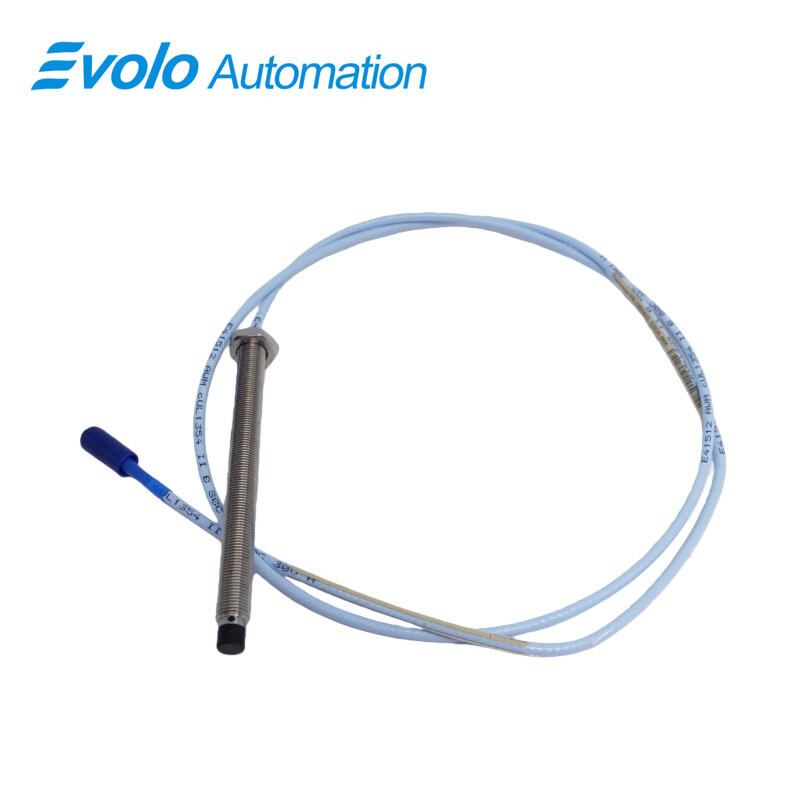

330103-00-12-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-12-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-12-10-02-00 3300 XL 8 mm Proximity Probe delivers an output voltage directly proportional to the distance between the probe tip and conductive surfaces, enabling precise measurement of both static (position) and dynamic (vibration) values. With a 2 mm linear range, 50 Ω output resistance, and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330103-00-12-10-02-00 3300 XL 8 mm probe integrates into automated monitoring systems for turbines, pumps, and fluid-film bearings. Its 1.0 meter total length, M10x1 thread with 15 mm engagement, and field wiring support for 16–24 AWG (0.2–1.5 mm²) allow seamless connection to Proximitor sensors and control loops. Operating from -52°C to +177°C (-62°F to +350°F), the 330103-00-12-10-02-00 3300 XL 8 mm probe provides reliable, continuous measurements in harsh industrial environments. Optional FluidLoc cables prevent oil and liquid leaks, while patented TipLoc and CableLoc designs secure the probe tip and cable, supporting automated vibration and position monitoring without bench calibration.

Applications

Vibration Measurement on Fluid-Film Bearings
The 330103-00-12-10-02-00 3300 XL 8 mm probe measures vibration amplitudes on fluid-film bearings, using its 2 mm linear range and 50 Ω output resistance to provide precise signals for automated vibration monitoring systems.

Position Monitoring in Rotating Machinery
Integrate 330103-00-12-10-02-00 3300 XL 8 mm probes into turbine or pump shafts to track shaft displacement. The probe’s 1.0 meter length and M10x1 threading allow secure mounting and easy alignment with automated position sensors.

Speed Measurement via Keyphasor Signals
The 330103-00-12-10-02-00 3300 XL 8 mm probe outputs signals for Keyphasor devices, enabling automated speed calculations in pumps, compressors, and turbines, using miniature coaxial ClickLoc connectors for fast system integration.

Process Monitoring in Harsh Environments
With an operating range from -52°C to +177°C (-62°F to +350°F), the 330103-00-12-10-02-00 3300 XL 8 mm probe supports automated monitoring of high-temperature machinery without requiring manual recalibration.

Specifications

Competitive Advantage

Robust Probe Tip Bonding
The patented TipLoc molding in 330103-00-12-10-02-00 3300 XL 8 mm ensures the probe tip remains firmly attached to the body, reducing downtime and maintenance for automated control systems.

Secure Cable Connection
CableLoc design provides 330 N (75 lbf) pull strength, keeping the 330103-00-12-10-02-00 3300 XL 8 mm probe cable reliably attached for continuous automated data acquisition.

Interchangeable Components
All 330103-00-12-10-02-00 3300 XL 8 mm probes are fully compatible with other 3300 XL and non-XL series probes, extension cables, and Proximitor sensors, simplifying automated system upgrades or replacements.

High-Temperature and Wide Wiring Support
The 330103-00-12-10-02-00 3300 XL 8 mm probe supports field wiring from 0.2 to 1.5 mm² (16–24 AWG) and extreme temperatures, allowing reliable integration into automated machinery monitoring networks.
