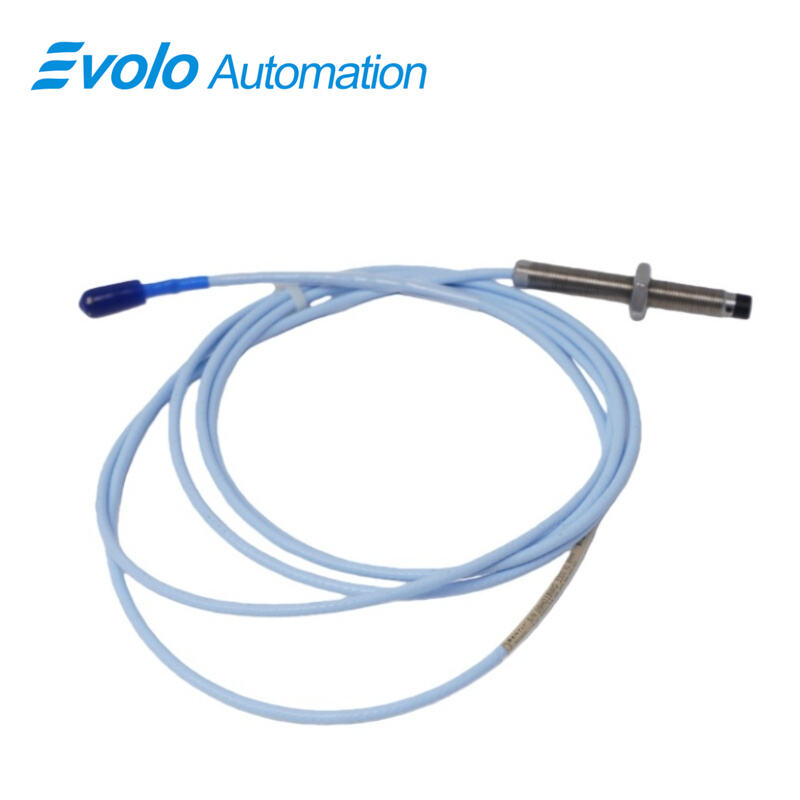

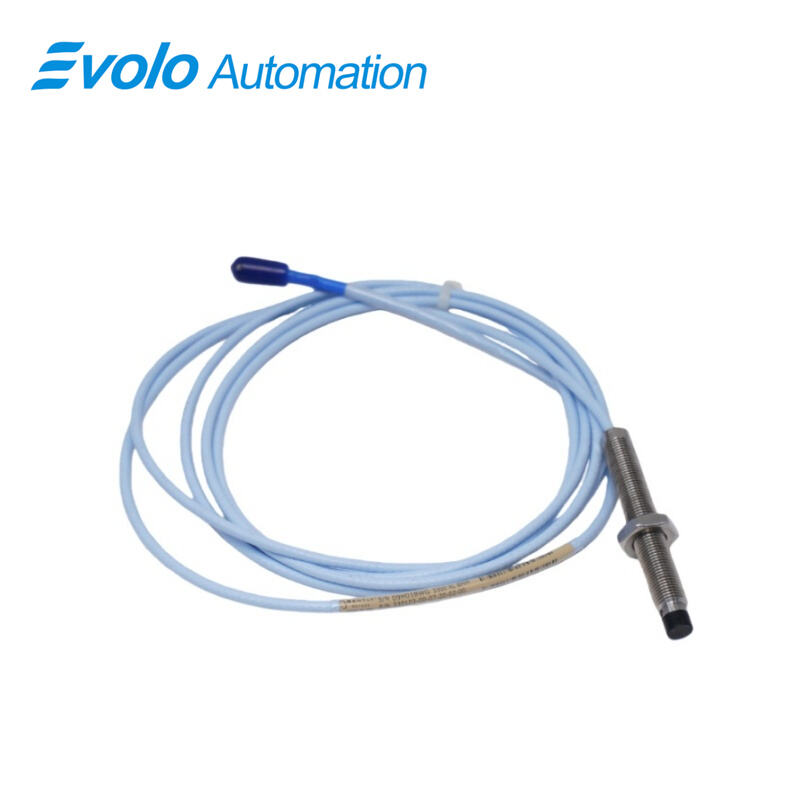

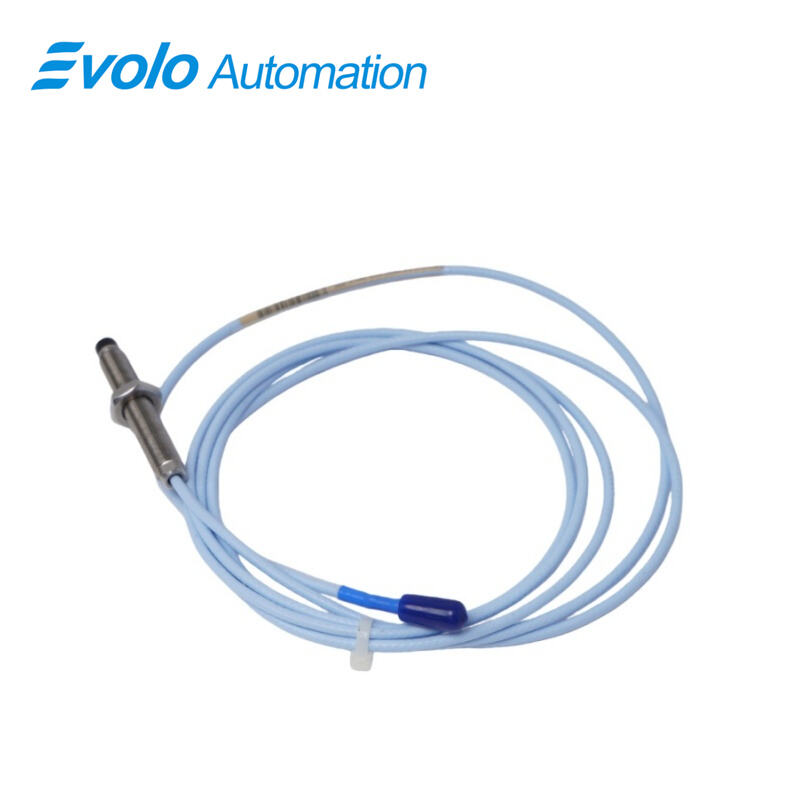

330103-00-07-20-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-07-20-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-07-20-02-CN 3300 XL 8 mm Proximity Probe delivers precise output voltage proportional to the distance between the probe tip and the target conductive surface. With a 2 mm linear range, this 330103-00-07-20-02-CN probe measures both shaft position and vibration in fluid-film bearing machines. Its 70 mm case length, M10x1 thread, and maximum 15 mm thread engagement allow secure mounting in automated monitoring systems. The 330103-00-07-20-02-CN probe features a miniature coaxial ClickLoc connector and 2.0-meter standard cable, supporting field wiring from 0.2 to 1.5 mm² (16–24 AWG) and extension cable capacitance of 69.9 pF/m for low-noise signal transmission. Operating from -52°C to +177°C (-62°F to +350°F), this 330103-00-07-20-02-CN probe provides reliable input to automated control systems, including Keyphasor reference and speed measurement modules. Its 50 Ω output resistance ensures consistent signal delivery to PLCs or DCS platforms. Use 330103-00-07-20-02-CN 3300 XL 8 mm Proximity Probes for real-time shaft position tracking, vibration monitoring, and predictive maintenance within automated industrial processes. Optional CSA, ATEX, and IECEx approvals expand its deployment across global automation applications.

Applications

Application – Track Shaft Position in Automated Rotors
The 330103-00-07-20-02-CN 3300 XL 8 mm probe accurately monitors shaft position in fluid-film bearing machines, feeding real-time position data to PLCs and DCS for automated control adjustments. The 2 mm linear range ensures precise measurement for high-speed rotors.

Application – Capture Vibration for Predictive Maintenance
Use the 330103-00-07-20-02-CN 3300 XL 8 mm probe to record dynamic vibration signals on rotating equipment. The 50 Ω output resistance and 69.9 pF/m cable capacitance minimize signal distortion, enabling predictive maintenance and reducing unplanned downtime in automated industrial systems.

Application – Provide Keyphasor Reference for Rotor Speed Control
The 330103-00-07-20-02-CN 3300 XL 8 mm probe delivers Keyphasor signals for rotor speed measurement, supporting automated feedback loops in turbines, compressors, and generators. Its 2.0-meter cable allows flexible placement in automation cabinets or near machinery.

Specifications

Competitive Advantage

Competitive Advantage – Secure Mounting in Automation Environments
With a 15 mm maximum thread engagement, the 330103-00-07-20-02-CN 3300 XL 8 mm probe can be firmly mounted in confined or high-vibration areas, providing reliable automated measurements without mechanical drift.

Competitive Advantage – Low Noise Voltage Transmission
The 330103-00-07-20-02-CN 3300 XL 8 mm probe’s combination of 50 Ω output resistance and 69.9 pF/m cable capacitance ensures accurate signal delivery to control systems, minimizing errors in automated process monitoring.

Competitive Advantage – Wide Temperature Operation for Industrial Automation
Operating from -52°C to +177°C, the 330103-00-07-20-02-CN 3300 XL 8 mm probe delivers consistent measurement performance in extreme industrial environments, making it ideal for automated systems in steam turbines, compressors, and generator monitoring.
