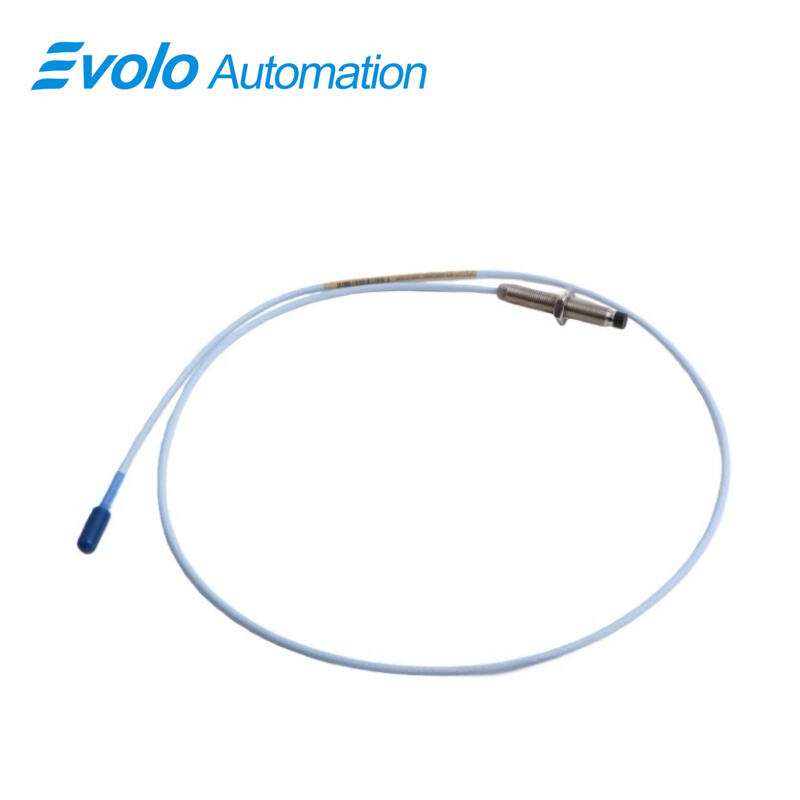

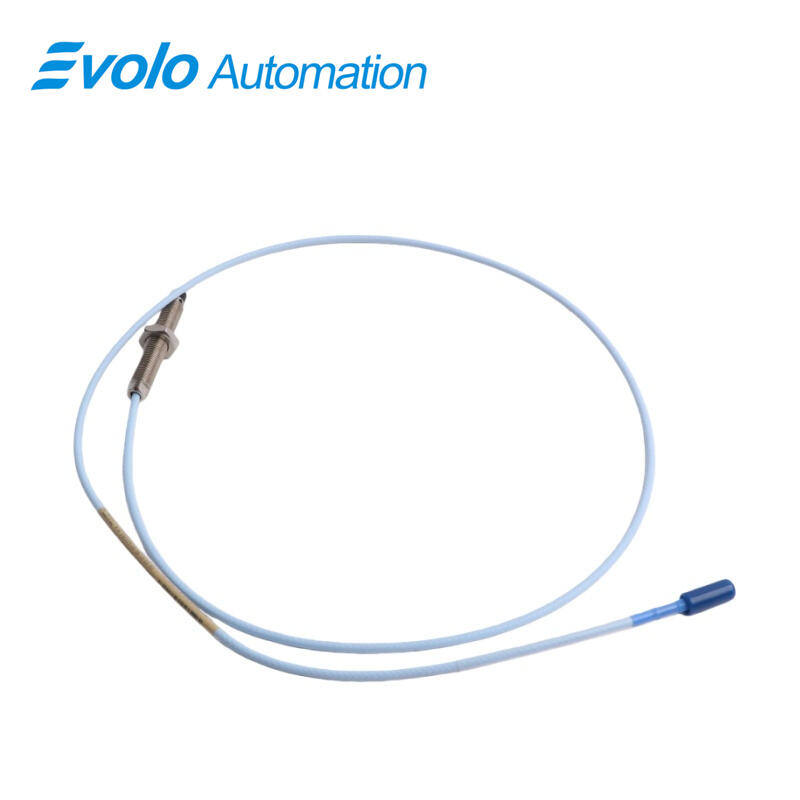

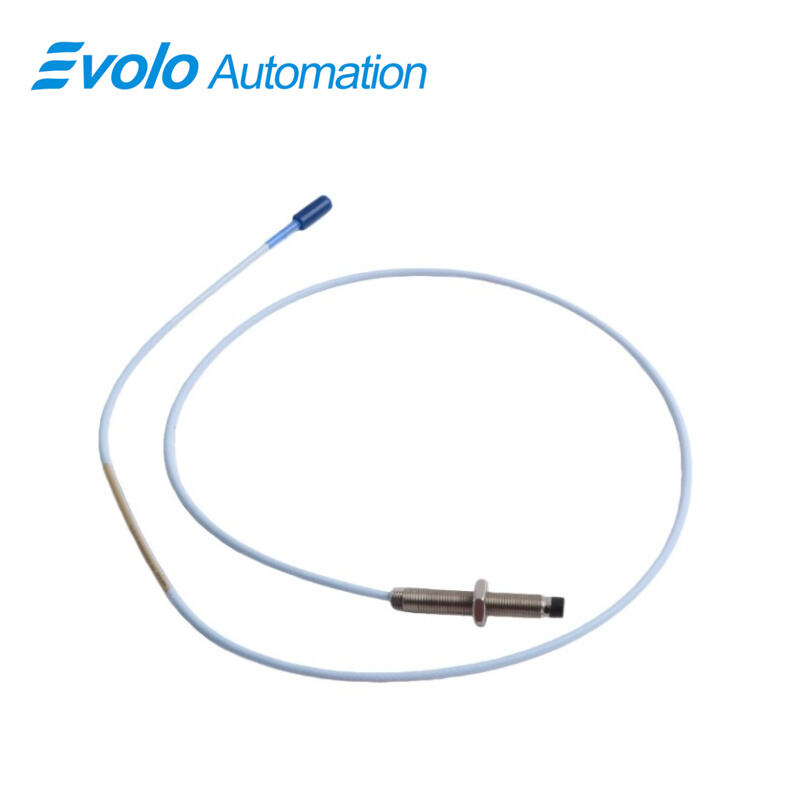

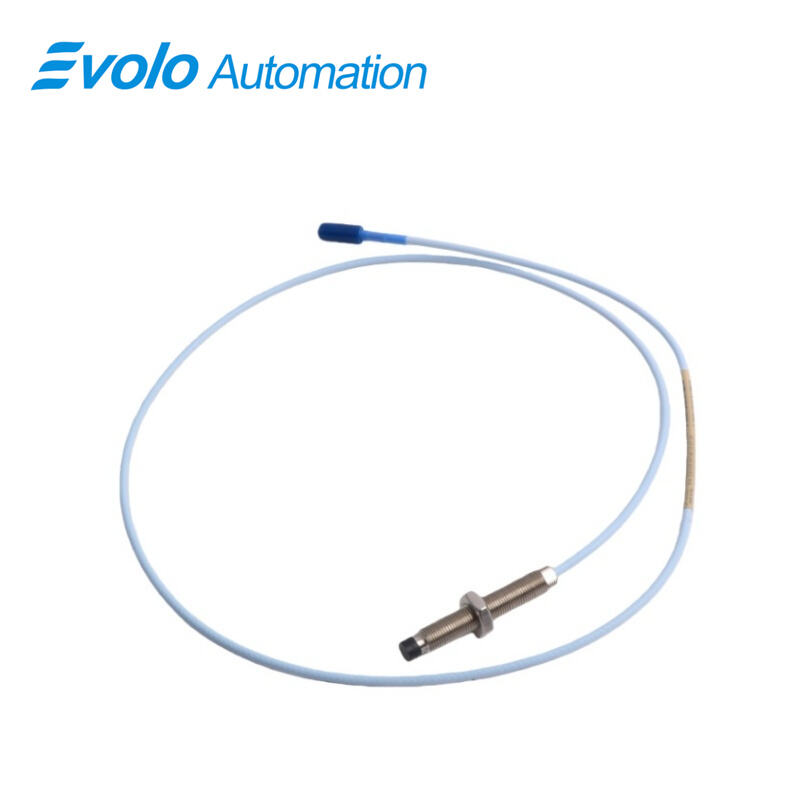

330103-00-06-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-06-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-06-10-02-00 is a 3300 XL 8 mm Proximity Probe engineered for automated monitoring of industrial machinery. 330103-00-06-10-02-00 converts the distance between the probe tip and a conductive surface into a proportional voltage signal, supporting both static (position) and dynamic (vibration) measurements. With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, 330103-00-06-10-02-00 ensures accurate data for automation and control systems.

The M10x1 threaded probe case with 15 mm maximum thread engagement allows 330103-00-06-10-02-00 to be mounted close to bearings or shafts in confined spaces. The 1.0-meter total length provides flexible routing to monitoring racks in automated equipment. Equipped with a miniature coaxial ClickLoc connector and standard cable, 330103-00-06-10-02-00 delivers consistent signals for Keyphasor reference, speed measurement, and vibration monitoring in pumps, turbines, and compressors. Rated to operate from -52°C to +177°C, 330103-00-06-10-02-00 is suitable for industrial automation applications requiring continuous position and vibration feedback.

Applications

Vibration monitoring in industrial machinery
330103-00-06-10-02-00 measures shaft vibration on turbines, pumps, and compressors. The probe’s 2 mm linear range and 50 Ω output resistance ensure that vibration amplitude is accurately converted into a voltage signal for automated monitoring systems.

Axial position tracking near bearings
The M10x1 threaded case of 330103-00-06-10-02-00 with 15 mm maximum thread engagement allows precise placement in tight spaces. Position data is transmitted directly to control systems to automate shaft alignment and adjustment processes.

Keyphasor reference for speed measurement
Equipped with a miniature coaxial ClickLoc connector and 1.0-meter standard cable, 330103-00-06-10-02-00 provides consistent pulse signals for speed detection and phase reference in automated machinery control loops.

Continuous condition monitoring in automated equipment
Operating from -52°C to +177°C, 330103-00-06-10-02-00 delivers reliable output voltage under varying temperature conditions, allowing automated machinery to adjust operations based on real-time position and vibration readings.

Specifications

Competitive Advantage

Compact installation for confined spaces
The 60 mm minimum case length of 330103-00-06-10-02-00 enables installation in small housings without additional adapters.

Accurate signal conversion for control systems
The combination of 2 mm linear range, 50 Ω output resistance, and supply sensitivity under 2 mV per volt ensures 330103-00-06-10-02-00 provides precise analog signals to automation controllers.

High-temperature operation capability
330103-00-06-10-02-00 operates from -52°C to +177°C, allowing continuous feedback for automated monitoring and adjustments during cold start and high-temperature runs.

Secure electrical connection
The ClickLoc miniature coaxial connector allows 330103-00-06-10-02-00 to maintain reliable electrical contact in high-vibration environments, preventing signal loss in automated systems.
