330130-085-13-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-085-13-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

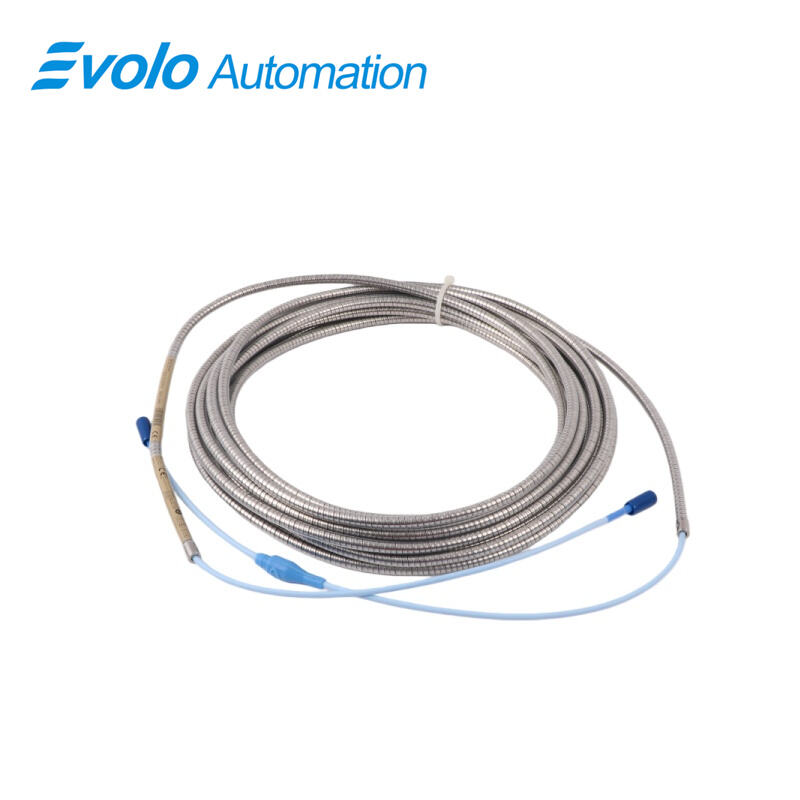

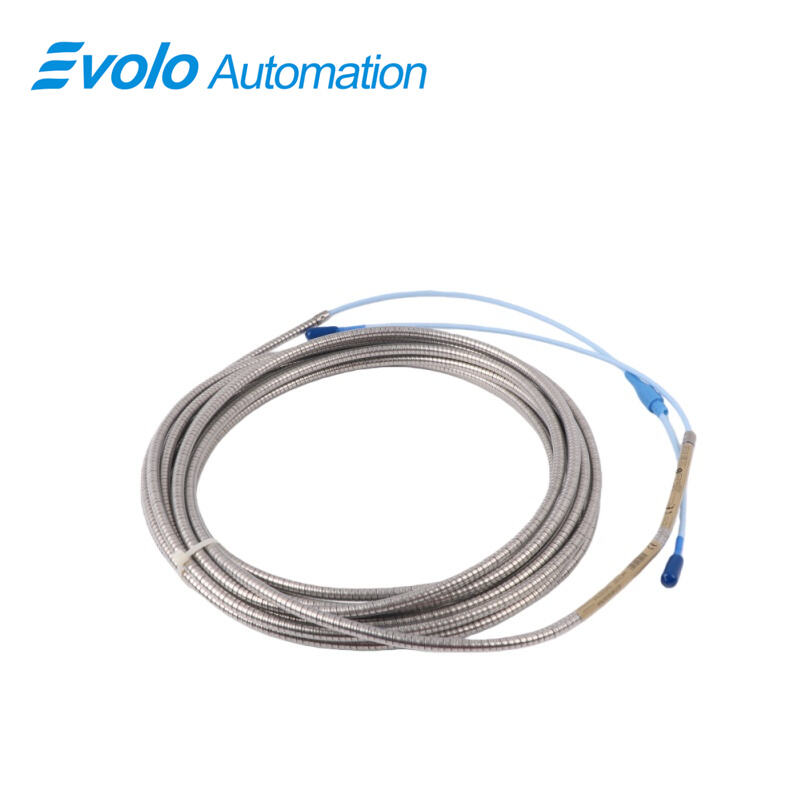

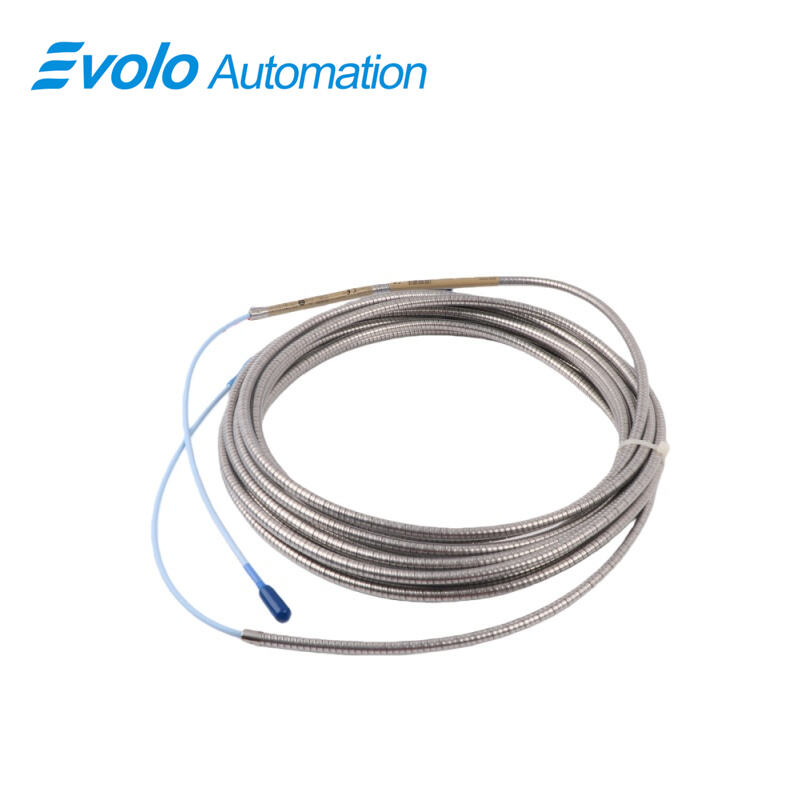

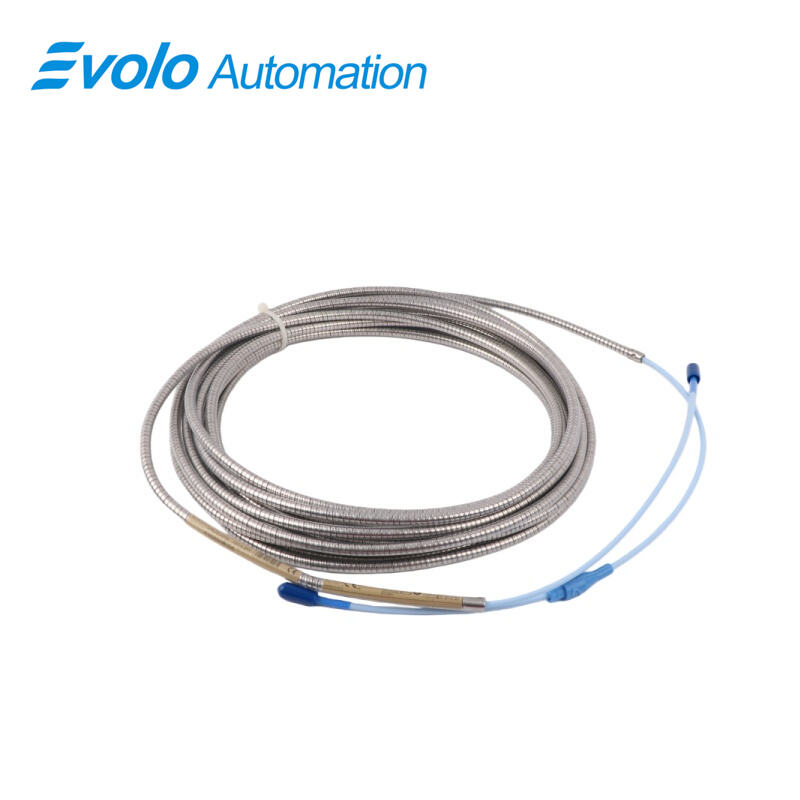

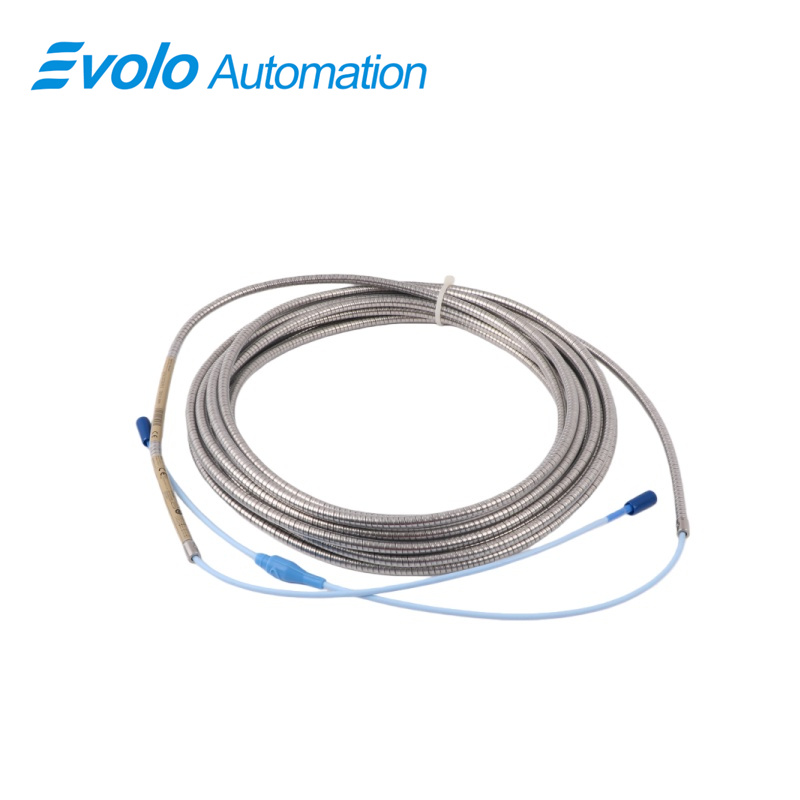

The 330130-085-13-05 3300 XL Standard Extension Cable is engineered for precision automation systems, delivering reliable connectivity for 3300 XL 8 mm Proximity Transducer Systems. With a robust 8.5-meter (27.9 feet) armored FluidLoc cable and connector protector, this extension cable ensures stable signal transmission while minimizing electromagnetic interference. Its standard 75 Ω triaxial FEP-insulated cable supports linear measurement ranges up to 2 mm, enabling accurate position and vibration detection in fluid-film bearing machinery. Operating reliably in extreme conditions from -52°C to +177°C (-62°F to +350°F), the cable meets rigorous CSA, ATEX, and IECEx approvals, providing industrial-grade performance. With a typical capacitance of 69.9 pF/m (21.3 pF/ft) and field wiring flexibility from 0.2 to 1.5 mm² (16–24 AWG), the 3300 XL Standard Extension Cable is fully interchangeable with other 3300 XL and legacy 3300 series components. The optional FluidLoc cable prevents fluid leakage, while the TipLoc and CableLoc designs ensure superior probe attachment strength of 330 N (75 lbf), enhancing system reliability and reducing maintenance downtime in automated monitoring applications.

Applications

1. Vibration Monitoring in Turbo Machinery
The extension cable supports 3300 XL probes for real-time vibration measurement of high-speed turbines. With a linear range of 2 mm, it ensures accurate detection of axial and radial shaft movements, preventing costly downtime in critical automation systems.

2. Position Sensing in Fluid-Film Bearings
In industrial pumps and compressors, the cable enables precise shaft displacement measurements. Its armored FluidLoc design maintains signal integrity under pressures up to 350°F, meeting stringent API 670 standards for automation monitoring.

3. Keyphasor Reference and Speed Measurement
The cable transmits low-noise signals from 3300 XL probes to Proximitor sensors for speed detection. Its 69.9 pF/m capacitance ensures minimal signal distortion for automated speed control systems.

4. Extreme Environment Automation
Operating in temperatures from -52°C to +177°C, the cable is ideal for petrochemical or offshore platforms, enabling continuous monitoring of critical machinery under harsh conditions without signal degradation.

5. Retrofitting and Component Interchangeability
The cable’s backward compatibility with non-XL 3300 series components simplifies automation system upgrades. It allows seamless integration into existing 5 mm or 8 mm transducer setups, reducing installation time and costs.

Specifications

Competitive Advantage

1. Industry Standard Compliance
Fully compliant with API 670, CSA, ATEX, and IECEx approvals, ensuring reliability and safety in automated industrial environments.

2. Robust Mechanical Design
Patented TipLoc and CableLoc technologies provide a 330 N (75 lbf) pull strength, enhancing probe and cable attachment security in automated monitoring systems.

3. Enhanced Signal Integrity
Armored 75 Ω triaxial FEP-insulated cable minimizes electromagnetic interference, ensuring precise data transmission for automation analytics.

4. Extreme Temperature Range
Supports continuous operation from -52°C to +177°C (-62°F to +350°F), making it suitable for extreme industrial automation applications, including petrochemical and offshore machinery.

5. Fluid Prevention Option
Optional FluidLoc cable prevents leakage of oils and lubricants, maintaining system cleanliness and protecting sensitive automated control electronics.
