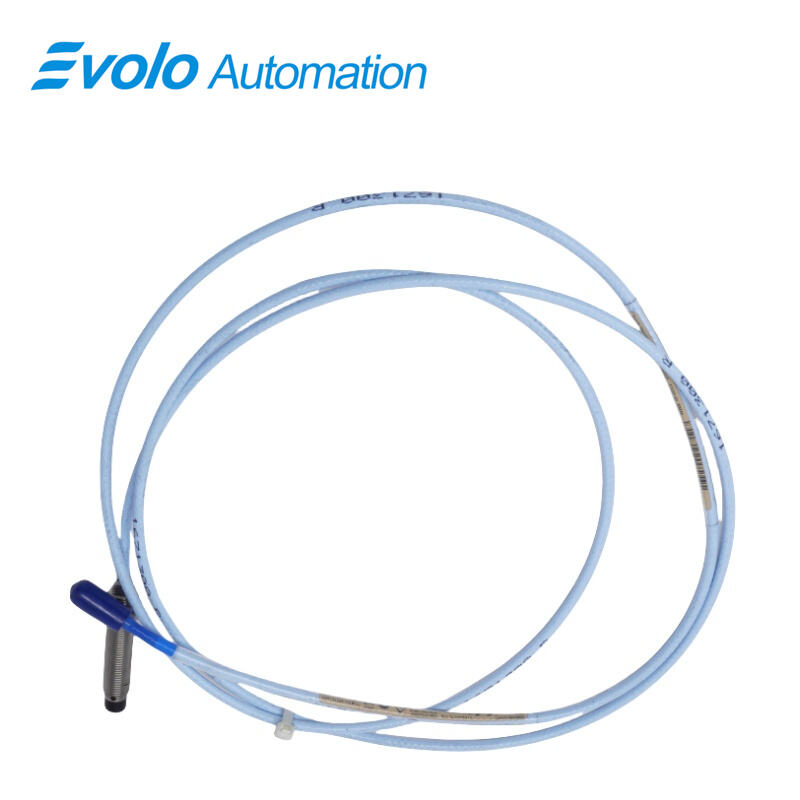

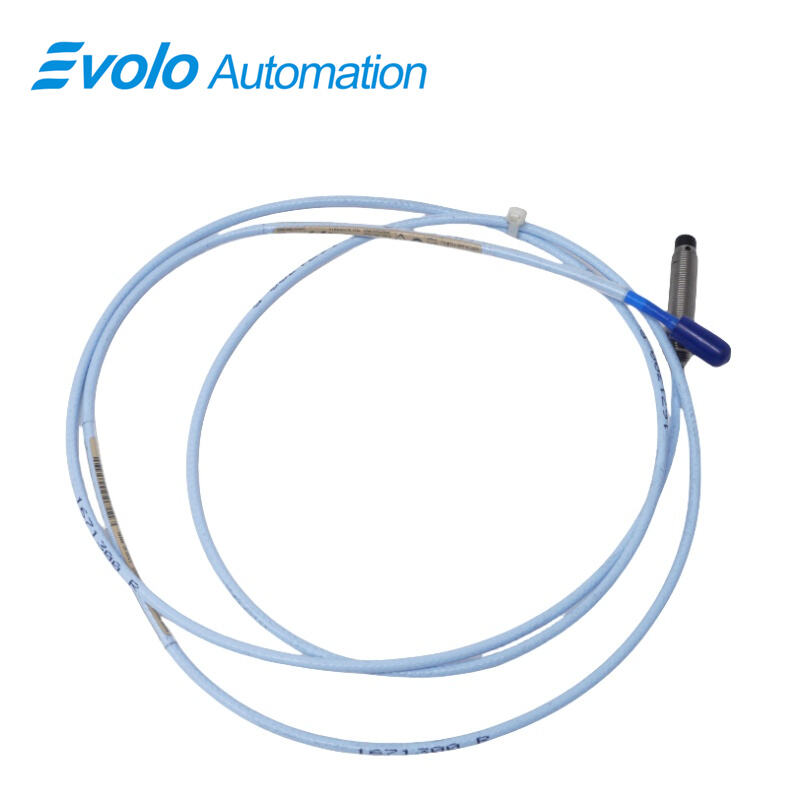

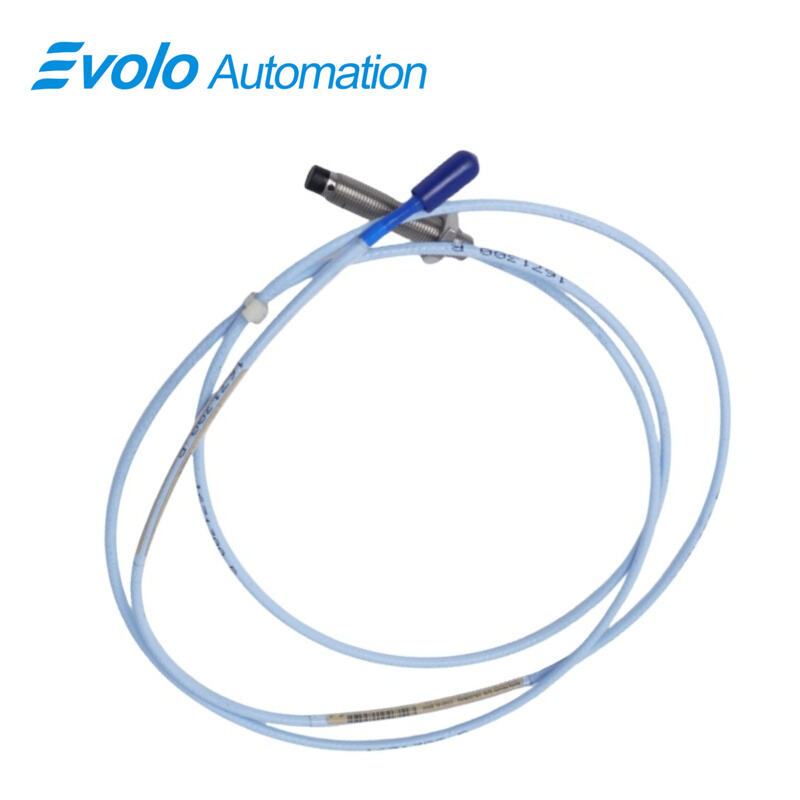

330103-00-05-15-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-15-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-05-15-02-CN is a 3300 XL 8 mm Proximity Probe designed for automated machinery monitoring where both shaft position and vibration data are required over a longer distance. 330103-00-05-15-02-CN converts the distance between the probe tip and a conductive surface into a proportional voltage signal, enabling automation systems to capture both static and dynamic displacement. With a 2 mm linear range, 50 Ω output resistance, and supply sensitivity below 2 mV per volt, 330103-00-05-15-02-CN delivers precise signals for control and protection racks.

The probe body of 330103-00-05-15-02-CN features an M10x1 threaded case with a minimum case length of 50 mm and a maximum thread engagement of 15 mm, supporting installation close to bearings and rotating shafts. The total probe length of 1.5 meters allows 330103-00-05-15-02-CN to reach monitoring cabinets in automated systems without additional extensions. Equipped with a miniature coaxial ClickLoc connector and standard cable, 330103-00-05-15-02-CN ensures reliable signal transmission. Rated for operating temperatures from -52°C to +177°C and approved for CSA, ATEX, and IECEx, 330103-00-05-15-02-CN is ideal for automated motors, pumps, and compressors in industrial environments requiring continuous vibration and position monitoring.

Applications

Vibration monitoring in rotating machinery
330103-00-05-15-02-CN is installed near shafts of turbines, compressors, and pumps to convert vibration displacement into a proportional voltage output within a 2 mm linear range. The 50 Ω output resistance allows 330103-00-05-15-02-CN to transmit accurate signals to automated monitoring and protection racks.

Axial position tracking for bearing systems
With supply sensitivity below 2 mV per volt, 330103-00-05-15-02-CN measures axial movement in thrust and journal bearings. The M10x1 threaded case with 15 mm maximum thread engagement enables 330103-00-05-15-02-CN to be installed close to the shaft surface for precise displacement monitoring.

Speed and phase reference for automation control
The controlled extension cable capacitance of 69.9 pF/m allows 330103-00-05-15-02-CN to deliver repeatable waveform signals used for speed detection and phase reference calculations in automated machinery control systems.

Condition monitoring in industrial automation
The 1.5 meter total probe length allows 330103-00-05-15-02-CN to connect directly to automation racks in motors, pumps, and compressors, supporting vibration and position data acquisition for alarms and control logic.

Specifications

Competitive Advantage

Direct mounting in deeper bearing housings
The 50 mm minimum case length allows 330103-00-05-15-02-CN to reach measurement points inside deeper bearing housings without extension adapters.

Predictable voltage output for automation systems
With a 2 mm linear range and 50 Ω output resistance, 330103-00-05-15-02-CN provides consistent signals that simplify alarm threshold setup and signal scaling.

Wide temperature operation
Rated from -52°C to +177°C, 330103-00-05-15-02-CN supports automated equipment during cold start and high-temperature operation.

Reliable electrical connection under vibration
The miniature coaxial ClickLoc connector allows 330103-00-05-15-02-CN to maintain electrical contact during continuous machine vibration in automated environments.
