330103-00-04-15-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-15-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

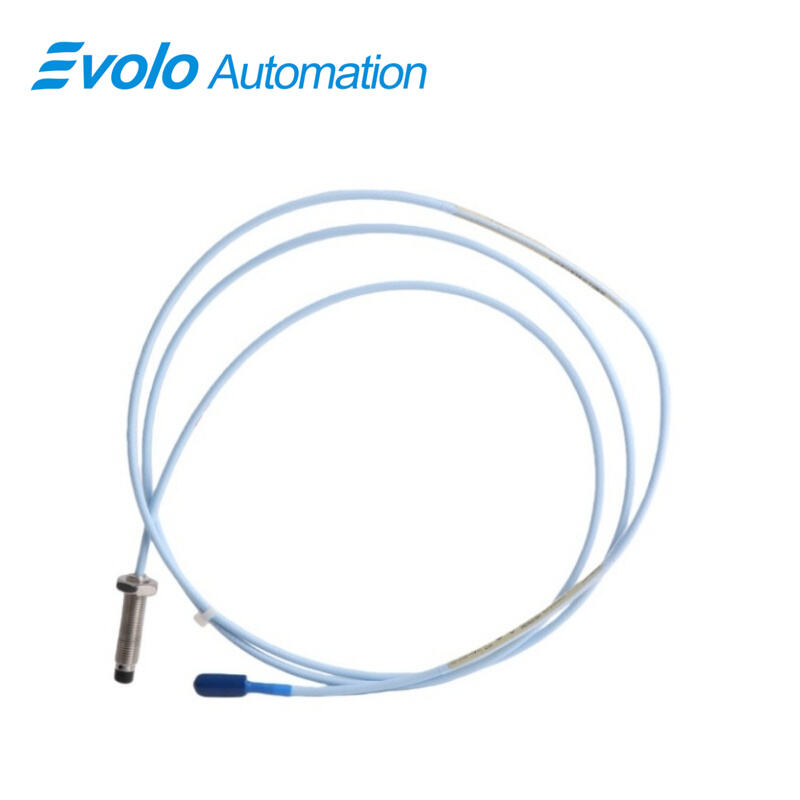

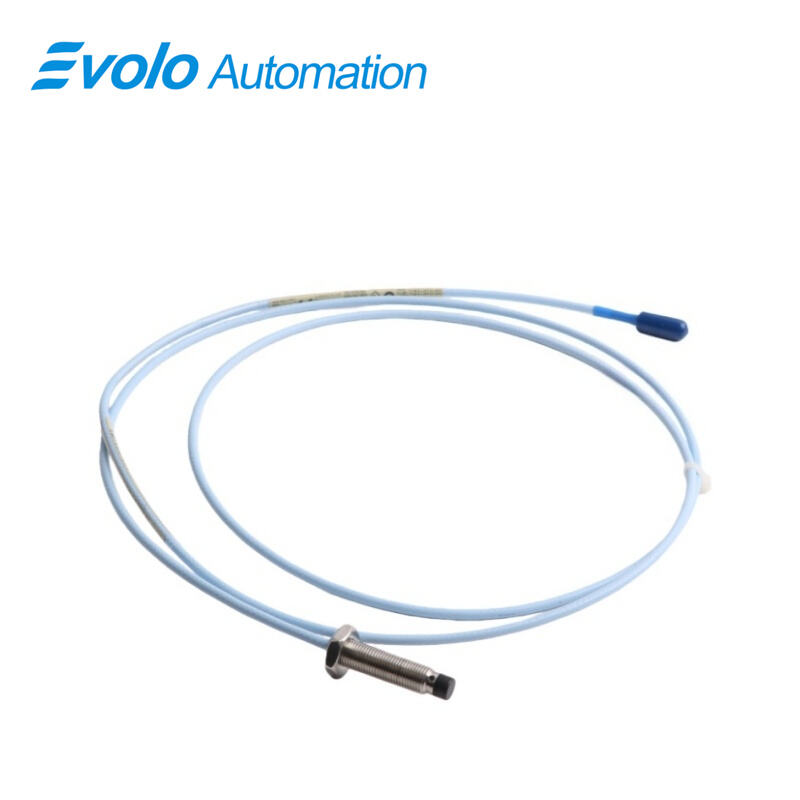

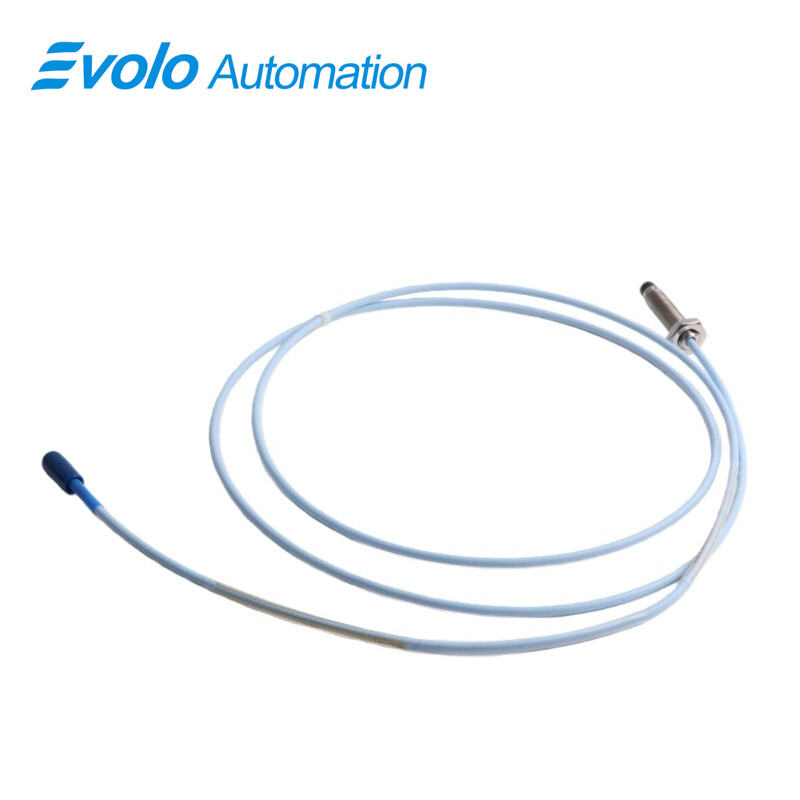

330103-00-04-15-02-CN is a 3300 XL 8 mm Proximity Probe designed for automated machinery monitoring where accurate shaft movement data is required. 330103-00-04-15-02-CN converts the distance between the probe tip and a conductive surface into a proportional voltage signal, allowing automation systems to process both position and vibration inputs. With a defined linear range of 2 mm and an output resistance of 50 Ω, 330103-00-04-15-02-CN delivers clear displacement signals for control racks and protection logic.

The probe body of 330103-00-04-15-02-CN uses an M10x1 thread with up to 15 mm thread engagement and a minimum case length of 40 mm, enabling direct installation near bearings and shafts in compact automation layouts. A total probe length of 1.5 meters supports flexible routing to monitoring cabinets. The miniature coaxial ClickLoc connector and standard cable ensure secure electrical connection, while the typical extension cable capacitance of 69.9 pF/m supports consistent signal behavior.

Rated for operating and storage temperatures from -52°C to +177°C, 330103-00-04-15-02-CN supports automated equipment operating during cold starts and high-temperature processes. CSA, ATEX, and IECEx approvals allow 330103-00-04-15-02-CN to be used in automated systems within hazardous industrial environments such as power generation, oil, gas, and petrochemical facilities.

Applications

Shaft vibration tracking in automated rotating machinery
330103-00-04-15-02-CN is mounted near rotating shafts to convert vibration displacement into a proportional voltage signal within a 2 mm linear range. The output resistance of 50 Ω allows 330103-00-04-15-02-CN to transmit clear signals to automated monitoring racks used on turbines, compressors, and large motors.

Axial position monitoring for thrust bearing systems
By maintaining supply sensitivity below 2 mV per volt, 330103-00-04-15-02-CN supports precise axial position tracking in thrust bearings. The M10x1 threaded probe body and 15 mm maximum thread engagement allow 330103-00-04-15-02-CN to be positioned accurately inside bearing housings.

Speed and phase reference input for automation systems
The controlled extension cable capacitance of 69.9 pF/m enables 330103-00-04-15-02-CN to deliver repeatable waveform signals used for speed and phase reference calculations in automated protection and control systems.

Condition monitoring in classified industrial zones
With CSA, ATEX, and IECEx approvals, 330103-00-04-15-02-CN is applied in oil, gas, and petrochemical automation units where vibration and position data must be collected in hazardous locations.

Specifications

Competitive Advantage

Direct installation in compact machine structures
The 0 mm unthreaded length and 40 mm minimum case length allow 330103-00-04-15-02-CN to be installed close to shafts without spacers, supporting tight layouts around bearings and seals.

Support for long cable routing in automation cabinets
The 1.5 meter probe length allows 330103-00-04-15-02-CN to reach monitoring cabinets without additional junctions, reducing connection points in automated installations.

Operation across wide temperature limits
Rated from -52°C to +177°C, 330103-00-04-15-02-CN supports automated equipment during cold start conditions and high-temperature process operation.

Secure electrical connection under machine vibration
The miniature coaxial ClickLoc connector ensures 330103-00-04-15-02-CN remains electrically connected during continuous machine vibration, supporting uninterrupted signal flow to automation systems.
