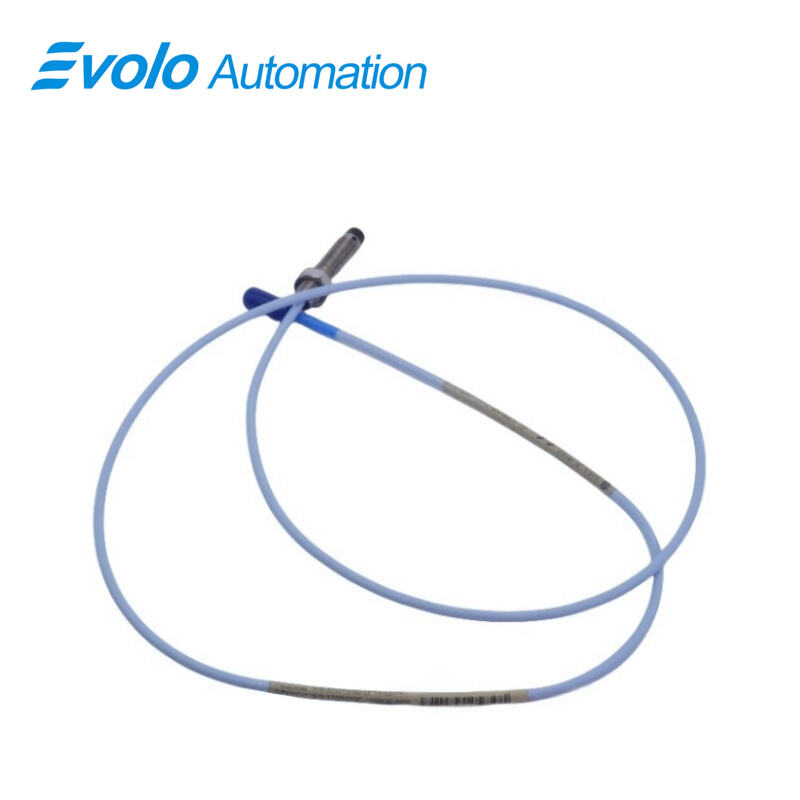

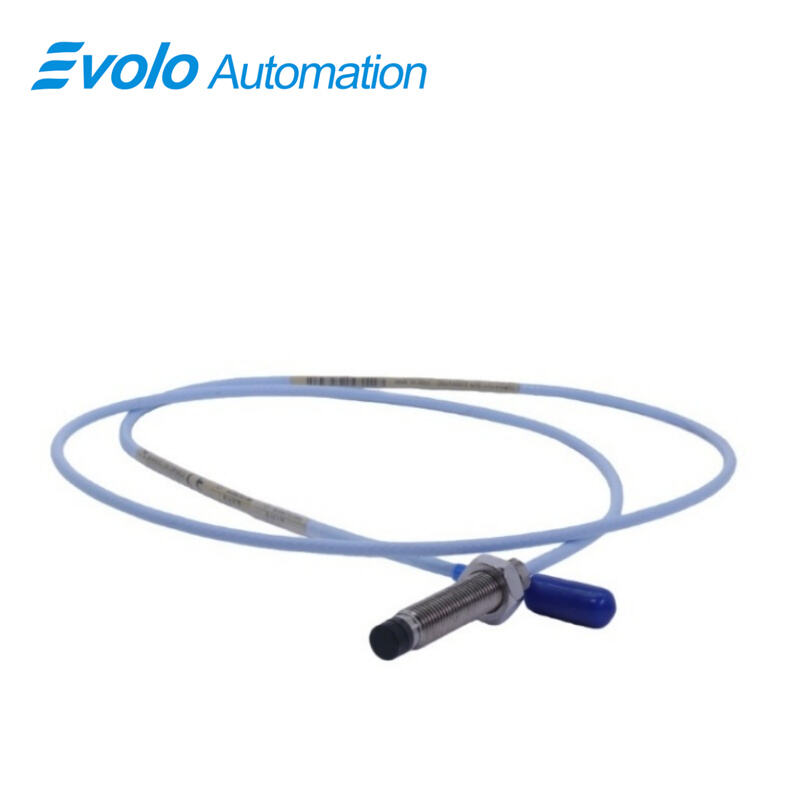

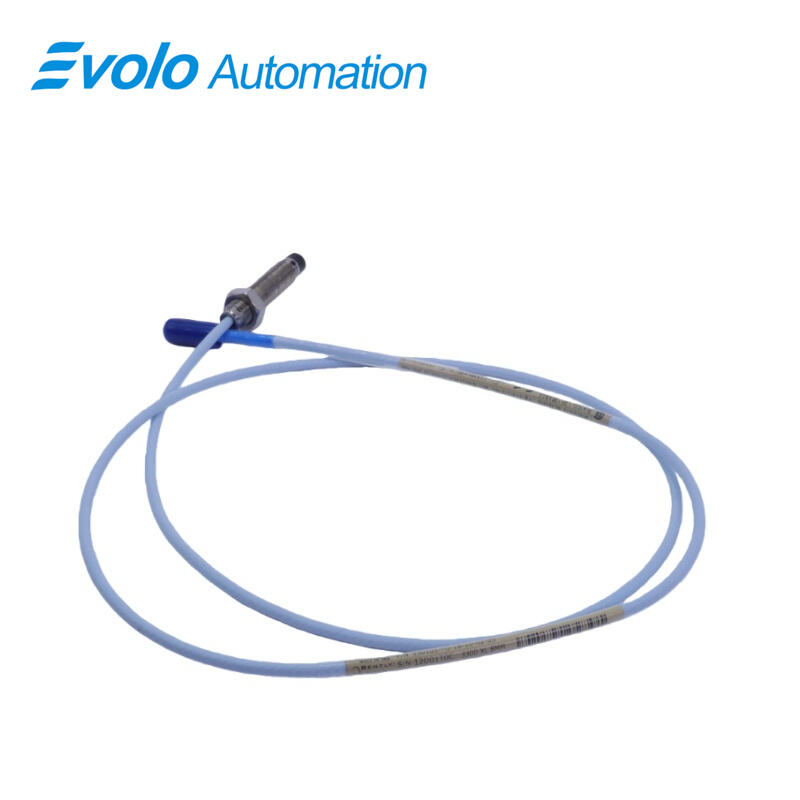

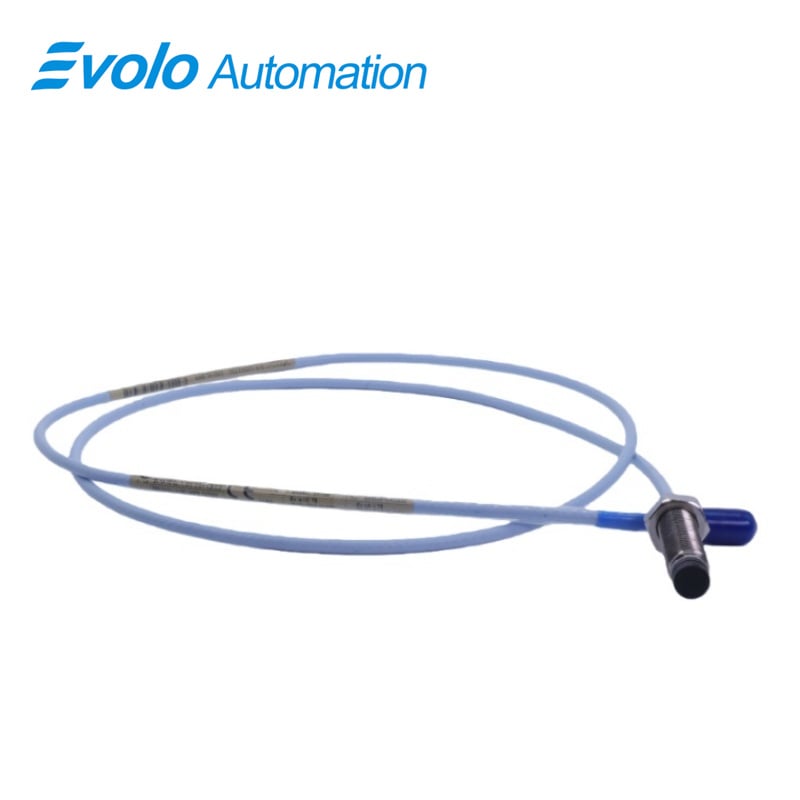

330101-00-18-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-18-10-12-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-18-10-12-05 3300 XL 8 mm Proximity Probe is a precision-engineered eddy current transducer designed for industrial automation, predictive maintenance, and real-time machinery monitoring. With a linear range of 2 mm (80 mils), it generates an output voltage directly proportional to the distance between the probe tip and the conductive surface, enabling accurate measurement of both static shaft positions and dynamic vibration profiles. This model features an overall case length of 1.8 inches and a 1.0-meter FluidLoc extension cable with a Miniature coaxial ClickLoc connector, providing high reliability in harsh, high-vibration industrial environments.

Capable of operating in extreme conditions, it supports temperatures from -52°C to +177°C (-62°F to +350°F), with supply sensitivity under 2 mV per volt, 50 Ω output resistance, and 69.9 pF/m (21.3 pF/ft) extension cable capacitance. The probe’s 3/8-24 UNF threaded case secures mounting with a maximum engagement of 0.563 inches. Patented TipLoc and CableLoc designs enhance mechanical durability, providing 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents fluids from leaking into the system. Fully CSA, ATEX, and IECEx approved and API 670 compliant, this probe is backward-compatible with all 3300 series probes, extension cables, and Proximitor sensors, supporting modular automation solutions and simplified maintenance.

Applications

Application 1: Gas Turbine Vibration Monitoring

Monitors rotor vibrations in gas turbines with micrometer-level sensitivity, enabling predictive maintenance and preventing bearing damage.

Application 2: Industrial Pump Rotor Positioning

Provides precise real-time rotor position tracking in high-capacity pumps, reducing wear and ensuring optimal efficiency.

Application 3: Compressor Speed and Phase Measurement

Generates Keyphasor signals for compressors, enabling continuous speed monitoring and phase detection for automated process optimization.

Application 4: Gearbox Condition Tracking

Measures gear displacement and dynamic vibration in industrial gearboxes, identifying misalignment or imbalance to extend equipment life.

Application 5: Lubricated Machinery Operation

Optional FluidLoc cable prevents oil or fluid leakage, maintaining measurement accuracy in heavily lubricated machinery environments.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Compatibility

Certified CSA, ATEX, and IECEx, allowing deployment in explosive or high-risk industrial environments.

Competitive Advantage 2: Extreme Temperature Range

Operates effectively between -52°C and +177°C, suitable for both cryogenic and high-temperature industrial applications.

Competitive Advantage 3: Enhanced Mechanical Strength

Patented TipLoc and CableLoc designs provide 330 N pull strength, ensuring secure connections under high vibration or mechanical stress.

Competitive Advantage 4: Modular Interchangeability

Fully API 670 compliant, compatible with all 3300 series probes and Proximitor sensors, allowing easy system upgrades and component replacement without recalibration.

Competitive Advantage 5: Fluid-Proof Operation

Optional FluidLoc cable protects against fluid ingress, maintaining consistent signal integrity and long-term reliability in lubricated machinery.
