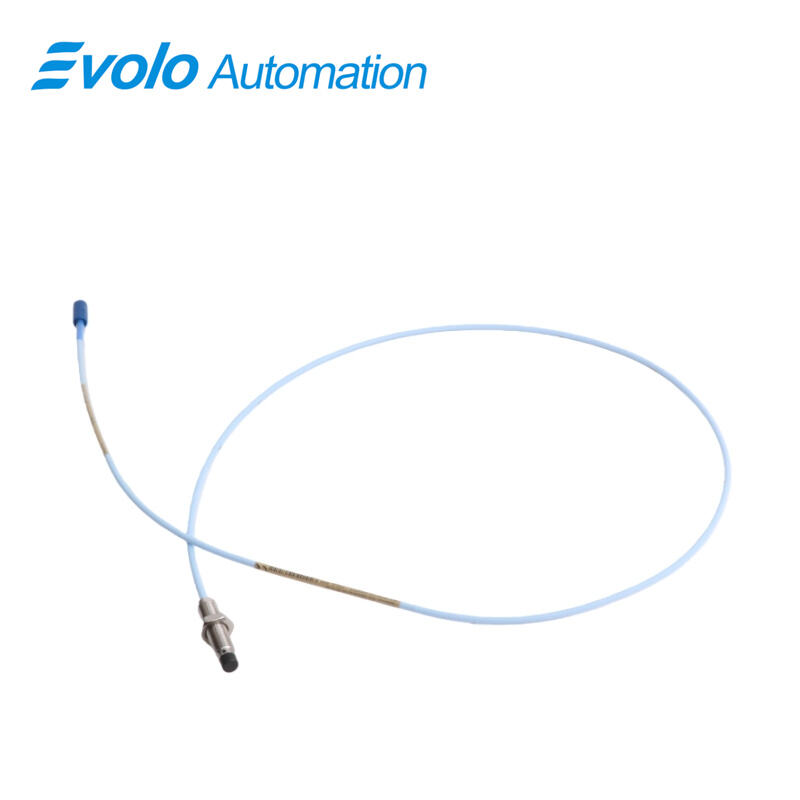

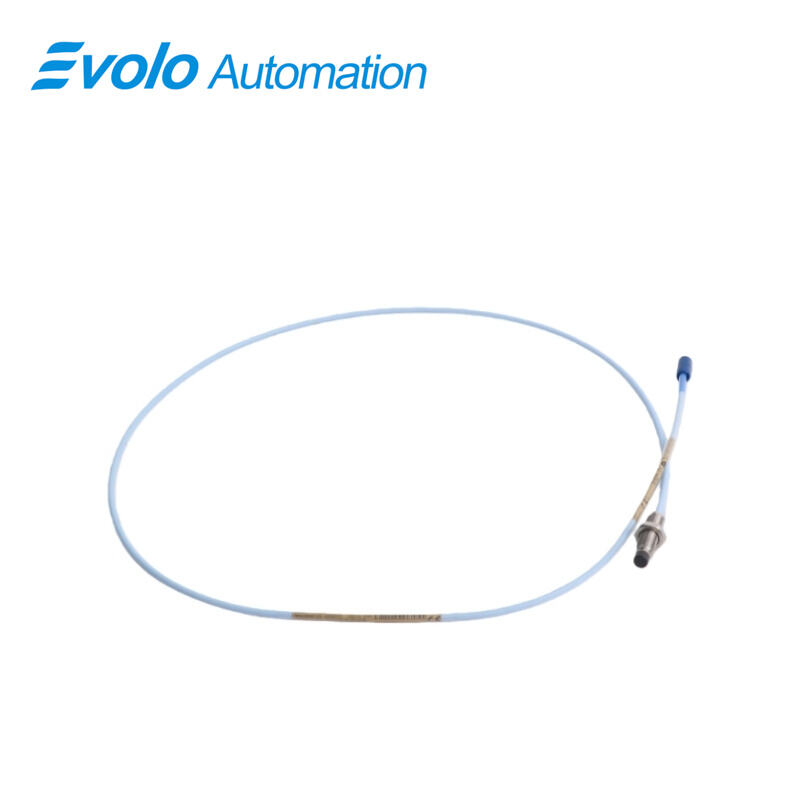

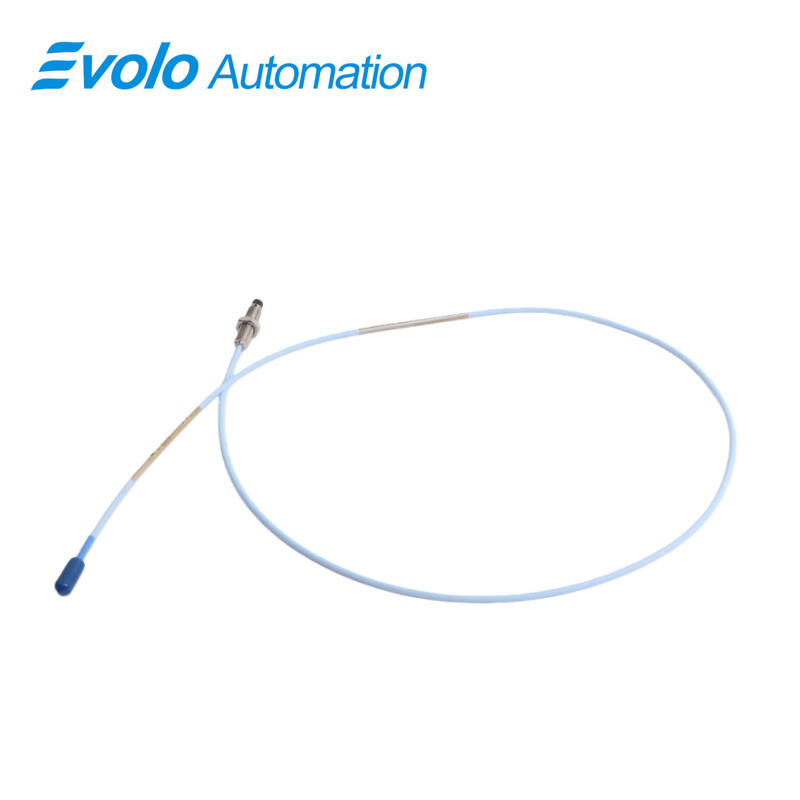

330103-00-04-10-12-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-04-10-12-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

330103-00-04-10-12-CN is a 3300 XL 8 mm Proximity Probe engineered for automation-driven machinery protection and online condition monitoring systems. 330103-00-04-10-12-CN converts the distance between the probe tip and a conductive target into a proportional voltage output, enabling accurate position and vibration measurement in rotating equipment. With a linear range of 2 mm, output resistance of 50 Ω, and supply sensitivity of less than 2 mV per volt, 330103-00-04-10-12-CN supports precise displacement monitoring for turbines, compressors, pumps, and motors operating within automated industrial processes.

The 330103-00-04-10-12-CN 3300 XL 8 mm Proximity Probe uses an M10x1 threaded probe case with a minimum case length of 40 mm and a total probe length of 1.0 meter, allowing flexible installation in compact automation layouts. A miniature coaxial ClickLoc connector combined with a FluidLoc cable prevents oil or liquid migration through the cable path, supporting continuous automated operation. Rated for operating temperatures from -52°C to +177°C, 330103-00-04-10-12-CN is suitable for demanding automation environments in power generation, oil and gas, and petrochemical facilities. CSA, ATEX, and IECEx approvals allow 330103-00-04-10-12-CN to be deployed in regulated automated monitoring systems.

Applications

Shaft vibration measurement in automated rotating equipment
330103-00-04-10-12-CN is installed near rotating shafts to measure vibration displacement within a 2 mm linear range. The low supply sensitivity of less than 2 mV/V allows 330103-00-04-10-12-CN to deliver clean signals to automated protection systems used on turbines, compressors, and large motors.

Axial shaft position monitoring for thrust bearings
330103-00-04-10-12-CN tracks axial movement by converting probe-to-target distance into voltage output through its 50 Ω output circuit. The M10x1 threaded probe body and 15 mm maximum thread engagement allow 330103-00-04-10-12-CN to be positioned precisely inside thrust bearing housings.

Speed and phase reference signal generation
By maintaining consistent capacitance of 69.9 pF/m through the extension cable, 330103-00-04-10-12-CN supports stable waveform input for speed and phase calculations in automated monitoring racks and control logic systems.

Condition monitoring in hazardous automation areas
With CSA, ATEX, and IECEx approvals, 330103-00-04-10-12-CN is deployed in automated oil, gas, and petrochemical units where vibration and position data must be collected in classified environments.

Specifications

Competitive Advantage

Direct mounting in compact machine casings
The minimum unthreaded length of 0 mm and minimum case length of 40 mm allow 330103-00-04-10-12-CN to be installed close to shafts without spacers, supporting tight automation layouts around bearings and seals.

Wide operating temperature support for automated duty cycles
Rated from -52°C to +177°C, 330103-00-04-10-12-CN supports cold start conditions and high-temperature operation, allowing automated equipment to remain monitored across full process temperature ranges.

Controlled signal behavior for automation inputs
With a defined 2 mm linear range and output resistance of 50 Ω, 330103-00-04-10-12-CN delivers predictable voltage response that simplifies signal scaling and alarm configuration in automation systems.

Secure signal transmission in oil-filled machinery
The miniature coaxial ClickLoc connector combined with a FluidLoc cable prevents fluid migration through the cable path, allowing 330103-00-04-10-12-CN to maintain signal transmission in oil-lubricated automated machinery.
