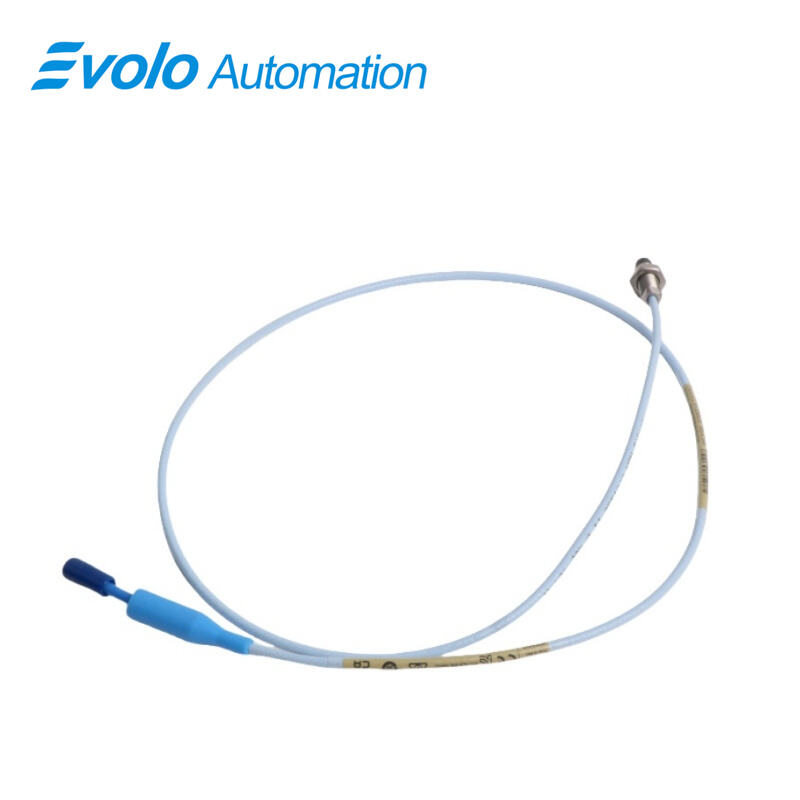

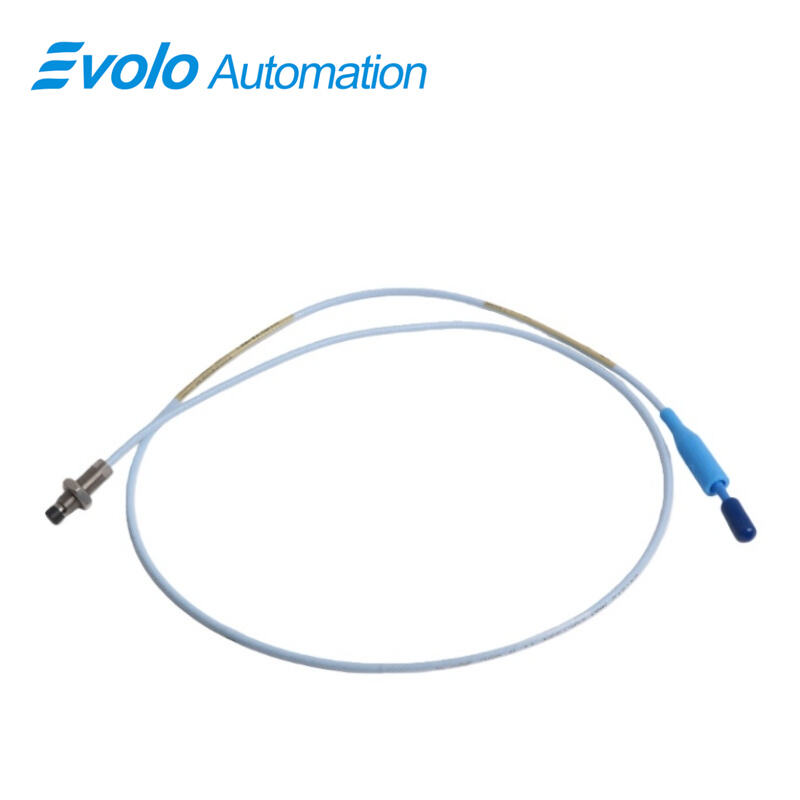

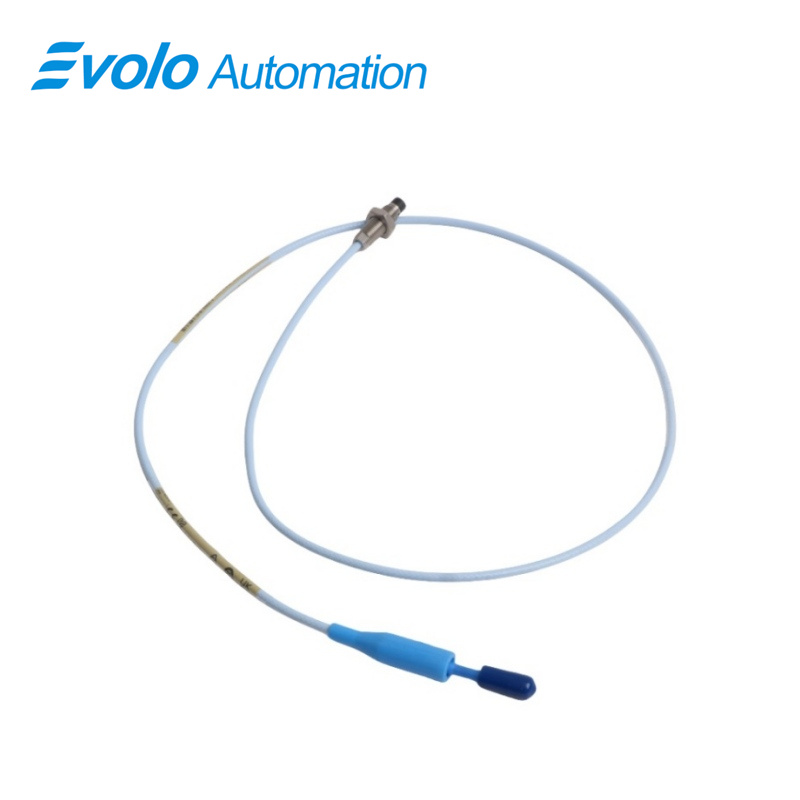

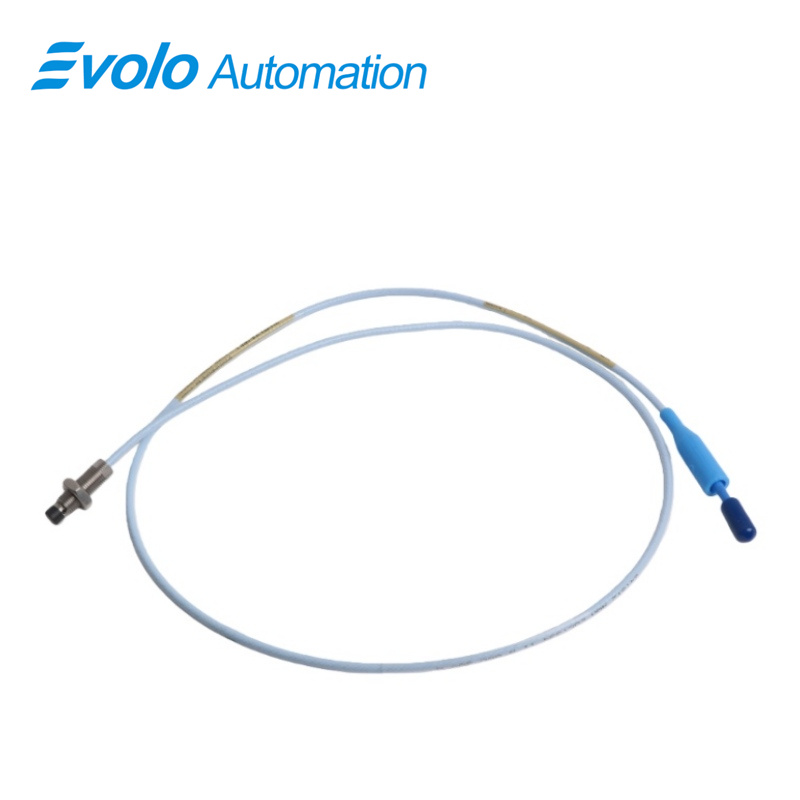

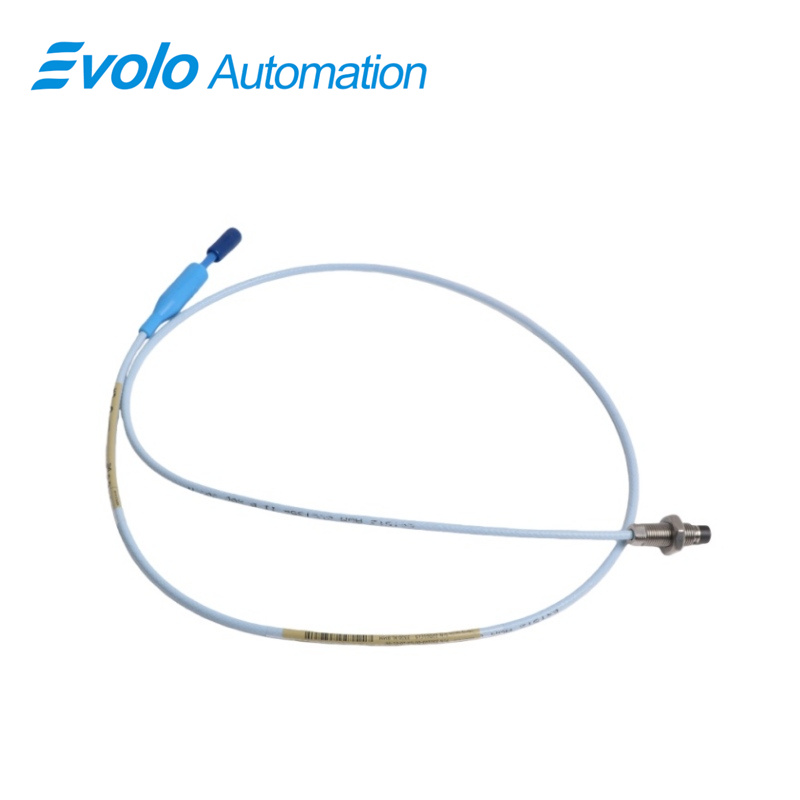

330103-00-03-10-12-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-03-10-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-03-10-12-00 3300 XL 8 mm Proximity Probe is designed for precise displacement and vibration measurement in industrial automation systems using eddy current sensing. The 330103-00-03-10-12-00 delivers an output voltage proportional to the probe gap within a defined 2 mm linear range, enabling accurate monitoring of shaft movement in rotating machinery controlled by automation platforms.

With an M10x1 threaded probe case and a 30 mm minimum case length, 330103-00-03-10-12-00 supports direct installation in compact bearing housings. The 1.0 meter total length and FluidLoc cable of 330103-00-03-10-12-00 reduce fluid migration along the cable path, supporting long-term operation in oil-lubricated equipment.

The 330103-00-03-10-12-00 operates across -52°C to +177°C, allowing placement near turbines, compressors, and pumps exposed to elevated temperatures. A 50 Ω output resistance and typical cable capacitance of 69.9 pF/m allow predictable signal transmission to monitoring modules. Low supply sensitivity below 2 mV/V enables 330103-00-03-10-12-00 to maintain repeatable output under power variation in automated control environments.

Applications

Shaft Vibration Monitoring in Rotating Equipment
The 330103-00-03-10-12-00 measures dynamic shaft vibration within a 2 mm linear range, allowing automation systems to track real-time radial movement of shafts in pumps, compressors, and turbines operating at variable speeds.

Axial Position Measurement for Thrust Bearings
Using proportional voltage output and a 50 Ω output resistance, the 330103-00-03-10-12-00 supports continuous axial position measurement on thrust bearings, enabling automated alarms when displacement exceeds preset limits.

Machine Startup and Shutdown Gap Verification
The 330103-00-03-10-12-00 provides repeatable gap measurement during startup and shutdown sequences, helping control systems verify correct shaft position before load application.

High-Temperature Machinery Condition Monitoring
With an operating range from -52°C to +177°C, the 330103-00-03-10-12-00 is used near hot zones such as turbine casings and process compressors where automated monitoring is required.

Specifications

Competitive Advantage

Controlled Signal Output for Automation Inputs
The 330103-00-03-10-12-00 maintains less than 2 mV/V supply sensitivity, allowing PLCs and monitoring racks to receive predictable signals even during power fluctuation.

Compact Thread Design for Limited Mounting Space
An M10x1 probe thread and 30 mm minimum case length allow the 330103-00-03-10-12-00 to be installed in narrow bearing housings where larger probes cannot fit.

Fluid Migration Reduction in Lubricated Machines
The FluidLoc cable design of the 330103-00-03-10-12-00 limits oil movement along the cable path, supporting long-term operation in lubrication-heavy automation environments.

Defined Cable Electrical Characteristics
With typical extension cable capacitance of 69.9 pF/m, the 330103-00-03-10-12-00 enables engineers to calculate signal behavior accurately during system integration.
