Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330102-22-58-10-02-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
2.2 in |
|
Overall Case Length Option(Minimum case length): |
5.8 in |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
1.5x113x1.4cm |
|
Weight: |
0.14kg |
Description

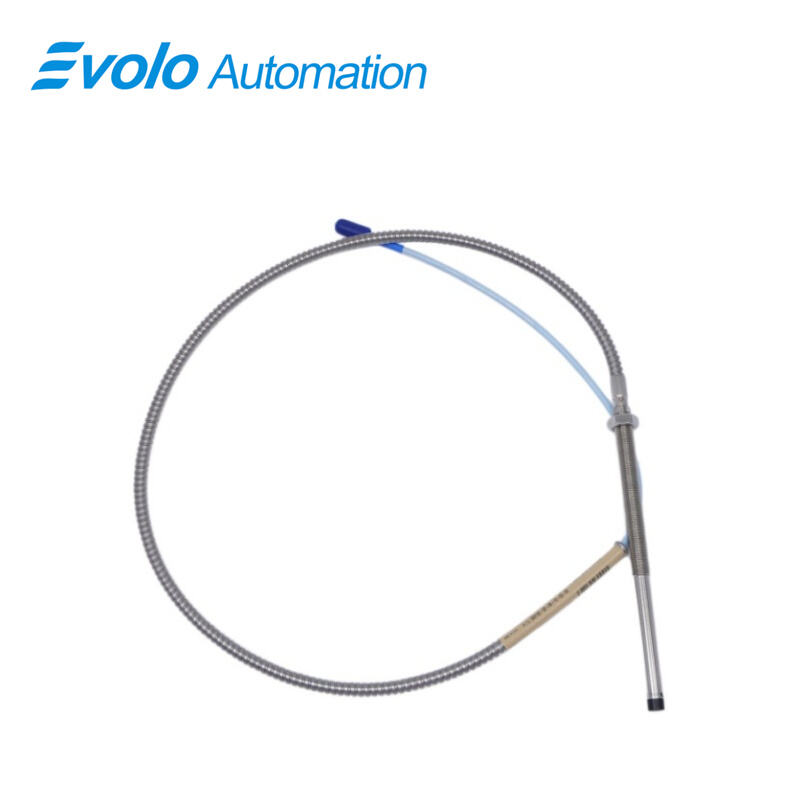

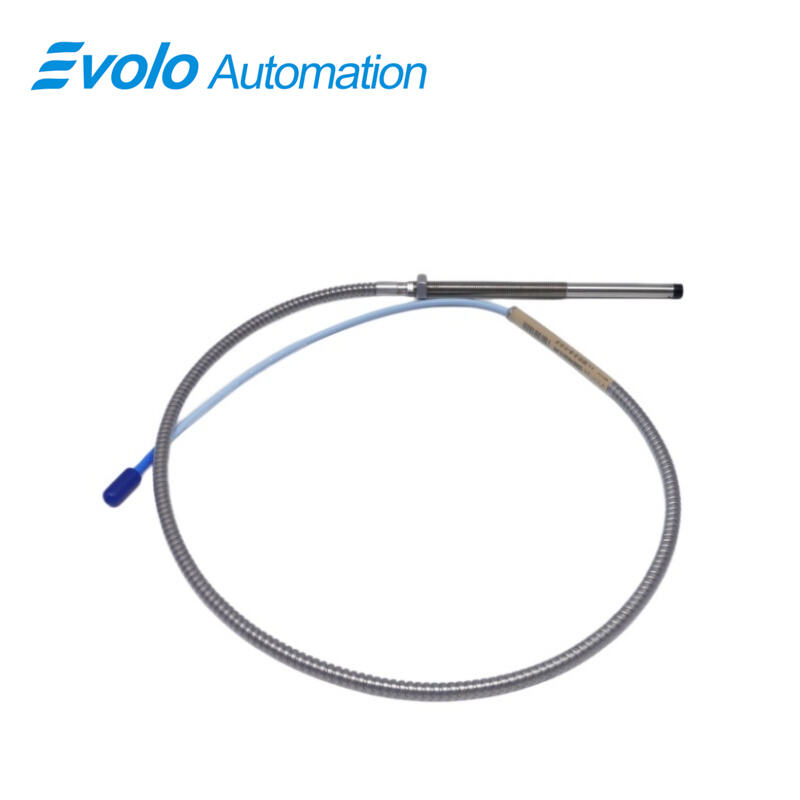

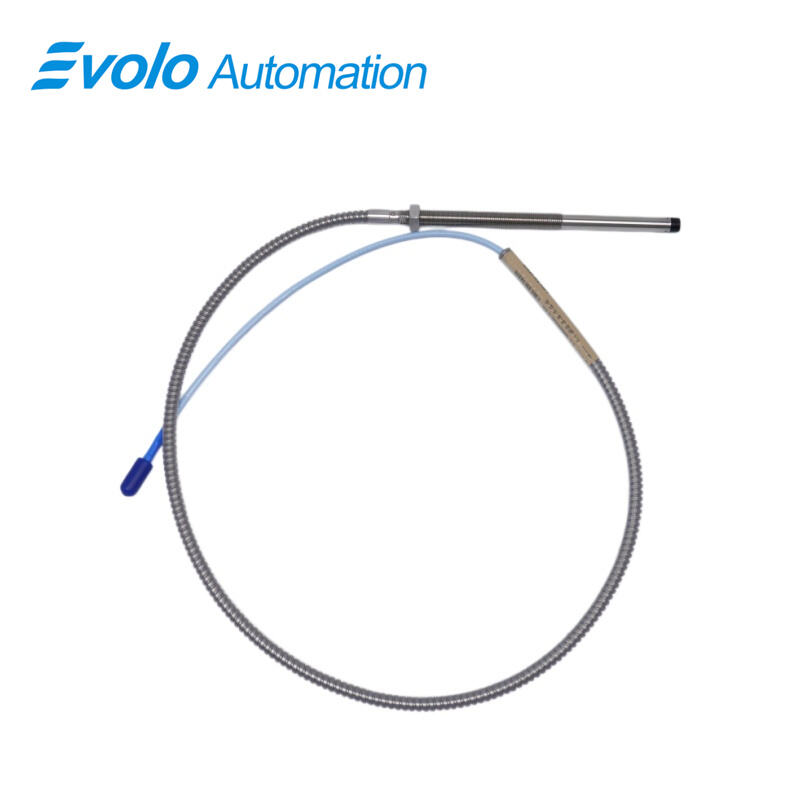

The 330102-22-58-10-02-00 3300 XL 8 mm Proximity Probe provides output voltage proportional to the 8 mm probe tip displacement from conductive surfaces, measuring both static position and dynamic vibration. Operating from -52°C to +177°C (-62°F to +350°F), the 3300 XL 8 mm probe has a 3/8-24 UNF thread with 0.563 in engagement, 50 Ω output resistance, 2 mm linear range, 2.2 in unthreaded length, and 5.8 in overall case length. Its miniature coaxial ClickLoc connector and 69.9 pF/m cable capacitance enable precise signal transmission over 1.0 m total length. The 330102-22-58-10-02-00 3300 XL 8 mm Proximity Probe supports Keyphasor reference, rotor position tracking, and shaft vibration monitoring in automated machinery. Optional FluidLoc cables prevent oil leakage, while all 3300 XL 8 mm components interchange with extension cables and Proximitor sensors, minimizing maintenance time in industrial automation systems.
Applications
Measure Shaft Vibration in Turbines and Compressors
The 330102-22-58-10-02-00 3300 XL 8 mm Proximity Probe captures precise shaft vibration signals. Its 2 mm linear range and 50 Ω output resistance allow automation systems to detect micrometer-scale displacements in turbines, compressors, and pumps.
Track Rotor Position in High-Speed Motors
Install the 3300 XL 8 mm probe to monitor rotor position. The 0.563 in thread engagement and 69.9 pF/m cable capacitance maintain accurate voltage signals over 1.0 m cable, enabling precise rotor displacement tracking for automated control.
Generate Keyphasor Pulses for Speed Monitoring
The 330102-22-58-10-02-00 3300 XL 8 mm Proximity Probe outputs Keyphasor reference pulses with less than 2 mV/V supply sensitivity, supporting real-time speed measurement and synchronization in automated machinery.
Monitor Axial Shaft Movement in Turbines
Use 3300 XL 8 mm probes to detect axial displacement. The 2.2 in unthreaded length and 5.8 in case length allow installation in tight spaces, while operating temperature up to 177°C ensures reliable readings in automated turbine systems.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
High-Temperature Operation with Minimal Voltage Drift
The 330102-22-58-10-02-00 3300 XL 8 mm Proximity Probe maintains output voltage with less than 2 mV/V supply sensitivity from -52°C to +177°C, enabling accurate automation measurements in extreme environments.
Fast Installation Using ClickLoc Connector
The miniature coaxial ClickLoc connector and 3/8-24 UNF thread on the 3300 XL 8 mm probe allow secure installation in under a minute, reducing downtime in automated lines.
Strong Probe-to-Cable Connection with CableLoc
The 330102-22-58-10-02-00 3300 XL 8 mm Proximity Probe features a CableLoc design with 330 N pull strength, preventing cable detachment during dynamic monitoring in automation equipment.
