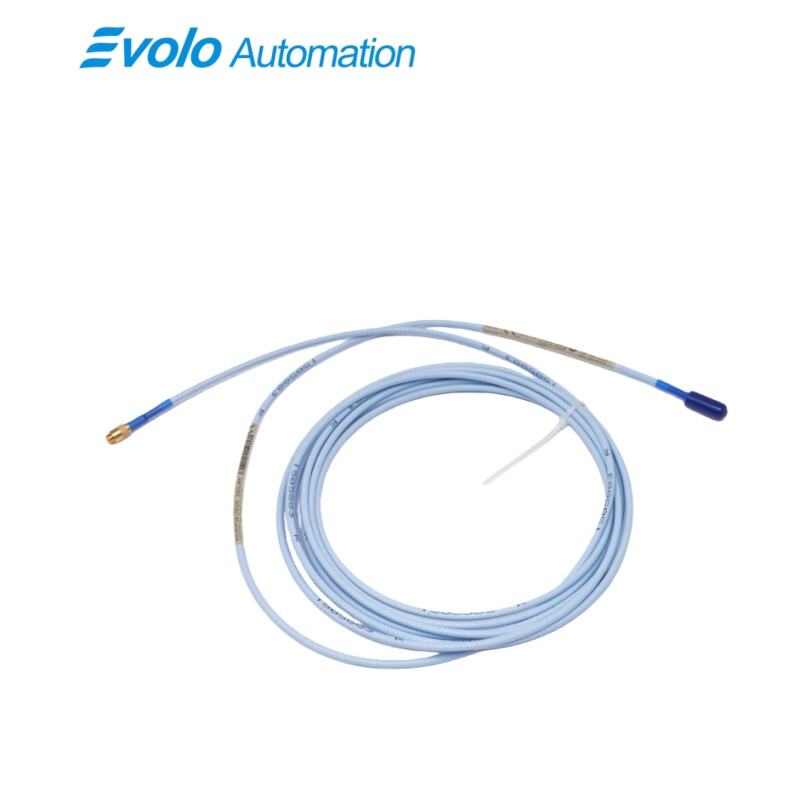

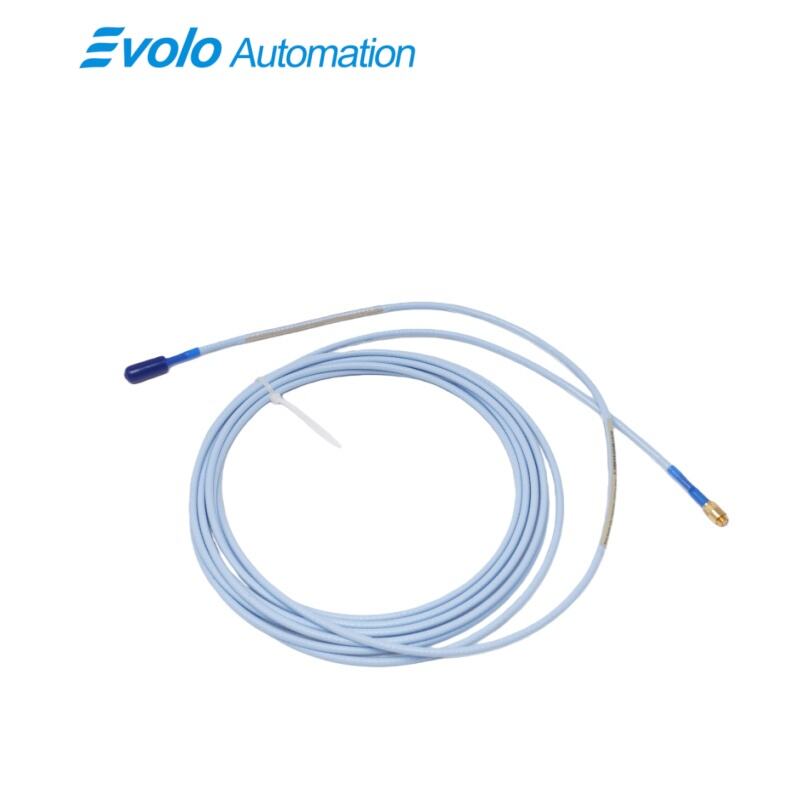

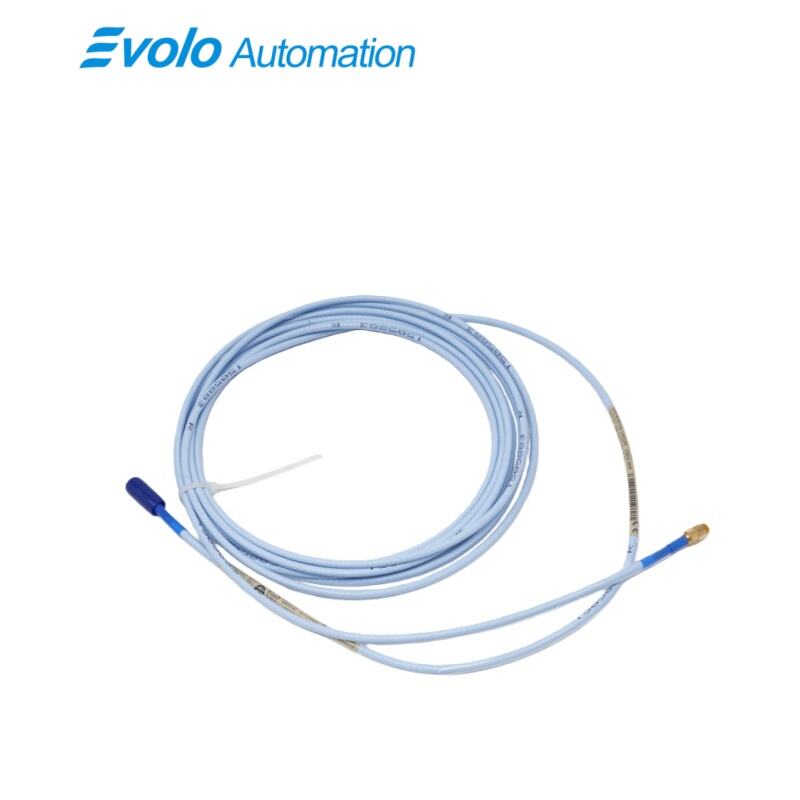

330130-040-00-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-040-00-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-040-00-05 3300 XL Standard Extension Cable is a high-precision interconnect component engineered specifically for the 3300 XL Proximity Transducer System. This 3300 XL Standard Extension Cable functions as the critical link between the proximity probe and the Proximitor sensor, ensuring the seamless transmission of eddy current signals. Designed to maintain the integrity of vibration and position data, this extension cable is vital for monitoring the health of rotating machinery. The 330130-040-00-05 model features a 4.0-meter cable length, providing the necessary reach for complex industrial installations while adhering to the strict 75 1$\Omega$ triaxial impedance requirements essential for system calibration.2As a core part of the 3300 XL family, this standard extension cable is fully compliant with API 670 standards, guaranteeing superior linear range performance and thermal stability.3 The 330130-040-00-05 utilizes advanced shielding technology to mitigate electromagnetic interference (EMI), which is crucial in high-noise power plant and refinery environments.4 One of the primary advantages of this 3300 XL Standard Extension Cable is its total interchangeability; it allows for the replacement of cables without the need for time-consuming bench recalibration of the entire transducer system.

Applications

The 330130-040-00-05 is extensively utilized in the oil and gas sector for monitoring critical turbomachinery, such as centrifugal compressors and high-pressure pumps. Given its CSA, ATEX, and IECEx approvals, this cable is the standard choice for hazardous areas like offshore platforms and refineries.7 The 4.0-meter length allows for flexible routing from the machine housing to local junction boxes, while the 75 $\Omega$ triaxial design ensures that vibration signals remain stable despite the presence of heavy electrical equipment. Its ability to operate in temperatures reaching $+170^\circ\text{C}$ makes it indispensable for monitoring bearings located near hot process fluid lines.In the power generation industry, this 3300 XL Standard Extension Cable plays a vital role in the vibration and thrust position monitoring of large-scale steam and gas turbines. It connects the proximity probes mounted within the turbine casing to the Proximitor sensors located in cooler, accessible areas. The 330130-040-00-05 is specifically designed to handle the high-frequency vibration environments found in generator sets, providing a constant 50 $\Omega$ output resistance to the monitoring rack. This ensures that the Keyphasor signals and radial vibration data are transmitted with zero loss in accuracy, supporting the early detection of shaft misalignment or bearing wear.

Specifications

Competitive Advantage

Seamless API 670 Compliance and InterchangeabilityThe 330130-040-00-05 is engineered to meet the rigorous API 670 standards for machinery protection systems. Unlike third-party alternatives, this 3300 XL Standard Extension Cable offers "plug-and-play" interchangeability. This means users can replace a damaged cable in the field without needing to recalibrate the probe or the Proximitor, significantly reducing maintenance man-hours and system downtime during critical outages.Superior Signal Integrity in Extreme Thermal EnvironmentsWith a wide operating temperature range of $-45^\circ\text{C}$ to $+170^\circ\text{C}$, this cable is built for the harshest industrial climates. The specialized 75 $\Omega$ triaxial construction and low 69.9 pF/m capacitance minimize signal drift and phase shift. This ensures that even at high temperatures, the 3300 XL system maintains its precision 2 mm linear range, providing reliable data for safety-critical shutdown logic.Global Certification for Hazardous Area DeploymentThe 330130-040-00-05 comes standard with a comprehensive suite of global agency approvals, including CSA, ATEX, and IECEx.8 This "one-size-fits-all" certification approach simplifies global inventory management for multinational companies. It ensures that the same part number can be used in North American, European, and Asian facilities while meeting all local explosion-proof and intrinsic safety requirements for hazardous gas and dust environments.
