330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-44-10-11-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

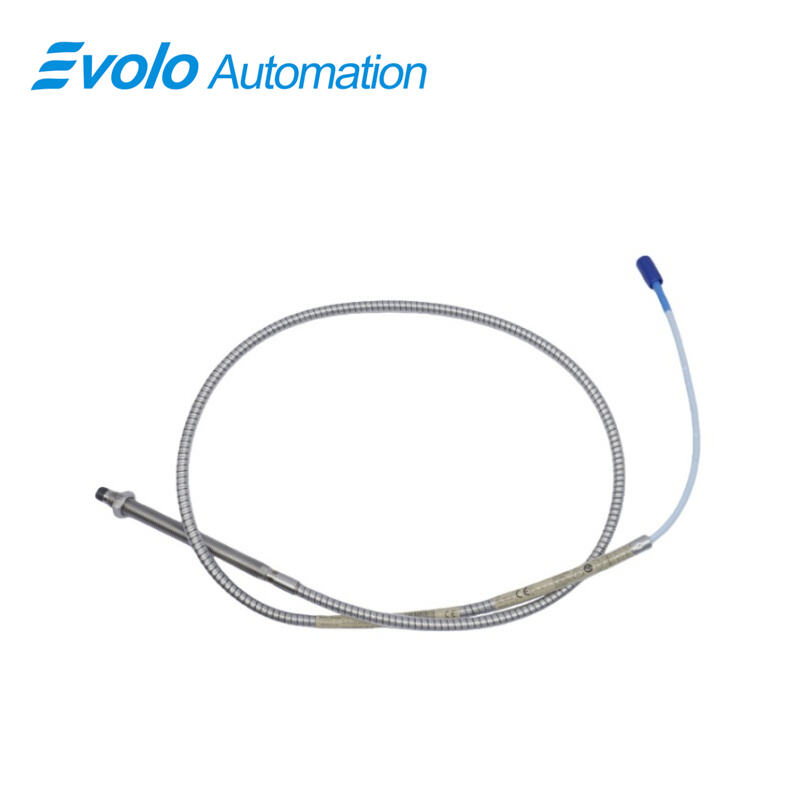

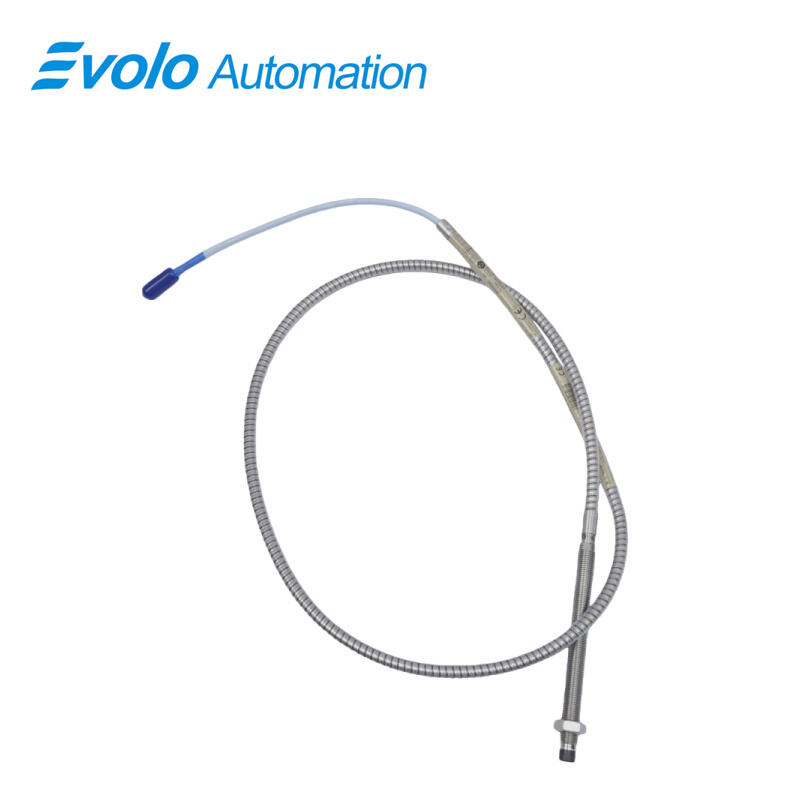

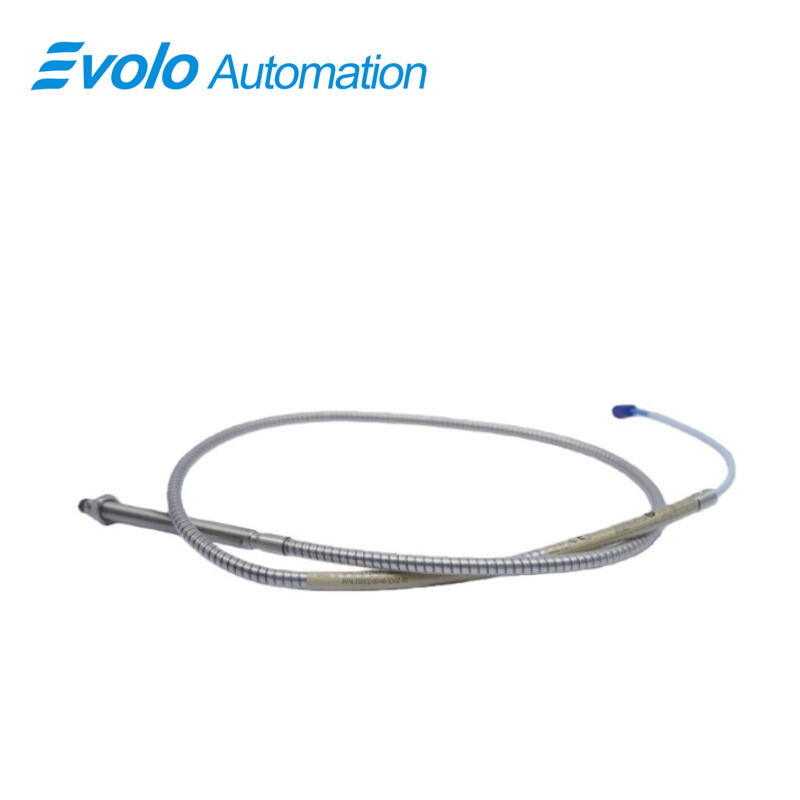

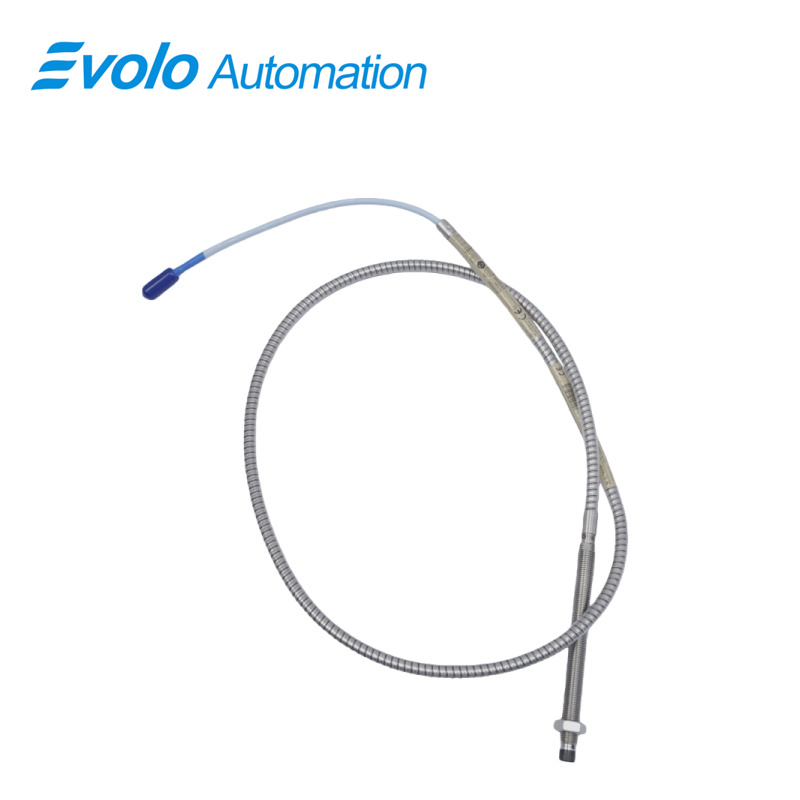

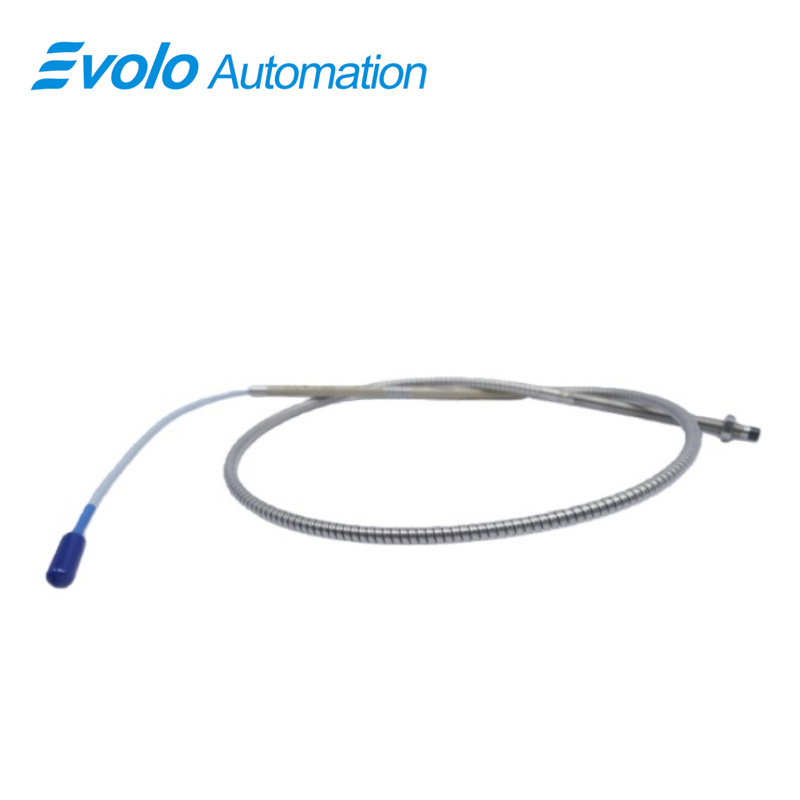

330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe is designed for automated vibration and position monitoring in fluid-film bearing machinery. 330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe features a 1.0-meter (3.3 ft) FluidLoc cable with miniature coaxial ClickLoc connector and connector protector, 3/8-24 UNF probe thread, and 2 mm (80 mils) linear range for precise measurement of shaft displacement and Keyphasor signals.

The 330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe operates from -52°C to +177°C (-62°F to +350°F), supports field wiring of 0.2–1.5 mm² (16–24 AWG), and has 69.9 pF/m (21.3 pF/ft) typical capacitance, ensuring reliable signal transmission in automated systems. Its 50 Ω output resistance and less than 2 mV/V supply sensitivity allow accurate dynamic and static measurements. 330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe incorporates patented TipLoc and CableLoc designs to secure the probe tip and cable, while optional FluidLoc prevents fluid ingress, supporting automated data acquisition in harsh industrial environments.

Applications

Application Radial Vibration Monitoring on Fluid-Film Bearings
330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe is ideal for automated radial vibration measurement on shafts in fluid-film bearing machines. Its 2 mm (80 mils) linear range allows precise detection of small radial displacements. The 69.9 pF/m (21.3 pF/ft) cable capacitance ensures accurate signal transmission from the 330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe to Proximitor Sensors in real-time monitoring systems.

Application Axial Shaft Position Measurement
Using 330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe, axial (thrust) position can be measured precisely with 1.0 mm (40 mils) recommended gap setting. The 50 Ω output resistance and supply sensitivity (<2 mV/V) ensure reliable automated position readings for process control.

Application Keyphasor Signal Generation
The 330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe generates Keyphasor signals by providing output voltage proportional to target distance. Its high-temperature operation (-52°C to +177°C) and FluidLoc cable option maintain signal integrity in automated speed and phase reference systems.

Application Retrofit and Component Interchange
330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe is mechanically and electrically compatible with other 3300 XL 5 mm and 8 mm series components. Automated system upgrades can be performed without bench calibration, reducing downtime while maintaining measurement accuracy.

Specifications

Competitive Advantage

Competitive Advantage Patented TipLoc and CableLoc Designs
The patented TipLoc and CableLoc features in 330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe provide 330 N (75 lbf) pull strength, securing probe tip and cable in automated installations. This ensures consistent signal output even in high-vibration industrial machinery.

Competitive Advantage Optional FluidLoc Cable
330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe offers a FluidLoc cable that prevents oil or liquids from entering the probe interior, maintaining measurement accuracy in automated monitoring of high-temperature bearings.

Competitive Advantage High-Temperature Operation
330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe operates reliably between -52°C to +177°C (-62°F to +350°F), allowing automated data acquisition in extreme industrial environments without degradation.

Competitive Advantage Connector Protection
Miniature coaxial ClickLoc connectors with protector on 330102-00-44-10-11-05 3300 XL 8 mm Proximity Probe maintain secure connections between probe, extension cable, and Proximitor Sensor, reducing signal loss and supporting uninterrupted automated monitoring.
