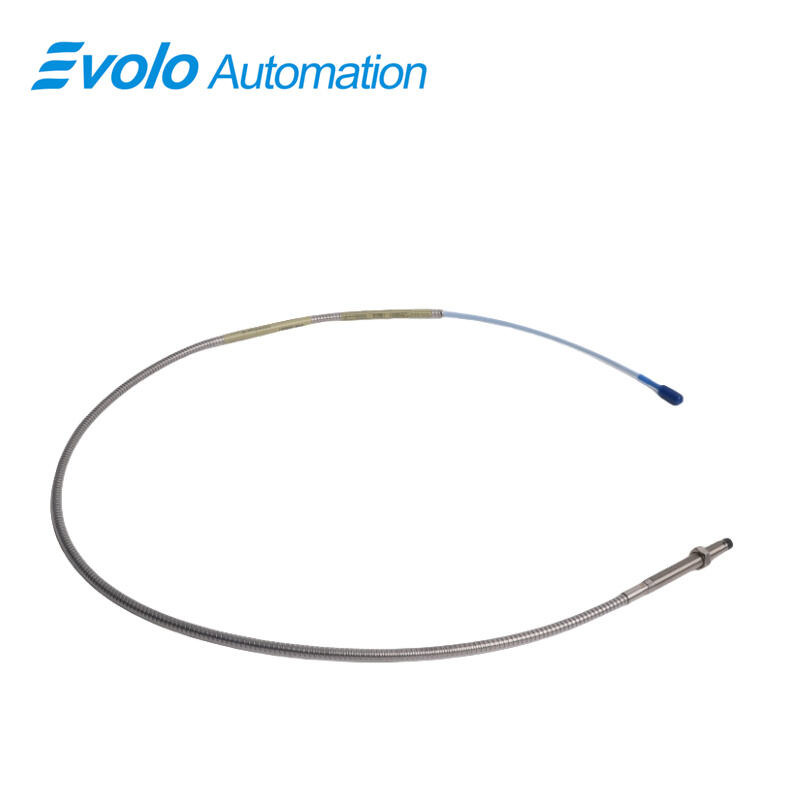

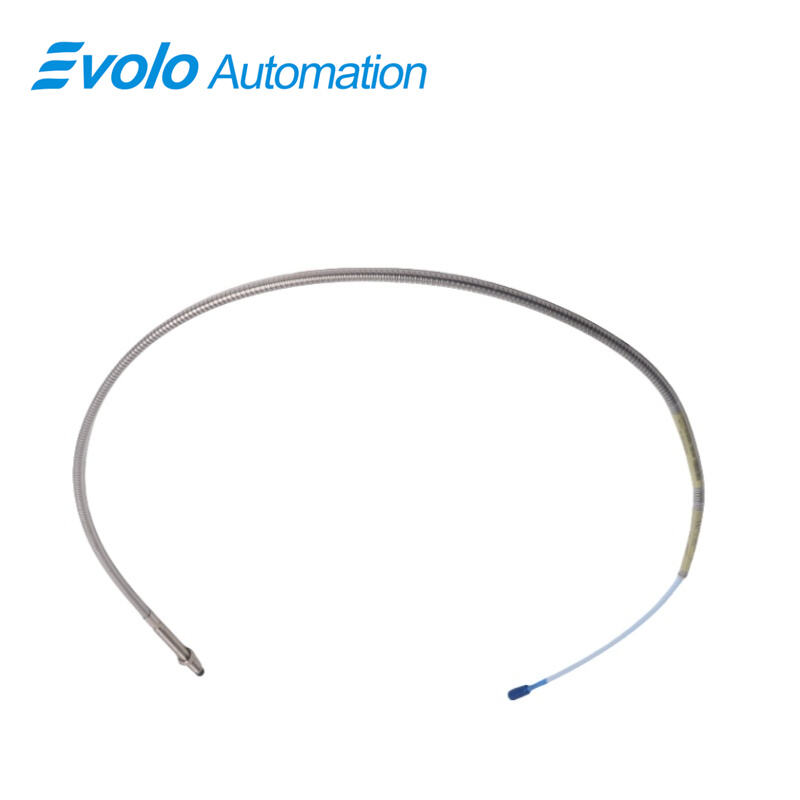

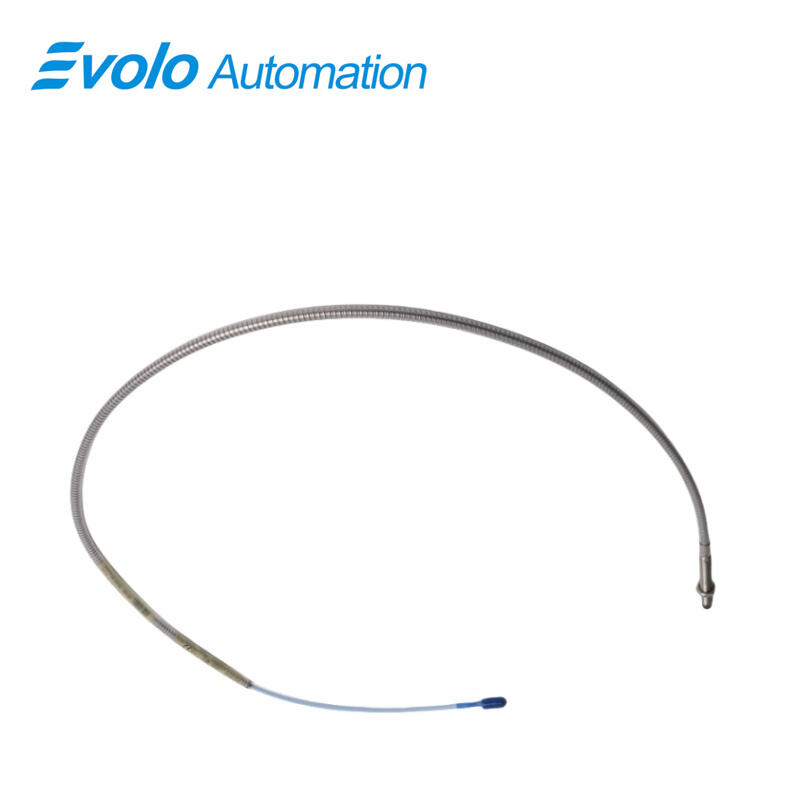

330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-28-05-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe delivers precise monitoring of both static (position) and dynamic (vibration) signals in automated machinery. With a 0.5 meter (1.6 feet) total length and 2 mm (80 mils) linear range, this probe accurately measures radial vibration and axial displacement on fluid-film bearing shafts. The 3/8-24 UNF threaded probe tip with a maximum engagement of 0.563 in allows secure mounting in compact installations. Its miniature ClickLoc connector and standard cable support field wiring from 0.2 to 1.5 mm² (16–24 AWG) while supply sensitivity remains under 2 mV per volt. Operating from -52°C to +177°C (-62°F to +350°F), the 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe performs reliably in diverse automated environments. The probe features a patented TipLoc molding method and CableLoc design providing 330 N (75 lbf) pull strength, ensuring secure probe-cable connection and preventing signal loss. Optional FluidLoc cables prevent oil or fluid ingress, making the 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe ideal for process compressors and machinery with limited installation space.

Applications

Measure Radial Shaft Vibration
The 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe uses its 2 mm (80 mils) linear range and high-sensitivity output to monitor radial shaft vibration in fluid-film bearing machinery, providing real-time data for automated condition monitoring.

Track Axial Shaft Position
With a 3/8-24 UNF threaded tip and 0.563 in maximum thread engagement, the 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe accurately measures axial shaft displacement, allowing automation systems to adjust machinery operation for optimal performance.

Provide Keyphasor Speed Signals
The 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe supports Keyphasor signal generation for rotational speed detection, enabling automated control systems to synchronize operations and protect high-speed rotating equipment.

Compact Space Installation
Thanks to a 0.5 meter (1.6 feet) cable and miniature ClickLoc connector, the 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe can be mounted in tight enclosures, allowing automated equipment monitoring where space is limited.

Specifications

Competitive Advantage

Secure Probe-to-Cable Connection
The patented CableLoc design on the 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe provides 330 N (75 lbf) pull strength, preventing accidental disconnections in automated machinery, ensuring continuous data flow.

Prevent Fluid Ingress
Optional FluidLoc cables on the 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe stop oil or other fluids from entering the probe or cable, maintaining accurate measurements in wet or oily industrial environments.

High-Temperature Operation
Operating between -52°C to +177°C (-62°F to +350°F), the 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe delivers reliable readings in automated systems exposed to extreme heat or cold.

Quick Installation in Automated Plants
The 3/8-24 UNF threaded probe tip of the 330102-00-28-05-02-00 3300 XL 8 mm Proximity Probe allows fast and repeatable mounting, minimizing downtime during sensor replacement or system upgrades.
