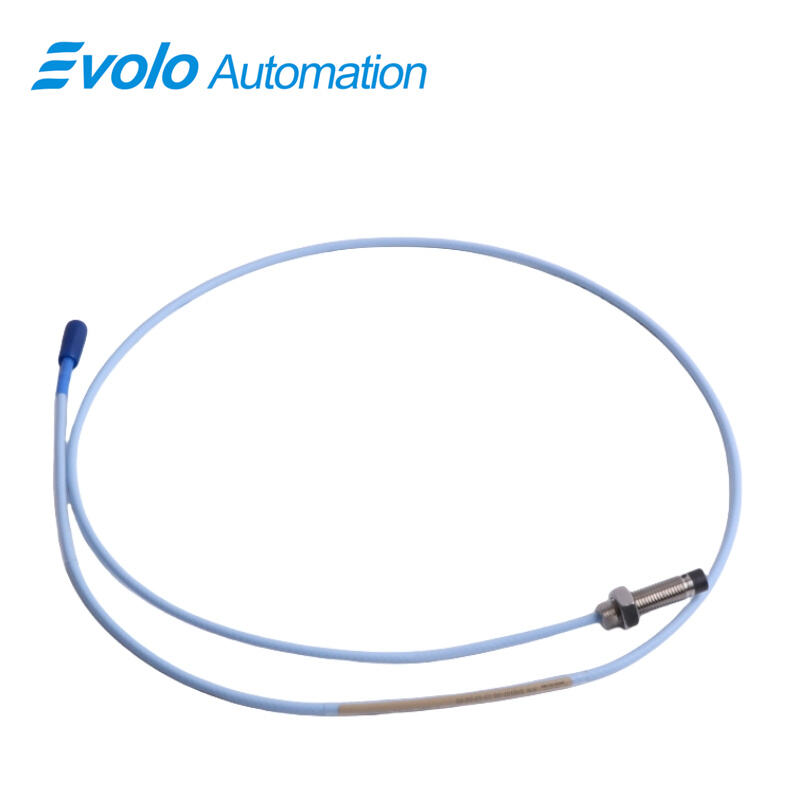

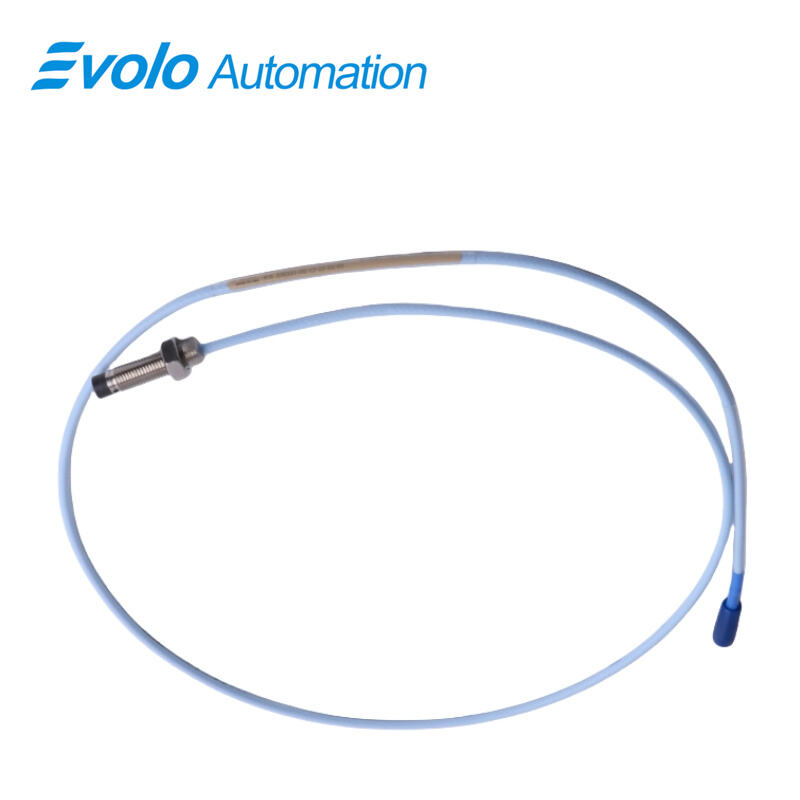

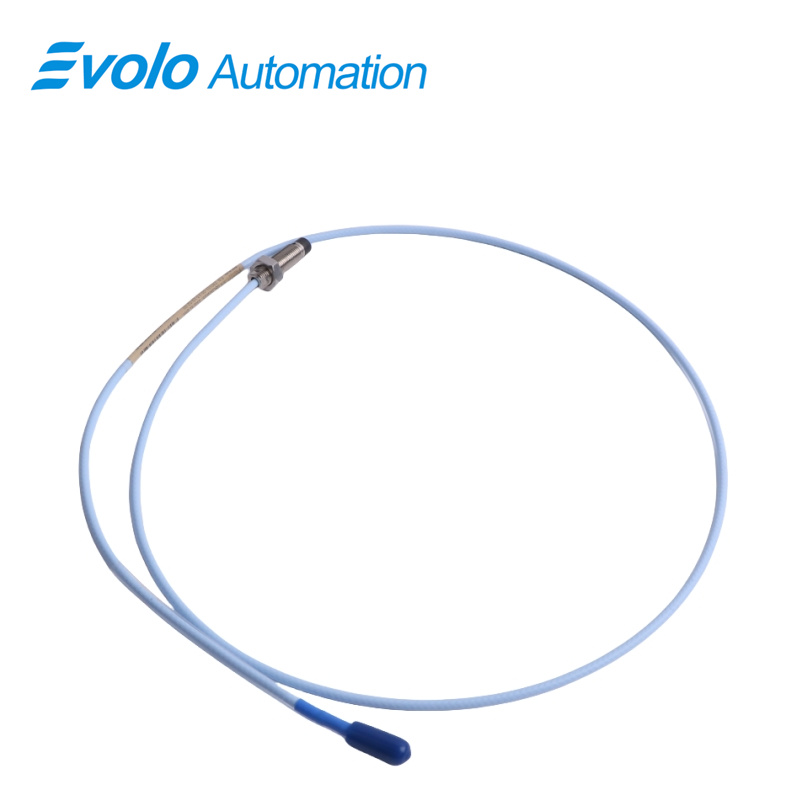

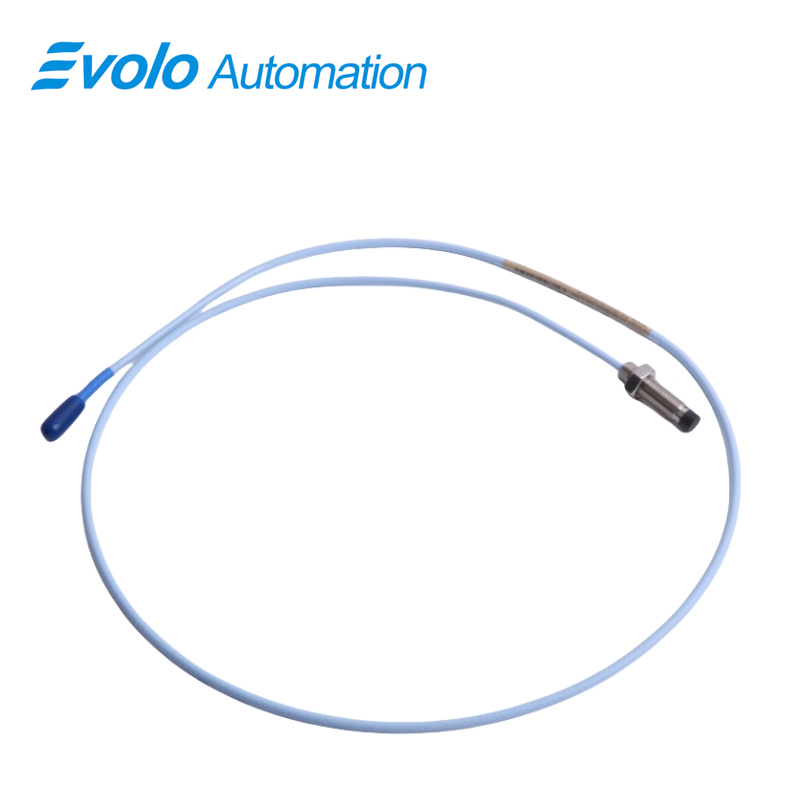

330101-00-13-15-12-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-13-15-12-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-13-15-12-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered for industrial automation, predictive maintenance, and machinery condition monitoring. This 8 mm probe delivers a linear output voltage directly proportional to the distance between the probe tip and the conductive surface, allowing both static position and dynamic vibration measurements. Designed with an overall case length of 1.3 inches and a 1.5-meter FluidLoc cable with a Miniature coaxial ClickLoc connector, it ensures robust signal integrity in turbines, compressors, pumps, and other fluid-film bearing machinery.

Operating reliably between -52°C and +177°C (-62°F to +350°F), the probe exhibits less than 2 mV supply sensitivity per volt, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, guaranteeing accurate performance under extreme environmental conditions. Its 3/8-24 UNF threaded case with a maximum engagement of 0.563 inches ensures secure and stable installation. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, enhancing mechanical reliability, while the optional FluidLoc cable prevents fluid leakage, maintaining consistent measurement accuracy. Fully CSA, ATEX, and IECEx certified and API 670 compliant, the 3300 XL 8 mm probe is backward-compatible with other 3300 series probes and Proximitor sensors, supporting modular and scalable industrial monitoring systems.

Applications

Application 1: Turbine Shaft Vibration Monitoring

Accurately measures turbine shaft vibration with a 2 mm linear range, enabling early detection of imbalance or misalignment, reducing unscheduled downtime by up to 25%.

Application 2: Pump Shaft Displacement Analysis

Provides precise shaft position data for centrifugal and reciprocating pumps, improving rotor alignment and pump efficiency by monitoring real-time deviations.

Application 3: Compressor Speed and Phase Measurement

Generates Keyphasor reference signals for automated control and condition monitoring of compressors, ensuring accurate speed and phase calculations for optimal operation.

Application 4: Fluid-Film Bearing Condition Assessment

Detects early signs of bearing wear and instability, helping extend machinery life and reduce maintenance costs by up to 30%.

Application 5: Oil-Lubricated Industrial Machinery Monitoring

The FluidLoc cable option prevents oil leakage through the cable, maintaining measurement reliability in lubricated environments for extended continuous operation.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Certification

Certified by CSA, ATEX, and IECEx, allowing safe operation in explosive and hazardous environments without compromising performance.

Competitive Advantage 2: Fluid-Resistant Cable Option

The FluidLoc cable prevents fluid ingress, providing stable, high-quality signals in oil-rich and harsh process conditions.

Competitive Advantage 3: Extreme Temperature Tolerance

Operates reliably in temperatures from -52°C to +177°C, supporting both cryogenic and high-temperature industrial applications.

Competitive Advantage 4: Enhanced Mechanical Reliability

Patented TipLoc and CableLoc designs offer 330 N (75 lbf) pull strength, ensuring secure probe and cable attachment even in high-vibration machinery.

Competitive Advantage 5: API 670 Compliance and Modular Interchangeability

Fully API 670 compliant and backward-compatible with all 3300 series probes, supporting standardized, modular automation and monitoring systems across multiple machine types.
