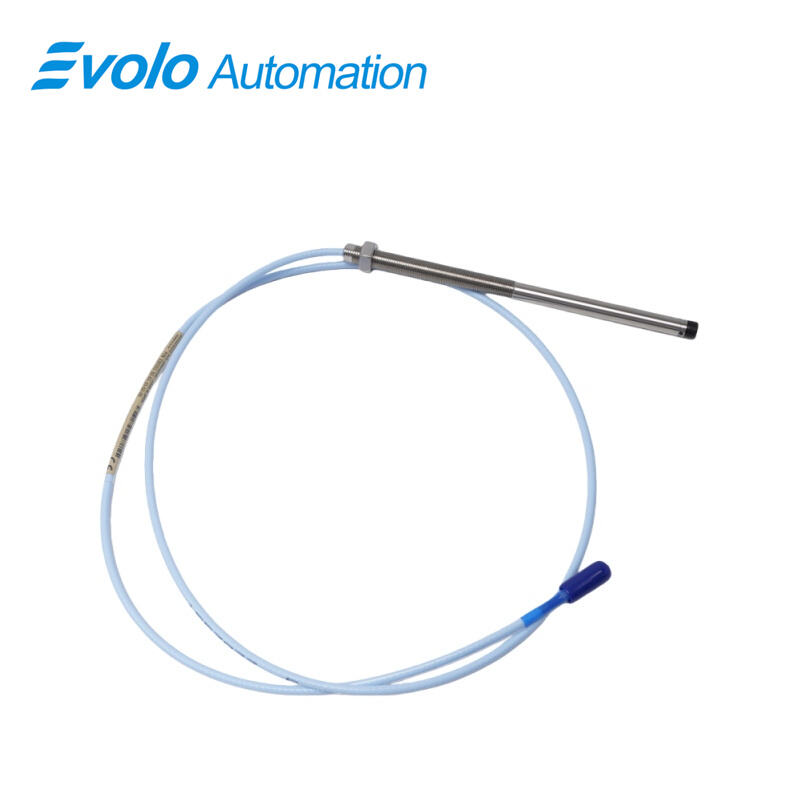

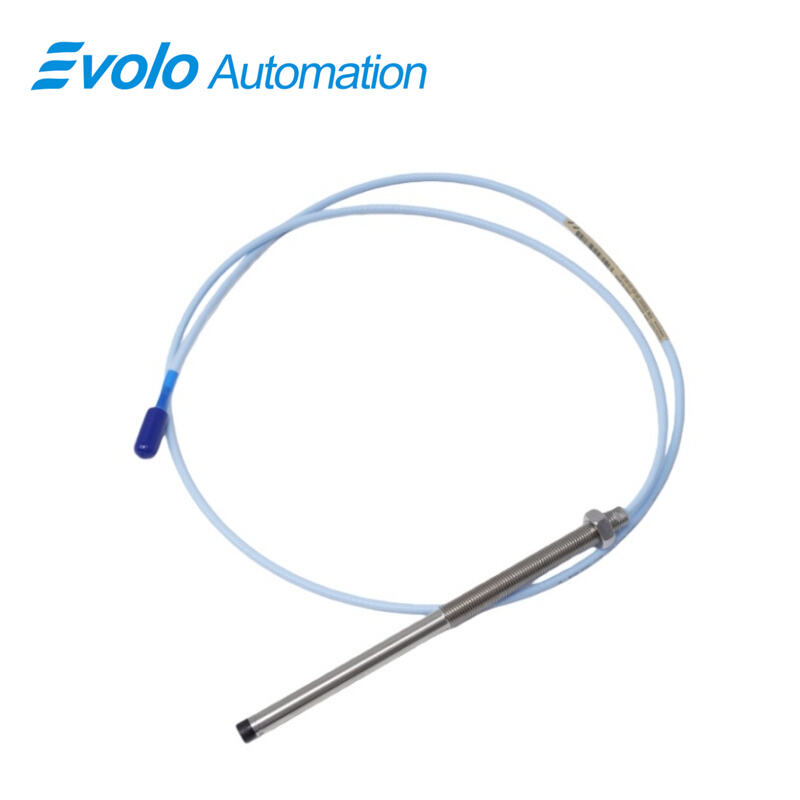

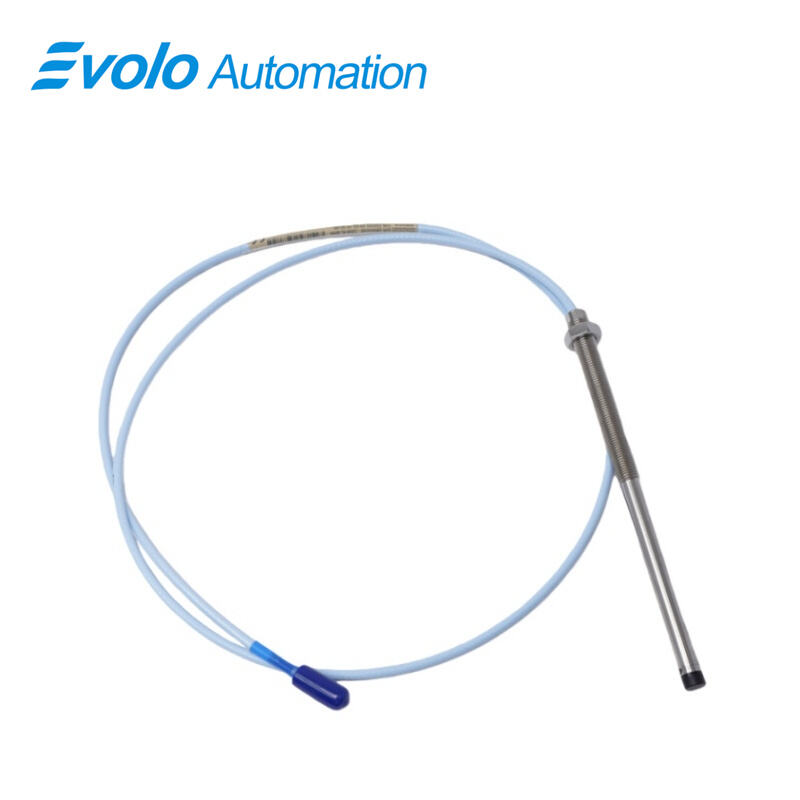

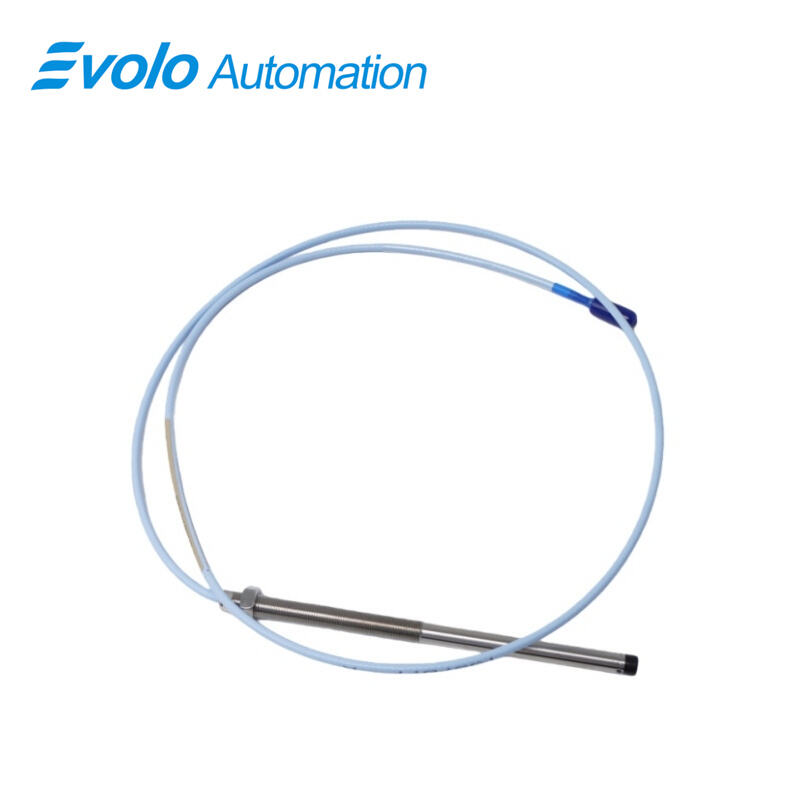

330101-30-63-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-30-63-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-30-63-10-02-00 3300 XL 8 mm Proximity Probe is engineered for automated monitoring of rotating machinery. The 330101-30-63-10-02-00 provides a 2 mm (80 mils) linear range, converting radial and axial shaft displacement into proportional voltage output for turbines, compressors, and pumps. With a 3.0 in unthreaded tip and 6.3 in minimum case length, the 330101-30-63-10-02-00 reaches deep bearing housings while maintaining proper sensing distance.

Equipped with a 3/8-24 UNF thread and 0.563 in maximum engagement, the 330101-30-63-10-02-00 installs directly into standard housings. Its 1.0 meter cable with 69.9 pF/m capacitance and 50 Ω output resistance ensures accurate signal delivery to automation control modules. Operating between –52°C and +177°C, the 330101-30-63-10-02-00 performs in high-temperature environments. With supply sensitivity below 2 mV/V, the 330101-30-63-10-02-00 supports Keyphasor reference, rotational speed measurement, and continuous vibration monitoring in industrial automation systems.

Applications

Measure Radial Shaft Vibration in Deep Bearing Housings

The 330101-30-63-10-02-00 features a 6.3 in minimum case length and 3.0 in unthreaded tip, allowing installation in deep bearing housings. Its 2 mm (80 mils) linear range converts shaft vibration into proportional voltage, supporting automated monitoring for turbines, compressors, and pumps.

Capture Axial Shaft Displacement on Thrust Collars

Equipped with a 3/8-24 UNF thread and 0.563 in maximum engagement, the 330101-30-63-10-02-00 measures axial shaft motion. The 50 Ω output resistance ensures precise signal delivery to automation monitoring modules.

Generate Keyphasor Pulses for Rotor Phase Analysis

The 330101-30-63-10-02-00 detects once-per-turn shaft features to produce reference pulses for orbit and phase measurements. Its supply sensitivity below 2 mV/V minimizes output variation, maintaining accurate Keyphasor signals in automated systems.

Monitor Rotational Speed in High-Temperature Machinery

Operating from –52°C to +177°C, the 330101-30-63-10-02-00 measures shaft speed in turbines and compressors. The 1.0 meter cable with 69.9 pF/m capacitance ensures reliable transmission of signals to automation controllers.

Record Shaft Motion During Startups and Shutdowns

During transient events, the 330101-30-63-10-02-00 captures dynamic shaft displacement within its 2 mm linear range, providing automated systems with high-resolution vibration and position data.

Specifications

Competitive Advantage

Reach Deep Bearing Housings With 6.3 in Case Length

The 330101-30-63-10-02-00 long case and 3.0 in unthreaded tip enable direct installation in deep or hard-to-access bearings without extensions.

Operate in Extreme Temperatures From –52°C to +177°C

The 330101-30-63-10-02-00 performs reliable measurements in turbines, compressors, and other high-heat equipment, supporting continuous automated monitoring.

Limit Voltage Drift to Under 2 mV Per Volt Supply Change

With supply sensitivity below 2 mV/V, the 330101-30-63-10-02-00 provides consistent output for automation modules even with minor voltage fluctuations.

Transmit High-Frequency Signals Accurately With 50 Ω Output

The 330101-30-63-10-02-00 maintains 50 Ω impedance, and combined with 69.9 pF/m cable capacitance, it delivers precise vibration and position signals to monitoring systems.

Support Direct Wiring With 16–24 AWG Conductors

The 330101-30-63-10-02-00 accepts 0.2–1.5 mm² cables, allowing direct connection to automation panels and reducing installation time for both retrofits and new systems.
