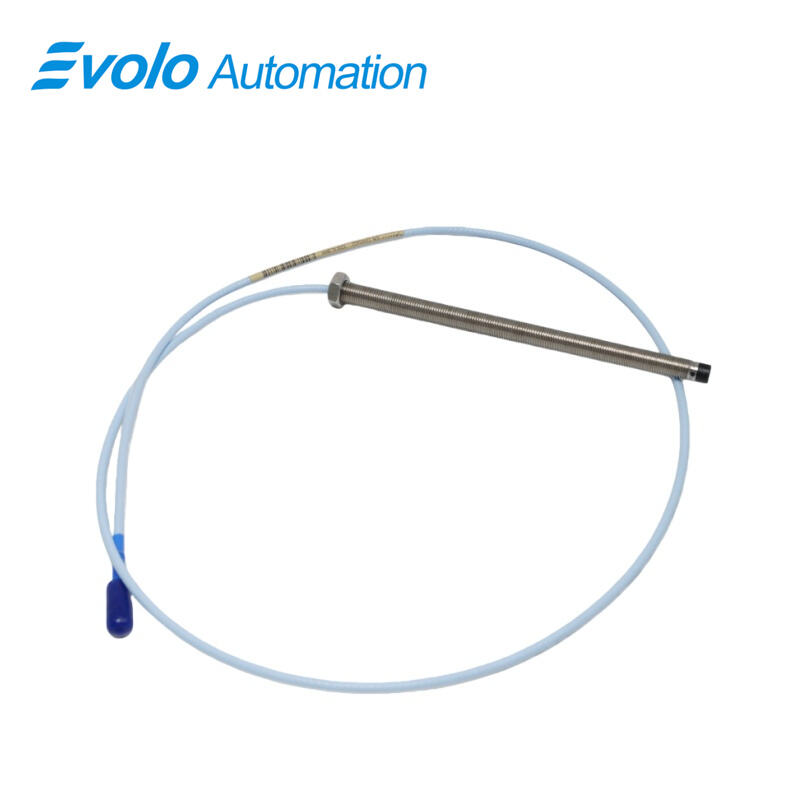

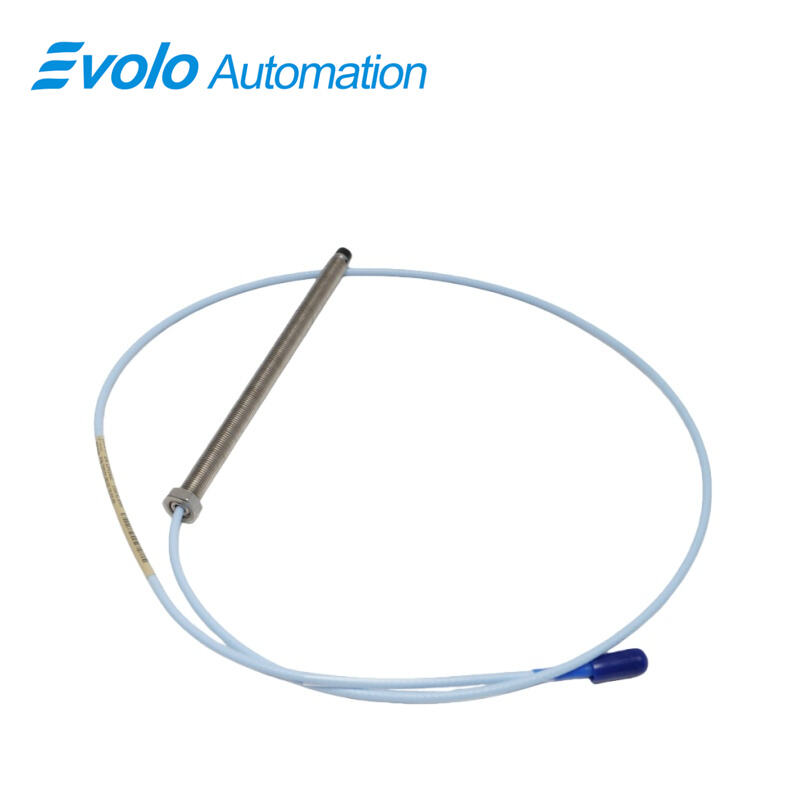

330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-68-10-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe delivers DC voltage output directly proportional to the distance between the probe tip and conductive surfaces, supporting precise measurement of both static position and dynamic vibration. Featuring a 2 mm linear range, 3/8-24 UNF threaded case, and FluidLoc cable with ClickLoc connector, the 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe operates across -52°C to +177°C and supports field wiring from 0.2 to 1.5 mm². With supply sensitivity under 2 mV per volt, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance, this probe ensures consistent signal output. Standard 1.0-meter length and API 670 compliance allow rapid integration into automated systems, while patented TipLoc and CableLoc designs reinforce probe-tip bonding and cable attachment. The 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe provides reliable performance for high-density panel and DIN-rail installations without bench calibration.

Applications

Measure Shaft Movement in Pumps and Motors
The 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe, with its 2 mm linear range and 50 Ω output resistance, allows precise measurement of radial and axial shaft displacement in pumps and motors for automated monitoring.

Monitor Vibration on Fluid-Film Bearings
Install the 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe on fluid-film bearings to capture vibrations up to 10 kHz and automatically detect deviations using the -52°C to +177°C operating temperature range.

Provide Keyphasor Signals for Speed Control
The 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe outputs proportional voltage for Keyphasor reference, enabling speed control in rotating machinery and feeding data directly into control systems.

Install in Compact Automation Panels
The 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe, featuring a 3/8-24 UNF thread and ClickLoc FluidLoc connector, can be mounted in tight DIN-rail or panel spaces while maintaining accurate measurements.

Specifications

Competitive Advantage

Prevent Fluid Intrusion into Machinery
The FluidLoc cable option on the 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe prevents oil or lubricants from leaking through the cable, ensuring clean automated operation.

Secure Probe-Cable Attachment
CableLoc design with 330 N pull strength ensures the 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe remains firmly connected under vibration and motion in industrial equipment.

Strengthen Probe Tip Bond
The TipLoc molding method reinforces the bond between the probe tip and body, allowing the 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe to maintain precise distance measurements even in high-vibration environments.

Maintain Consistent Voltage Output
With less than 2 mV change per volt of input voltage and a 50 Ω output resistance, the 330101-00-68-10-12-05 3300 XL 8 mm Proximity Probe ensures reliable automated monitoring over its full operating range.
