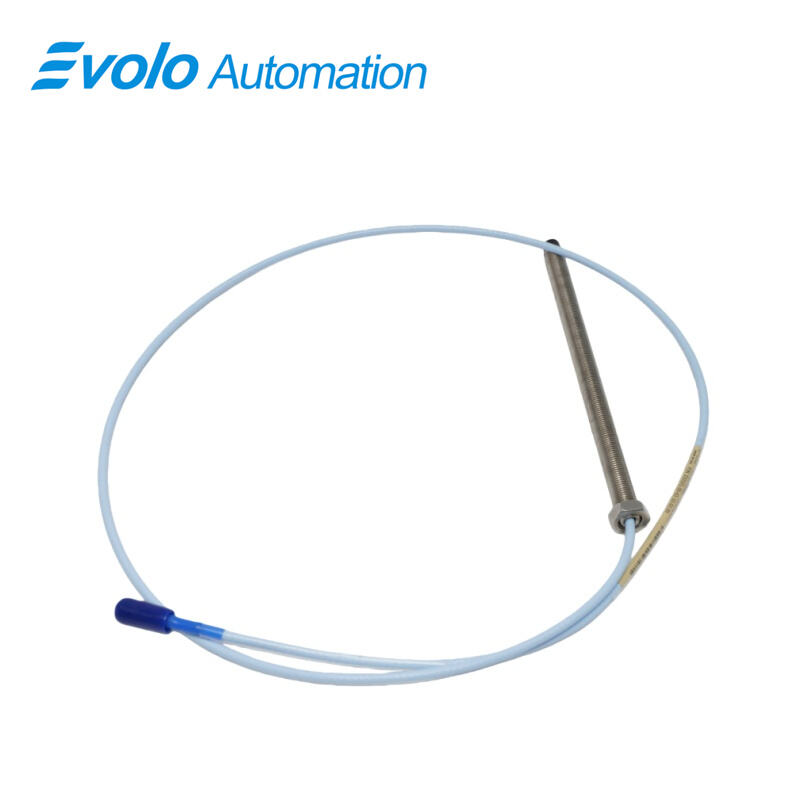

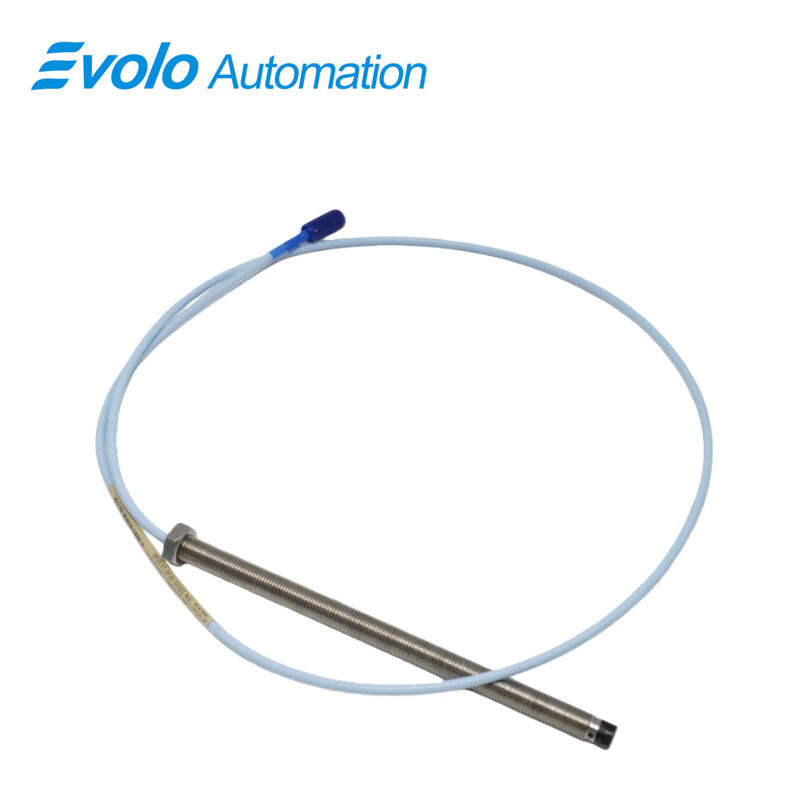

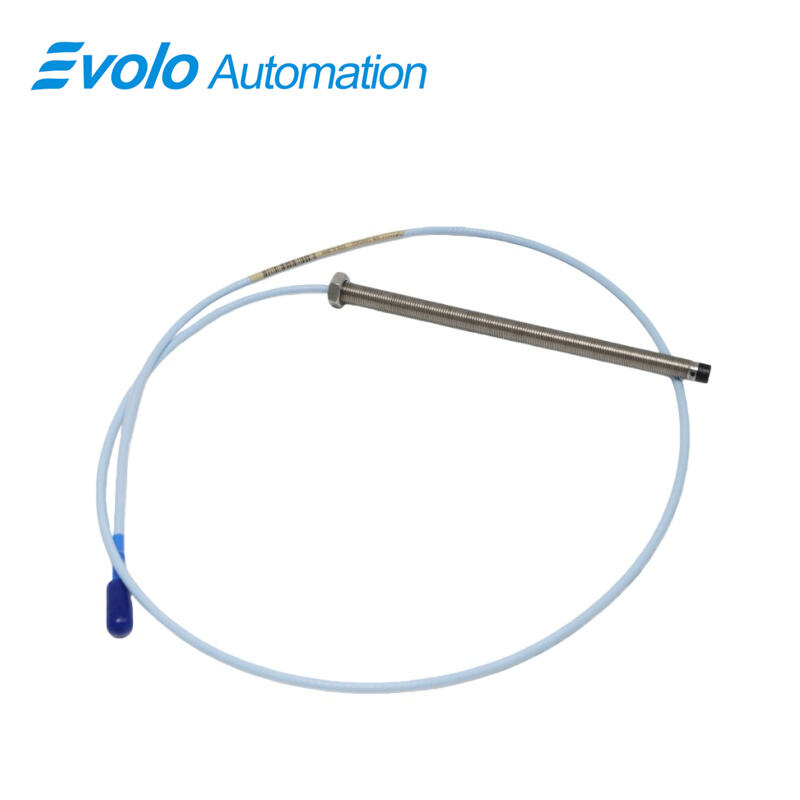

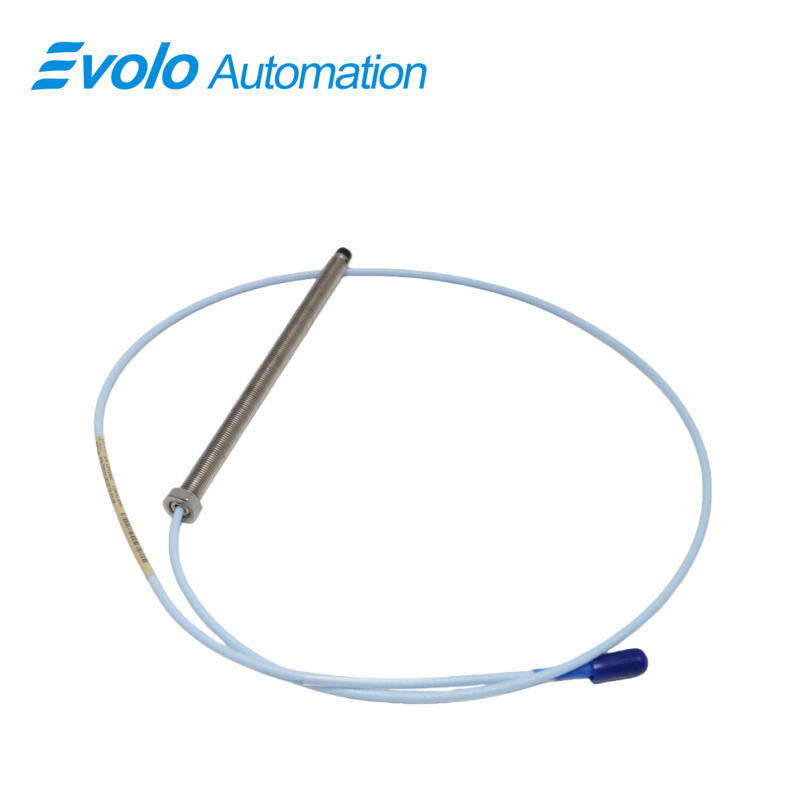

330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-63-20-12-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe provides a precise AC output voltage directly proportional to the distance between the probe tip and the measured conductive surface. Capable of measuring both static shaft position and dynamic vibration, the 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe is ideal for automated vibration monitoring on fluid-film bearing machines. With a linear range of 2 mm, output resistance of 50 Ω, and less than 2 mV change per volt input variation, it delivers accurate feedback for PLCs and DCS-based automation systems. The 2-meter FluidLoc extension cable with miniature ClickLoc connector allows secure installation and prevents oil or liquid ingress. The 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe supports Keyphasor reference and speed measurement, ensuring synchronized data acquisition for automated control loops. Operating from -52°C to +177°C and with a 3/8-24 UNF threaded case, the 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe can be integrated seamlessly into industrial automation environments, providing repeatable measurement and backward compatibility with other 3300 XL 8 mm transducer system components.

Applications

Vibration Monitoring on Fluid-Film Bearings
The 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe measures shaft vibration in fluid-film bearing machines. Its 2 mm linear range and 50 Ω output resistance provide precise data for automated vibration analysis and fault detection systems.

Position Feedback for Rotating Equipment
Using the 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe, automation systems can monitor shaft position in real time. The probe’s AC output responds directly to tip-to-shaft distance, supporting control loops and PLC/DCS integration.

Keyphasor Reference and Speed Measurement
The 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe generates accurate Keyphasor signals for rotor speed detection, enabling synchronized data acquisition in automated machinery monitoring systems.

Remote Monitoring with FluidLoc Cable
Equipped with a 2-meter FluidLoc extension cable and ClickLoc connector, the 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe allows secure mounting while preventing oil ingress, supporting long-distance signal transmission to control rooms.

Specifications

Competitive Advantage

Direct Linear Output for Automated Control
The 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe provides a voltage proportional to shaft displacement. This allows PLCs, DCS, and other automation controllers to receive consistent, calibrated signals without additional signal conditioning.

High Temperature Operation
Operating from -52°C to +177°C, the 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe maintains precise measurements in extreme industrial environments, enabling continuous automated monitoring without additional environmental protection.

Robust Cable Retention with CableLoc
The patented CableLoc design of the 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe supports up to 330 N pull force, securing the extension cable and probe tip. This ensures reliable signal delivery for automation systems even in high-vibration installations.

Backward Compatibility with 3300 Series
All 330101-00-63-20-12-05 3300 XL 8 mm Proximity Probe components interchange with other 3300 XL 8 mm and non-XL 3300 series parts. This simplifies replacement and integration into existing automated monitoring systems.
