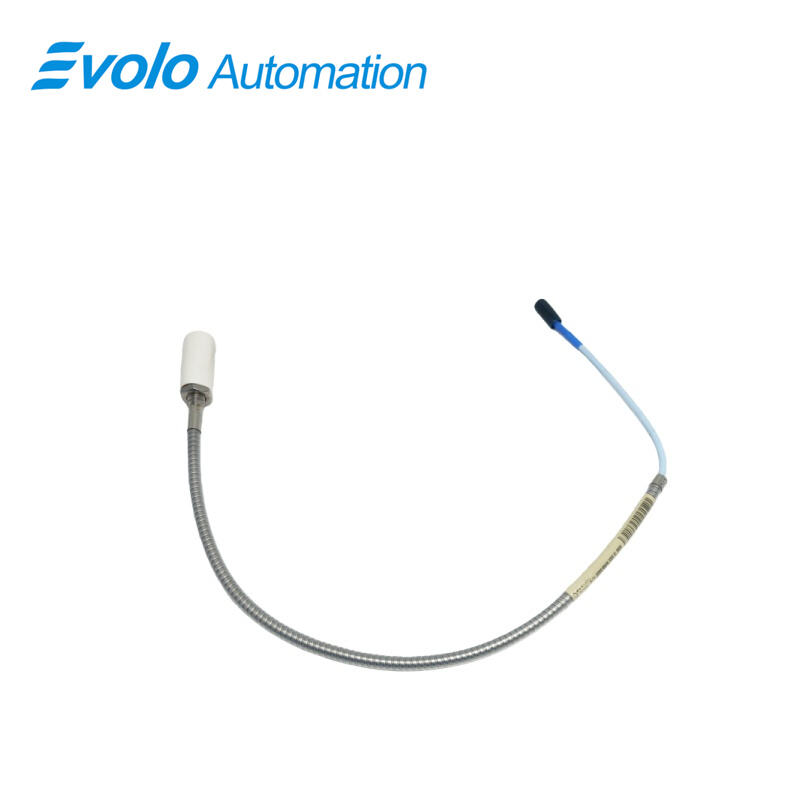

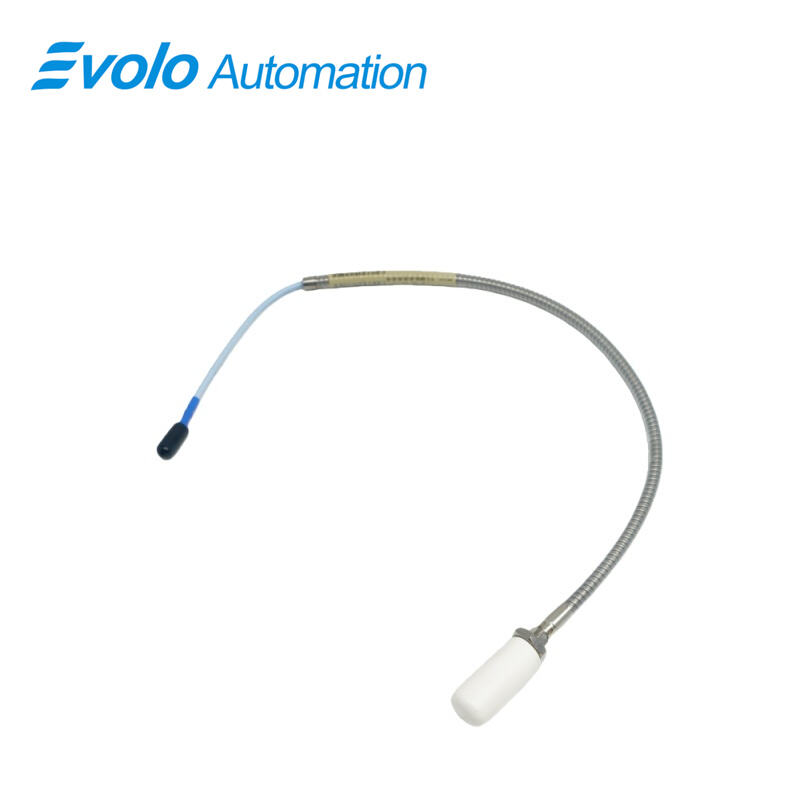

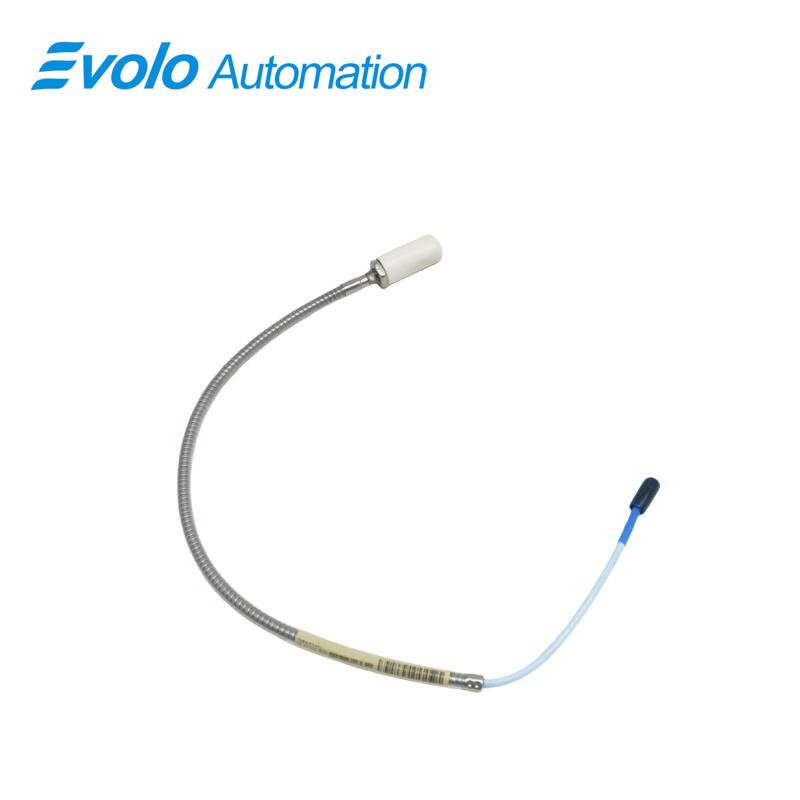

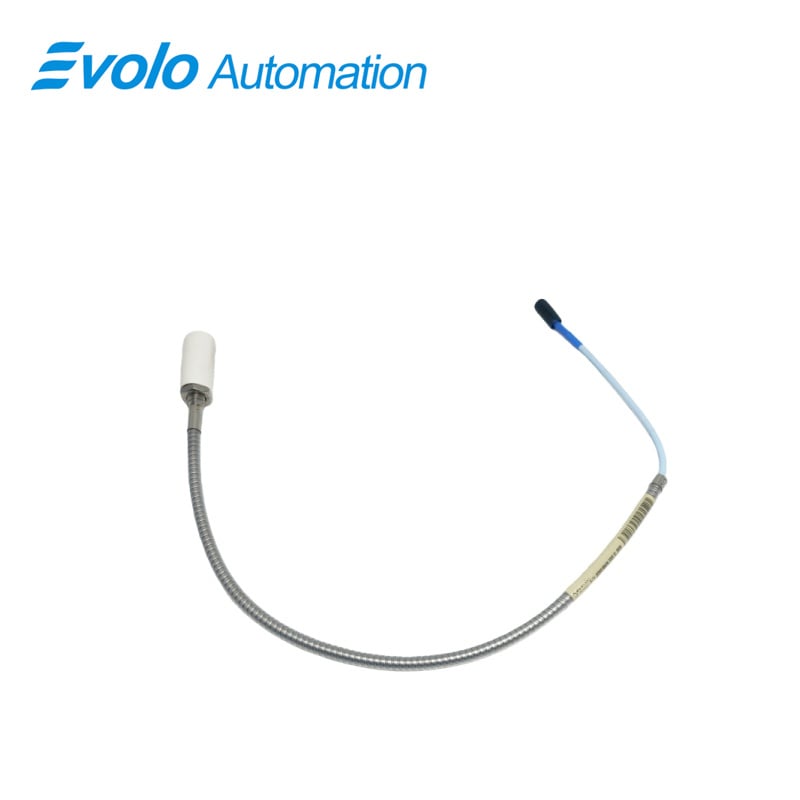

330104-00-03-10- 01-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-03-10- 01-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probes is a high-precision, non-contact eddy current sensing solution engineered for accurate vibration and position measurement in critical rotating machinery. As a compact configuration within the 3300 XL product family, the 3300 XL 8 mm Proximity Probes converts the distance between the probe tip and a conductive target surface into a proportional voltage output, allowing precise monitoring of both static position and dynamic vibration signals in demanding industrial environments.

Designed with a 0 mm minimum unthreaded length and a 30 mm overall case length, the 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probes is optimized for installations where space is limited and precise alignment is required. Its compact probe body enables reliable mounting in confined machine housings, bearing assemblies, and tight enclosures without compromising signal quality. The probe case is manufactured from durable materials to withstand mechanical stress, while the probe tip is engineered to maintain consistent eddy current characteristics across varying operating conditions.

From an electrical performance perspective, the 3300 XL 8 mm Proximity Probes provides a 3 mm linear measurement range, supporting accurate detection of shaft displacement, vibration amplitude, and axial movement. The probe maintains a stable 45 Ω output resistance and exhibits low supply sensitivity, ensuring that output signals remain consistent even when power supply conditions fluctuate. Operating within a power range of -17.5 Vdc to -26 Vdc, the 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probes integrates seamlessly with standard industrial monitoring systems without requiring complex calibration procedures.

Applications

The 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probes is widely used for vibration and position monitoring in rotating machinery such as turbines, compressors, pumps, and motors, where accurate detection of shaft vibration and displacement is essential for machinery protection and early fault identification.

The 3300 XL 8 mm Proximity Probes is suitable for monitoring fluid-film bearings and other precision mechanical components, providing stable measurement of axial movement and radial displacement even in compact installations with limited mounting space.

The 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probes is ideal for continuous industrial condition monitoring systems operating in environments exposed to temperature variation, mechanical vibration, and electrical noise, ensuring reliable long-term data acquisition for predictive maintenance programs.

Specifications

Competitive Advantage

1.Compact Design for Space-Constrained Installations

The short 30 mm overall case length and 0 mm unthreaded configuration allow the 3300 XL 8 mm Proximity Probes to be installed in tight machine housings and compact equipment layouts where longer probes cannot be accommodated.

2.Stable and Accurate Measurement Performance

With a 3 mm linear range, low supply sensitivity, and consistent 45 Ω output resistance, the 330104-00-03-10-01-00 3300 XL 8 mm Proximity Probes delivers precise and repeatable vibration and displacement measurements under varying electrical and mechanical conditions.

3.Reliable Operation in Harsh Industrial Environments

The wide operating temperature range, secure ClickLoc connector with protector, and durable construction ensure that the 3300 XL 8 mm Proximity Probes maintains long-term reliability and signal stability in demanding industrial applications.
