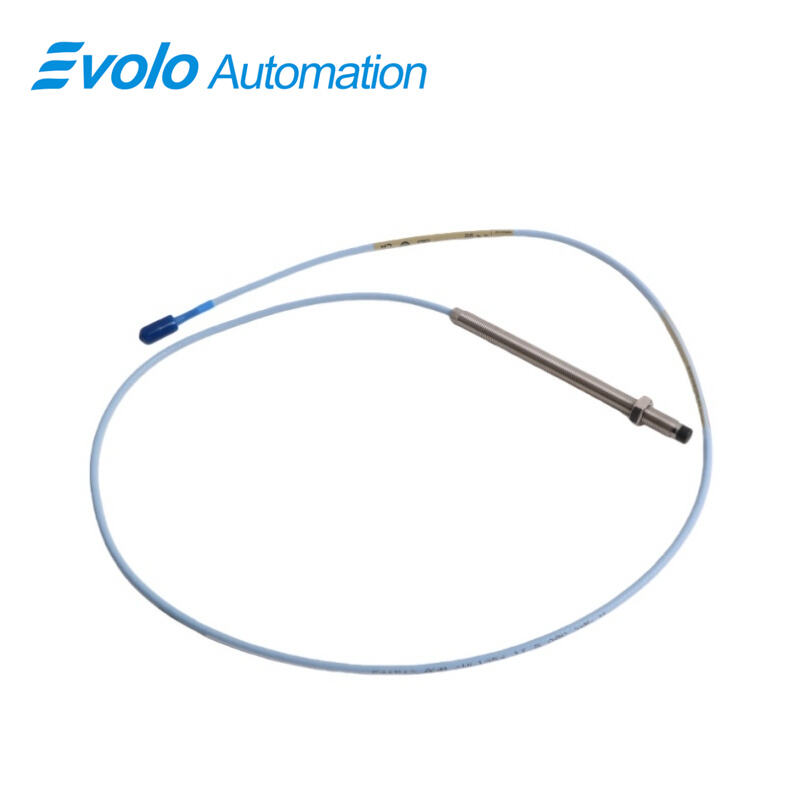

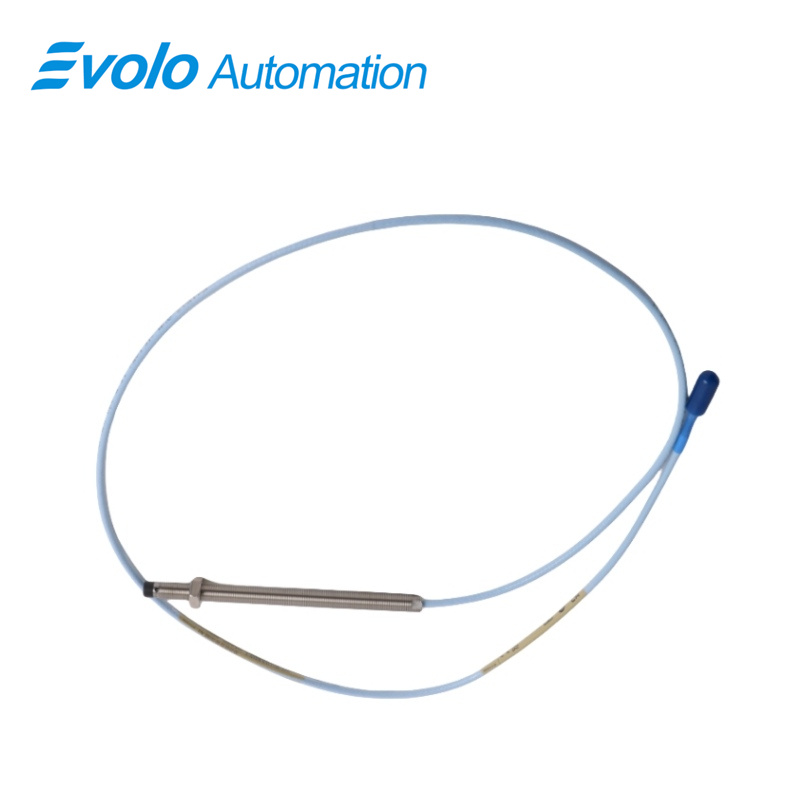

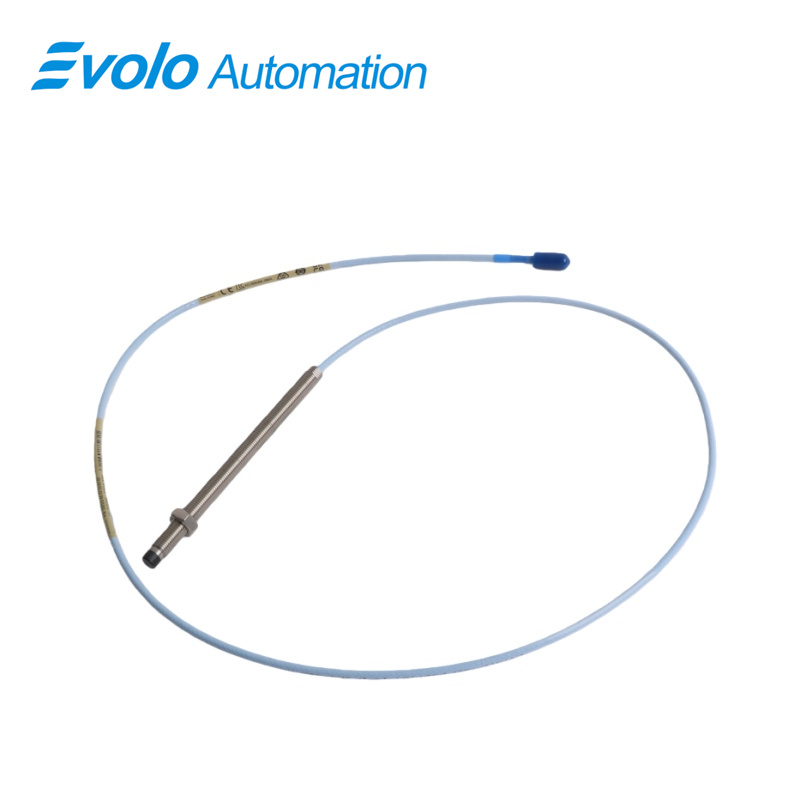

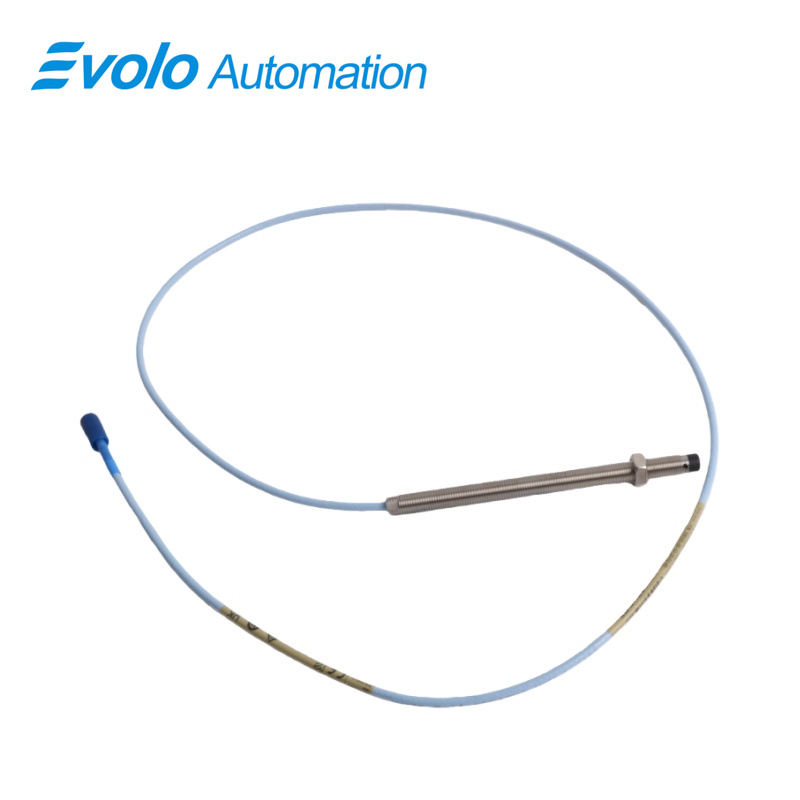

330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-52-10-02-CN
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe provides an AC voltage output proportional to the distance between the probe tip and a conductive surface, capturing both static (position) and dynamic (vibration) data for automated machinery monitoring. With a 2 mm linear range and 50 Ω output resistance, the 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe measures rotor displacement on fluid-film bearing machines with high accuracy. Operating from -52°C to +177°C, this probe supports extreme temperature conditions in industrial automation. The miniature coaxial ClickLoc connector and 1-meter standard cable with 69.9 pF/m capacitance and 0.2–1.5 mm² field wiring integrate the 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe into automated control systems efficiently. Threaded 3/8-24 UNF mounting and optional CSA, ATEX, IECEx approvals expand installation versatility. Patented TipLoc and CableLoc designs provide 330 N pull strength and a robust bond between probe tip and cable, while an optional FluidLoc cable prevents oil and liquid ingress. The 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe ensures precise vibration, position, and Keyphasor speed measurements in automated applications.

Applications

Measure rotor vibration on fluid-film bearings
The 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe uses its 2 mm linear range and AC voltage output to detect fine shaft oscillations, allowing precise vibration analysis. The 50 Ω output resistance ensures minimal signal loss over its 1-meter standard cable, enabling automated vibration monitoring in pumps, turbines, and compressors.

Monitor shaft position in centrifugal pumps
With a capacitance of 69.9 pF/m in its extension cable and a field wiring range of 0.2–1.5 mm² (16–24 AWG), the 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe accurately transmits real-time shaft position data to automation systems for precise positioning control.

Generate Keyphasor reference signals for turbine speed
The 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe provides AC voltage output proportional to shaft movement, which can be used as a Keyphasor input. Its 0.563 in thread engagement and 3/8-24 UNF probe thread allow consistent installation, supporting automated speed detection in turbines.

Integrate with automated condition monitoring systems
Equipped with a miniature coaxial ClickLoc connector, the 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe interfaces seamlessly with Proximitor sensors, enabling automated data acquisition from multiple probes without manual calibration.

Provide real-time displacement tracking in DCS and PLC
Operating across a temperature range of -52°C to +177°C, the 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe can feed continuous displacement signals into distributed control and PLC systems, supporting automated control even in extreme industrial environments.

Specifications

Competitive Advantage

High-precision 2 mm linear range
The 2 mm linear range of the 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe, combined with low supply sensitivity (<2 mV/V), ensures accurate detection of small displacements in automation systems, reducing the risk of measurement errors.

Robust cable and probe attachment
Patented TipLoc and CableLoc designs deliver 330 N pull strength in the 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe, preventing cable disconnections during automated machine operation or vibration events.

Wide operating temperature coverage
The 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe operates reliably from -52°C to +177°C, allowing use in high-temperature machinery and extreme automation environments without signal drift.

Quick installation with ClickLoc connector
The miniature coaxial ClickLoc connector of the 330101-00-52-10-02-CN 3300 XL 8 mm Proximity Probe enables fast and repeatable connections, reducing setup time in automated monitoring systems.
