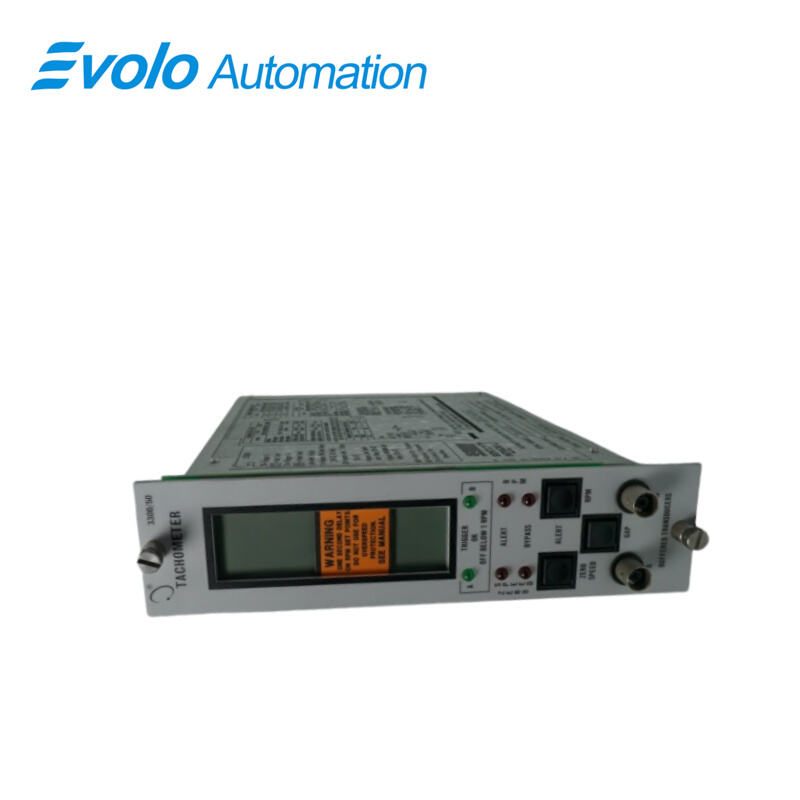

Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
3300/50-02-01-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Tachometer Type Option |
Zero Speed Tachometer |
|
Alert Relay Option |
Epoxy-sealed |
|
Agency Approval Option |
Not Required |
|
Safety Barrier Option |
None |
|
Product Name |
3300/50 Tachometer |
|
Function |
Measures shaft rotational speed, acceleration, and provides zero speed output; accepts two transducer inputs with internal voting logic; provides Alert status via relay contacts |
|
Signal Inputs |
Accepts two transducer signals from Bently Nevada 3300, 7200, or 3000 series proximity probes; magnetic pickups (not recommended for zero speed) |
|
Input Impedance |
10 kΩ |
|
Power Consumption |
Nominal 2.5 W |
|
Monitor Range |
Shaft speed: 1 to 99,999 rpm; Rotor acceleration/deceleration: -9,999 to 9,999 rpm/min; Zero speed <100 rpm |
|
Signal Conditioning Accuracy |
±1 rpm for speed; ±20 rpm/min for rotor acceleration; specified at +25°C (+77°F) |
|
Transducer Conditioning Auto Threshold |
10 Hz to 10 kHz (≥600 rpm for 1 event/rev) |
|
Transducer Conditioning Duty Cycle |
1% minimum |
|
Voltage Compliance (Current Outputs) |
0 to +12 Vdc; load resistance 0–600 Ω with +4 to +20 mA option |
|
Buffered Transducer Outputs |
One coaxial connector per transducer on front panel; short-circuit protected |
|
Output Impedance |
100 Ω |
|
Transducer Supply Voltage |
User-programmable via Power Supply for -24 Vdc or -18 Vdc; current limited per monitor |
|
Dimension: |
5.1x32x20.5cm |
|
Weight: |
1.18kg |

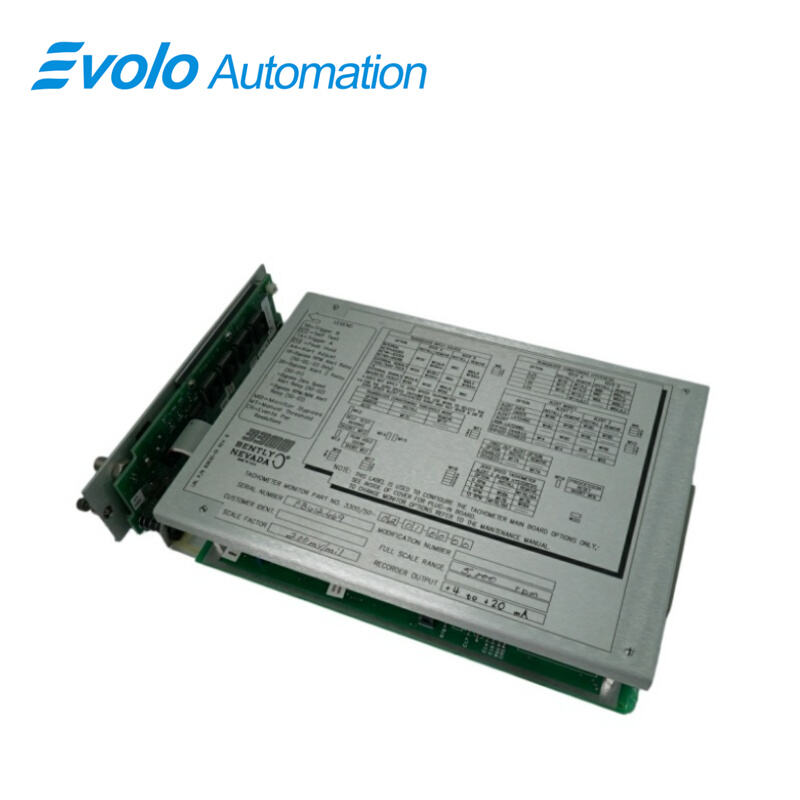

Description
The 3300/50-02-01-00-00 Tachometer continuously measures shaft rotational speed from 1 to 99,999 rpm, rotor acceleration/deceleration from -9,999 to 9,999 rpm/min, and provides zero-speed output below 100 rpm. The 3300/50-02-01-00-00 Tachometer accepts two transducer inputs from Bently Nevada 3300, 7200, or 3000 series proximity probes, with internal voting logic to reduce false readings if one transducer fails. Nominal power consumption is 2.5 W, input impedance 10 kΩ, and buffered outputs per transducer are short-circuit protected with 100 Ω impedance. Voltage/current outputs (0–+12 Vdc, +4 to +20 mA) allow direct connection to automation and control systems. Signal conditioning accuracy is ±1 rpm for speed and ±20 rpm/min for rotor acceleration at +25°C. Operating range is 0°C to +65°C, storage -40°C to +85°C, and relative humidity up to 95%. The 3300/50-02-01-00-00 Tachometer features green LED OK indicators, red Alert LEDs for first-out conditions, and a Bypass LED, enabling precise automated monitoring and early detection of rotational speed deviations in industrial systems.
Applications
Monitor high-speed turbine shafts
The 3300/50-02-01-00-00 Tachometer measures shaft speed from 1 to 99,999 rpm, providing real-time voltage or current signals to automated control systems, enabling precise speed control for turbines and generators.
Track rotor acceleration for automated protection
Using ±20 rpm/min signal conditioning accuracy, the 3300/50-02-01-00-00 Tachometer detects rotor acceleration and deceleration, triggering automated alarms or safety interlocks in compressors, pumps, and high-speed rotating equipment.
Enable zero-speed detection and interlocks
The 3300/50-02-01-00-00 Tachometer provides zero-speed output below 100 rpm, activating automated start/stop sequences or safety interlocks in large industrial machinery.
Integrate dual-transducer inputs for automated voting
Accepting 2 transducer signals, the 3300/50-02-01-00-00 Tachometer uses internal voting logic to reduce false speed readings, enhancing reliability in automated monitoring systems.

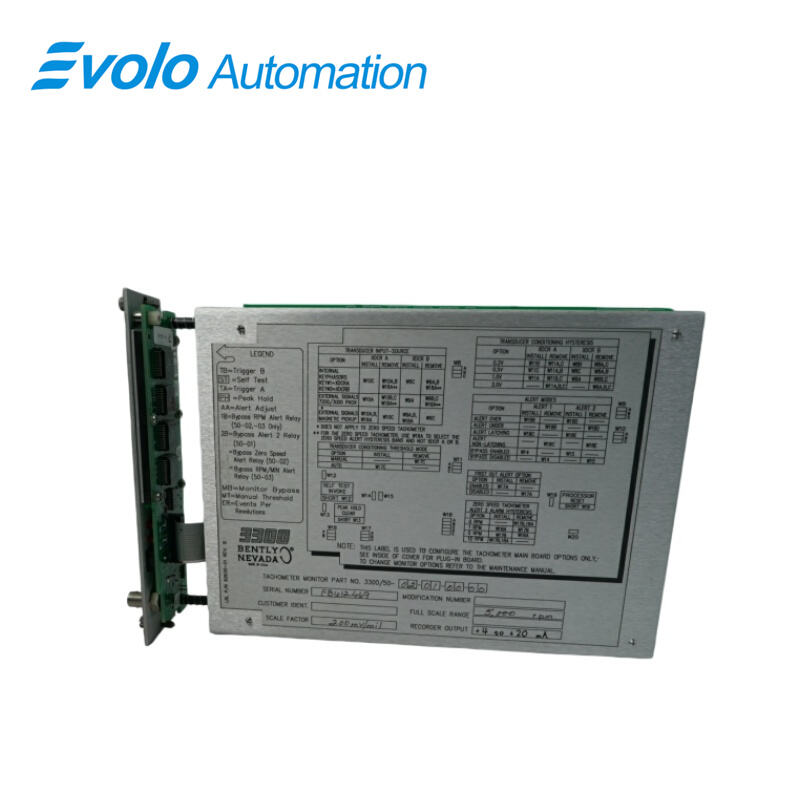

Specifications
|
Operating Temperature |
0°C to +65°C (+32°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Relative Humidity |
Up to 95%, non-condensing |
|
Rack Space Requirement |
One rack position (except positions 1 & 2 reserved for Power Supply and System Monitor) |
|

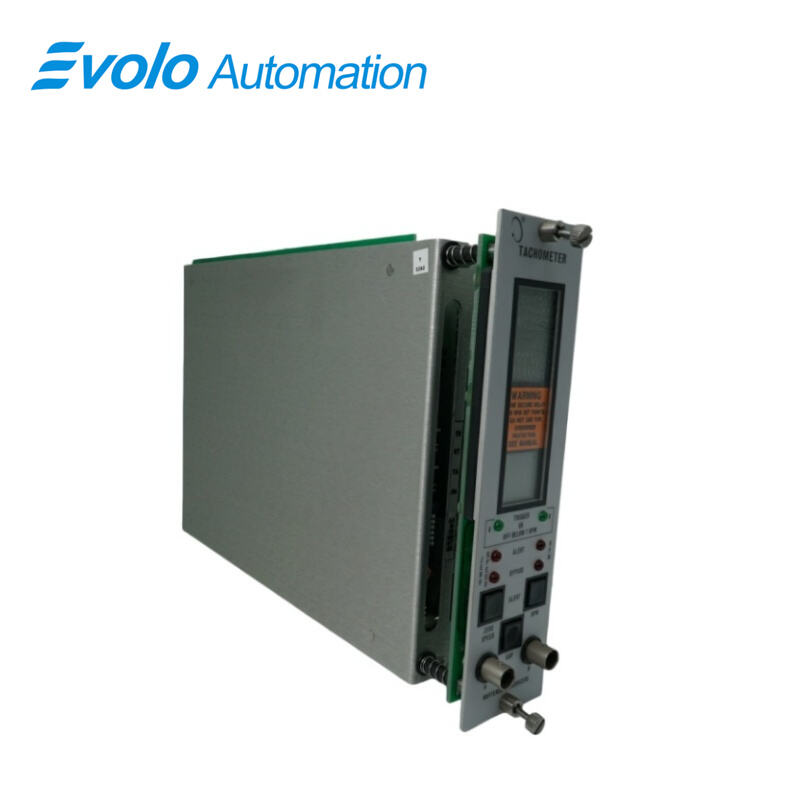

LED Indicators OK |
One green LED per transducer; OFF = speed <1 rpm or >99,999 rpm; flashing 5 Hz = error codes stored; red Bypass LED ON if monitor bypassed |
|
LED Indicators Alert |
Two red LEDs per channel for Alert 1 and Alert 2; flashing = First Out; drives Rack First Out Alert Bus |
|
LED Indicators Bypass |
One red LED indicates Alert 2 Bypass and Rack/Monitor Bypass functions |
Competitive Advantage
High-accuracy measurement for automated control
The 3300/50-02-01-00-00 Tachometer achieves ±1 rpm speed accuracy and ±20 rpm/min acceleration accuracy at +25°C, supporting precise automated monitoring and control of high-speed machinery.
Buffered outputs with short-circuit protection
The 3300/50-02-01-00-00 Tachometer provides front coaxial and rear terminal buffered outputs with 100 Ω impedance, ensuring safe connection to PLCs, DCS, or other automation systems.
Low-power design for rack integration
With only 2.5 W nominal power consumption, the 3300/50-02-01-00-00 Tachometer can be installed alongside multiple 3300 system monitors without exceeding rack power limits.
LED indicators for automated system feedback
Green OK, red Alert, and Bypass LEDs on the 3300/50-02-01-00-00 Tachometer provide immediate visual feedback for integration with industrial automation and alert systems.
