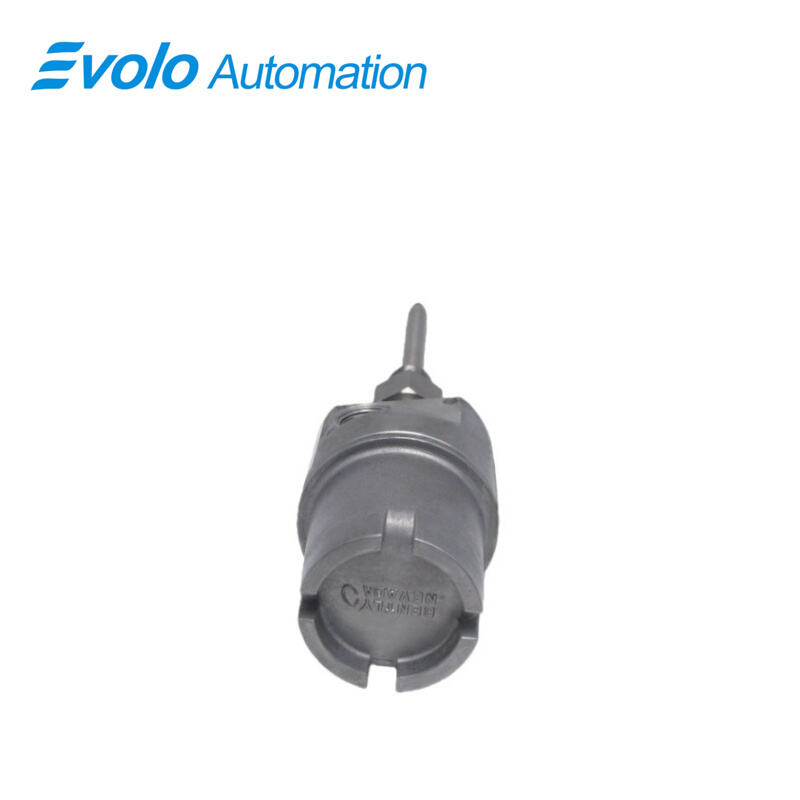

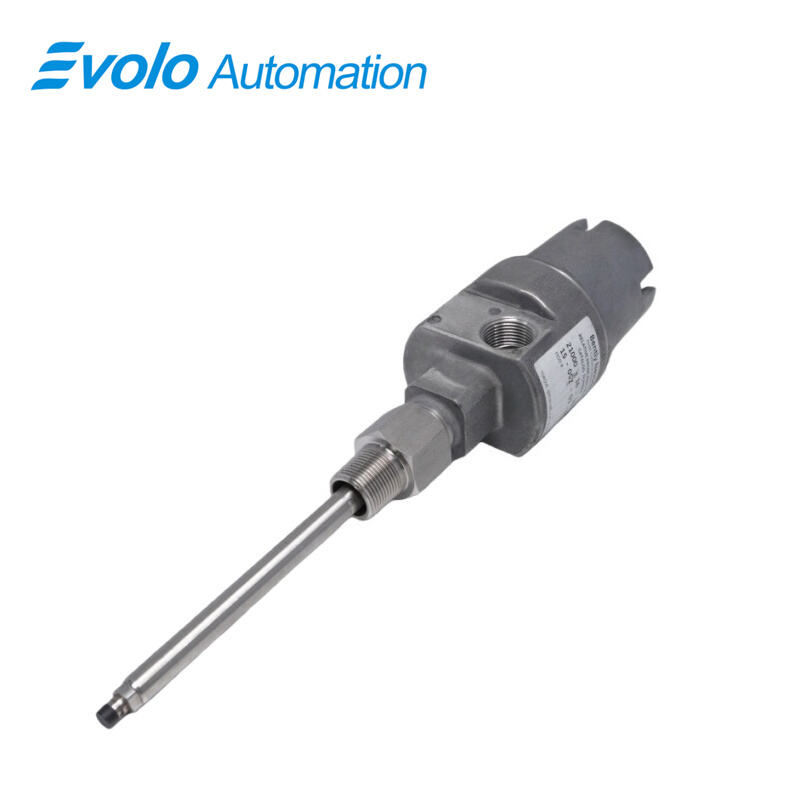

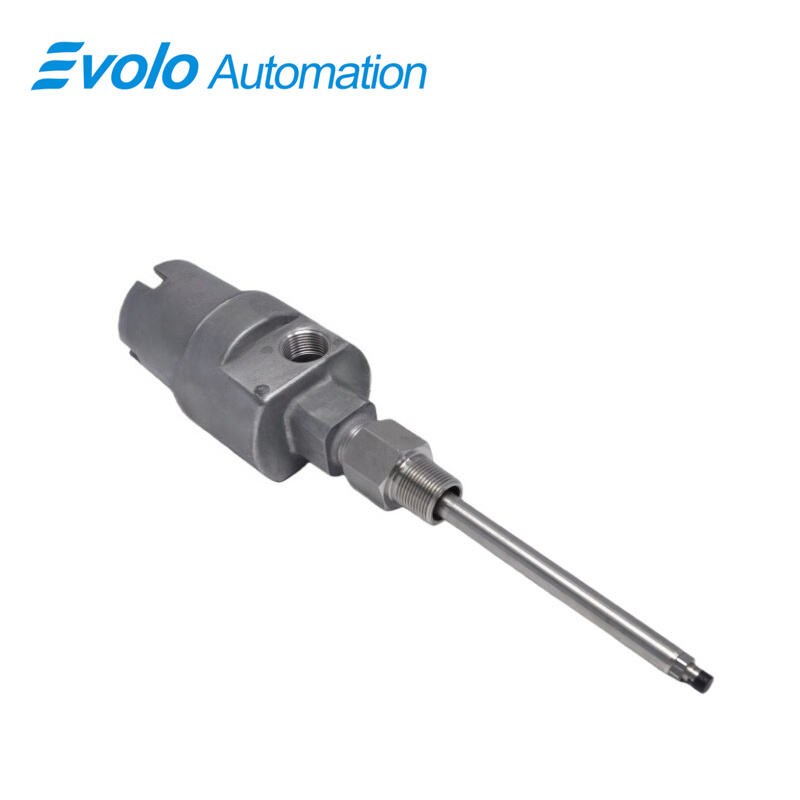

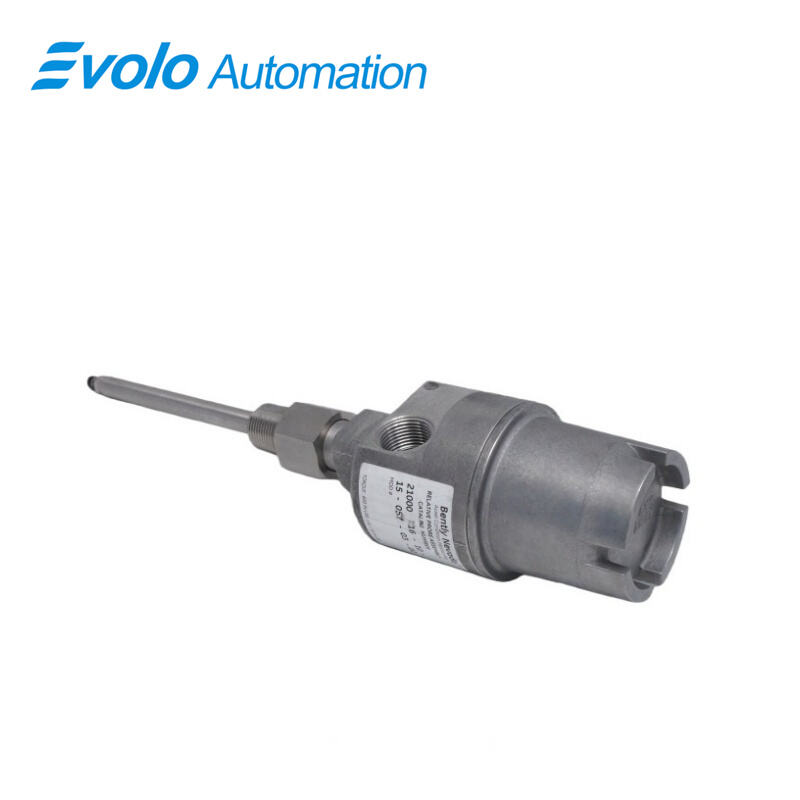

21000-16-10-15-057-03-02 Proximity Probe Housing Assemblies

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	21000-16-10-15-057-03-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 21000-16-10-15-057-03-02 Proximity Probe Housing Assembly is designed for industrial automation and machinery monitoring. It integrates a 3300 XL 8 mm probe with a 1.0 m (39 in) cable, aluminum body, and 304 stainless steel sleeve. Probe penetration is 5.7 in with a 1.5 in standoff adapter, and mounting uses a 3/4-14 NPT thread. The 21000-16-10-15-057-03-02 includes fittings for 3/4-14 and 1/2-14 NPT connections and cable seals for 1/8 in to 3/8 in cables. Typical mass is 1.1 kg (2.4 lb) without fittings. The 21000-16-10-15-057-03-02 measures dynamic and static distances between the probe tip and rotating shafts, offering up to 2 mm (80 mils) linear range. Compatible with 3300 and 9000 monitoring systems, the 21000-16-10-15-057-03-02 enables precise vibration and shaft position measurements on turbines, compressors, pumps, and motors, providing reliable gap-to-voltage data for automated machinery control.

Applications

Shaft Position Monitoring
The 21000-16-10-15-057-03-02 measures dynamic and static shaft positions with 2 mm linear range and ±0.01 mm resolution, detecting misalignment greater than 0.05 mm on turbines, compressors, and pumps.

Vibration Analysis for Rotating Machinery
Using the 21000-16-10-15-057-03-02, operators monitor vibration amplitudes exceeding 0.05 mm, with probe penetration of 5.7 in ensuring accurate tip-to-shaft distance measurement.

Turbine and Compressor Automated Control
The 21000-16-10-15-057-03-02 sends real-time gap-to-voltage signals to 3300/9000 monitoring systems, allowing automated adjustment of speed or load when linear displacement exceeds 1 mm.

Industrial Motor Performance Tracking
The 21000-16-10-15-057-03-02 captures shaft vibration and position in motors and generators up to 2 mm range, enabling automated maintenance alerts when deviations exceed 0.05 mm.

Specifications

Competitive Advantage

High-Precision Measurement
The 21000-16-10-15-057-03-02 offers ±0.01 mm resolution within a 2 mm linear range, providing actionable data for automated machinery monitoring.

Durable Construction for Industrial Use
The 21000-16-10-15-057-03-02 aluminum body with 304 stainless steel sleeve and 1.1 kg weight allows consistent operation under mechanical stress and vibration.

Flexible Mounting Options
The 21000-16-10-15-057-03-02 supports 3/4-14 NPT mounting with optional 1/2-14 reducer and 1.5 in standoff, enabling installation on diverse machinery types.

Integrated Cable Management
The 21000-16-10-15-057-03-02 accommodates cables from 1/8 in to 3/8 in via seal grips, ensuring signal integrity and low-noise transmission for automation systems.
