Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
21000-00-00-15-030-04-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Probe with Connector: |
Probe not required |
|
Probe Cable Length: |
Probe cable not required |
|
Standoff Adapter (Option C Dimension): |
1.5 in |
|
Probe Penetration (Option D Dimension) : |
3.0 in |
|
Fittings : |
One 3/4-14 NPT plug only |
|
Mounting Thread: |
3/4-14 NPT |
|
Dimension: |
8.5x8.5x30.5cm |
|
Weight: |
1.08 kg |
Description

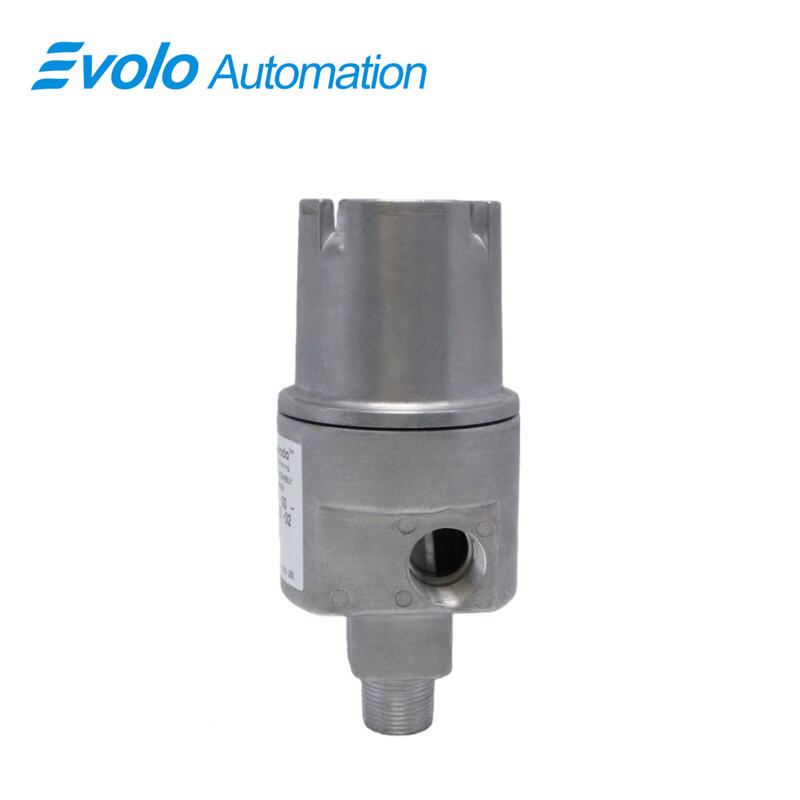

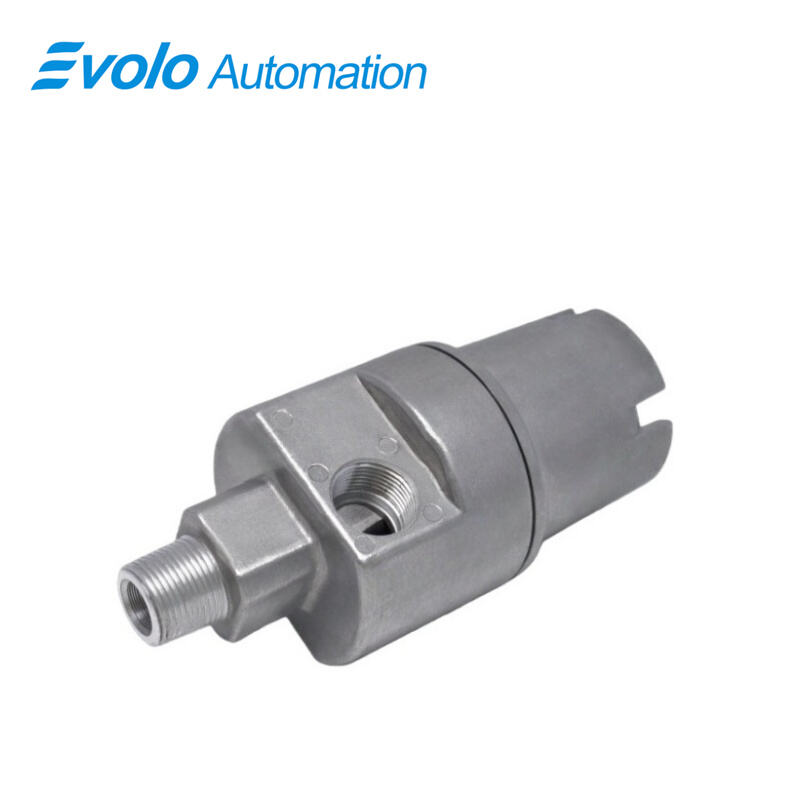

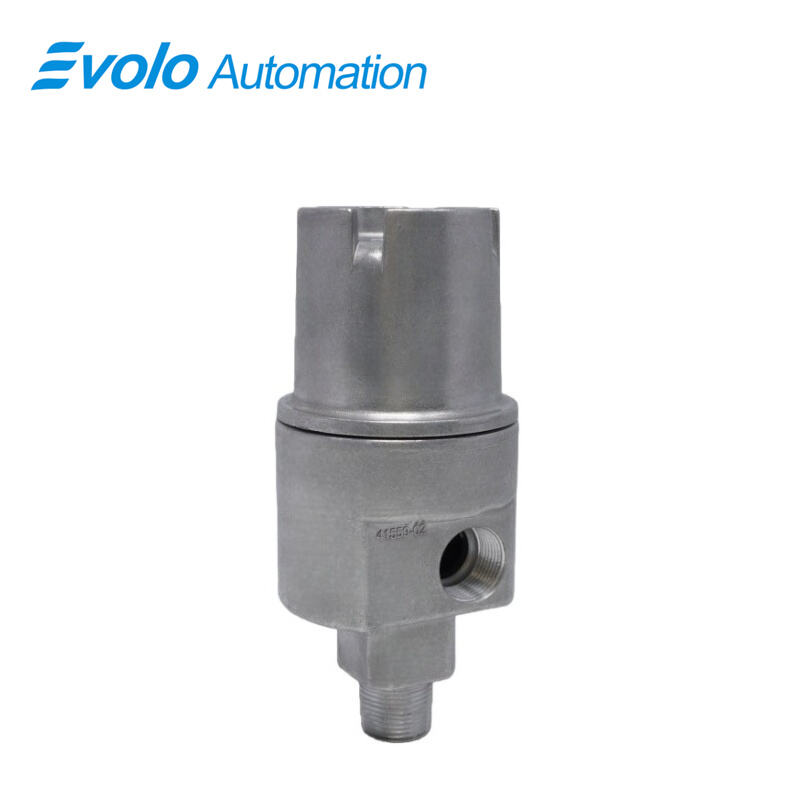

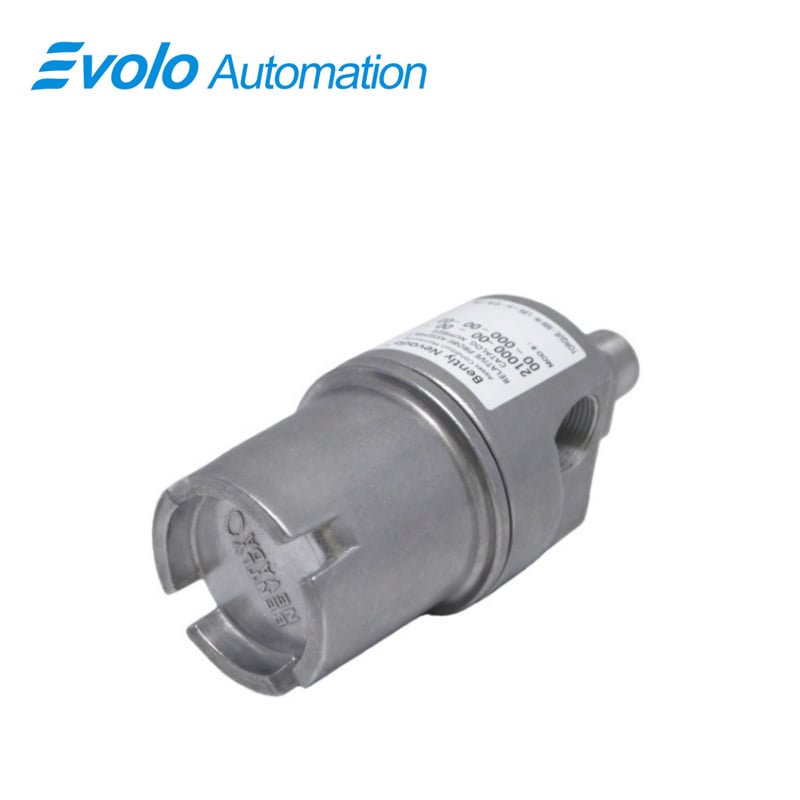

The 21000-00-00-15-030-04-02 is an all-metal assembly for externally mounting proximity probes in industrial automation systems. It features an aluminum body with 304 stainless steel sleeve, a 1.5 in standoff adapter, 3.0 in probe penetration, and 3/4-14 NPT mounting thread. The assembly includes a dome cover, threaded ports for conduit connections, O-rings, a thread seal, and optional standoff adapters. Typical mass is 1.1 kg (2.4 lb) without fittings, supporting easy installation in constrained spaces. CSA-approved for hazardous areas, the 21000-00-00-15-030-04-02 housing meets CSA Type 4 and API 670 standards, and accommodates sleeve lengths beyond 304 mm (12 in) with additional support to reduce vibration in fluid-film bearing machines. Optional probe support and oil seal (part number 37948-01) can be added for long sleeves. The 21000-00-00-15-030-04-02 ensures precise probe alignment, secure mounting, and protection from environmental or mechanical damage.
Applications
Externally Mount Proximity Probes
The 21000-00-00-15-030-04-02 allows secure installation of 3300 XL or NSv proximity probes with a 3/4-14 NPT mounting thread and 1.5 in standoff adapter, ensuring probes are aligned at the correct distance for precise vibration and position measurements.
Long Sleeve Installations
Use the 21000-00-00-15-030-04-02 for sleeve lengths exceeding 304 mm (12 in). Optional support and oil seal (part number 37948-01) reduce vibration effects on extended probes, maintaining accurate signal transmission to control systems.
Hazardous Area Deployment
The 21000-00-00-15-030-04-02, CSA Type 4 and API 670 approved, enables automated monitoring in explosive environments, protecting 3300 XL and NSv probes while maintaining correct probe penetration of 3.0 in.
Automation Signal Integration
Combine the 21000-00-00-15-030-04-02 with 3300 XL or NSv probes to reliably transmit vibration and displacement signals to monitoring or control systems. The assembly supports probe cable lengths and conduit connections to match automated system layouts.
Specifications
|
Material: |
Aluminum body with 304 stainless steel sleeve |
|
Mass (Weight): |
1.1 kg (2.4 lb) typical, without fittings |
Competitive Advantage
Precise Probe Positioning
The 21000-00-00-15-030-04-02 provides a 1.5 in standoff adapter and 3.0 in probe penetration, enabling accurate measurement alignment for fluid-film bearing machines.
Certified for Hazardous Environments
With CSA Type 4 and API 670 compliance, the 21000-00-00-15-030-04-02 ensures safe automated operation in hazardous locations, supporting 3300 XL and NSv probes without modifications.
Long Sleeve Support Capability
The 21000-00-00-15-030-04-02 allows sleeve lengths beyond 304 mm (12 in) with optional support, reducing vibration impact on long probes and maintaining signal fidelity.
Durable Materials for Automation Systems
The aluminum body with 304 stainless steel sleeve of the 21000-00-00-15-030-04-02 protects probes from environmental and mechanical stress, ensuring continuous measurement performance in automated setups.
