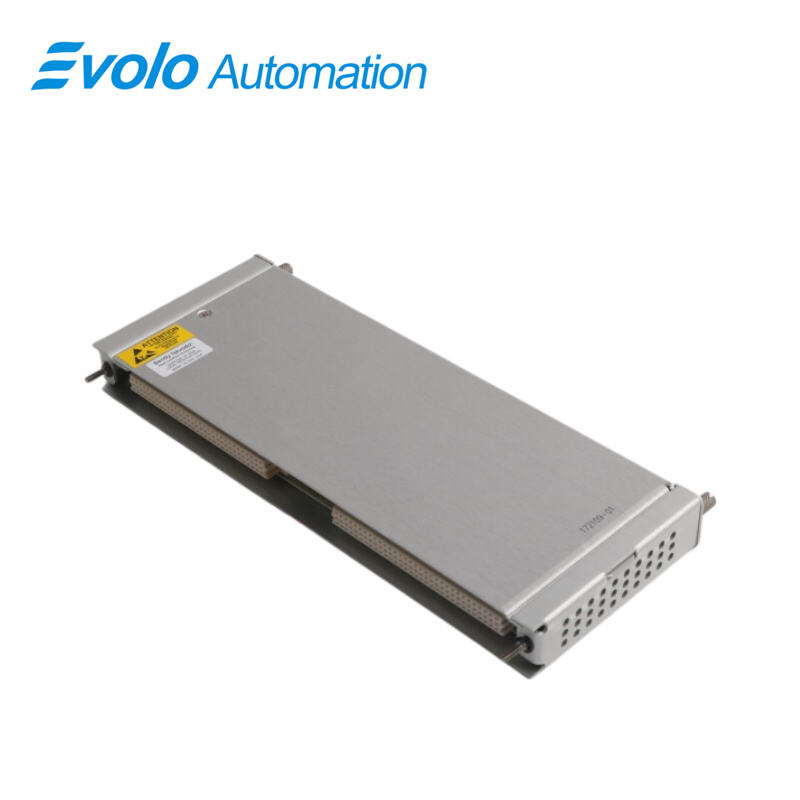

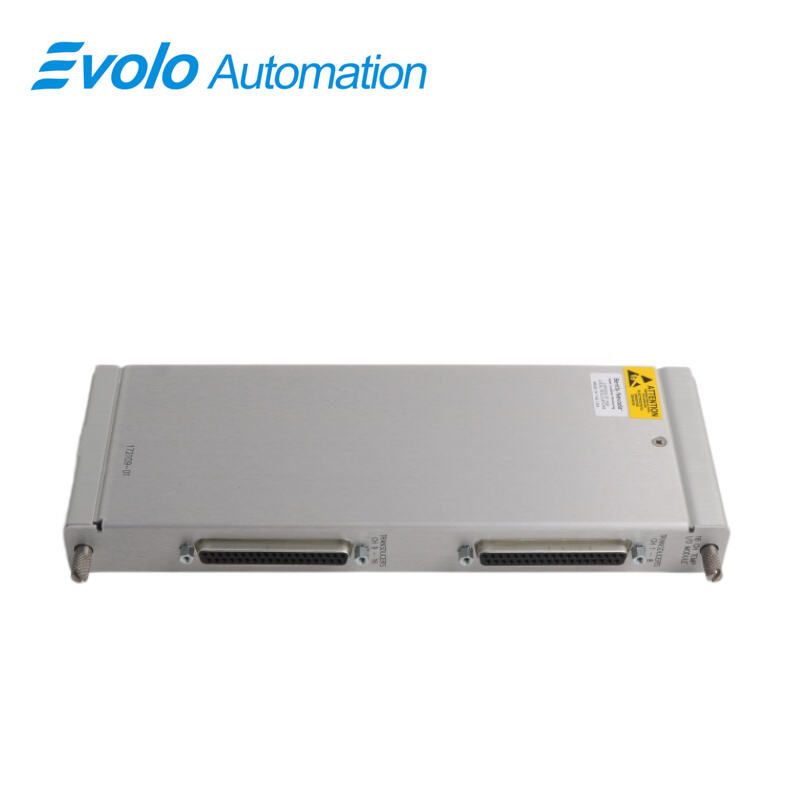

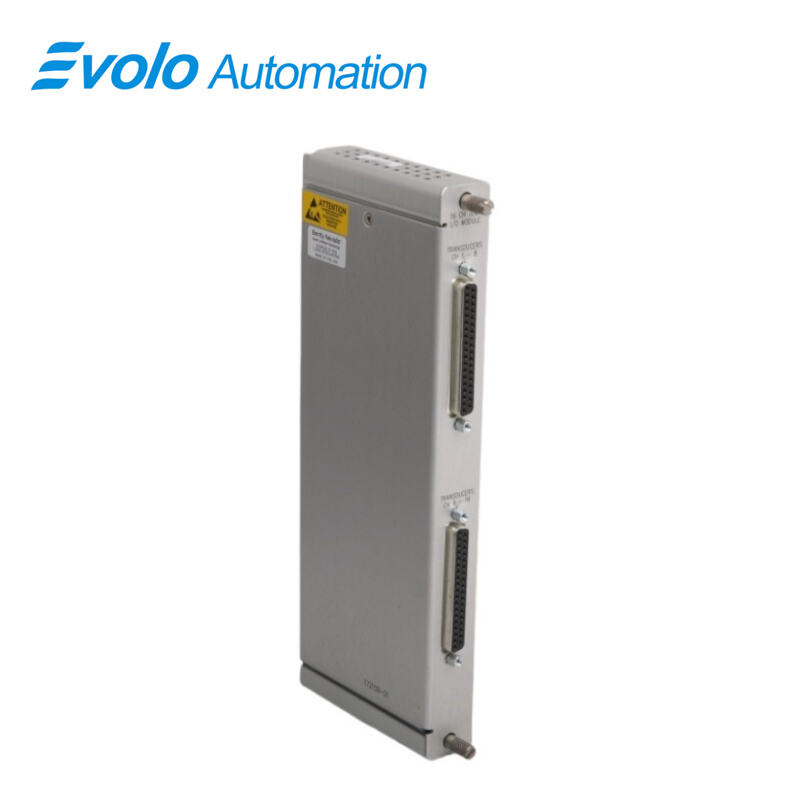

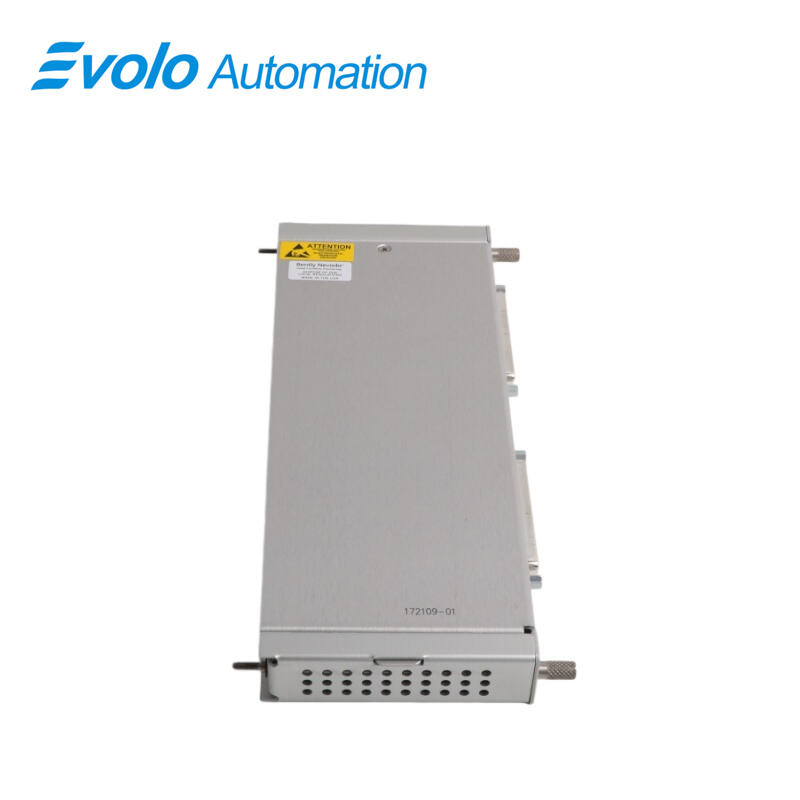

172109-01 RTD/ Isolated Tip TC I/O Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	172109-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 172109-01 RTD/ Isolated Tip TC I/O Module provides precise temperature monitoring for industrial automation systems. The 172109-01 RTD/ Isolated Tip TC I/O Module accepts 1 to 16 inputs from RTD sensors (3-wire or 4-wire) or isolated tip thermocouples (Type E: -100°C to +1000°C, Type J: 0°C to +760°C, Type K: 0°C to +1370°C, Type T: -160°C to +400°C). With an input impedance greater than 1 MΩ per lead, the 172109-01 RTD/ Isolated Tip TC I/O Module ensures minimal signal loading and accurate measurements. Operating at -30°C to +65°C and storing safely from -40°C to +85°C, it consumes only 3 W nominal. Each module occupies 1 full-height rear slot in 3500 racks and provides resolution of 1°C or 1°F, with internal termination accuracy of ±3°C at +25°C (±5.4°F at +77°F). The 172109-01 RTD/ Isolated Tip TC I/O Module features front panel OK, TX/RX, and Bypass LEDs for operational monitoring and communication status. Designed for automated data acquisition, the 172109-01 RTD/ Isolated Tip TC I/O Module enables precise RTD and TC signal conditioning and integration into predictive maintenance, temperature control, and machinery health monitoring systems in turbines, compressors, and industrial processes.

Applications

Monitor RTD Sensors in Industrial Automation

The 172109-01 RTD/ Isolated Tip TC I/O Module connects directly to 3-wire or 4-wire RTDs, enabling accurate temperature readings for process monitoring and control.

Collect Thermocouple Signals for High-Temperature Processes

The 172109-01 RTD/ Isolated Tip TC I/O Module accepts Type E, J, K, or T thermocouples, capturing signals up to 1370°C for turbines, boilers, or furnaces.

Feed Temperature Data into Predictive Maintenance Systems

With 1°C resolution, the 172109-01 RTD/ Isolated Tip TC I/O Module transmits precise temperature data to condition monitoring software, supporting maintenance planning and early fault detection.

Visualize Module Status Quickly

Front panel OK, TX/RX, and Bypass LEDs on the 172109-01 RTD/ Isolated Tip TC I/O Module allow operators to verify signal and communication status without connecting additional tools.

Specifications

Competitive Advantage

Maintain Accurate Measurements Across Temperature Ranges

The 172109-01 RTD/ Isolated Tip TC I/O Module delivers ±3°C accuracy and 1°C resolution for RTD and TC signals from -160°C to +1370°C.

Integrate Multiple Sensor Types in One Module

Supporting both isolated tip thermocouples and 3- or 4-wire RTDs, the 172109-01 RTD/ Isolated Tip TC I/O Module reduces the need for multiple modules in a 3500 rack.

Operate in Extreme Industrial Environments

The 172109-01 RTD/ Isolated Tip TC I/O Module functions at -30°C to +65°C and tolerates storage up to +85°C, ensuring reliable data collection in turbines and compressors.

Simplify Installation and Monitoring

With 1 rear full-height slot and front panel LED indicators, the 172109-01 RTD/ Isolated Tip TC I/O Module allows fast installation and immediate verification of operation.

Enable Energy-Efficient Operation

Consuming only 3 W nominal, the 172109-01 RTD/ Isolated Tip TC I/O Module minimizes power use while maintaining precise temperature data acquisition.
