Overview

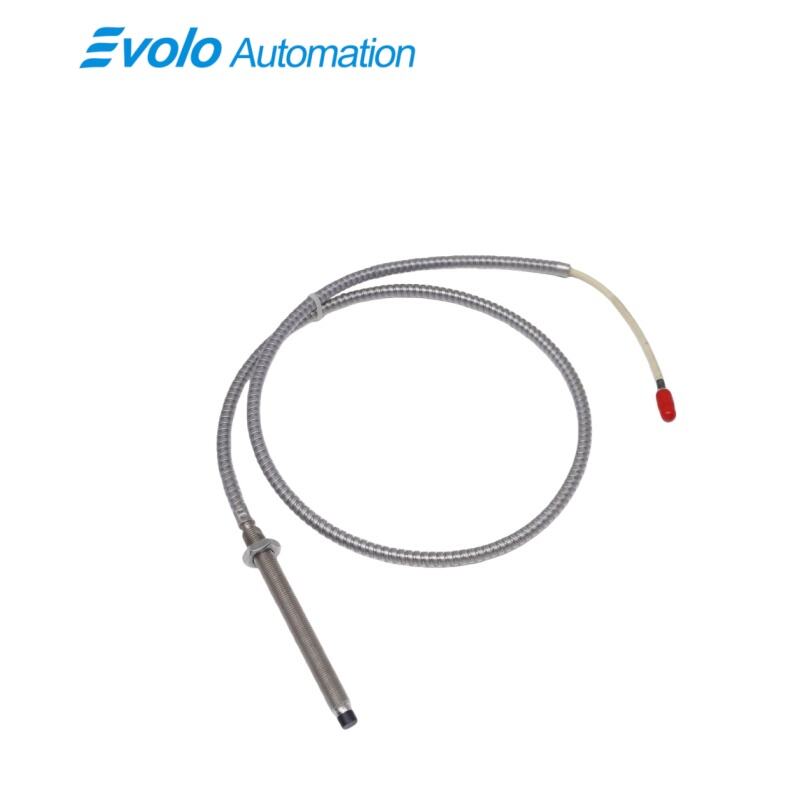

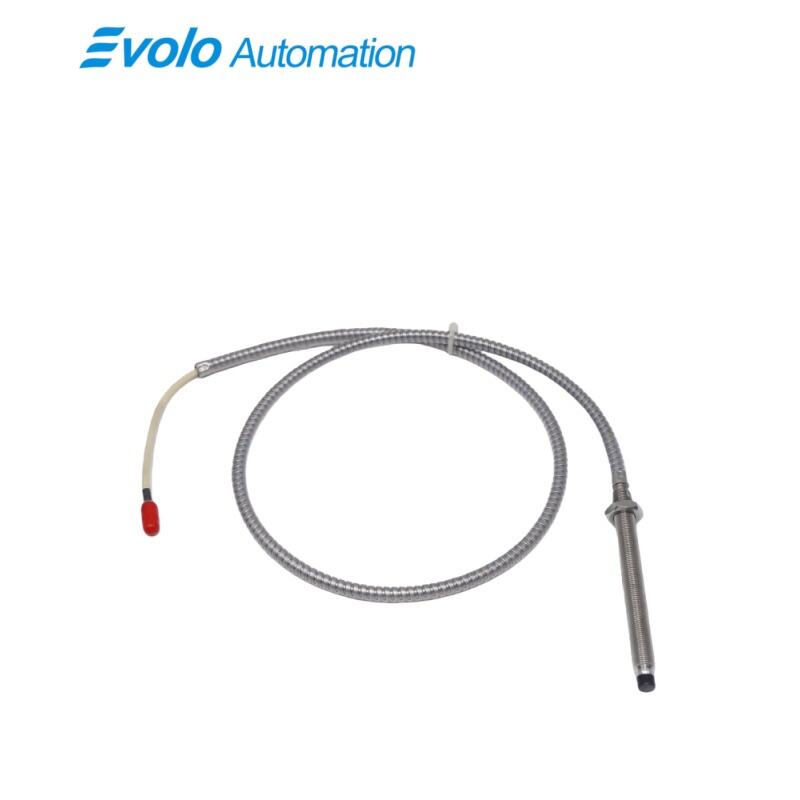

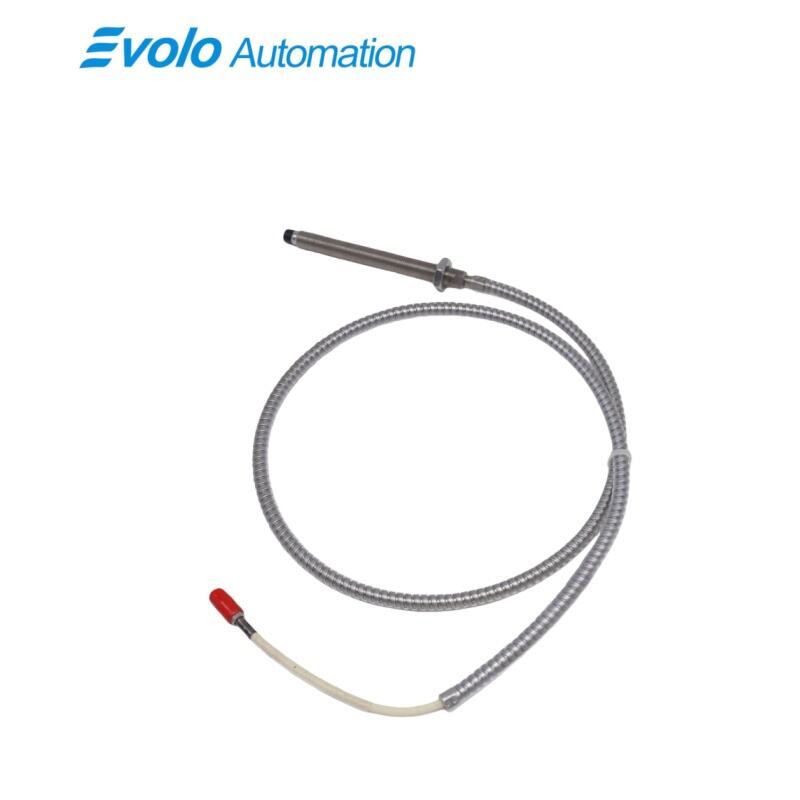

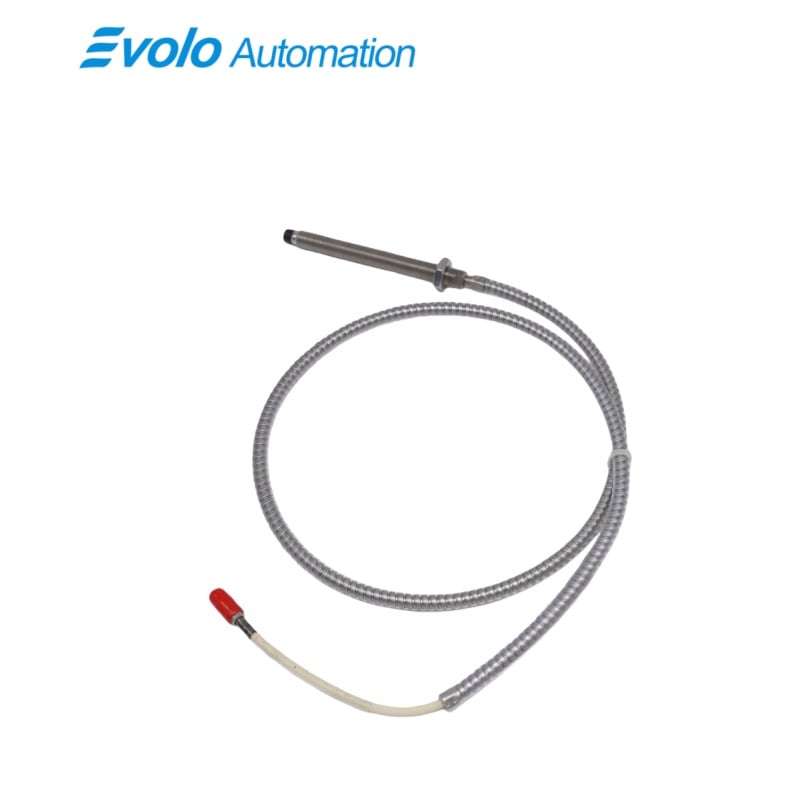

22810-00-04-10-02 Proximity Sensor
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
22810-00-04-10-02 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 22810-00-04-10-02 Proximity Sensor is a compact, non-contact displacement measurement device designed for reliable position and vibration monitoring in industrial machinery where space efficiency and signal stability are essential. As a precision-engineered Proximity Sensor, this model utilizes proven eddy current sensing technology to detect minute changes in distance between the sensor tip and a conductive target surface. The resulting signal is converted into a stable and linear voltage output, enabling accurate monitoring of mechanical movement without physical contact.
The 22810-00-04-10-02 Proximity Sensor is specifically configured with an overall case length of 0.4 inches and zero unthreaded length, making it well suited for installations in confined mechanical assemblies. This compact mechanical profile allows the Proximity Sensor to be integrated into tight bearing housings, compact machine frames, and enclosed equipment where conventional sensors cannot be accommodated. The 1.0 meter cable with a miniature coaxial connector and connector protector ensures secure signal transmission while offering added protection against contamination, vibration, and accidental disconnection.
Key Functions
Applications
The 22810-00-04-10-02 Proximity Sensor is widely used for position and vibration monitoring in compact rotating machinery, including small motors, pumps, and integrated mechanical assemblies where installation space is limited.
In condition monitoring and predictive maintenance systems, this Proximity Sensor provides stable displacement data that supports early detection of mechanical wear, shaft movement, and abnormal vibration trends, helping reduce unplanned downtime.
The Proximity Sensor is suitable for installations exposed to wide temperature variations or continuous vibration, such as enclosed industrial equipment or machinery operating in thermally stressed environments, where consistent signal output is required.
Official Specifications
Quick Detail
|
Unthreaded Length Option: |
0in |
|
Overall Case Length Option: |
0.4inches |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial connector with connector protector |
|
Agency Approval Option: |
No Approvals |
|
Dimension: |
25x17x1.6cm |
|
Weight: |
0.15kg |
Specifications
|
Operating and Storage Temperature: |
-50°C to +175°C (-50°F to+345°F) |
|
Recommended Gap Setting: |
1.0 mm |
|
Output Resistance: |
45 Ω |
|
Linear Range: |
1.8 mm |
|
Field Wiring: |
0.2 to 1.4 mm2 (15 to 20 AWG) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Frequently Asked Questions
What is the model number?
The listed model number is 22810-00-04-10-02.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. Compact Design for Space-Constrained Installations
The short overall case length and zero unthreaded section allow the Proximity Sensor to be installed in tight mechanical spaces without modifying existing equipment structures.
2. Stable Electrical Performance
With low supply sensitivity, controlled output resistance, and a defined linear range, the 22810-00-04-10-02 Proximity Sensor delivers reliable and repeatable measurement results under continuous operating conditions.
3. Wide Temperature Operating Capability
The Proximity Sensor maintains specified performance across a broad temperature range, ensuring dependable operation in both low-temperature startup conditions and high-temperature industrial environments.
