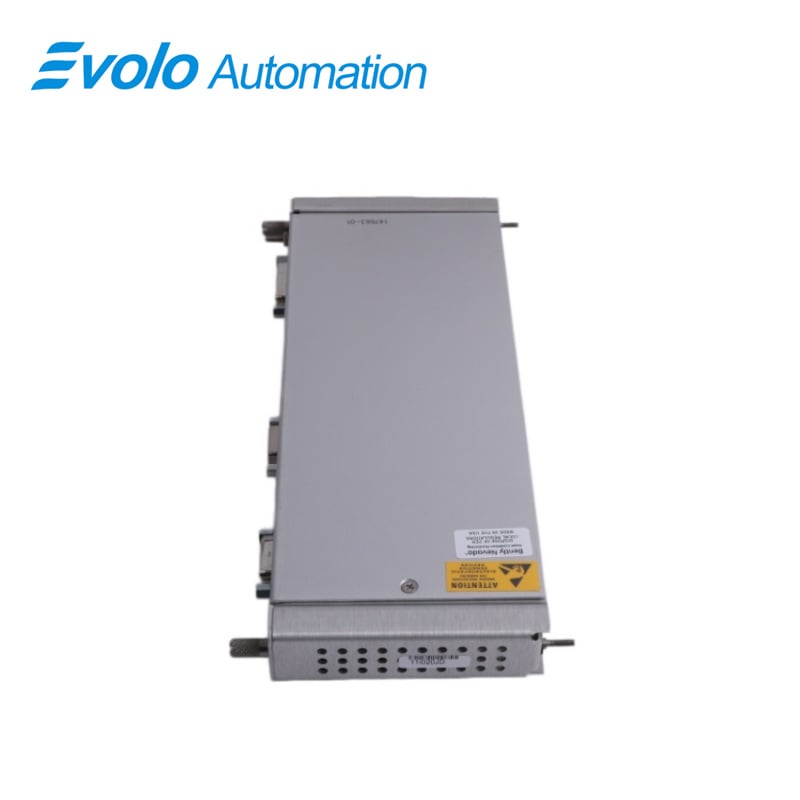

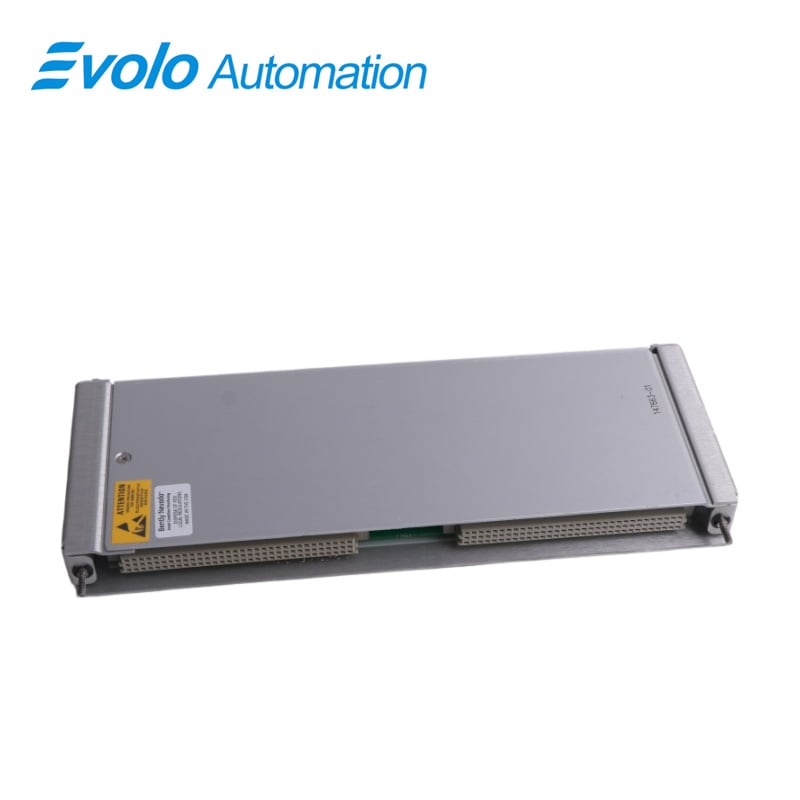

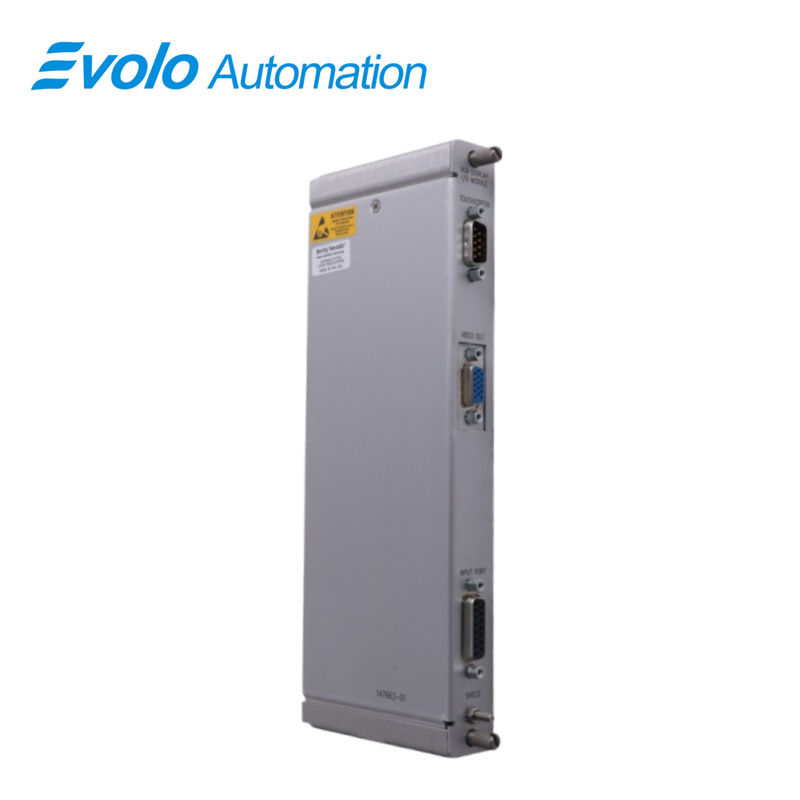

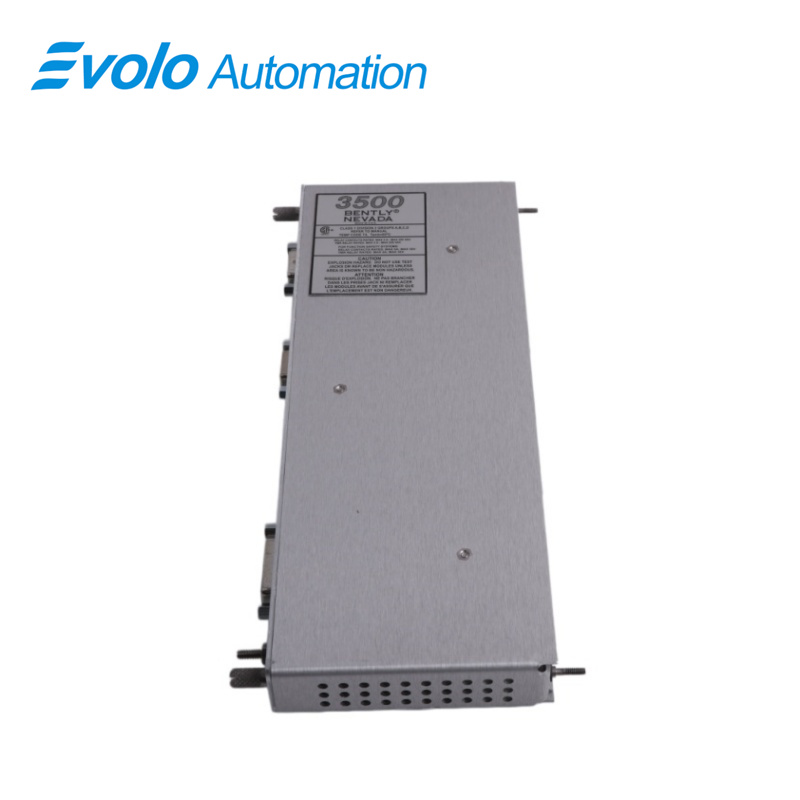

147663-01 VGA Display I/O Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	147663-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

147663-01 is a VGA Display I/O Module manufactured and designed by Bently Nevada as part of 3500 Series used in machinery condition monitoring. VGA Display shows 3500 data on a typical color VGA monitor using Touch Screen technology. The VGA Display Module and its I/C card, as well as the VGA display monitor, are the two parts of this device. With normal cabling, the display monitor can be positioned up to 10 meters (33 feet) from the rack. The 147663-01 supports API-670 compatible screens with Direct, Gap, OK LED, and Bypass LED indicators, providing real-time monitoring and configurable visual outputs. This 147663-01 module integrates seamlessly into automation systems for efficient rack data visualization.

Applications

Configure custom screens for machine monitoring
Use 147663-01 to set up nine custom screens displaying 1X measurements, Gap values, or machine train groupings for operators to view critical machinery parameters.

Display direct and gap sensor data
The 147663-01 allows visualization of Direct and Gap values for all 3500 rack modules, providing clear monitoring of vibration, position, and condition metrics.

Remote rack monitoring
With cabling support up to 10 meters (33 feet), 147663-01 enables operators to position the monitor away from the rack while maintaining full access to data, facilitating flexible control room layouts.

API-670 compliance for reporting
The 147663-01 can display API-670 style bar graphs and numerical values, ensuring operators can meet regulatory and reporting requirements in automated monitoring environments.

Specifications

Competitive Advantage

High-resolution touch screen interface
The 147663-01 supports color VGA touch screen with responsive input, allowing operators to navigate through 3500 data efficiently without requiring additional equipment.

Flexible data configuration
Nine user-programmable custom screens on 147663-01 allow grouping and prioritization of 1X measurements, Gap values, or other machine parameters, enabling optimized monitoring workflows.

Extended display distance
With support for up to 10 meters (33 feet) of normal cabling, 147663-01 provides flexible placement for operator interfaces, reducing installation constraints and improving operator access.

Comprehensive indicator integration
The 147663-01 displays Direct, Gap, OK LED, and Bypass LED indicators simultaneously, offering real-time feedback for each rack module to support fast operational decisions.

API-670 compatible visualization
The 147663-01 includes an API-670 compliant screen with "3300-style" bar graphs, allowing automated reporting and visual consistency across industrial control systems.
