146031-02 100Base-FX (Fiber Optic) I/O Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	146031-02
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

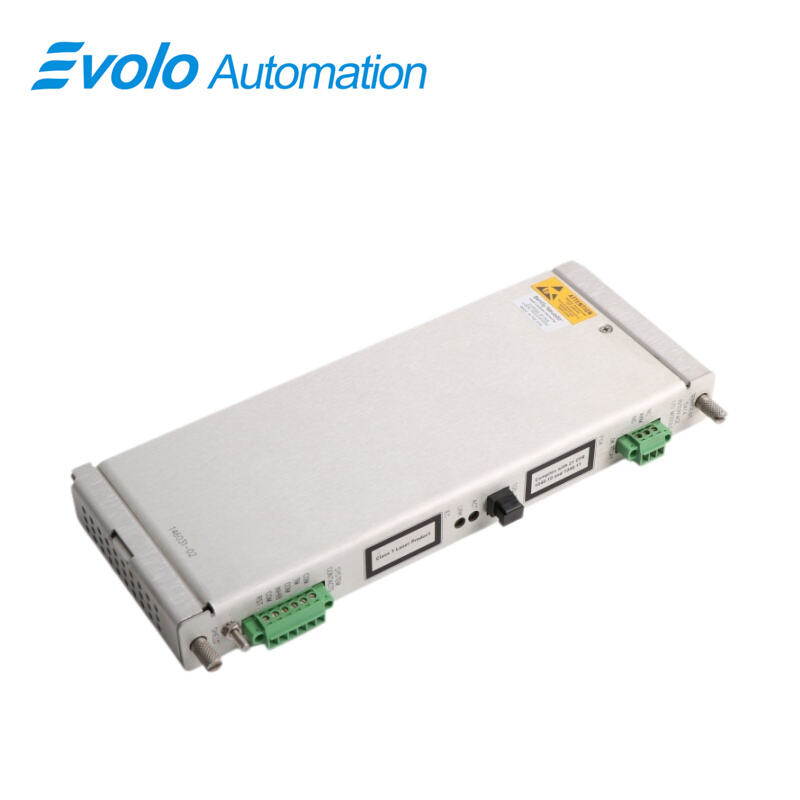

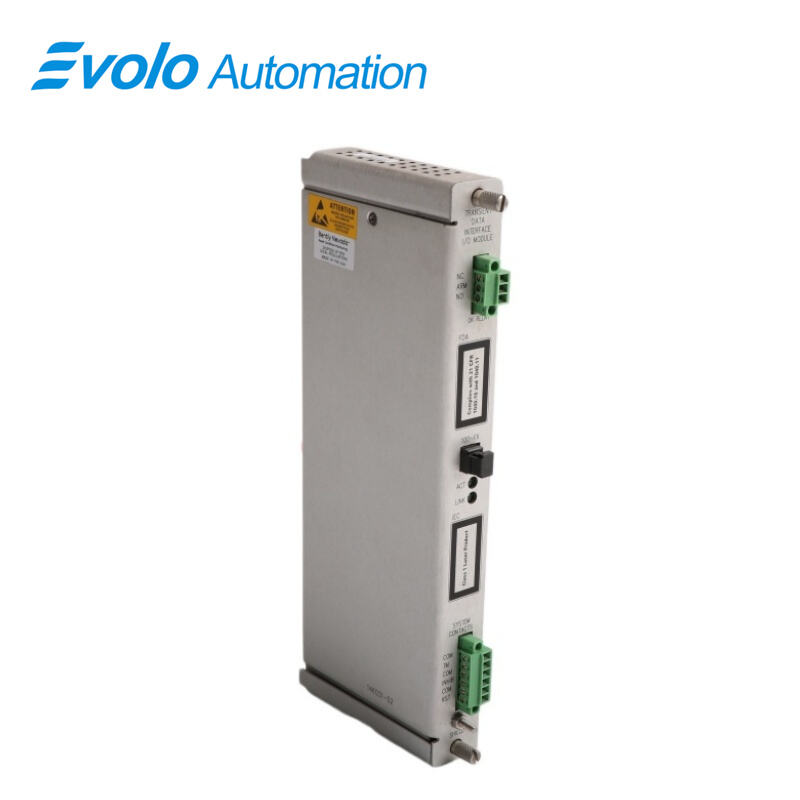

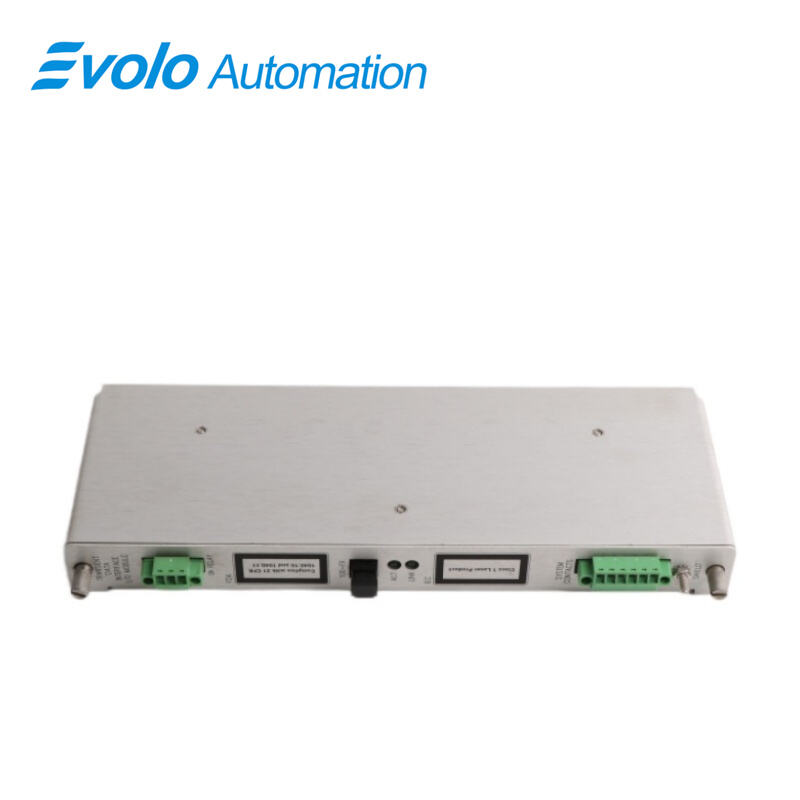

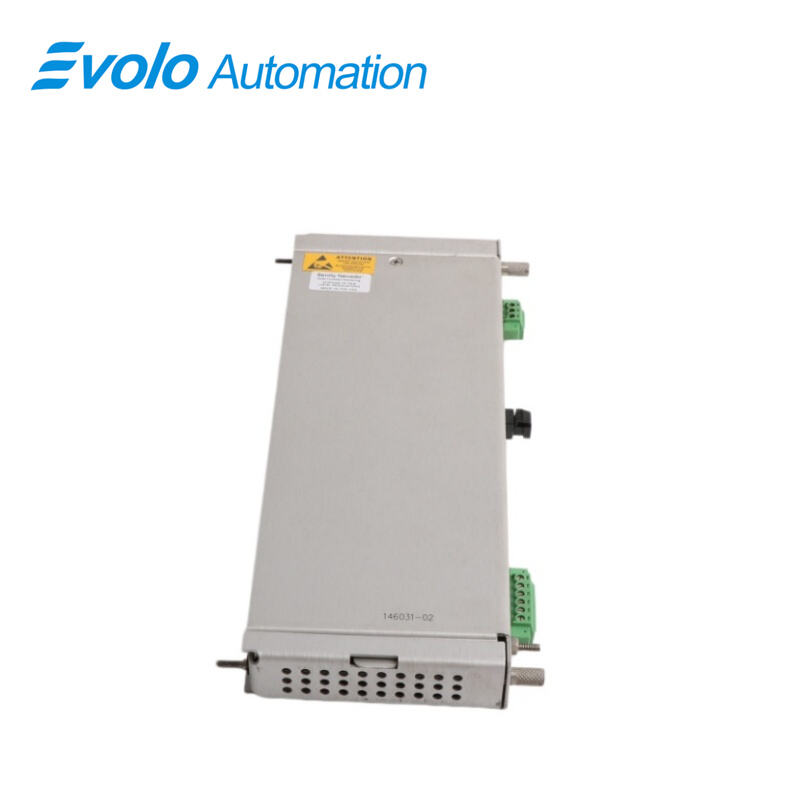

The 146031-02 100Base-FX I/O Module is designed for the Bently Nevada 3500/22M Transient Data Interface (TDI) to provide high-speed fiber-optic communication between 3500 monitoring racks and System 1 Condition Monitoring or 3500 Configuration software. The 146031-02 100Base-FX I/O Module supports 100Base-FX fiber-optic Ethernet and 10Base-T/100Base-TX autosensing, with USB-B front panel interface and LEDs for OK, TX/RX, TM, and CONFIG OK status. Power consumption is 10.5 W, baud rate up to 115.2 kbaud, and it operates from –30°C to +65°C with 95% non-condensing humidity.

The 146031-02 100Base-FX I/O Module captures steady-state and high-resolution transient waveform data from M-series monitors, updating every ~100 ms. It supports trip multiply (<1 mAdc), alarm inhibit (<1 mAdc), and rack reset (<1 mAdc) functions, enabling automated alarm and control actions. USB cable length supports up to 5 meters, and battery life reaches 38 years powered at 50°C or 12 years unpowered. The 146031-02 100Base-FX I/O Module provides reliable fiber-optic data transfer for automation systems requiring precise, real-time monitoring of turbines, compressors, and pumps.

Applications

Capture High-Speed Machinery Transient Data with 146031-02 100Base-FX (Fiber Optic) I/O Module

The 146031-02 100Base-FX (Fiber Optic) I/O Module continuously captures dynamic waveform data from M series monitors such as 3500/40M and 3500/42M. With its 100Base-FX fiber-optic Ethernet and 115.2 kbaud maximum data rate, the 146031-02 100Base-FX (Fiber Optic) I/O Module ensures real-time acquisition of transient signals for turbines, compressors, and generators. Its low power consumption of 10.5 W allows operation in multi-rack environments without thermal overload.

Transmit Data to System 1 for Predictive Maintenance Using 146031-02 100Base-FX (Fiber Optic) I/O Module

The 146031-02 100Base-FX (Fiber Optic) I/O Module interfaces directly with System 1 Condition Monitoring software via BN TDI Protocol, transmitting both static and high-resolution transient data. Optional Channel Enabling Disk in 146031-02 100Base-FX (Fiber Optic) I/O Module enables capturing high-resolution data for precise vibration and fault analysis, supporting predictive maintenance decisions.

Centralized Rack Configuration and Alarm Management with 146031-02 100Base-FX (Fiber Optic) I/O Module

The 146031-02 100Base-FX (Fiber Optic) I/O Module supports BN Host Protocol for communication with 3500 Configuration and Display software. Operators can reset racks, inhibit alarms, and configure Trip Multiply (<1 mAdc dry contact) remotely using the 146031-02 100Base-FX (Fiber Optic) I/O Module, reducing the need for physical intervention while ensuring alarms trigger only when required.

Test and Adjust Trip Multiply Settings Using 146031-02 100Base-FX (Fiber Optic) I/O Module

The 146031-02 100Base-FX (Fiber Optic) I/O Module provides Trip Multiply and Alarm Inhibit functions, with <1 mAdc maximum current for control signals. Engineers can safely test machinery trip points using the 146031-02 100Base-FX (Fiber Optic) I/O Module without disrupting normal operation, improving reliability verification and reducing downtime.

Specifications

Competitive Advantage

Reliable Long-Term Data Capture with 146031-02 100Base-FX (Fiber Optic) I/O Module

The 146031-02 100Base-FX (Fiber Optic) I/O Module supports both static and transient data collection, with battery life of 38 years when powered at 50°C and 12 years when unpowered. These specifications ensure continuous monitoring and long-term data integrity for machinery health diagnostics.

Efficient Multi-Rack Integration Using 146031-02 100Base-FX (Fiber Optic) I/O Module

At only 10.5 W power consumption, the 146031-02 100Base-FX (Fiber Optic) I/O Module minimizes energy usage and heat generation, making it ideal for large 3500 rack installations. High-speed 100Base-FX fiber-optic Ethernet allows multiple 146031-02 100Base-FX (Fiber Optic) I/O Module units to operate in parallel without communication bottlenecks.

High-Speed, Low-Interference Data Transmission with 146031-02 100Base-FX (Fiber Optic) I/O Module

The 146031-02 100Base-FX (Fiber Optic) I/O Module supports 100Base-FX Ethernet for fiber-optic communication, significantly reducing electromagnetic interference in industrial environments. USB-B front panel connectivity (up to 5 m cable) allows secure, high-speed data exchange with host systems.

Operate in Harsh Environments with 146031-02 100Base-FX (Fiber Optic) I/O Module

Rated for -30°C to +65°C operating temperature and up to 95% non-condensing humidity, the 146031-02 100Base-FX (Fiber Optic) I/O Module can function reliably in extreme conditions, ensuring data integrity where other modules may fail.

Simplify Diagnostics with LED Indicators on 146031-02 100Base-FX (Fiber Optic) I/O Module

The 146031-02 100Base-FX (Fiber Optic) I/O Module features OK, TX/RX, TM, and CONFIG OK LEDs to provide immediate operational feedback. Engineers using the 146031-02 100Base-FX (Fiber Optic) I/O Module can quickly assess rack status and communication health without connecting software tools, reducing response time during troubleshooting.
