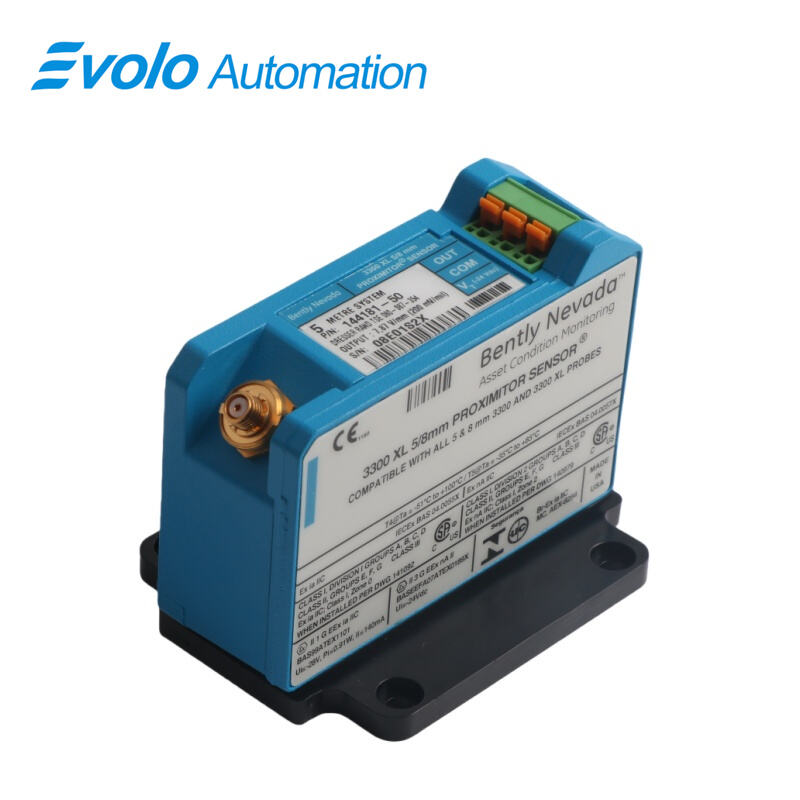

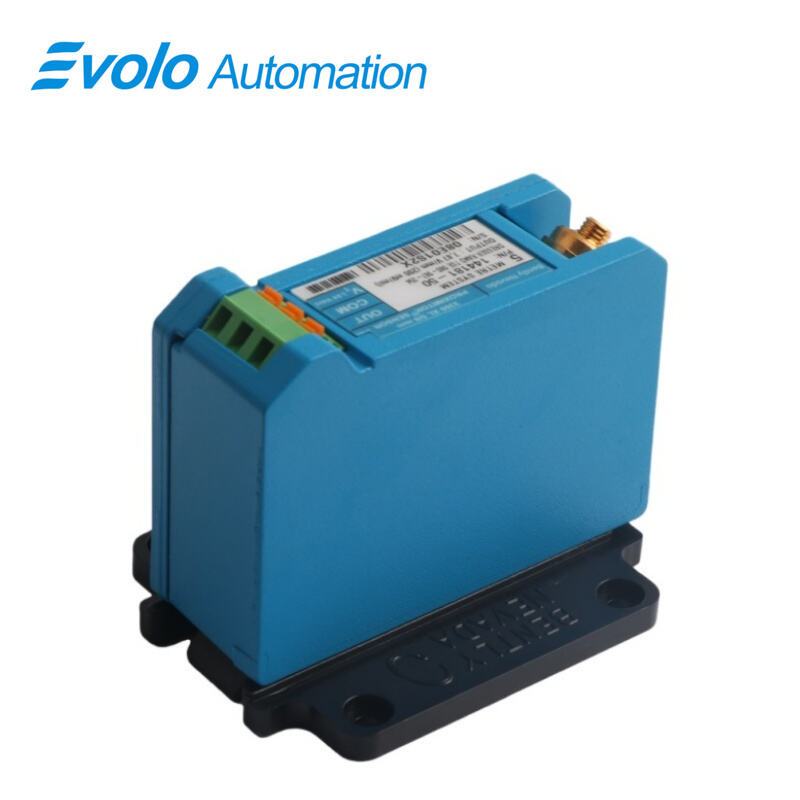

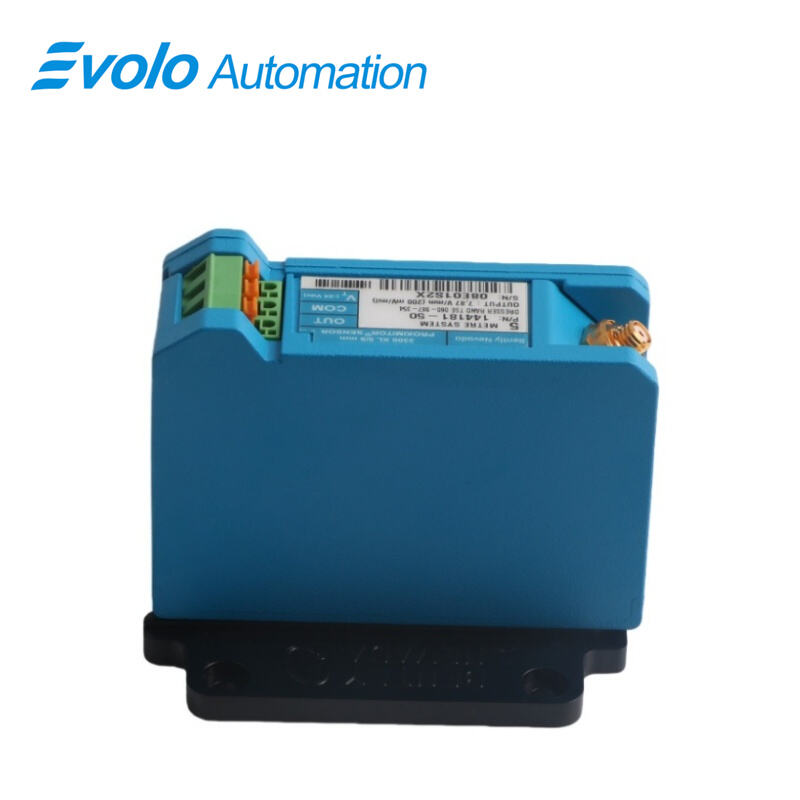

144181-50-05 3300 XL 5/8 mm Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	144181-50-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 144181-50-05 3300 XL 5/8 mm Proximitor Sensor provides precise DC voltage output proportional to the displacement of the monitored conductive target. With a sensitivity of 7.87 V/mm and a frequency response up to 10 kHz, the 144181-50-05 3300 XL 5/8 mm Proximitor Sensor accurately measures both static and dynamic motion in automated systems. Designed for 5/8-18 UNF mounting, this sensor integrates seamlessly into machinery control loops, delivering real-time data for monitoring vibration, shaft position, and rotational speed. Operating across temperatures from -40°C to +85°C, the 144181-50-05 3300 XL 5/8 mm Proximitor Sensor supports installation in industrial environments where temperature fluctuations are common. Its compact design allows integration into tight spaces while maintaining precise signal output for automated protection and diagnostic systems.

Applications

Monitor Shaft Vibration in Fluid-Film Bearings
The 144181-50-05 3300 XL 5/8 mm Proximitor Sensor measures vibration on bearing surfaces up to 10 kHz, providing precise displacement data in automated monitoring systems. Its 7.87 V/mm sensitivity ensures accurate detection of shaft motion.

Track Rotor Position in Rotating Machinery
Installed using the 5/8-18 UNF mounting, the 144181-50-05 3300 XL 5/8 mm Proximitor Sensor delivers real-time shaft position measurements for motors, pumps, and compressors, feeding control systems for automated speed regulation and protection.

Provide Dynamic Feedback for Keyphasor Systems
The 144181-50-05 3300 XL 5/8 mm Proximitor Sensor outputs DC voltage proportional to displacement, allowing integration into Keyphasor reference applications for precise rotational speed and phase monitoring in automated plants.

Specifications

Competitive Advantage

Deliver High-Frequency Response for Automated Control
With a frequency response up to 10 kHz, the 144181-50-05 3300 XL 5/8 mm Proximitor Sensor captures fast dynamic events, supporting real-time automation decisions.

Operate Across Wide Industrial Temperature Ranges
The 144181-50-05 3300 XL 5/8 mm Proximitor Sensor maintains accurate DC output from -40°C to +85°C, ensuring reliable data in varying plant conditions.

Integrate Quickly into Compact Spaces
The 5/8-18 UNF mounting of the 144181-50-05 3300 XL 5/8 mm Proximitor Sensor enables fast installation in confined equipment, providing automated system monitoring without extensive retrofitting.

Provide Direct DC Output for Control Systems
The 144181-50-05 3300 XL 5/8 mm Proximitor Sensor converts displacement directly into DC voltage, simplifying signal processing for automation controllers and reducing setup time.
