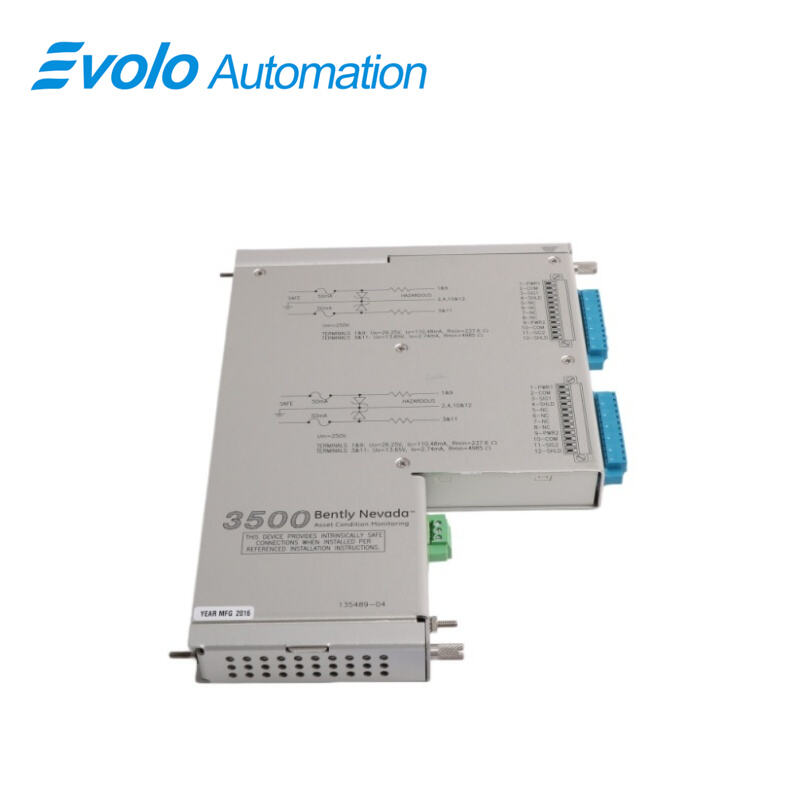

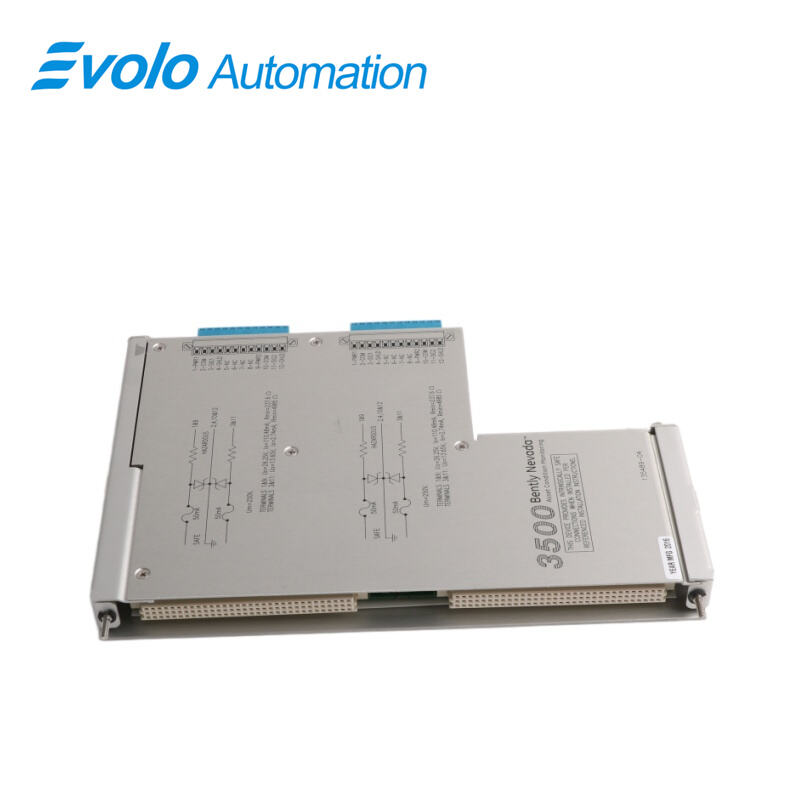

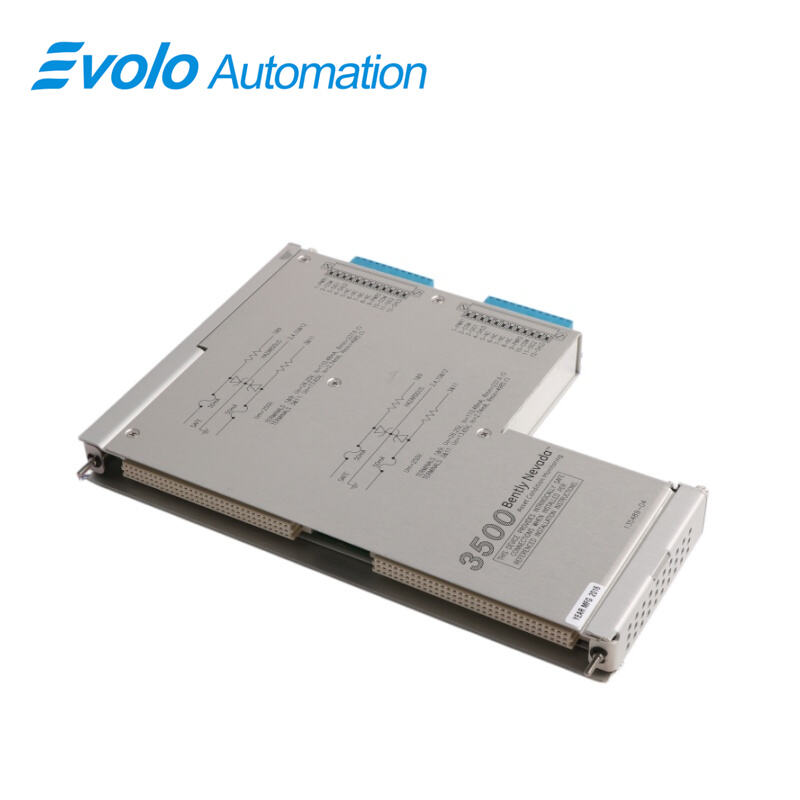

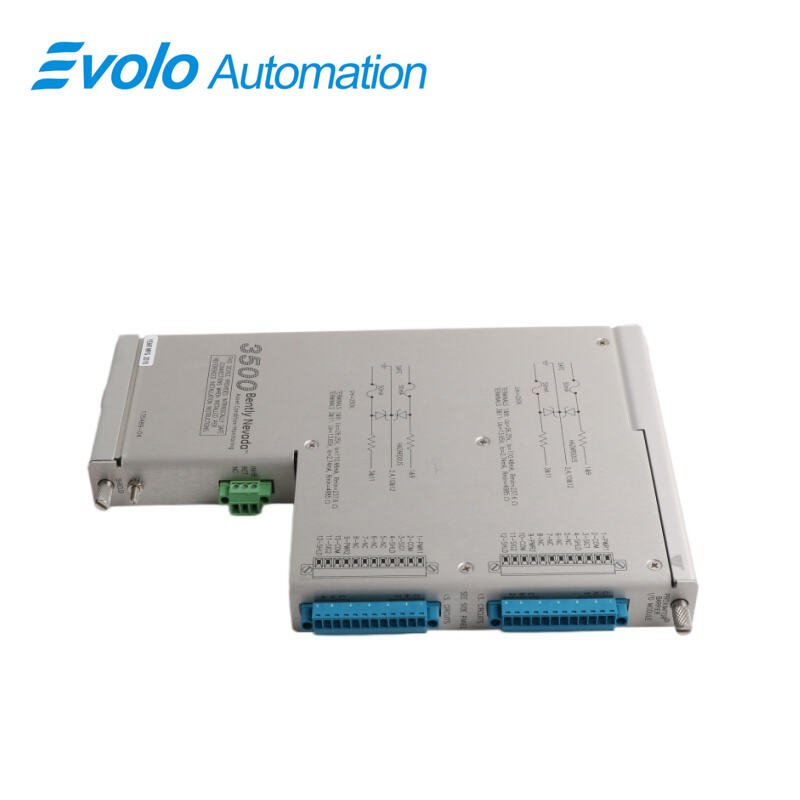

135489-04 3500/40 I/O Module

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	135489-04
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The Bently Nevada 135489-04 3500/40 I/O Module provides high-speed signal processing for industrial automation, supporting a 30 kHz bandwidth with amplitude accuracy of 3% @ 10 kHz and -15/+10% @ 30 kHz. The 135489-04 3500/40 I/O Module delivers precise phase measurements (-11° @ 10 kHz) and ±1% channel amplitude accuracy. Circuit parameters include Uo: 26.25 V, Rmin: 297 Ω, Io: 88.39 mA, and Po: 580.02 mW. Channel outputs range from Um: 250 V, Uo: 26.25 V, Io: 88.39 mA, Co: 0.097 µF, Lo: 4.55 mH, supporting automated monitoring of multiple transducer systems. Temperature accuracy is ±1 °C @ 25 °C with ±15 °C over the operating range. The 135489-04 3500/40 I/O Module integrates with 3500 Internal Barriers, providing explosion-protected interfaces for hazardous-area transducers while maintaining efficient rack installation and automated system operation.

Applications

High-Speed Vibration Signal Monitoring
The Bently Nevada 135489-04 3500/40 I/O Module processes vibration signals up to 30 kHz bandwidth with amplitude accuracy of 3% @ 10 kHz and -15/+10% @ 30 kHz. The 135489-04 3500/40 Module delivers precise phase measurements (-11° @ 10 kHz) for automated machinery monitoring in turbines, compressors, and pumps.

Multi-Channel Transducer Integration
The Bently Nevada 135489-04 3500/40 I/O Module supports multiple transducer outputs with Um: 250 V, Uo: 26.25 V, Io: 88.39 mA, Co: 0.097 µF, Lo: 4.55 mH. The 135489-04 3500/40 Module enables automated collection of vibration and process data from multiple sensors in real time.

Temperature Monitoring in Hazardous Areas
The Bently Nevada 135489-04 3500/40 I/O Module measures temperature with ±1 °C accuracy @ 25 °C and ±15 °C over operating temperature. The 135489-04 3500/40 Module integrates with 3500 Internal Barriers for safe operation of transducers in explosive environments.

Specifications

Competitive Advantage

Precise Signal Processing
The Bently Nevada 135489-04 3500/40 I/O Module provides high-resolution amplitude and phase data, with ±1% channel amplitude accuracy and -11° phase accuracy @ 10 kHz. The 135489-04 3500/40 Module enhances automated vibration analysis for predictive maintenance.

Explosion-Protected Transducer Interfaces
The Bently Nevada 135489-04 3500/40 I/O Module works with 3500 Internal Barriers, providing intrinsically safe connections. The 135489-04 3500/40 Module allows installation of hazardous-area transducers in automated industrial systems.

Flexible Multi-Channel Support
The Bently Nevada 135489-04 3500/40 I/O Module handles multiple channels with individual circuit parameters (Uo, Io, Co, Lo). The 135489-04 3500/40 Module simplifies real-time monitoring for several transducers simultaneously.

Efficient Rack Installation
The Bently Nevada 135489-04 3500/40 I/O Module fits in a 3500 rack alongside standard and barrier modules. The 135489-04 3500/40 Module allows organized placement of multiple I/O modules for automated monitoring.
