125768-01 RIM I/O Module , China 125768-01 RIM I/O Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	125768-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Power Consumption	4.75 watts, typical
Data Interface	Front panel RS232 serial communications
Data Rate	38.4 k baud (serial), 14.4 k baud (internal modem)
Standards	RS232/RS422 serial communications, internal modem communications
Front Panel LEDs	OK LED, TX/RX LED, TM LED, CONFIG OK LED
I/O Module OK Relay	5A @ 24 Vdc / 120 Vac, 120 W / 600 VA switched power, Normally Energized, Arc suppressed
Front Panel Controls	Rack reset button, Address switch (63 possible addresses)
Cable Length	RS232: 30 m (100 ft) max, RS422: 1200 m (4000 ft) max, Modem: 3 m (10 ft) typical
I/O Module System Contacts	Trip Multiply, Alarm Inhibit, Rack Reset
Maximum Contact Current	<1 mA dc, dry contact to common
RS232/RS422 Switch	Select between RS232 and RS422 communications
Operating Temperature	0°C to +50°C (+32°F to +122°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Humidity	95%, non-condensing
Dimension:	2.4x11x24cm
Weight:	0.44kg

Description

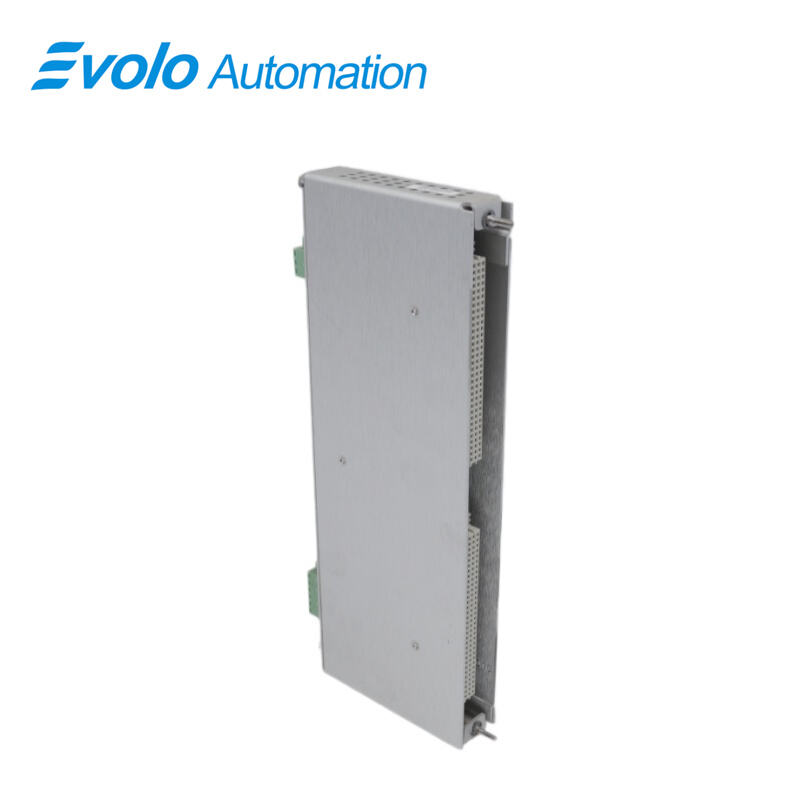

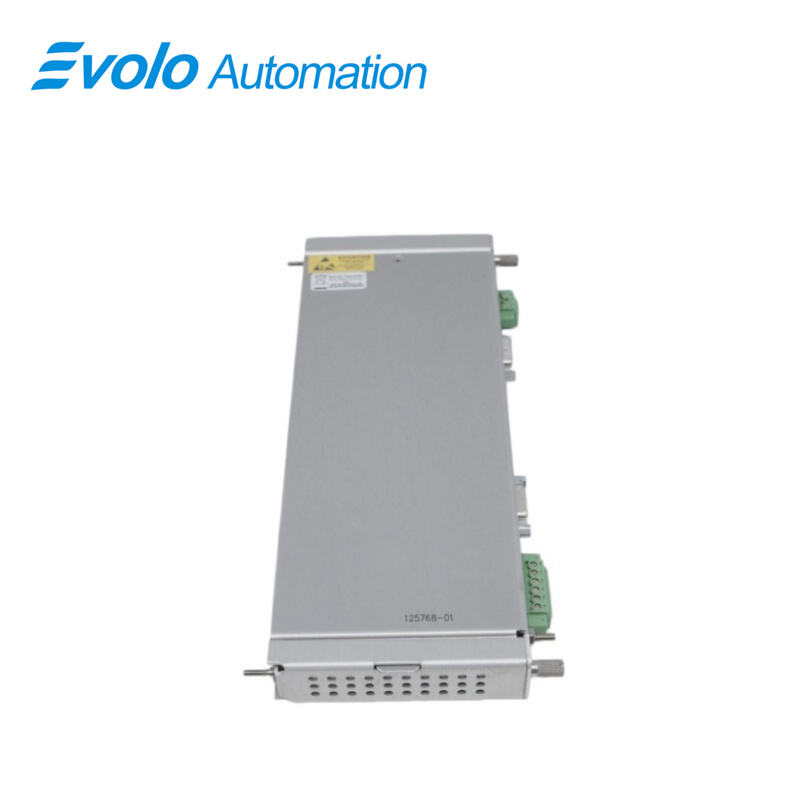

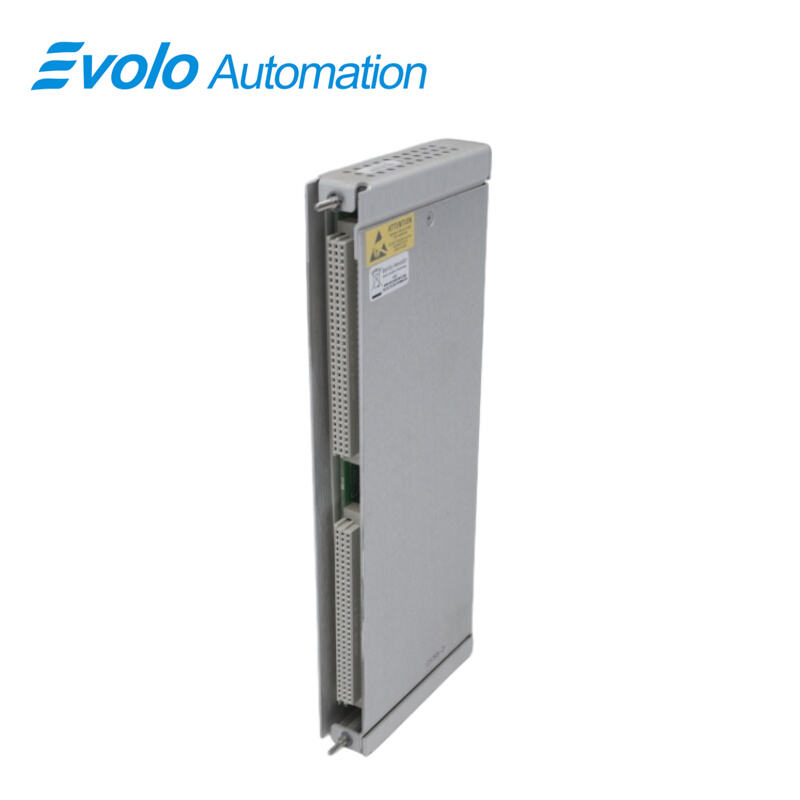

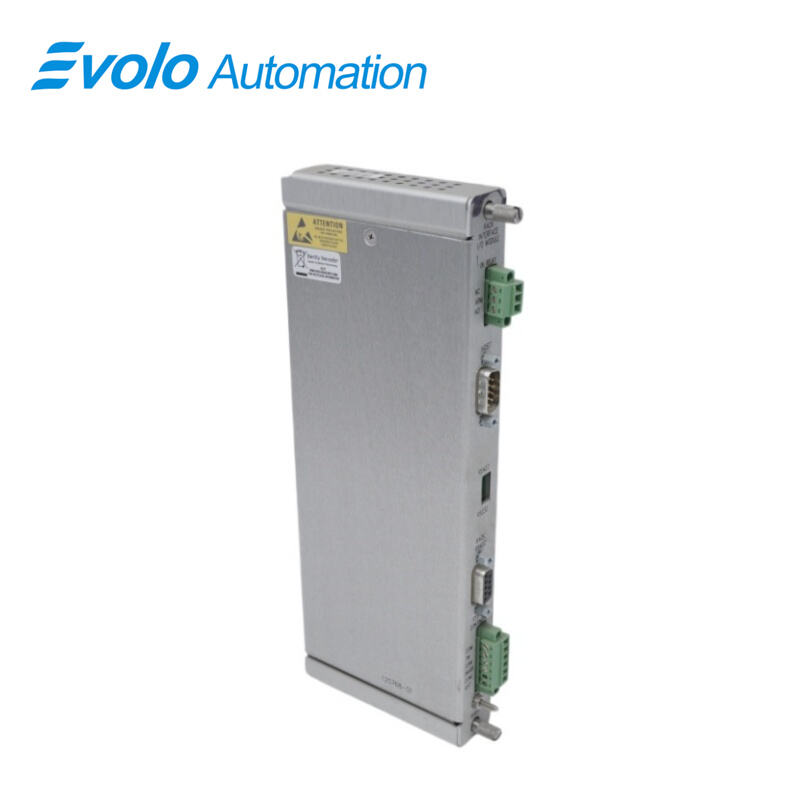

The 125768-01 RIM I/O Module is the primary interface for the Bently Nevada 3500 rack, supporting proprietary protocols to configure the rack and retrieve machinery data. Installed in slot 1 next to the power supplies, 125768-01 communicates with external processors such as TDXnet, TDIX, and DDIX. For Triple Modular Redundant (TMR) systems, 125768-01 performs monitor channel comparison, continuously checking outputs from three redundant monitors and flagging any channel outside the configured percentage. Typical power consumption of 125768-01 is 4.75 W. Front panel RS232 serial communications operate at 38.4 k baud, with maximum cable lengths of 30 m (RS232) or 1200 m (RS422). Front panel LEDs include OK, TX/RX, TM, and CONFIG OK, and the I/O module provides 5 A @ 24 Vdc / 120 Vac relays for alarm, trip, and reset functions. Operating temperature ranges from 0°C to +50°C, storage -40°C to +85°C, with 95% non-condensing humidity. 125768-01 enables reliable static and dynamic data collection for automation and process control applications within 3500 monitoring racks.

Applications

Perform Turbine Trip and Shutdown Control

125768-01 relays can switch turbine trip circuits rated up to 5 A, 120 Vac or 24 Vdc, ensuring immediate response to overspeed or vibration thresholds.

Forward Pump Alarm Signals to Control Room

Using RS232 or RS422 connections, 125768-01 transmits pump temperature and vibration alarms to centralized automation systems or SCADA software for operator intervention.

Collect Dynamic Vibration Data

125768-01 interfaces with Bently Nevada Transient Data Interface modules, capturing dynamic vibration data and sending it to data acquisition systems at 38.4 k baud.

Reset or Inhibit Rack Functions

The module provides system contacts for rack reset, trip multiply, and alarm inhibit, allowing operators to safely manage automation processes from the front panel.

Specifications

Communications(Data Manager I/O Module (2 sets of ports))	Bently Nevada proprietary
Protocol(Data Manager I/O Module (2 sets of ports))	Bently Nevada proprietary
Baud Rate(Data Manager I/O Module (2 sets of ports))	9600 baud fixed
Purpose(Data Manager I/O Module (2 sets of ports))	Permits static and dynamic data collection by Bently Nevada Transient Data Interface
External or Dynamic Data Interface(Data Manager I/O Module (2 sets of ports))	Supported
External Communication Processors(Data Manager I/O Module (2 sets of ports))	Supported
Cable Length(Data Manager I/O Module (2 sets of ports))	3 metres (10 feet) maximum

Competitive Advantage

Integrate RIM Functions and Data Collection

125768-01 consolidates rack configuration, TMR monitor comparison, and data acquisition in a single module, reducing hardware complexity in automation racks.

Switch High-Power Relays Directly

With 5 A @ 24 Vdc / 120 Vac capacity and 120 W / 600 VA switched power, 125768-01 drives alarm, trip, and reset circuits without external relays.

Verify System and Communication Status Quickly

Front panel LEDs (OK, TX/RX, TM, CONFIG OK) on 125768-01 allow operators to confirm module operation and active communication instantly.

Operate in Standard Industrial Environments

Operating from 0°C to +50°C with 95% non-condensing humidity, 125768-01 can be installed in control cabinets near turbines, compressors, or pumps without additional cooling or protective enclosures.
