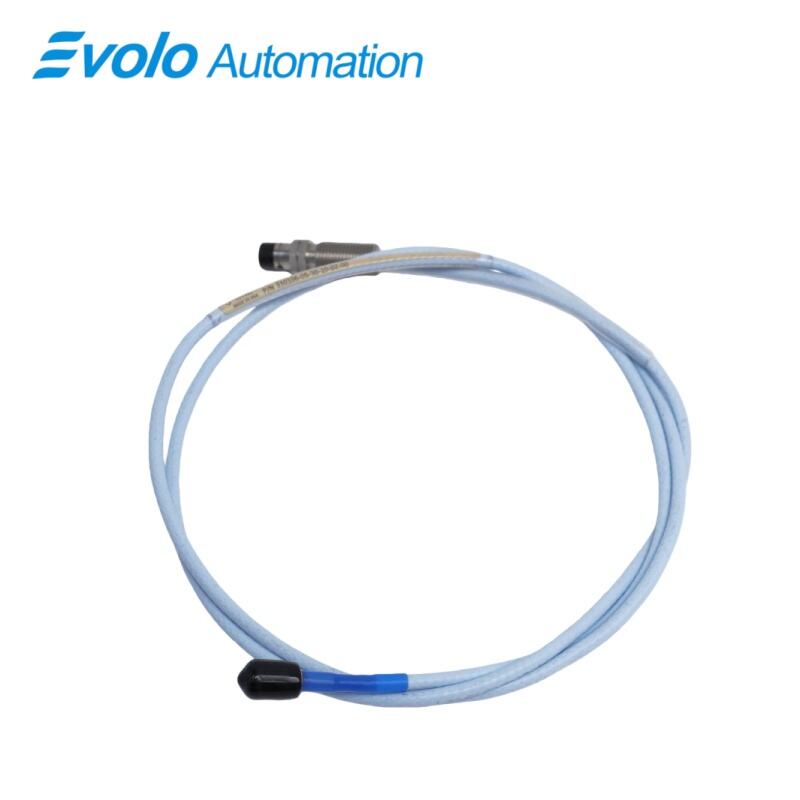

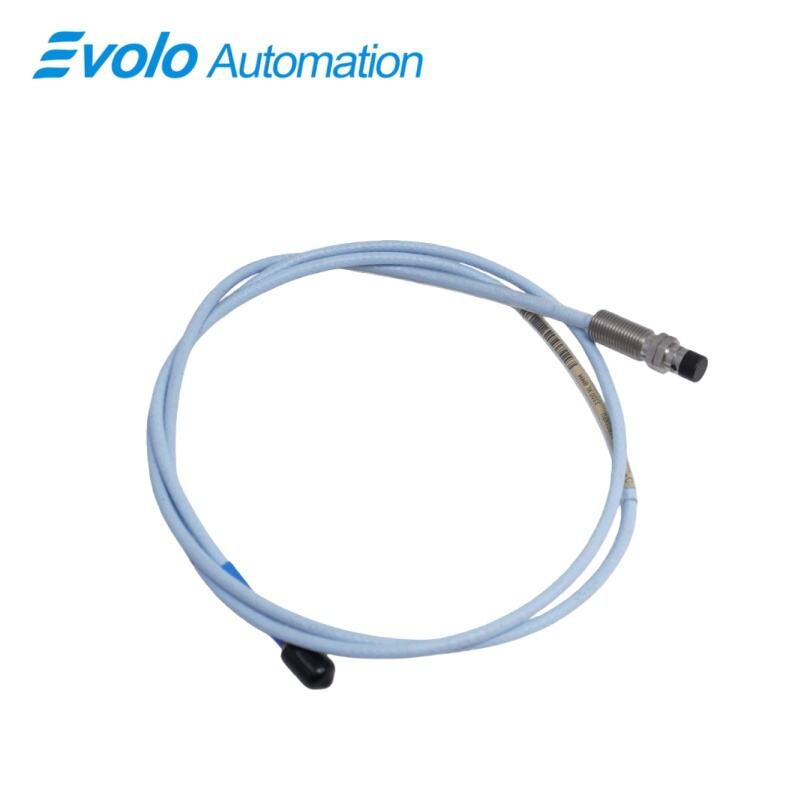

330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probe is a cutting-edge, space-saving eddy current transducer manufactured by Bently Nevada, the global authority in machinery protection and condition monitoring solutions, with its origin rooted in the USA. As a specialized member of the industry-leading 3300 XL product family, this reverse mount probe is meticulously engineered to address the most challenging installation constraints in compact rotating machinery, where conventional forward-mounted proximity probes cannot fit or operate effectively. At its core, the 3300 XL 8 mm reverse mount probe leverages advanced eddy current technology to generate a highly linear voltage signal that is directly proportional to the gap between its durable Polyphenylene Sulfide (PPS) probe tip and a conductive target surface, enabling precise, non-contact measurement of radial vibration, axial position, and rotor displacement for critical industrial assets. What sets the 330106-05-30-10-02-00 reverse mount probe apart is its innovative mechanical design, which allows installation from the backside of mounting surfaces such as bearing housing bulkheads, machine casings, or pressure vessel walls—this unique reverse-mount configuration is a game-changer for applications where front-side radial space is severely limited, making it the ideal choice for ultra-compact centrifugal compressors, high-speed gearboxes, integrated motor-pump units, and miniature turbines.

Applications

The 330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probe is specifically designed for vibration and axial position monitoring of ultra-compact rotating machinery in petrochemical processing plants, where front-side clearance for traditional probes is nonexistent; its reverse-mount configuration enables installation from the back of bearing housing bulkheads, making it perfect for monitoring high-speed centrifugal compressors and miniature process pumps that drive critical production lines.

This reverse mount probe is widely applied in power generation facilities for internal monitoring of turbine auxiliary systems and integrated motor-generator units, allowing the probe tip to extend to the shaft measurement point while the connector and cable remain safely housed within sealed enclosures, protecting sensitive components from high temperatures, dust, and lubricating oil contamination in turbine halls.

The 1.0-meter integrated cable and ClickLoc connector design of the 330106-05-30-10-02-00 reverse mount probe make it an ideal choice for retrofit projects in legacy manufacturing equipment, where it can directly replace outdated reverse-mount transducers without modifying existing mounting geometries, upgrading condition monitoring capabilities for aging gearboxes and rolling mill drives while ensuring compatibility with existing 3300 XL monitoring racks.

Specifications

Competitive Advantage

1. Innovative Reverse-Mount Configuration for Space-Limited Installations

The probe’s specialized reverse-mount design solves the core pain point of installing sensors in compact machinery with minimal front-side clearance; it can be mounted from the back of bulkheads or casings, enabling precise monitoring of shafts in ultra-small compressors, gearboxes, and motor-pump units where standard forward-mounted probes are physically incompatible.

2. Factory-Integrated 1.0-Meter Cable with Secure ClickLoc Connector

Equipped with a pre-terminated 1.0-meter cable and miniature ClickLoc coaxial connector, the probe eliminates on-site cable assembly and splicing, reducing potential signal failure points and installation labor costs; the ClickLoc connector ensures a vibration-resistant, secure connection that maintains signal integrity even in high-vibration industrial environments.

3. Broad Temperature Tolerance and Robust Corrosion-Resistant Construction

With an operating temperature range of -53°C to +124°C (-60°F to +215°F) and a housing made of AISI 301/304 stainless steel paired with a PPS probe tip, the probe delivers stable performance in extreme temperature and corrosive conditions, outperforming generic alternatives in harsh industrial settings such as turbine halls and chemical processing plants.
