Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
125388-01H |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Product Name |
Industrial Monitoring System Rack Chassis |
|
Material |
Metal enclosure for enhanced mechanical protection and heat dissipation |
|
Interface Type |
Includes power interface and communication interface |
|
Protection Rating |
IP20, protection against solid objects and limited dust ingress |
|
Installation Method |
Rack-mounted, compliant with EIA standards |
|
Power Supply |
Input voltage and current as required by system configuration |
|
Module Slots |
Supports multiple monitoring modules depending on chassis model |
|
Dimension: |
23.9x22.3x1.9cm |
|
Weight: |
0.22kg |
Description

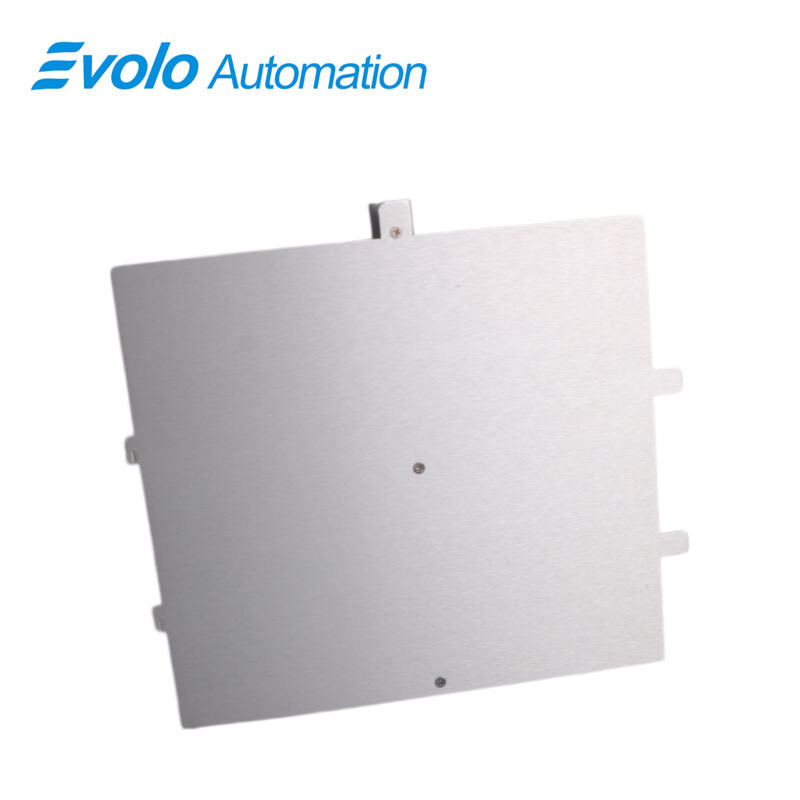

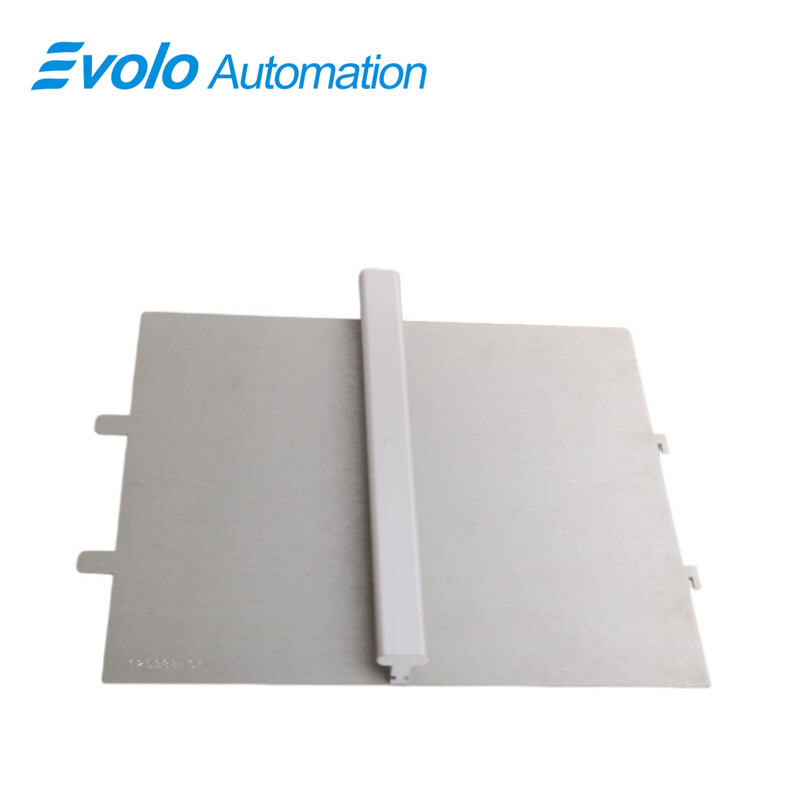

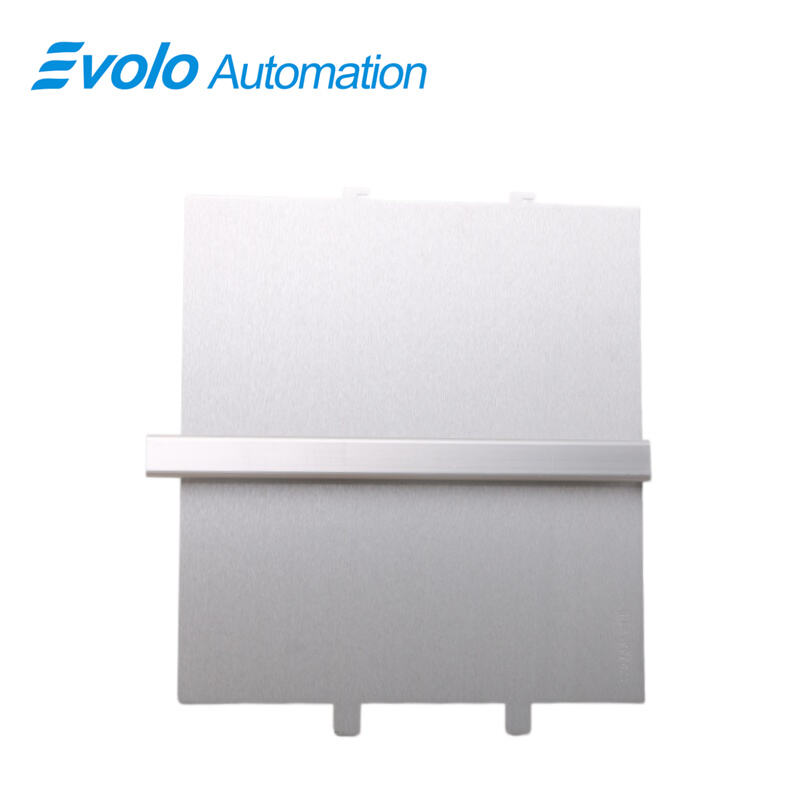

The BENTLY Nevada 125388-01H is a half-height modular internal chassis manufactured by Bently Nevada, Inc. It is typically used in Bently Nevada 3500 monitoring systems to mount and support various 3500 series monitoring modules. This chassis provides power, communication interfaces, and mounting space for these modules, making it a key component in building large, complex mechanical protection and condition monitoring systems. As a "half-height" chassis, it typically occupies 2U of rack space. 125388-01H is part of the Bentley Nevada 3500 monitoring system. The 3500 system is Bentley Nevada's flagship product, used to protect and monitor various rotating machinery, such as steam turbines, compressors, and pumps.
Applications
Modular enclosures are widely used in various industrial fields that require protection and monitoring of rotating machinery, such as:
Power industry: Used for monitoring and protection of equipment such as steam turbines and generators.
Petrochemical industry: Used for monitoring and protection of equipment such as compressors and pumps.
Metallurgical industry: Used for monitoring and protection of equipment such as rolling mills and fans.
Rail transit: Used for monitoring and protection of equipment such as traction motors and gearboxes.
Rotating machinery protection: Used for monitoring and protecting various rotating machinery for parameters such as vibration, temperature, and pressure.
Condition monitoring: Used for condition assessment and fault diagnosis of rotating machinery.
Predictive maintenance: Used to predict failures in rotating machinery and perform preventative maintenance.
Specifications
|
Operating Temperature |
Designed for standard industrial operating temperature range |
|
Modular Design |
Flexible configuration of various monitoring modules as required |
|
Reliability |
High reliability and stability using industrial-grade electronic components and connectors |
|
Maintenance |
Modular structure enables easy maintenance and quick module replacement |
|
Application |
Industrial machinery condition monitoring and protection systems |
Competitive Advantage
Install Multiple Monitoring Modules Within 2U Rack Space
125388-01H allows several 3500 series modules to be installed within only 2U of vertical rack space. This reduces cabinet height requirements and supports dense monitoring configurations in limited control room space.
Replace Monitoring Modules Without Removing the Chassis
The modular front-access structure of 125388-01H allows technicians to remove and replace individual monitoring modules while the chassis remains mounted in the rack. This shortens maintenance time and avoids full system disassembly.
Expand Monitoring Capacity by Adding Additional Chassis
When monitoring requirements increase, engineers can stack additional 125388-01H chassis units within the same rack system. This allows gradual expansion of protection systems without redesigning the entire cabinet layout.
