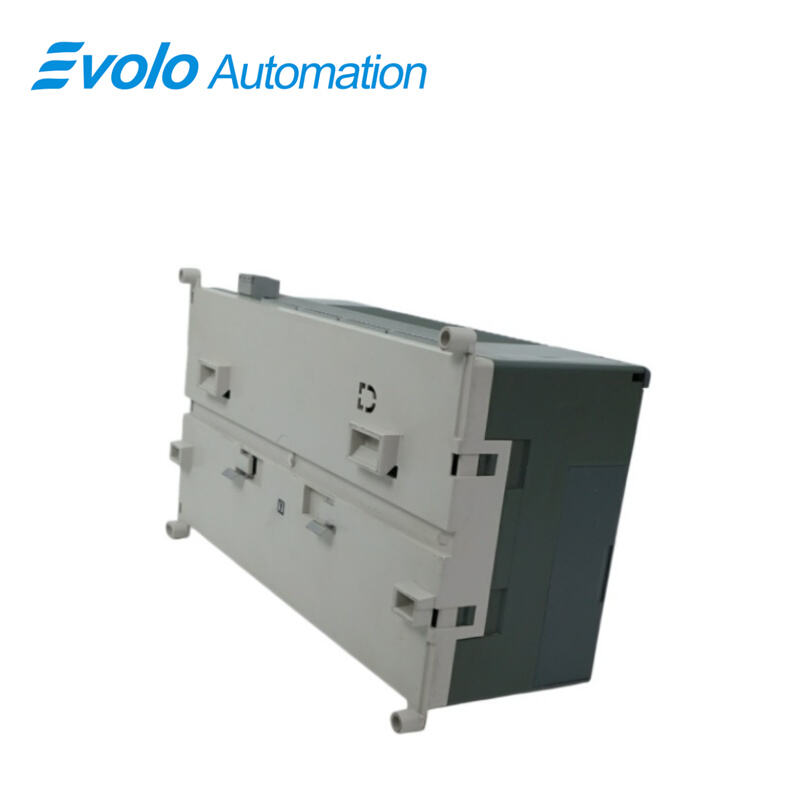

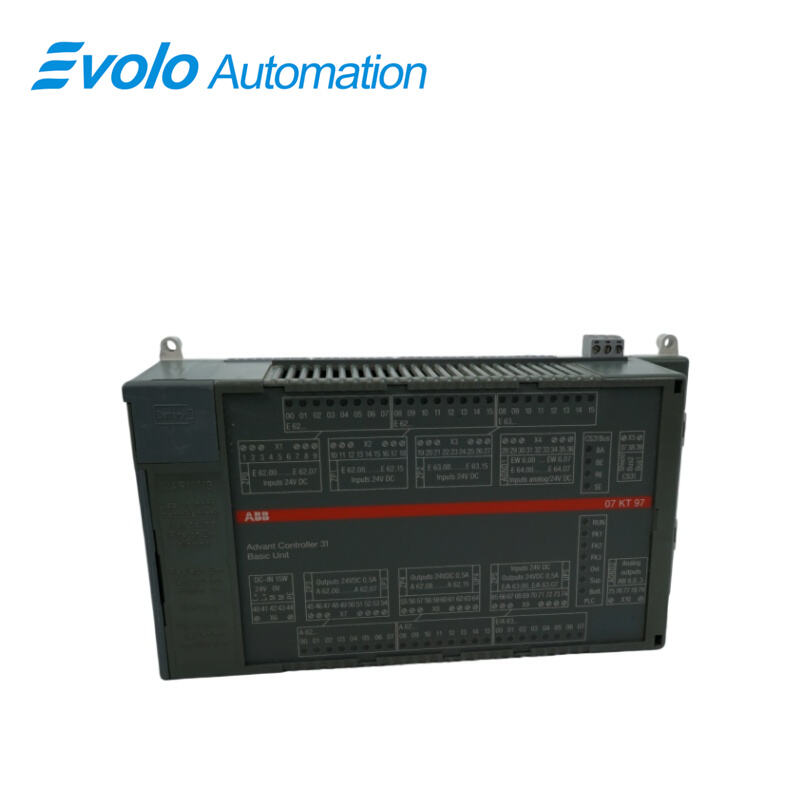

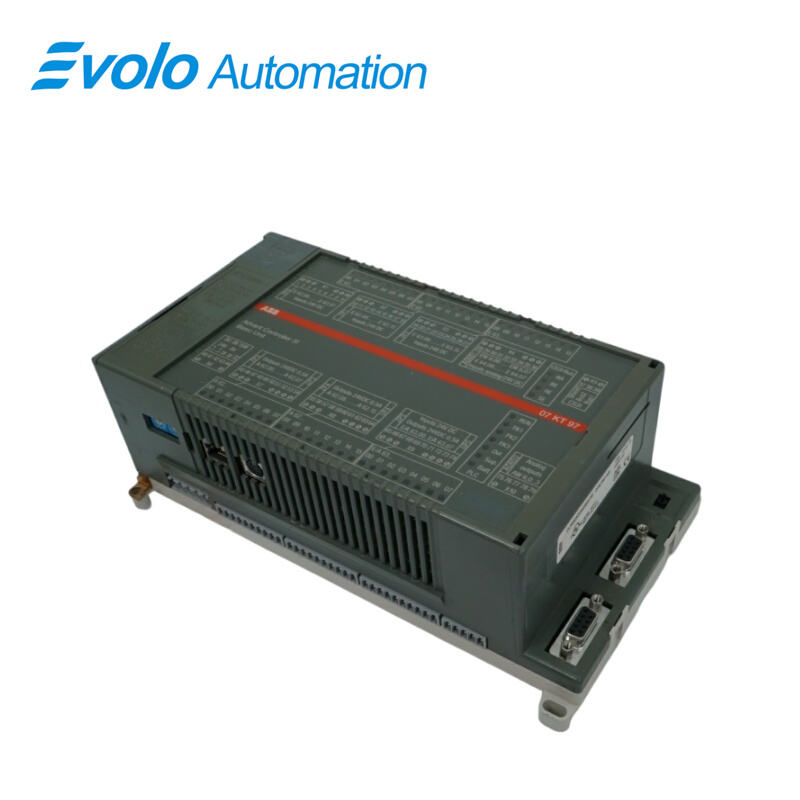

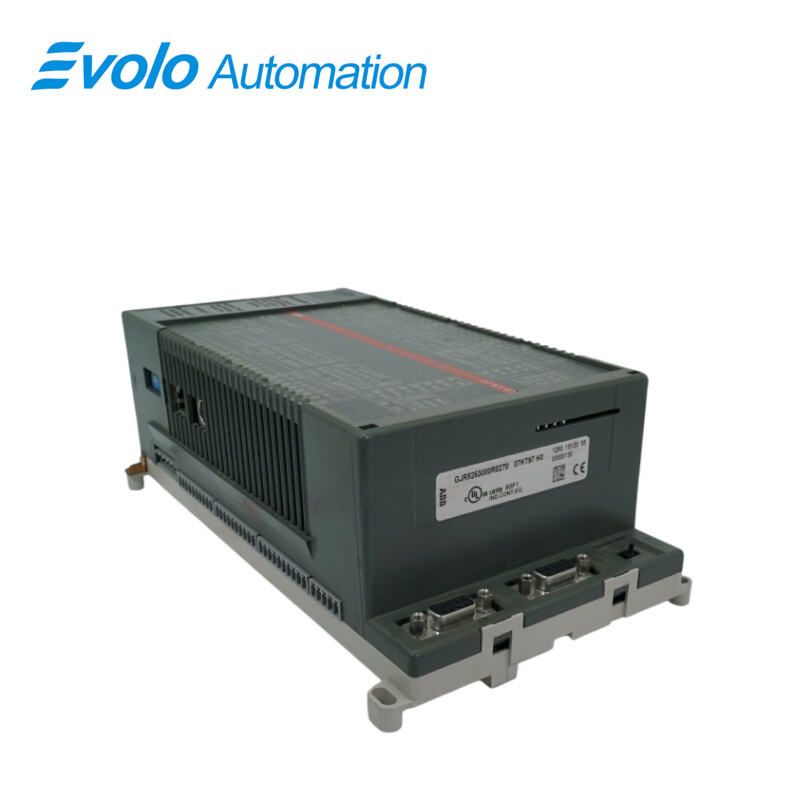

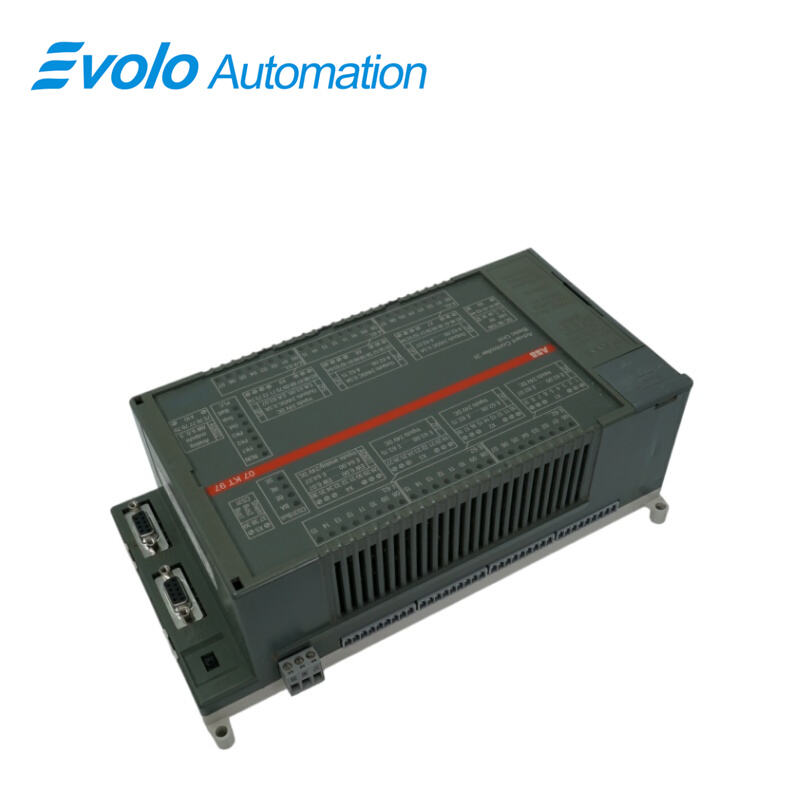

07KT97 Basic unit

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	07KT97
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The basic unit 07 KT 97 is the standard device for all applications. In addition, there are basic units with reduced performance (e.g. 07 KT 95 or 07 KT 96) as well as ones with extended performance (e.g. 07 KT 97 R260 with ARCNET connection, 07 KT 97 R0220 with PROFIBUS connection and 07 KT 97 with both ARCNET and PROFIBUS connection).

Applications

Large Printing & Packaging Plants

Typical Equipment: KBA Compacta series, Heidelberg, and other large rotary printing presses.

Specific Applications: The 07KT97 is often used as a master control unit, synchronizing tension, registration, and inking data across multiple printing units via the ARCNET network. Its large memory can store complex printing process formulas.

High-End Marine & Offshore Engineering

Typical Equipment: Ocean-going freighters, luxury cruise ships, offshore drilling platforms (FPSO).

Specific Applications: Used for integrated platform management systems (IPMS). It coordinates the ship's power distribution, engine room automation, and real-time processing of thousands of alarm points, complying with certifications from top global classification societies such as DNV and GL.

Complex Process Industries (Tobacco, Pharmaceuticals, Chemicals)

Typical Equipment: Cigarette machines, automatic batching systems, continuous reactors.

Specific Applications: In these industries, production processes involve extensive PID control and complex formula changes. The 07KT97's large-capacity RAM supports real-time retrieval of hundreds or even thousands of process parameters.

**Precision Machinery Manufacturing (Advanced Machinery)**

Typical equipment: Multi-axis CNC machine tools, large plastic extrusion molding machines.

Specific applications: Utilizing its high-speed instruction processing capability (0.3 µs) for precise motion control and logic interlocking.

Large-scale Water Conservancy and Power Dispatching

Typical equipment: Inter-regional booster pump station groups, integrated automation systems for hydropower stations.

Specific applications: As a central control node, it aggregates remote I/O signals distributed over several kilometers via a bus to execute global optimization algorithms.

Main features

· 24 digital inputs with LED displays

· 16 digital transistor outputs with LED displays

· 8 digital inputs/outputs with LED displays

· 8 individually configurable analog inputs 0...10 V, 0...5 V, ±10 V, ±5 V, 0...20 mA, 4...20 mA, differential inputs, Pt100 (2-wire or 3 wire), the analog inputs are also individually configurable as digital inputs

· 4 individually configurable analog outputs ±10 V, 0...20 mA, 4...20 mA

· 2 counters for counting frequencies up to 50 kHz, configurable in 7 different operating modes

· 1 CS31 system bus interface for system expansion

· 1 interface for connecting communication modules (e.g. 07 KP 90)

· 2 serial interfaces COM1, COM2

– as MODBUS interfaces and

– for programming and test functions

· Real-time clock

· LEDs for displaying operating conditions and error messages

· Detachable screw-type terminal blocks

· Fastening by screws or by snapping the device onto a DIN rail

· The lithium battery 07 LE 90 can be put into the battery compartment in order to

– store and backup the user program in the RAM

– store and backup data which is additionally contained in the RAM, e.g. the status of flags

– backup the time and date (real-time clock)

· RUN/STOP switch for starting and aborting the program execution

· Extensive diagnosis functions

– self-diagnosis of the basic unit

– diagnosis of the CS31 system bus and the connected modules

· Integrated Flash EPROM for storing program and data

· Exchangeable SmartMedia Card 07 MC 90 for user data or for updating the operating system or PLC program

Functionality

User program 480 kB

User data 256 kB (Flash EPROM)

Digital inputs 24 in 3 groups of 8 each, electrically isolated

Digital outputs 16 transistor outputs in 2 groups of 8 each, electrically isolated

Digital inputs/outputs 8 in 1 group, electrically isolated

Analog inputs 8 in 1 group, individually configurable to 0...10 V, 0...5 V, +10 V, +5 V, 0...20 mA, 4...20 mA, Pt100 (2-wire or 3-wire), differential inputs, digital inputs

Analog outputs 4 in 1 group, individually configurable to 0...10 V, 0...20 mA, 4...20 mA

Serial interfaces COM1, COM 2 as MODBUS interfaces and for programming and test functions

Parallel interfaces for connection of couplers 07 KP 90 (RCOM), 07 KP 93 (2 x MODBUS), 07 MK 92 (freely programmable)

System bus interface CS31

Integrated couplers see next page

High-speed counter integrated, many functions configurable

Real-time clock integrated

SmartMedia Card memory medium for operating system, user program and user data

LED displays for signal conditions, operating statuses and error messages

Power supply voltage 24 V DC

Data backup with lithium battery 07 LE 90

Programming software 907 AC 1131

FAQ

Q: What is the ABB 07KT97?
A: ABB 07KT97 is a basic unit used in industrial automation systems, typically functioning as a controller or core processing module within ABB control architectures.

Q: Is this product brand new?
A: Yes, ABB 07KT97 is brand new, original, unused, and factory sealed.

Q: Do you have it in stock?
A: Yes, the ABB 07KT97 is currently in stock, ready for shipment, and video inspection can be supported upon request.

Q: Why can't I see a price for this 07KT97?
A: In addition to “new original” units, discontinued and hard-to-find industrial automation parts are also offered. Due to market fluctuations, prices may vary frequently. Therefore, pricing is provided on an enquiry-by-enquiry basis to ensure accuracy and competitiveness.

Q: Do you provide warranty as standard?
A: Yes, a full 12-month warranty is provided for the ABB 07KT97. If any issues occur within 12 months from the delivery date, support will be available to assist and guide you through the next steps.
