07KT92 GJR5250500R0202 Central Processing Unit, China 07KT92 GJR5250500R0202 Central Processing Unit Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	07KT92 GJR5250500R0202
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Model:	07KT92 GJR5250500R0202
Product Type:	Central Processing Unit
Input Voltage:	24 V DC
Output Voltage:	24 V DC
Max Output Current:	500 mA
Processor Architecture:	ARM Cortex-A9 Dual-Core 1.2 GHz
Memory Configuration:	512 MB DDR4 SDRAM
Storage Capacity:	4 GB eMMC Flash
Communication Interfaces:	2×10/100/1000M Ethernet (PROFINET), 2×RS485 (isolated), 1×CANopen
Power Supply Range:	24 V DC (18–32 V)
Operating Temperature:	-40°C to +70°C
Storage Temperature:	-40°C to +85°C
Protection Rating:	IP67
Dimensions:	160 × 120 × 50 mm
Weight:	1.5 kg (including heat sink)

Description

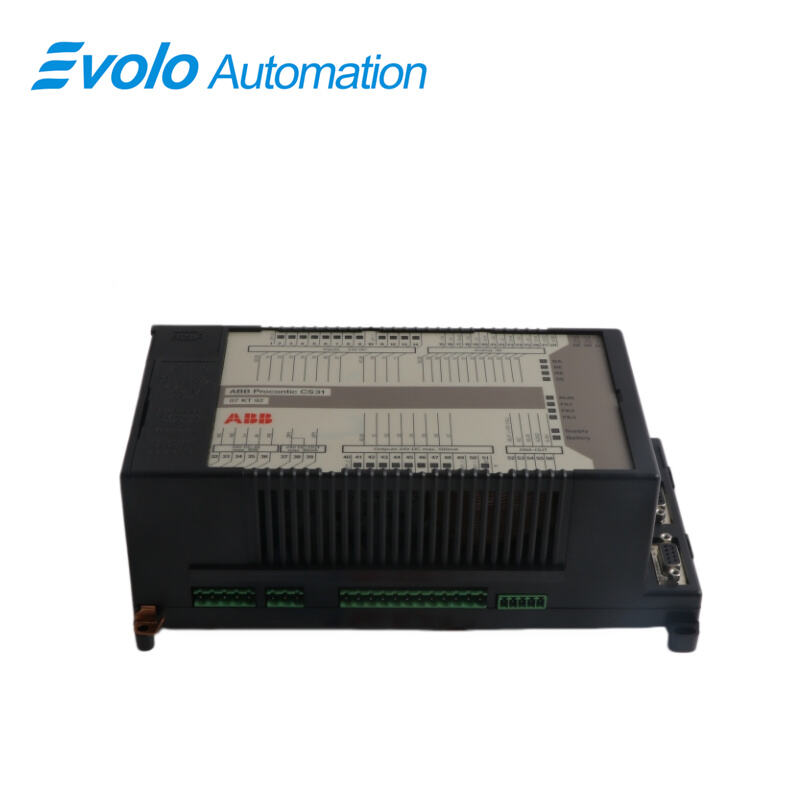

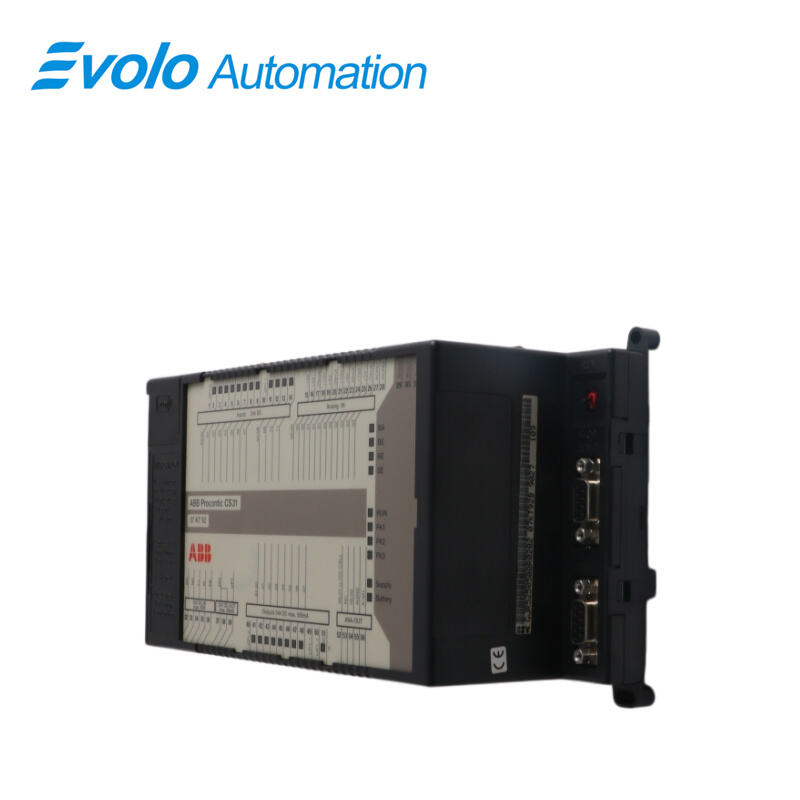

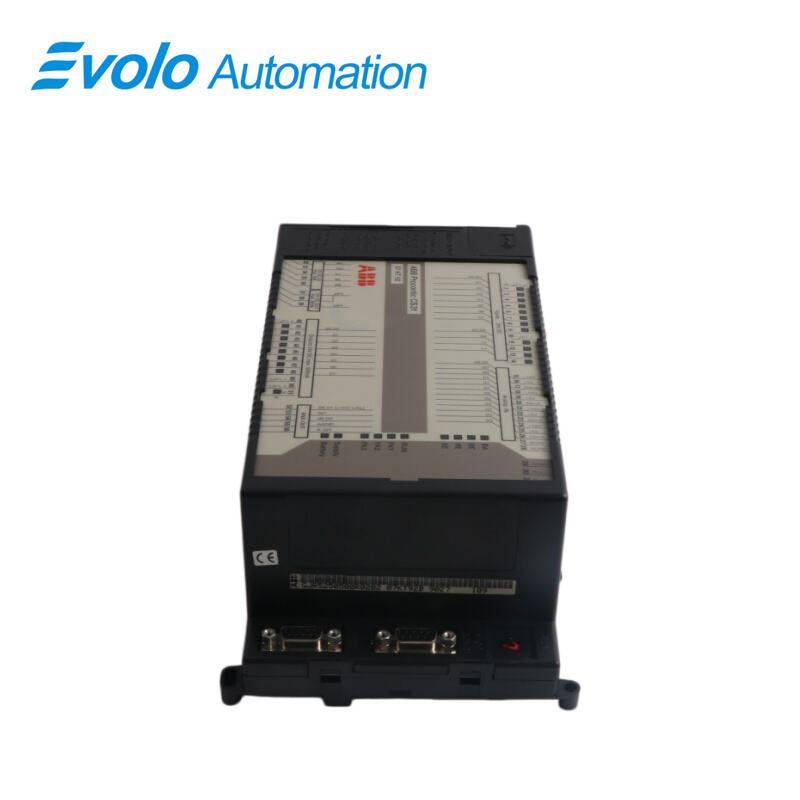

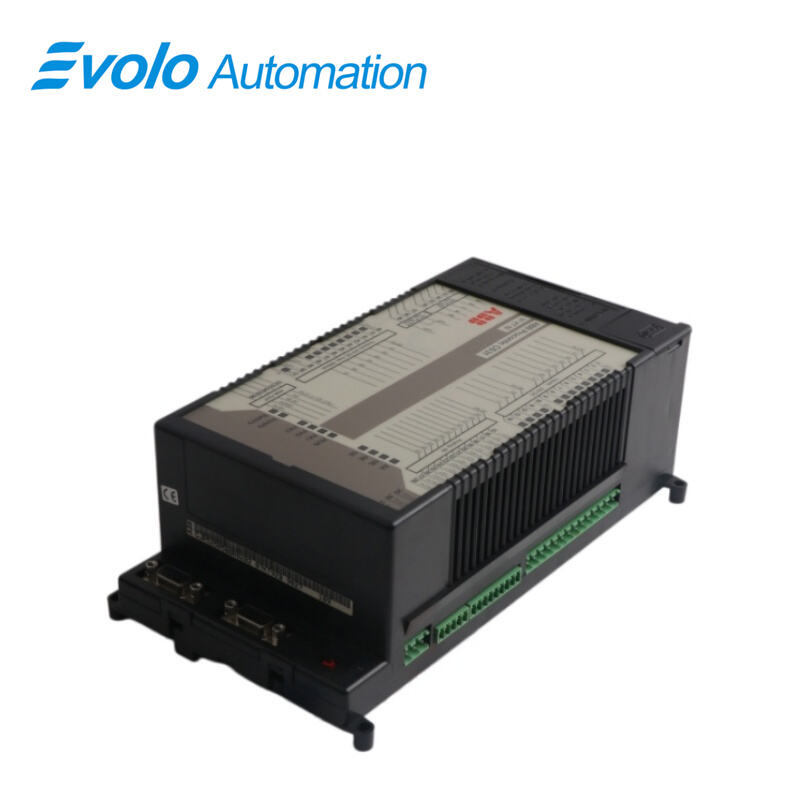

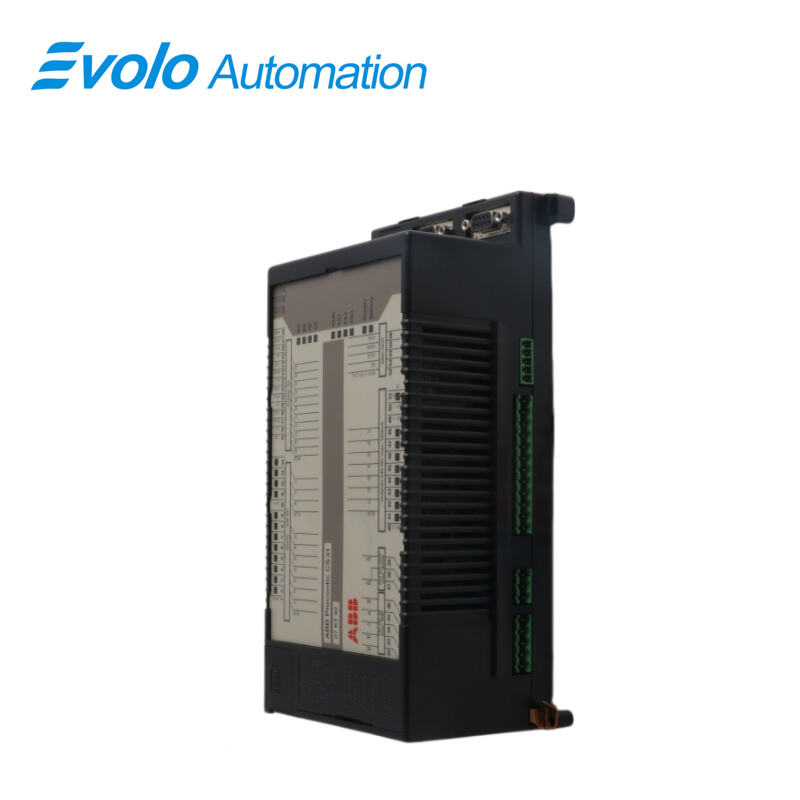

The ABB 07KT92 GJR5250500R0202 central processing unit (CPU) serves as a core control unit in industrial automation. It features the latest ARM Cortex-A series processor architecture, offering up to 1.2GHz of processing frequency and dual-core processing power. This industrial-grade CPU is designed for complex control systems, with a modular architecture supporting hot-swappable expansion for seamless integration into PLC, DCS, and MES systems. Employing industrial-grade solid-state storage technology, it features 4GB of eMMC flash memory and 512MB of DDR4 RAM, ensuring high-speed data throughput while guaranteeing persistent storage of critical data. The product is CE, UL, and ATEX certified, meeting IP67 protection requirements, making it particularly suitable for industrial environments with vibration, dust, and extreme temperature variations.

Applications

Shipbuilding & Shipping:

Application Scenarios: Ship propulsion control, generator grid management (PMS), ballast water treatment and hold monitoring.

Advantages: Certified by major global classification societies such as DNV and GL, capable of withstanding high vibrations and salt spray corrosion in the high seas environment.

Water & Wastewater:

Factory Scenarios: Municipal wastewater treatment plants, municipal water purification stations, industrial wastewater reuse systems.

Specific Uses: Utilizing its CS31 bus to connect remote I/O modules (such as 07DI92) distributed throughout the plant, enabling centralized logic control of pumps and valves across the entire plant.

Power & Energy:

Application Scenarios: Hydropower station auxiliary equipment, substation automation control, yaw and logic interlock control of wind turbine generators.

Metallurgy & Heavy Industry:

Factory Scenarios: Steel mill conveyor systems, mine hoist monitoring, large crushers and mills.

Chemical & Process Control: Application Scenarios: PID control of pressure, flow rate, and temperature in reactors.

Features

Highly Integrated I/O: Includes 12 digital inputs, 8 digital outputs (transistor type), 4 analog inputs, and 2 analog outputs.

Expansion Capabilities: Built-in CS31 remote bus interface, supporting up to 31 remote slave stations; side interface expandable to Modbus (07KP93) or RCOM (07KP90) communication processors.

Industrial Protection: Features strong electromagnetic interference resistance and supports wide operating temperature environments.

Competitive Advantage

This 07KT92 GJR5250500R0202 utilizes ABB's patented redundant power supply design, with dual 24V DC inputs supporting seamless switching to ensure continuous system operation. All communication interfaces employ electrical isolation technology, effectively suppressing electromagnetic interference in industrial environments. Its unique heat dissipation structure design allows the product to maintain full-load operation even at an ambient temperature of 70℃, improving heat dissipation efficiency by 40% compared to similar products. It features a built-in watchdog timer and a fault self-diagnosis system, achieving an MTBF (Mean Time Between Failures) of over 500,000 hours. Compatible with the full range of ABB PLC modules, it supports online programming and remote firmware upgrades, and can be seamlessly integrated with System 800xA systems. Its industrial Ethernet interface supports the IEEE 1588 precision time synchronization protocol, achieving microsecond-level timestamp accuracy to meet high-precision synchronous control requirements.
