07KP93 GJR5253200R1161 Communication processor, China 07KP93 GJR5253200R1161 Communication processor Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	07KP93 GJR5253200R1161
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Number of Serial Interfaces:	2
Number of Parallel Interfaces:	1 networking interface for connecting to the Advant Controller 31 basic unit
Diagnosis:	4 LEDs: LED1...LED4
Operating and Error Displays:	3 LEDs: RUN, ERR, Supply
Conductor Cross Section for Removable Terminal Blocks:	Max 2.5 mm2
Rated Supply Voltage:	24 V DC
Power Dissipation:	Typ. 2.5 W (max. 5 W)
Max Current Consumption with Rated Voltage:	210 mA
Max Current Consumption with Supply Voltage 30 V:	170 mA
Protection Against Reversed Terminal Connection:	Yes
Interface Standard:	EIA RS–232 or EIA RS–485
Electrical Isolation:	Yes, interfaces with respect to each other and with respect to the rest of the unit
Terminal Assignment and Description of Interfaces:	COM3, COM4 see page 7.3-7
LED Indicators:	Supply 1 green LED, ERR 1 red LED, RUN 1 green LED, LED1...LED4 4 yellow LEDs
Mounting:	DIN rail in accordance with DIN EN 50022–35, 15 mm deep
Fastening:	4 M4 screws
Dimensions (W x H x D):	140 x 120 x 85 mm
Wiring Method:	Removable terminal blocks with screw-type terminals, max. 2.5 mm2
Weight:	450 g
Mounting Position:	Vertical, terminals above and below
Cooling:	Natural convection, must not be hindered by cable ducts or other material mounted in the switchgear cabinet

Description

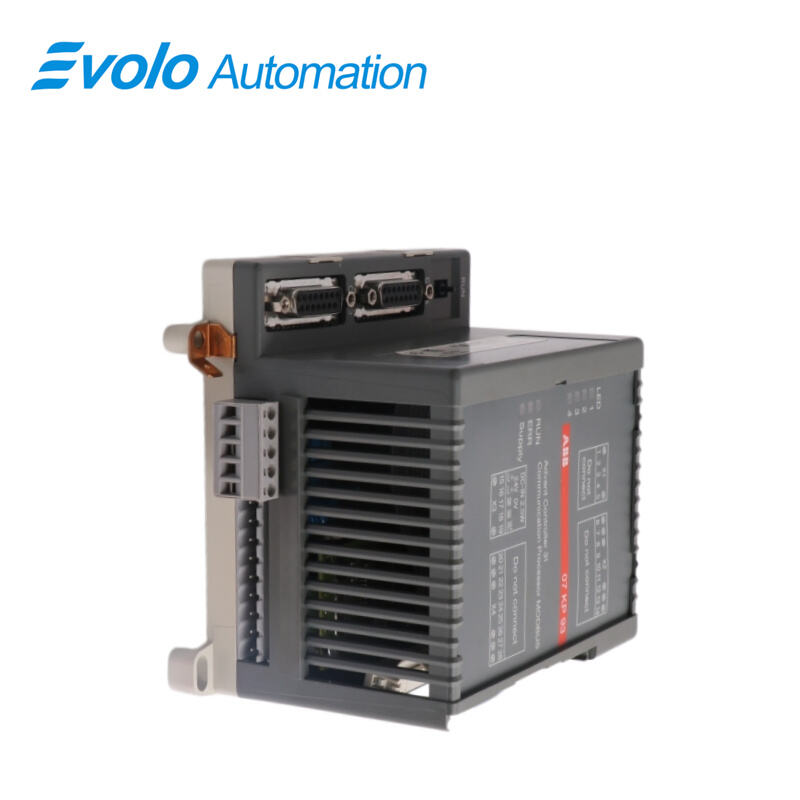

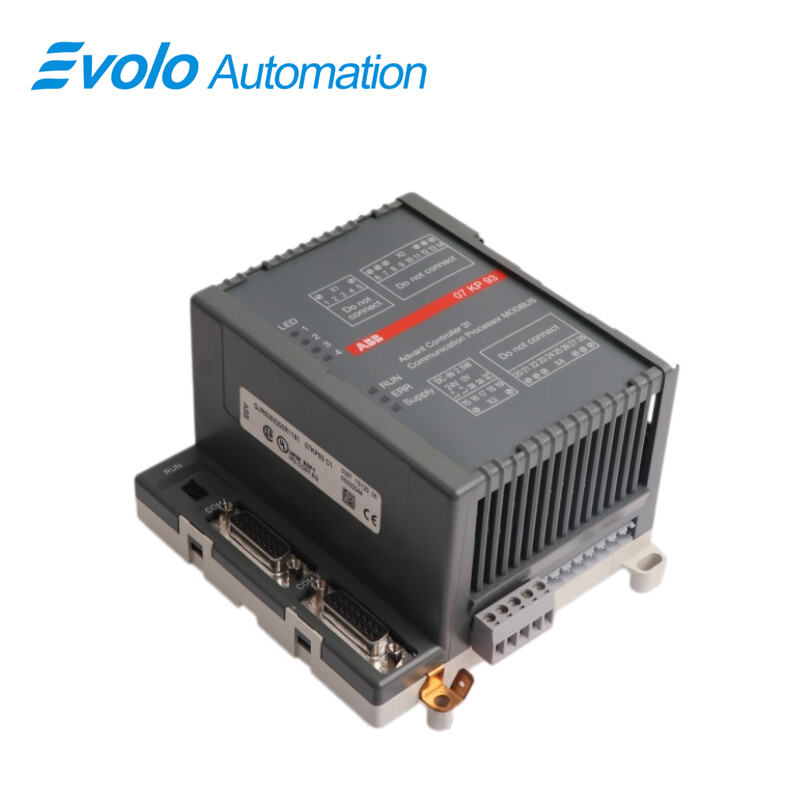

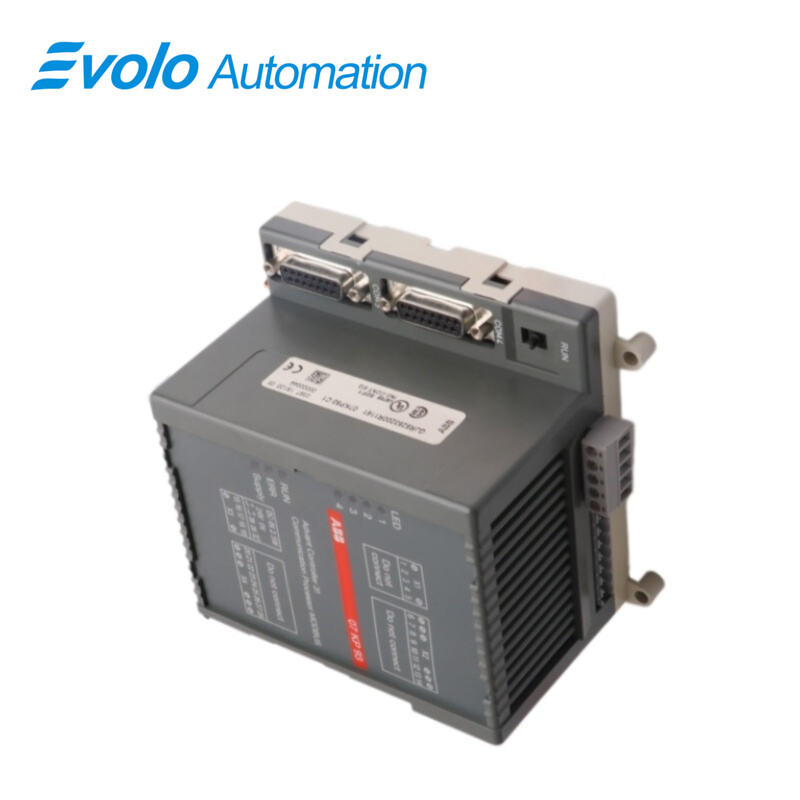

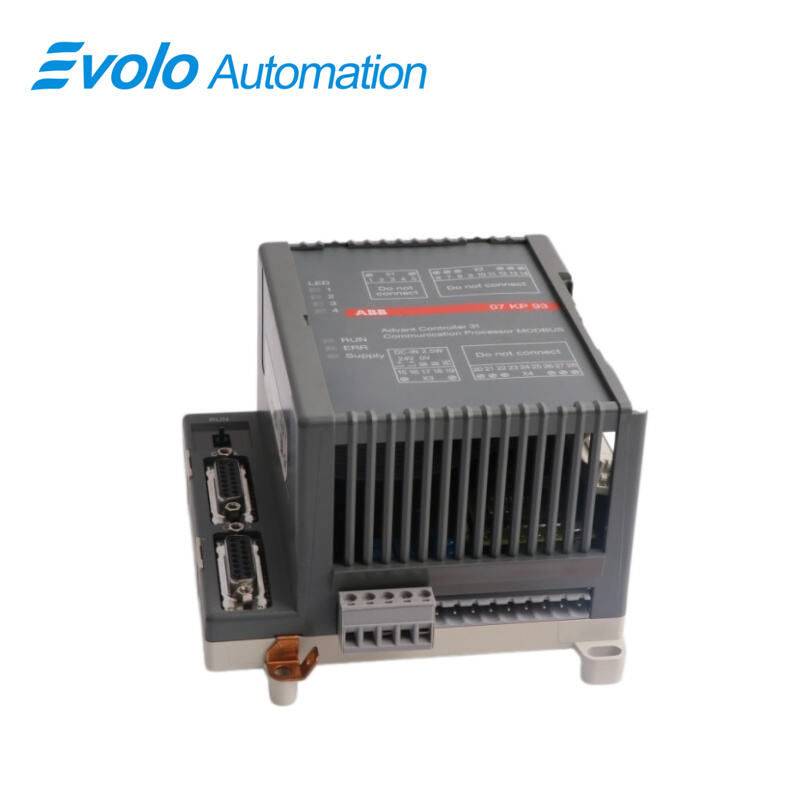

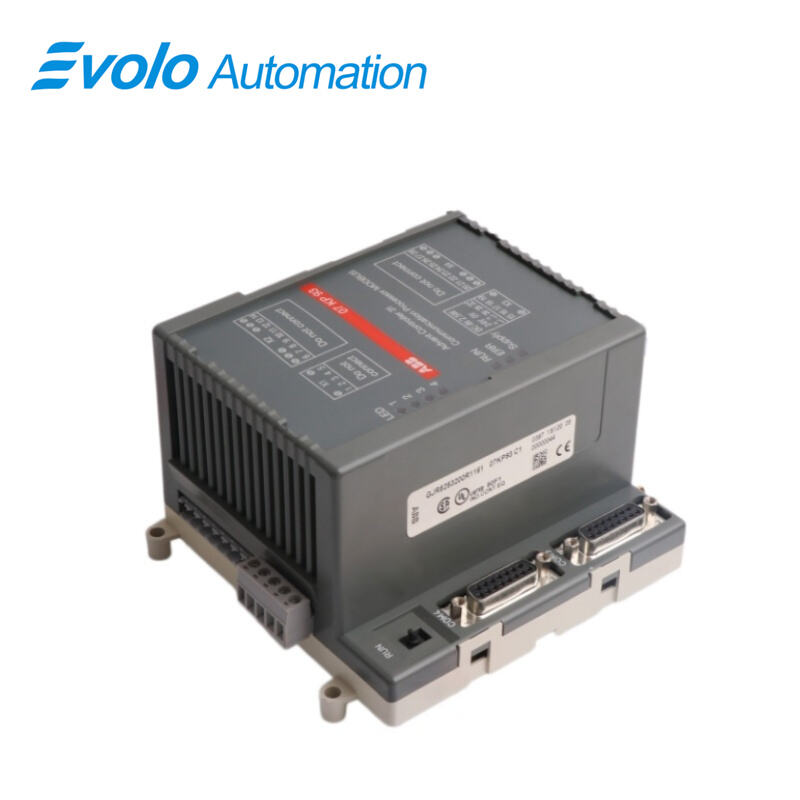

The 07 KP 93 communication processor is an interface module with 2 serial MODBUS RTU interfaces. The communication processor allows external units to be connected to the Advant Controller 31 system using the MODBUS RTU protocol.

The most important features of the communication processor are:

2 serial interfaces:

usable in accordance with EIA RS-232 or EIA RS-485 (COM3, COM4)

Possible operating modes:

COM3 COM4

Master Slave (Master-master does not work)

Slave Master

Slave Slave

Communication with AC 31 basic units is performed with function blocks / connection elements (see also programming software 907 KP 93).

Applications

Energy and Power Plants: Used in power plant monitoring systems to acquire data from circuit breakers, relay protection devices, or electricity meters via the Modbus protocol.

Oil, Gas, and Petrochemical Industries: Connects flow meters, pressure transmitters, and various other field analytical instruments in refineries or oil pipeline stations.

Water Treatment and Environmental Engineering: Integrated into the control cabinets of pump stations and filtration systems for monitoring inverter operating status and water quality parameters.

Metallurgy and Metal Processing: Coordinates logical communication between motor drives and the main controller in automated production lines in factories.

Paper, Printing, and Textile Industries: Used in complex winding controls or printing machinery to ensure data synchronization between multi-axis drives and PLCs.

Building Automation and Air Conditioning Systems: Connects building management systems (BMS) and terminal controllers in HVAC systems in large factories.

Key Technical Features

Dual Serial Port Design: Provides two serial interfaces (COM3, COM4), configurable as RS-232 or RS-485 physical layers.

Master/Slave Mode Switching: Supports Modbus master or slave operation modes, facilitating integration with various external units.

High Compatibility: As a DCS/PLC spare part, it can be seamlessly inserted into the parallel expansion slot of the AC31 system.

Industrial-Grade Protection: Compliant with certifications from multiple classification societies such as ABS, PRS, and RMRS, adaptable to harsh physical environments.

Electrical isolation and notes on earthing

The Protective Earth is connected to the 6.3 mm Faston terminal via a wire with a cross section of 6 mm2 (maximum length 25 cm) .The signals of the interfaces COM3 and COM4 are electrically isolated from each other and also from the internal electronics of the unit. The following illustration shows which parts of the unit are connected to PE/PGND.
