Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-TPIX12 51304084-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-TPIX12 51304084-175 |
|
Product Type: |
Pulse Input Termination Assembly |
|
Dimensions: |
12 × 6.9 × 30.7 cm |
|
Weight: |
0.74 kg |
|
Compatible IOPs: |
MU-PPIX02; MC-PPIX02 |
|
Input Channels: |
8 |
|
Supported Signal Types: |
Rectangular wave; sine wave |
|
Power Supply: |
24 VDC |
|
Mounting Type: |
Rack mount |
|
Terminal Type: |
Compression terminals |
|
Redundancy Support: |
Not supported |
|
Conformal Coating: |
Yes |
|
CE Compliance: |
Yes |
|
Size Class: |
B (12 in / 307 mm) |
Description

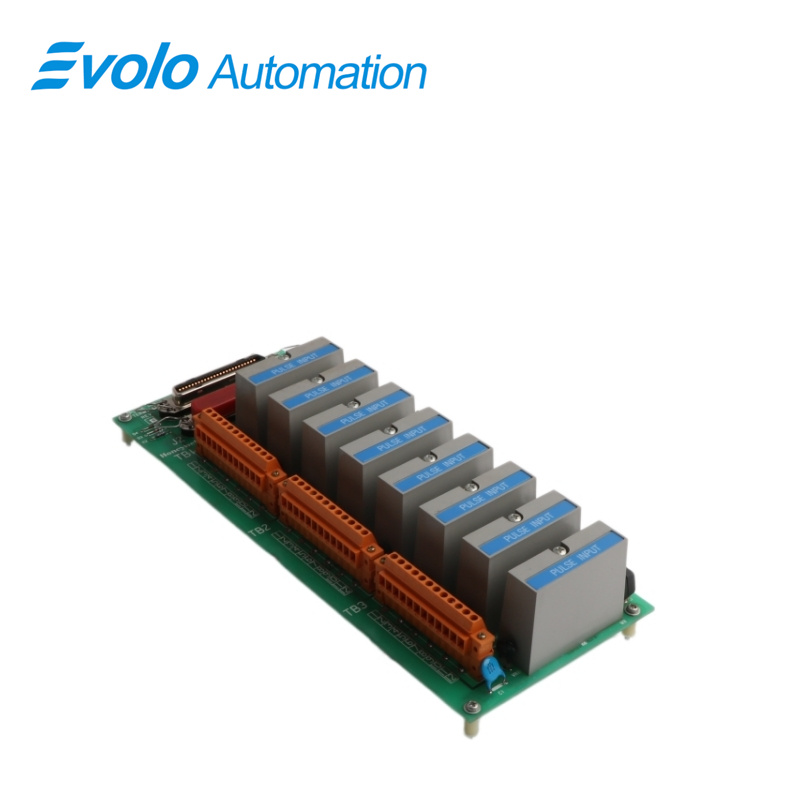

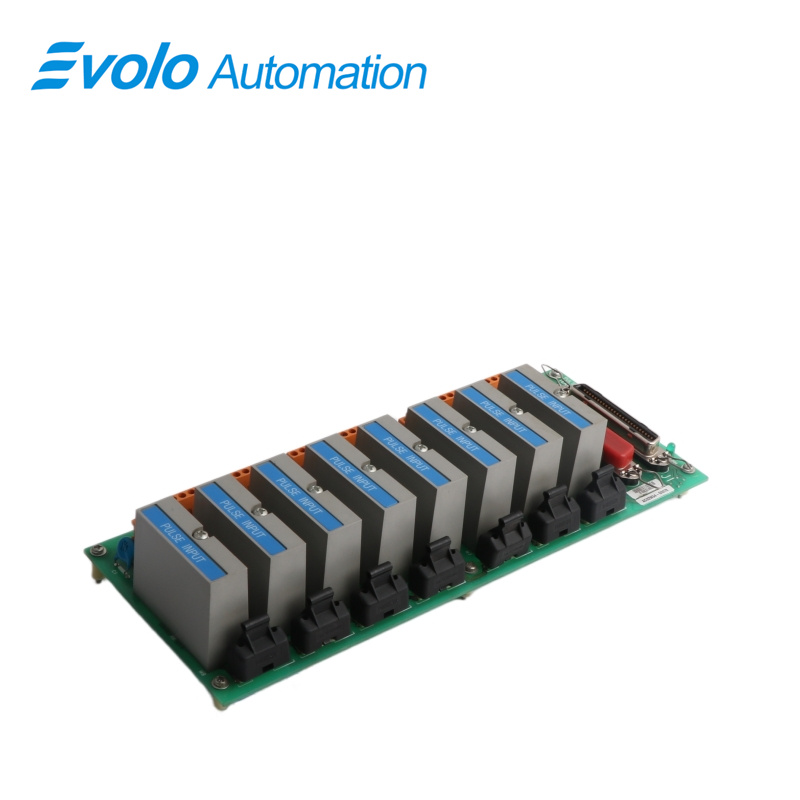

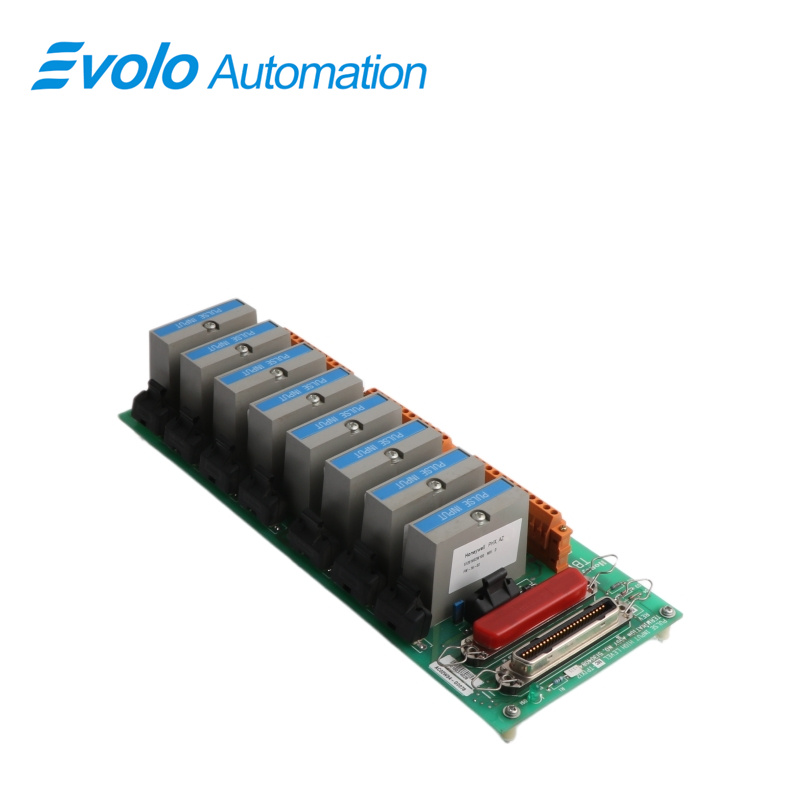

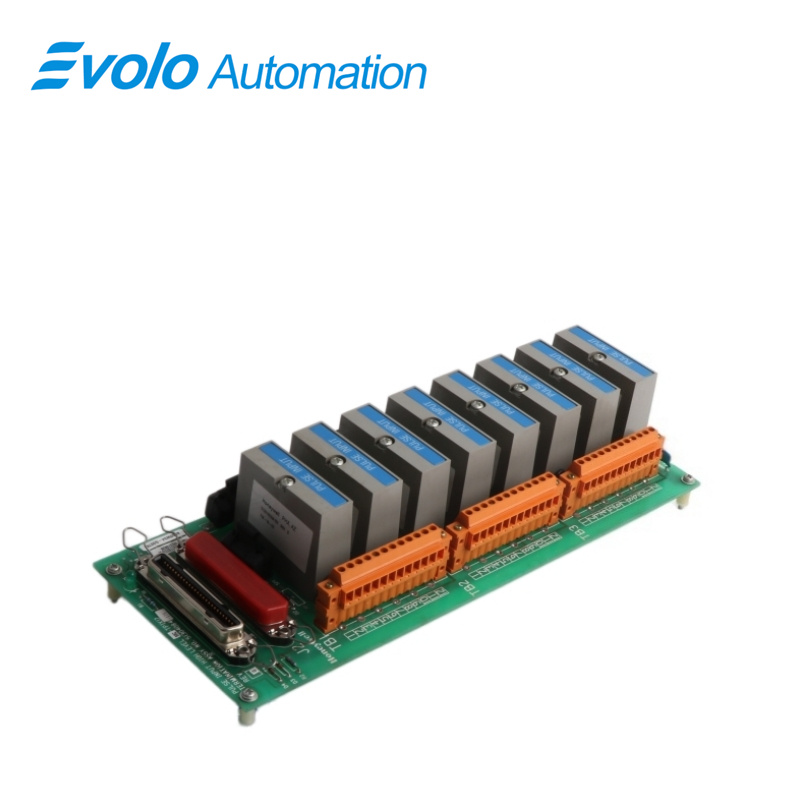

Honeywell MC-TPIX12 51304084-175 Pulse Input Termination Assembly is used to interface pulse output devices with Honeywell's Distributed Control Systems (DCS), including TDC 3000 and Experion PKS. Featuring high-speed pulse input processing, this module ensures accurate data acquisition from field devices such as flow meters and tachometers. Its robust construction, conformal coating, and compliance with CE standards make it suitable for industrial environments, including hazardous locations.
Applications
Oil refinery: Monitors flowmeters and pump pulse speeds for accurate oil metering.
Fertilizer plant: Receives high-frequency pulse signals from mixers and feeders for precise material control.
Power plant: Collects turbine and feed pump speed signals for DCS closed-loop control.
Pharmaceutical plant: Counts packaging and filling line pulses for production tracking.
Steel plant: Captures conveyor and blower pulse feedback in harsh high-temperature environments.
Troubleshooting Common Problems
Signal Loss or Inaccurate Counting: First, check if the compression terminals are loose, or use an oscilloscope to confirm if the amplitude of the sine wave/rectangular wave input to the front end reaches the 24VDC trigger threshold.
Inter-channel Interference: If crosstalk occurs between multiple high-frequency signals, check if the shielding cable is grounded at one end and clean the dust from the terminal block surface.
FAQ
Q: How many input channels does MC-TPIX12 51304084-175 have?
A: This model has 8 input channels.
Q: What signal types does MC-TPIX12 51304084-175 support?
A: It supports square wave and sine wave signals.
Q: What is the power supply voltage requirement for MC-TPIX12 51304084-175?
A: Its power supply requirement is 24 VDC.
Q: What mounting method does MC-TPIX12 51304084-175 use?
A: This model uses rack mount installation.
Q: Is MC-TPIX12 51304084-175 CE certified?
A: Yes, this model complies with CE standards.
