Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-PDOY22 80363975-150 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-PDOY22 80363975-150 |
|
Product Type: |
Digital Output Module |
|
Dimensions: |
32 × 27.9 × 2.9 cm |
|
Weight: |
0.58 kg |
|
Output Type: |
Digital Output |
|
Output Channels: |
32 |
|
Load Voltage Range (FTA OY22/62): |
15–30 VDC |
|
Load Voltage Max (FTA OY23/63): |
250 VAC / 125 VDC (2 FTAs required for 32 outputs) |
|
Output Current: |
Up to 0.5 A per channel |
|
Isolation: |
Channel-to-channel and channel-to-bus isolation |
|
CE Compliance: |
Yes |
|
Conformal Coating: |
Yes |
|
Redundancy Support: |
Supported |
Description

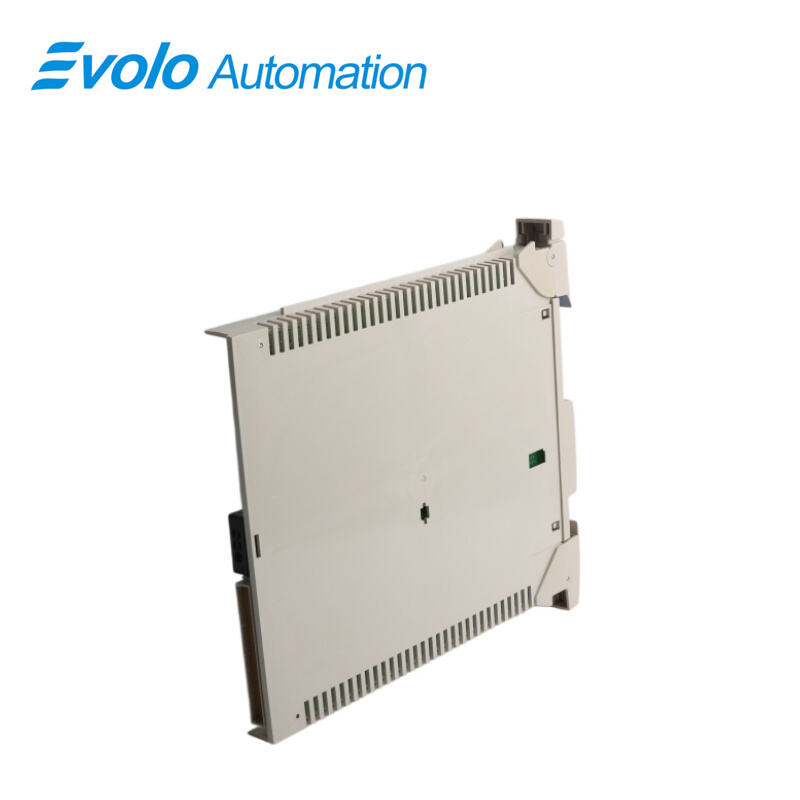

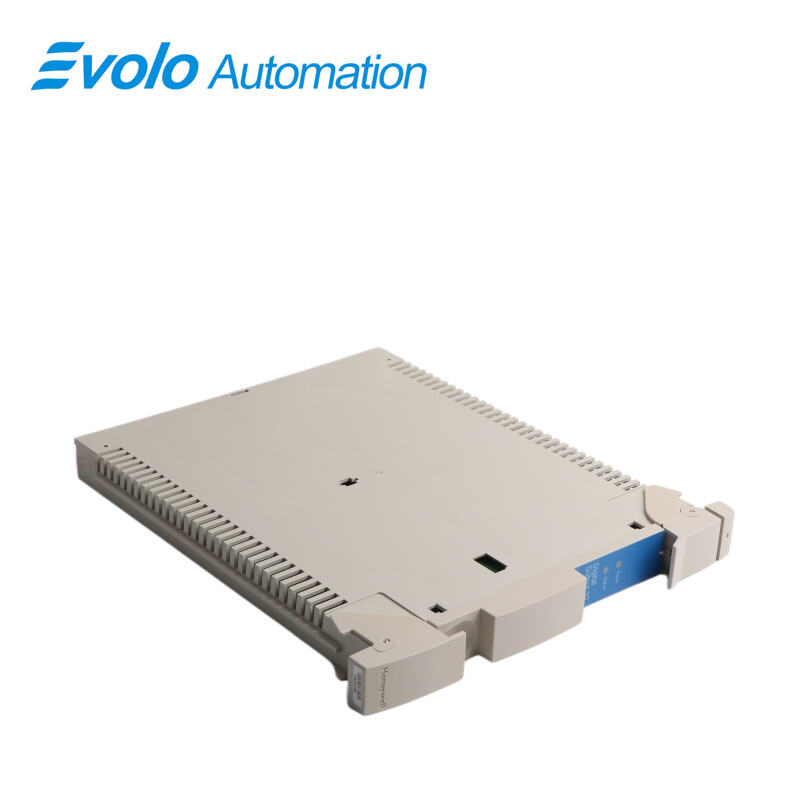

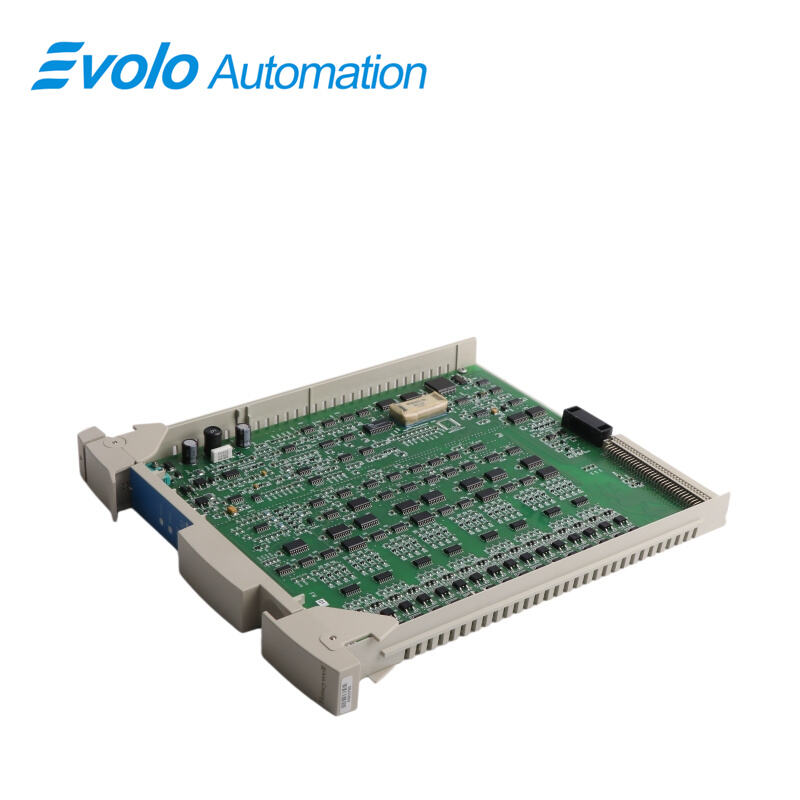

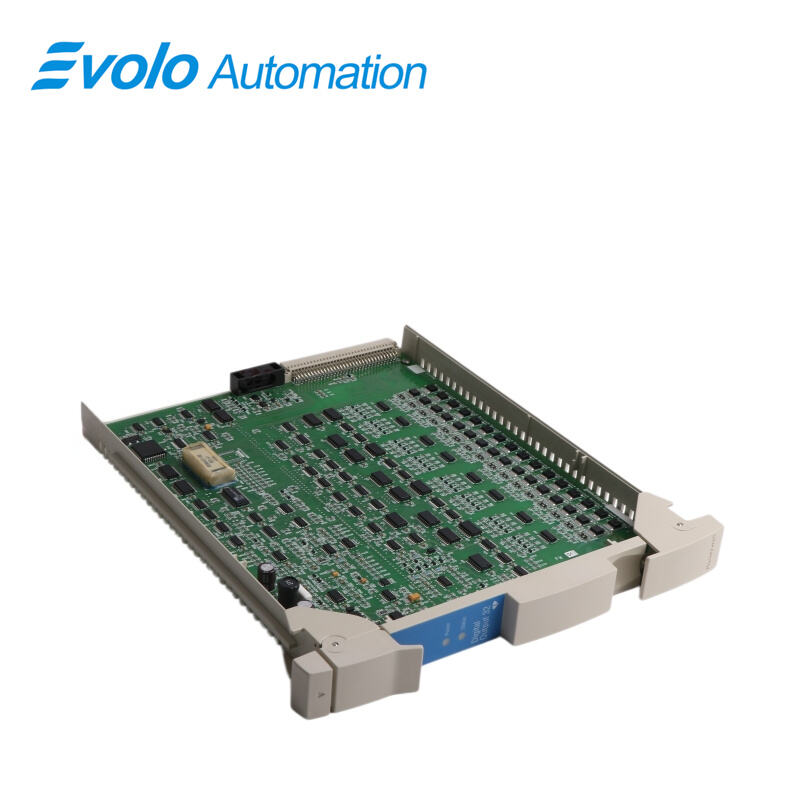

The Honeywell MC-PDOY22 80363975-150 is a high-performance digital output module with 32 output channels. It is used to control various devices in industrial environments. With its compact design, high-speed operation, and electrical isolation, it ensures safe and efficient control.
Applications
Oil and Gas Plants: Uses redundancy for emergency shutdown valve control ensuring continuous safety interlocking.
Combined Cycle Power Plants: Drives many alarms and indicators with high channel density to save cabinet space.
Fine Chemical Plants: Controls solenoid valves with strong isolation and corrosion resistance.
Rail Transit Plants: Provides digital outputs for relay-based control panel interfaces.
Paper and Printing Plants: Enables mixed AC/DC load control for tension systems via bridge modules.
Features
High Reliability Designed for continuous operation in harsh industrial environments
Built-in Diagnostics: Fault detection and watchdog functions for safe operation
Redundancy Support: Dual communication paths for system reliability
Hot-swappable: Minimizes downtime during maintenance
Noise Immunity: Resistant to electrical interference
FAQ
Q: What are the channel count and per-channel output current of MC-PDOY22 80363975-150?
A: 32 channels, maximum 0.5 A per channel.
Q: What are the load voltage ranges when used with different FTAs for MC-PDOY22 80363975-150?
A: FTA OY22/62: 15–30 VDC; FTA OY23/63: up to 250 VAC / 125 VDC.
Q: What are the isolation characteristics of MC-PDOY22 80363975-150?
A: Channel-to-channel and channel-to-bus isolation.
Q: Does MC-PDOY22 80363975-150 support redundancy and CE compliance?
A: Yes, both supported and compliant.
Q: Does MC-PDOY22 80363975-150 include conformal coating?
A: Yes.
