Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
8C-TAOXB1 51307137-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
8C-TAOXB1 51307137-175 |
|
Part Type |
Analog Output Module |
|
Dimensions |
29.3 x 12 x 6.5 cm |
|
Weight |
0.34 kg |
|
Redundancy |
Redundant |
|
Coating |
Yes |
|
Output Type |
4–20 mA |
|
Output Channels |
16 |
|
Output Ripple |
<100 mV peak-to-peak (at power line frequency across 250 Ω load) |
|
Output Temperature Drift |
0.005% of Full Scale / °C |
|
Output Current Linearity |
±0.05% of Full Scale nominal |
|
Load Resistance |
50–800 Ω (24 V supply: 22–28 VDC) |
|
Voltage Rating |
24 V DC |
|
Module Current Rating |
205 mA |
|
Resolution |
±0.05% of Full Scale |
|
Calibrated Accuracy |
±0.2% of Full Scale (25°C, including linearity) |
|
Output Current Range |
2.9 mA to 21.1 mA |
|
Maximum Output Compliant Voltage |
16 V (24 V supply: 22–28 VDC) |
|
Maximum Open Circuit Voltage |
22 V |
|
Response Time |
<80 ms (settles within 1% of final value) |
|
Switchover Gap (0 mA) |
10 ms maximum (redundancy only) |
|
Module Removal/Insertion Under Power |
Supported |
Description

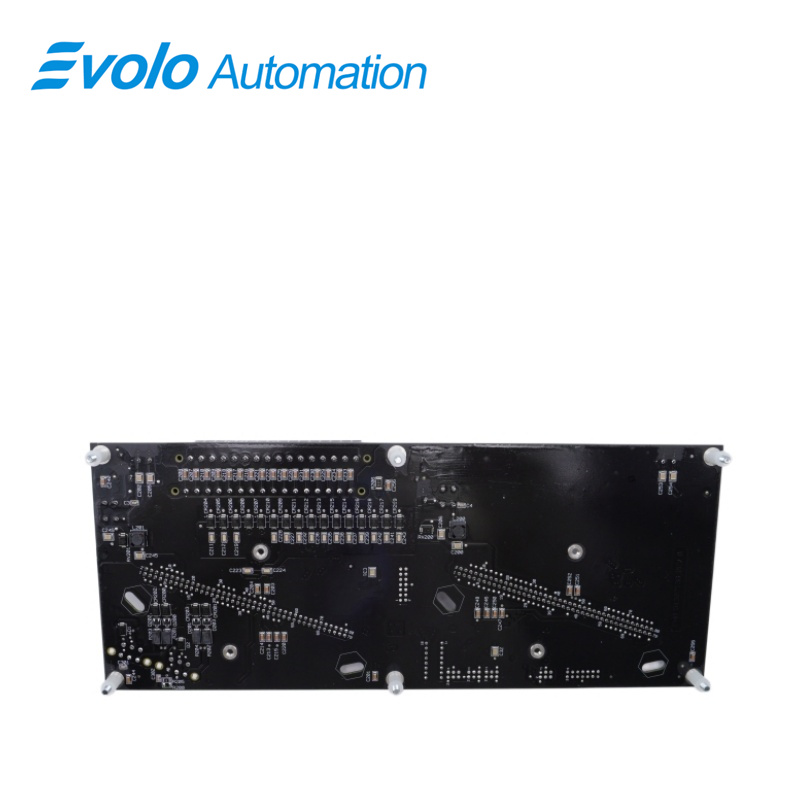

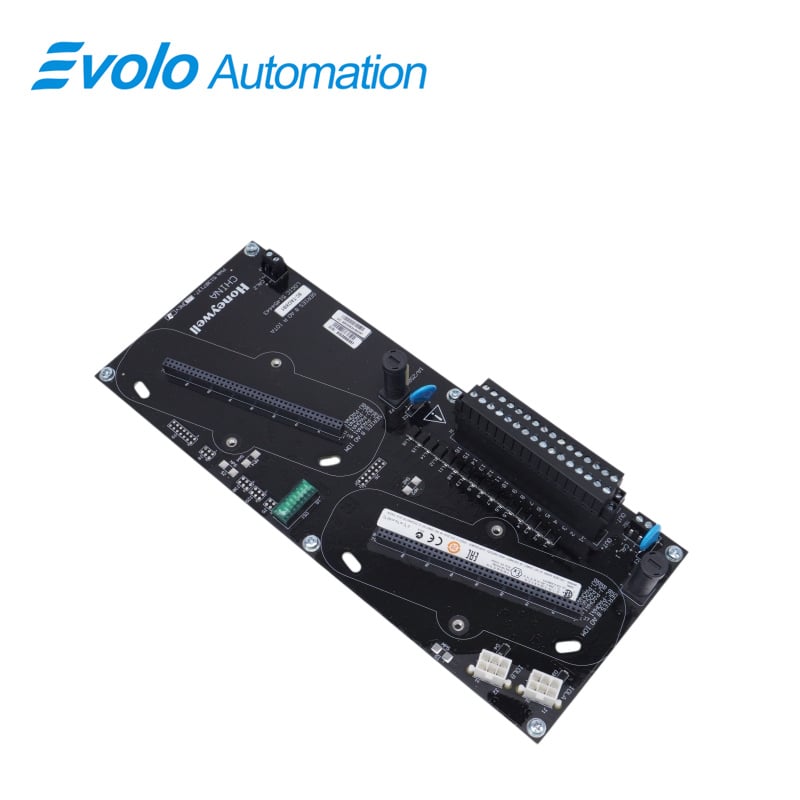

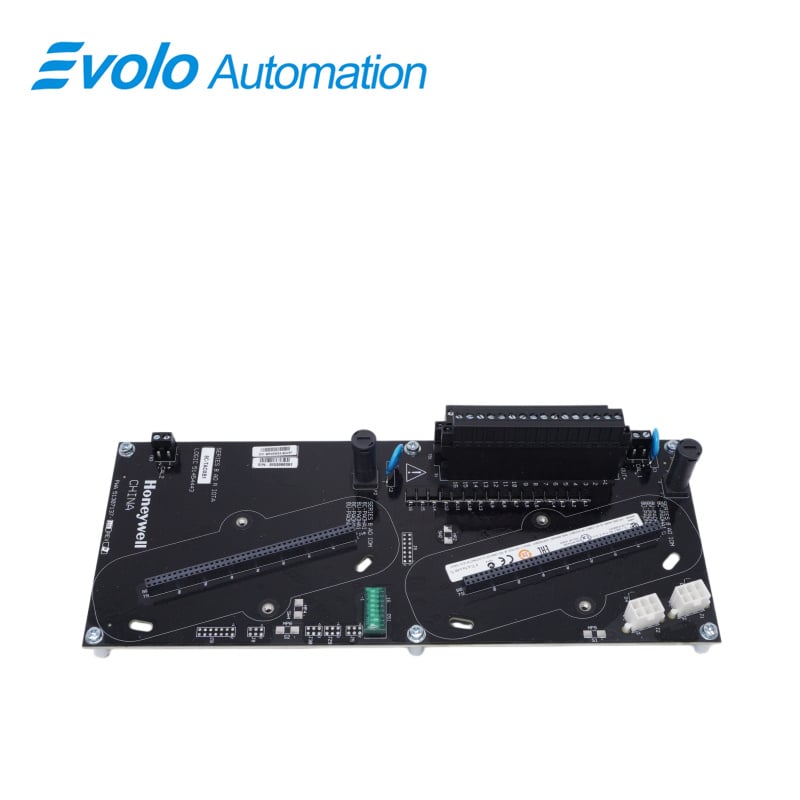

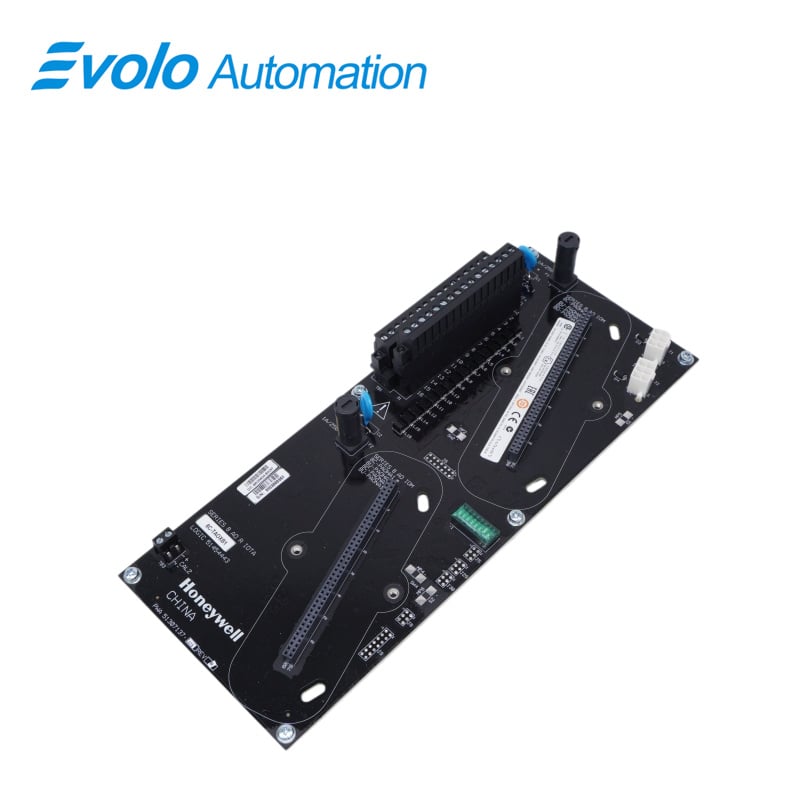

The Honeywell 8C-TAOXB1 51307137-175 is an Analog Output Module that supports redundant configuration. This module receives digital operating commands from the control system, converts them into continuous current signals via an electronic module, and then sends them to field actuators, control valves, and recording instruments.
Applications
Refinery plant: controls critical distillation loops with fast switching for stable process regulation.
Natural gas processing plant: coated protection resists corrosive gases, ensuring precise pressure control in pipeline systems.
Fine chemical plant: enables highly accurate dosing pump control for precise material ratio adjustment.
Nuclear power plant: redundant high-precision output supports safe and stable auxiliary cooling pump control.
Notable Features
Extensive self-diagnostics
Optional redundancy
HART-capable, multivariable devices
Safe-state (FAILOPT) behaviors configurable on a per channel basis
FAQ
Q: What channels does 8C-TAOXB1 51307137-175 have and does it support redundancy?
A: 16 channels, supports redundancy (Redundant), coated.
Q: What is the most fundamental difference between 8C-TAOXB1 51307137-175 and the previous model (8C-TAOXA1)?
A: This model supports redundancy (Redundant), while TAOXA1 is a non-redundant version.
Q: What is the output range and calibration accuracy of 8C-TAOXB1 51307137-175?
A: Output 2.9~21.1 mA (standard 4–20 mA), calibrated accuracy ±0.2% F.S.
Q: What are the operating voltage, module current, and load resistance of 8C-TAOXB1 51307137-175?
A: Voltage 24 V DC, current 205 mA, allowable load resistance 50–800 Ω.
Q: What is the switching gap and does 8C-TAOXB1 51307137-175 support hot swapping?
A: Redundant switchover gap up to 10 ms, fully supports live hot swapping.
