Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
6232BP10820 IC660EBA023 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
6232BP10820 IC660EBA023 |
|
Part Type |
Electronic Assembly Block |
|
Operating Voltage |
18–56 V DC |
|
Power Rating |
9.0 W |
|
Group Isolation |
300 V |
|
Number of Channels |
6 |
|
Input Type |
Thermocouple |
|
Thermocouple Types |
J, K, T, E, B, R, S, N |
|
Internal CJC Range |
0 to 60°C |
|
External CJC Range |
-25°C to +150°C |
|
LED Indicators |
2 LEDs (status indication) |
|
Built-in Diagnostics |
Yes |
|
Mounting Type |
Installs within Genius I/O block assembly |
Description

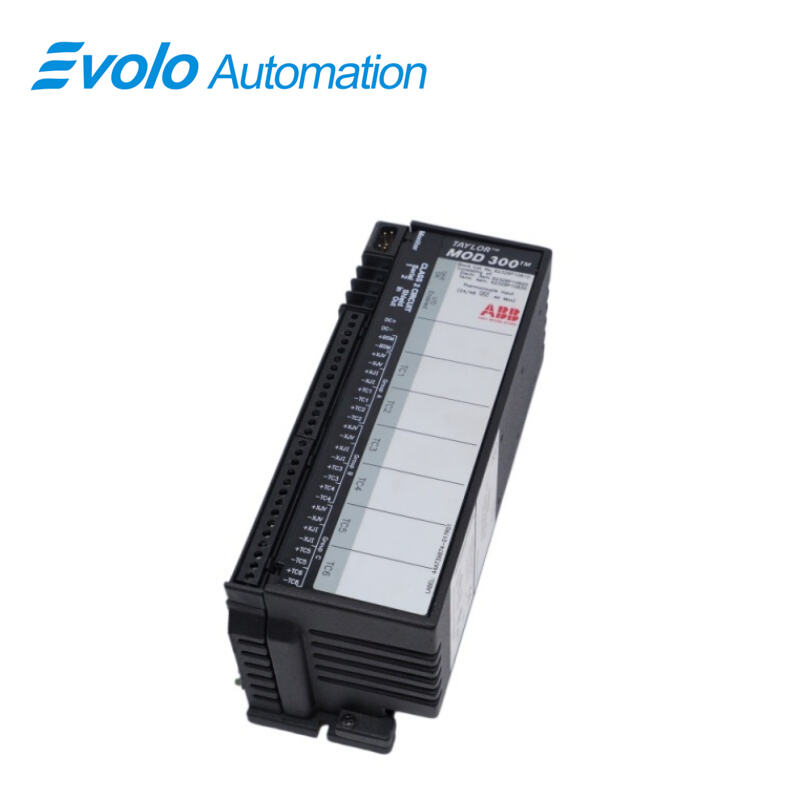

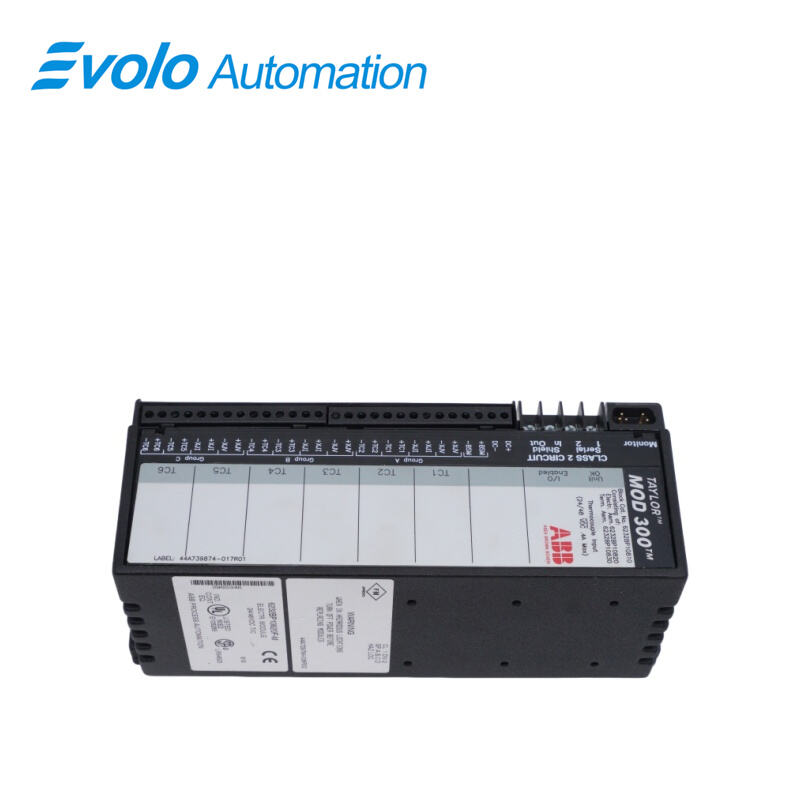

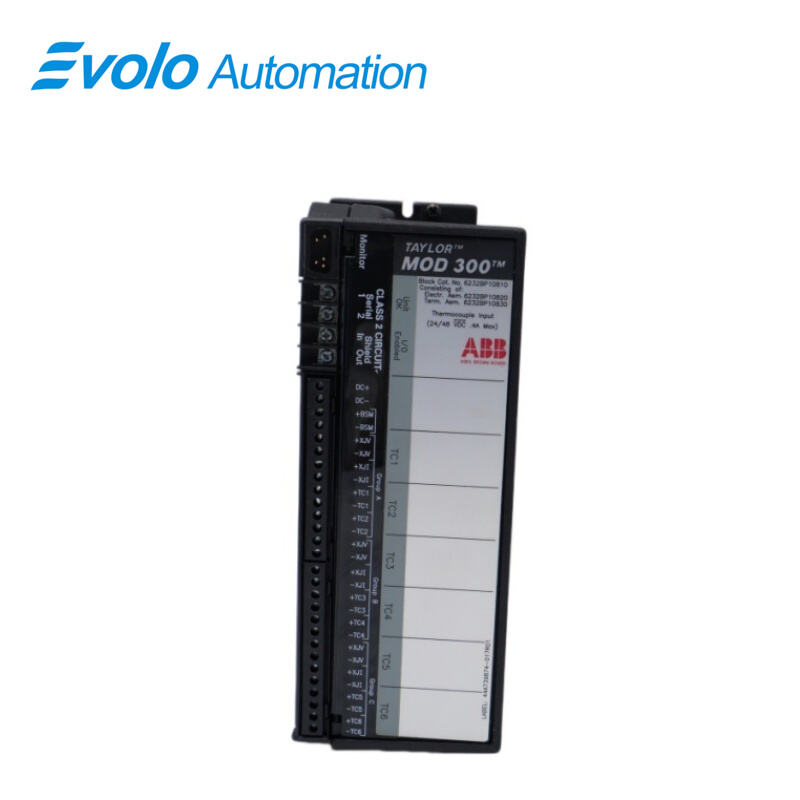

The 6232BP10820 IC660EBA023 is a Genius I/O intelligent electronic assembly block designed specifically for precision temperature monitoring. As a core signal processing unit in a distributed control system, this component is dedicated to acquiring and conditioning weak voltage signals. It integrates highly sensitive cold junction compensation logic and precision amplification circuitry, enabling it to accurately convert the raw thermoelectric potential captured by the sensor into system-recognizable digital logic.
Applications
Cement Processing Plants: Monitor kiln and preheater temperatures for stable calcination.
Pharmaceutical Plants: Record precise temperatures in sterilizers and freeze-drying systems.
Semiconductor Wafer Fabs: Monitor heat-treatment equipment for process consistency.
Fertilizer Manufacturing Plants: Provide stable multi-point temperature measurement in high-pressure systems.
Waste Incineration Plants: Control combustion and flue gas temperatures to improve efficiency.
Key Features
Six thermocouple channels: Supports multiple temperature measurement points in one module.
Isolated input groups: Three groups rated at 300 VDC isolation for noise reduction and safety.
Cold junction compensation: Remote CJC inputs ensure accurate thermocouple readings.
Genius I/O compatibility: Designed for integration with GE Fanuc Genius distributed control systems.
Modular construction: Usable as a standalone electronics assembly or within assembled block
units.
LED status indicators: Provides input and diagnostic visibility on the electronics assembly.
FAQ
Q: Can the 6232BP10820 IC660EBA023 support different thermocouple types?
A: Yes, it can be software-configured to support multiple standard thermocouple types.
Q: How to check the status of the 6232BP10820 IC660EBA023 module?
A: Front LED indicators show power and communication status via color or flashing signals.
Q: How does the 6232BP10820 IC660EBA023 handle high-voltage interference?
A: It uses built-in electrical isolation to suppress field interference signals.
Q: Will replacing the 6232BP10820 IC660EBA023 stop production for long?
A: No, its modular quick-connect design enables fast replacement without rewiring.
Q: Does the 6232BP10820 IC660EBA023 support temperature compensation?
A: Yes, it includes cold junction compensation for automatic temperature correction.
