3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002 IGCT module
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Specifications
- Description
- Applications
- Competitive Advantage
- FAQ
- Recommended Products
Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002 |
|
Module Type |
IGCT Module |
|
Dimensions |
29 × 34.5 × 6 cm |
|
Weight |
1.58 kg |
|
Voltage Rating |
1.2 kV |
|
Current Rating |
1,450 A |
|
Short-Circuit Withstand Capability |
10 kA |
|
Thermal Resistance |
0.1 °C/W |
|
Maximum Operating Temperature |
150 °C (corrected from 1501℃ likely typo) |
Description

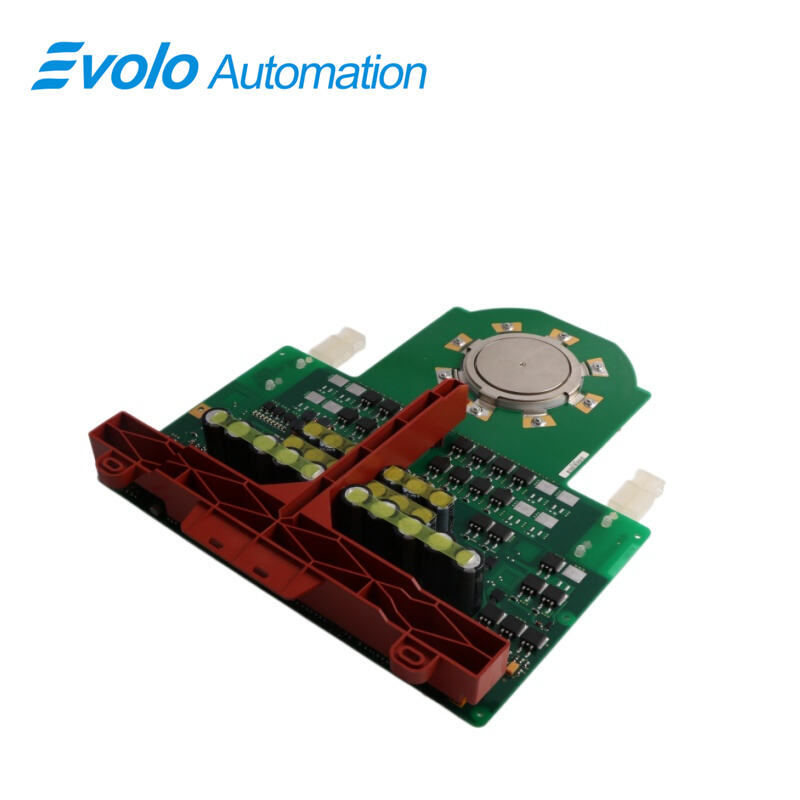

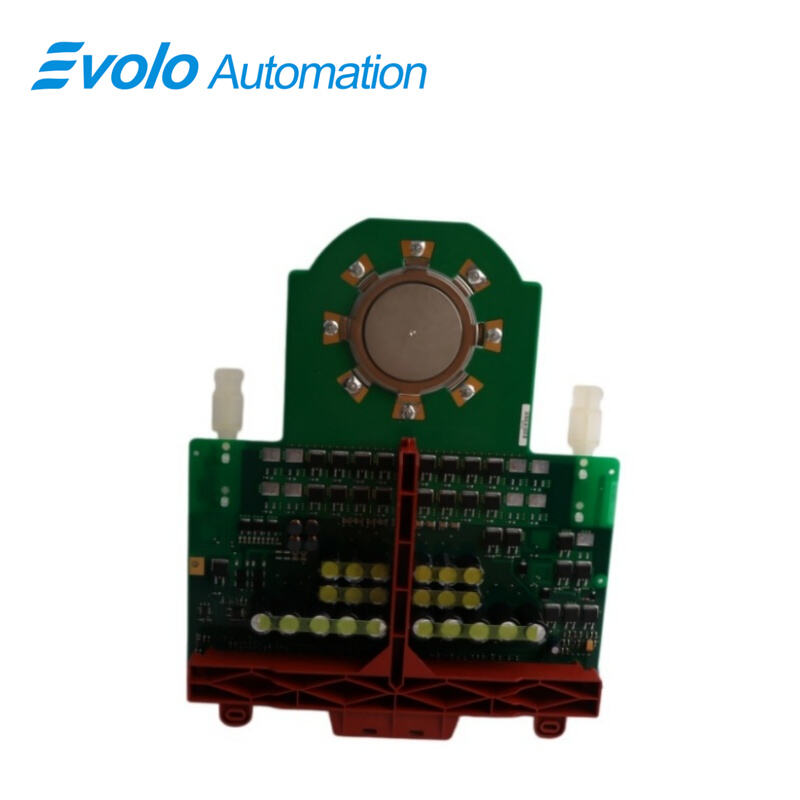

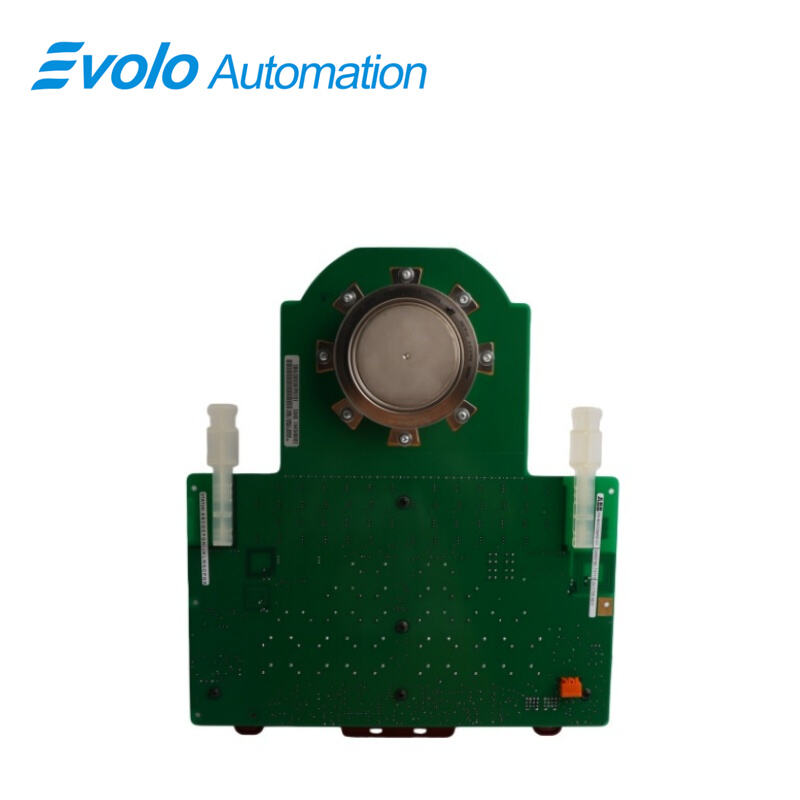

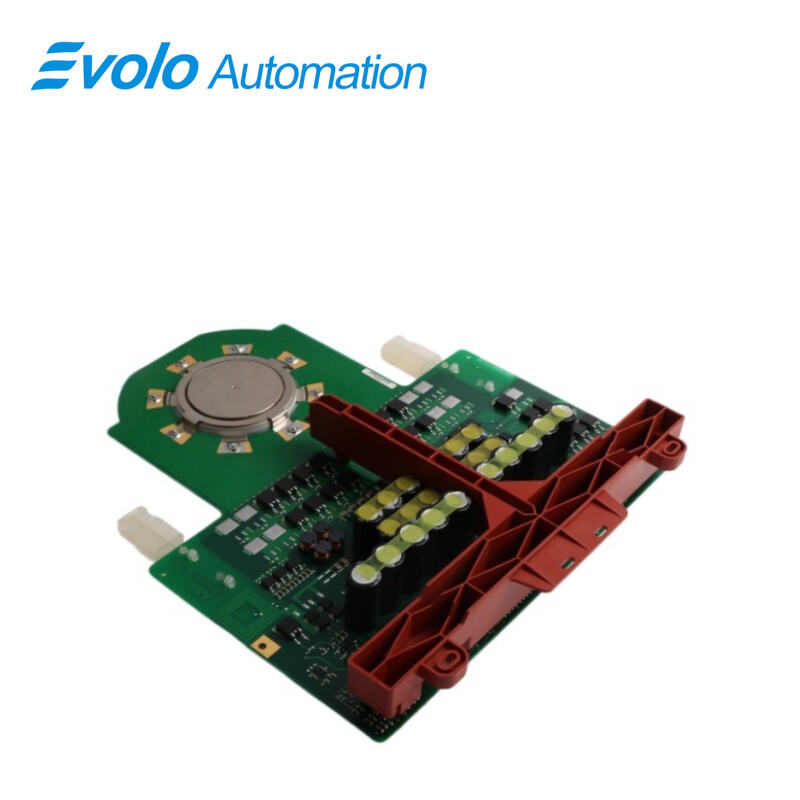

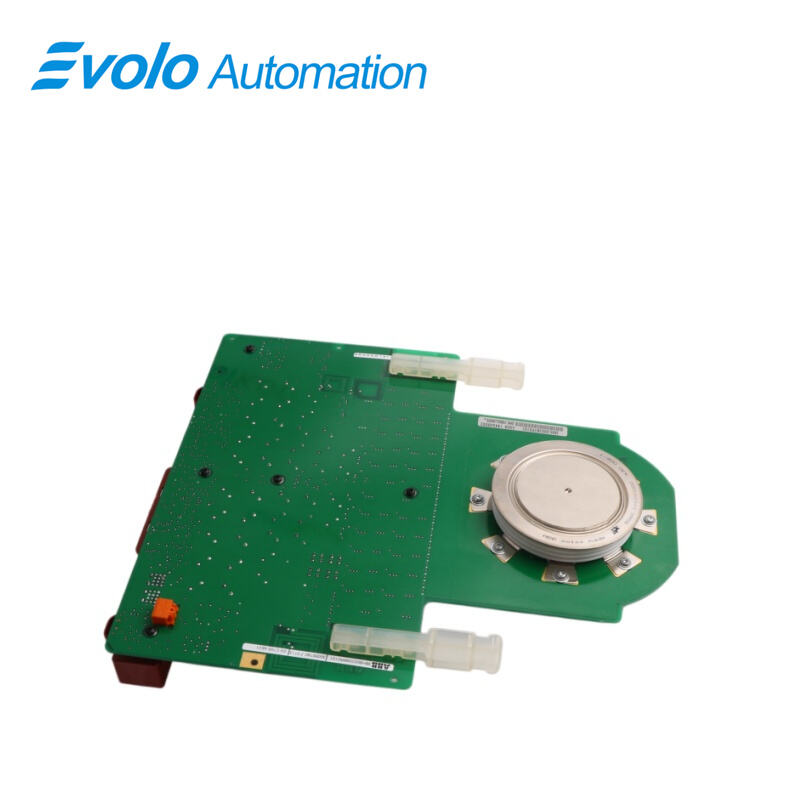

The ABB 3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002 IGCT module consists of six IGBTs and six diodes connected in a three-phase bridge configuration. It is designed to handle high voltage and current applications with reliable performance. It is suitable for high-voltage and high-current industrial scenarios, and can achieve efficient and reliable power conversion and control.
Applications
Steel plants: Large main rolling mill drives, blast furnace blower frequency converters.
Chemical plants: Large reciprocating or centrifugal compressor drives.
Power plants: Gas turbine starter frequency converters (SFC), pumped storage unit starter control.
Oil refineries: High-power frequency conversion systems for crude oil transfer pumping stations.
Mining plants: Large mine hoists, conveyor belt drives.
Competitive Advantage
High Power Handling: Suitable for demanding industrial applications.
Compact Design: Facilitates easy installation and integration.
Reliable Performance: Ensures stable operation under high voltage and current conditions.
Compliance: Meets international standards such as IEC 60747-9 and UL 1557
FAQ
Q: What is the 3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002?
A: It is an IGCT power semiconductor module used in high-power industrial drive and excitation systems.
Q: Is this product brand new?
A: Yes, 3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002 is brand new, original, unused, and factory sealed.
Q: Do you have it in stock?
A: Yes, 3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002 is currently in stock and ready for shipment. Video inspection can be supported if required.
Q: Why can't I see a price for 3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002?
A: In addition to standard new items, we also deal with discontinued and hard-to-find industrial automation components. Market availability and pricing for these parts can fluctuate significantly, so pricing is usually provided based on individual inquiry to ensure accuracy and competitiveness.
Q: Do you provide warranty as standard?
A: Yes, we provide a 12-month warranty for 3BHL000387P0101 5SHX1445H0002 3BHB003386R0101 GVC705AE01 5SGX1445H0002. If any issues occur within the warranty period, after-sales assistance is available.
