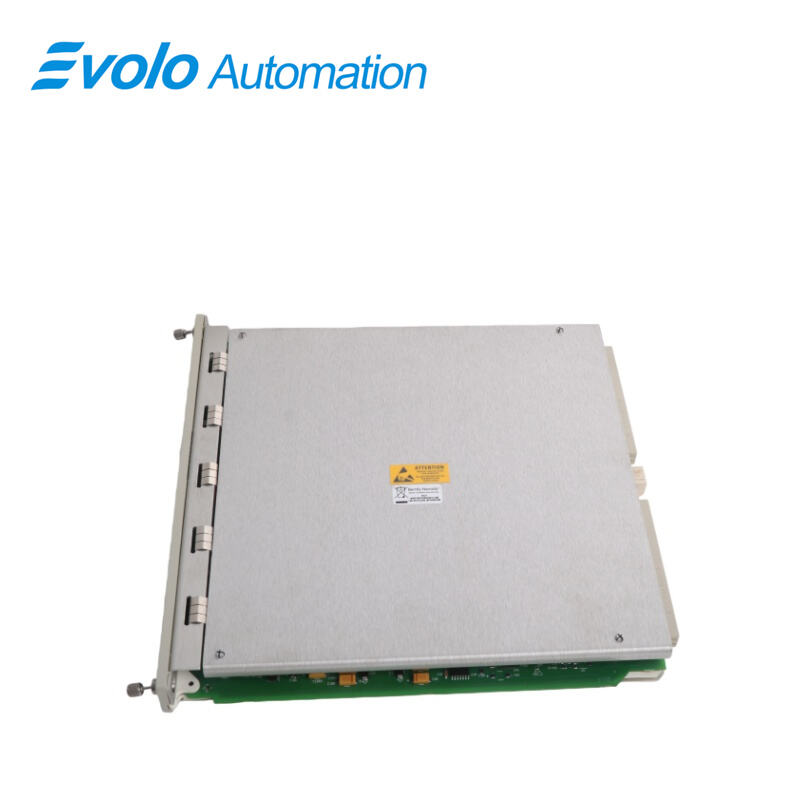

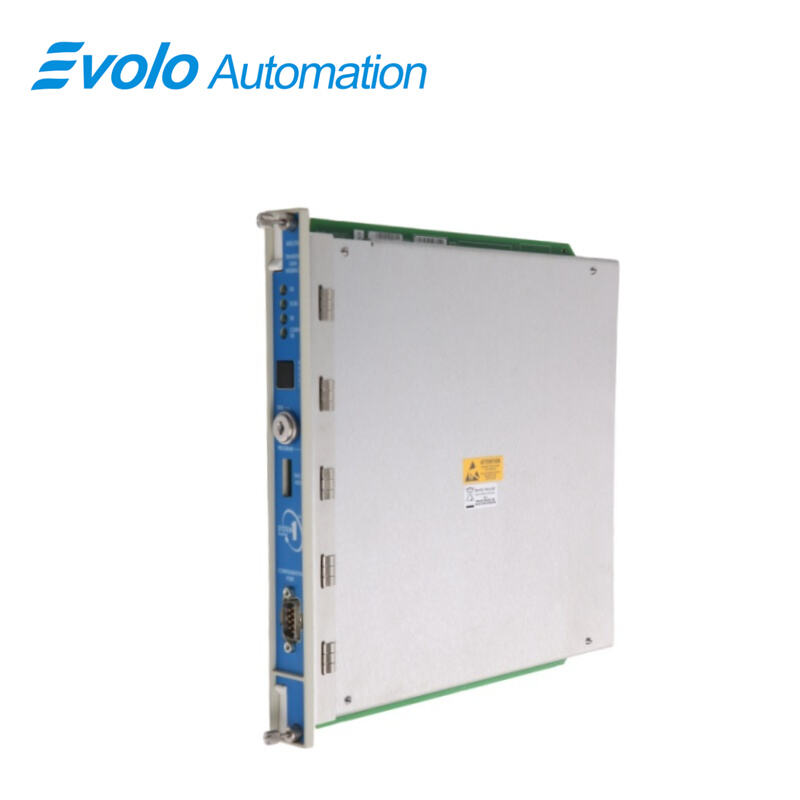

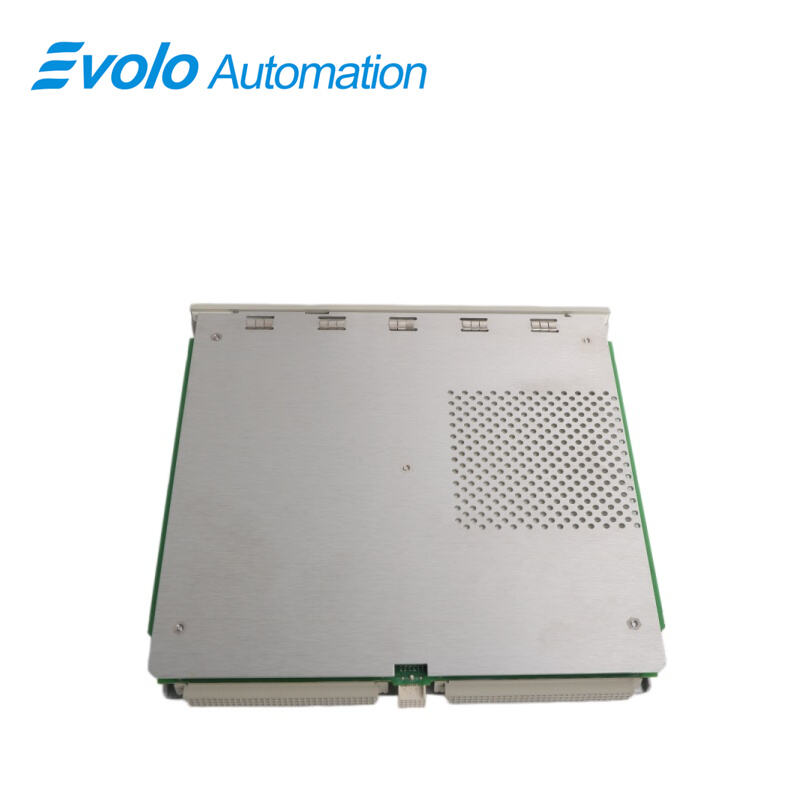

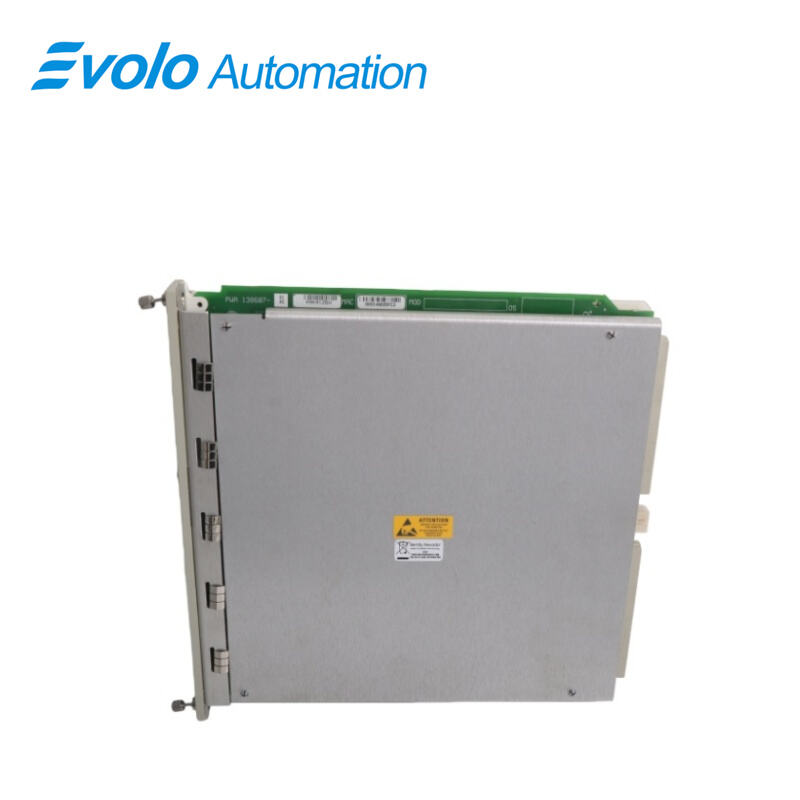

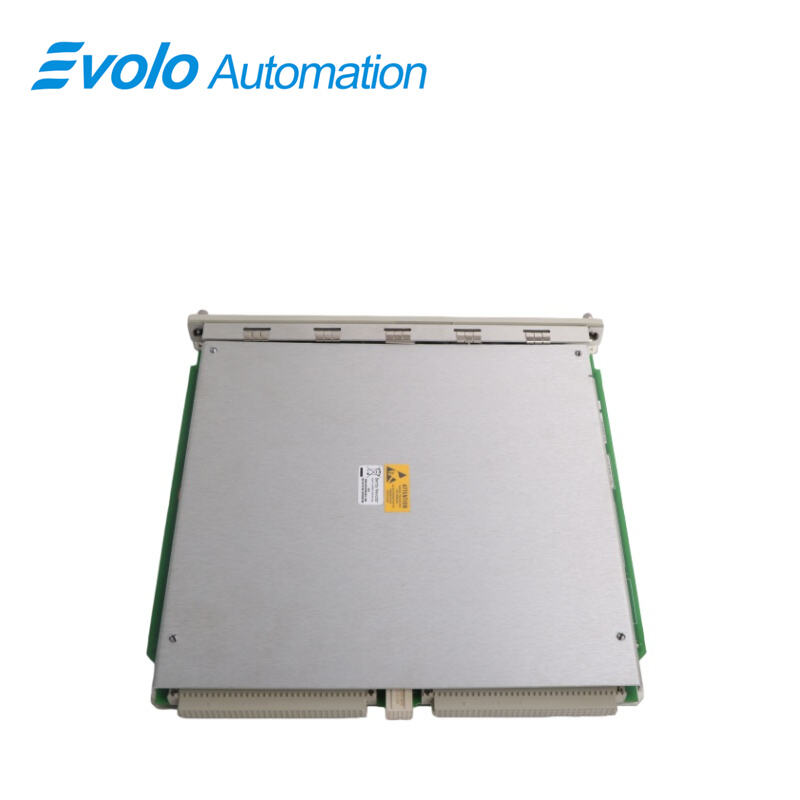

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/22-01-01-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Product Name	3500/22-01-01-01
Type	Transient Data Interface Module
Dimensions	2.6x25.8x24 cm
Weight	0.8 kg
Power Consumption	10.5 W
Front Panel Interfaces	USB-B; 10Base-T/100Base-TX
I/O Ethernet	10Base-T or 100Base-TX (autosensing)
Fiber Optic I/O	100Base-FX Ethernet
Front Panel LEDs	OK; TX/RX; TM; CONFIG OK
OK LED Function	Indicates normal module operation
TX/RX LED Function	Indicates communication with rack modules
TM LED Function	Indicates Trip Multiply mode active
CONFIG OK LED Function	Indicates valid rack configuration
Trip Multiply Control	Enables Trip Multiply mode
Trip Multiply Max Current	<1 mAdc (dry contact to common)
Alarm Inhibit Function	Inhibits all rack alarms
Alarm Inhibit Max Current	<1 mAdc (dry contact to common)
Rack Reset Function	Clears latched alarms and timed OK channel defeat
Rack Reset Max Current	<1 mAdc (dry contact to common)
BN Host Protocol	Communication with 3500 configuration and data acquisition software
BN TDI Protocol	Communication with System 1 condition monitoring software
Front Panel Communication	USB-B
Supported Protocol	BN Host Protocol
Baud Rate	Up to 115.2 kbaud (auto-baud capable)
USB Cable Length	Max 5 m (3 m included)
Connector Type	USB-B
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	95% non-condensing
Battery Life (Powered TDI)	38 years @ 50°C
Battery Life (Unpowered TDI)	12 years @ 50°C

Description

The Bently Nevada is a high-performance transient data interface module that acts as a 3500/22-01-01-01communication gateway between the 3500 monitoring rack and the System 1 software, responsible for acquiring steady-state data and key transient waveforms. This module integrates Ethernet/fiber optic interfaces and a high-speed USB front panel interface, supporting core safety control functions such as trip multiplication and alarm suppression.

Applications

Oil and gas refineries: Used to monitor critical centrifugal compressor units, preventing major mechanical failures by capturing transient waveform data.

Coal power plants: Integrated into turbine generator monitoring systems, utilizing a "trip multiplier" function to ensure vibration monitoring safety during unit startup and acceleration.

Large chemical plants: Manage distributed 3500 frames, synchronizing the status of multiple pump units and fans to the central control room in real time via Ethernet interfaces.

Offshore drilling platforms: Utilizing their wide-temperature operating capabilities and fiber optic communication options, enabling remote diagnostics of turbine machinery in harsh marine climates.

Mining processing plants: Used for bearing monitoring of large hoists and crushers, utilizing a "frame reset" function to quickly respond to and clear system alarms.

Maintenance and Troubleshooting

Troubleshooting: If the OK LED is malfunctioning, check the rack baseplate connections. If communication is interrupted, confirm the rack has valid configuration parameters by checking the OK LED. Quick on-site communication diagnostics can be performed using the front panel USB-B interface.

Maintenance Recommendations: It is recommended to regularly monitor the internal battery status using configuration software and clean the front panel Ethernet and USB interfaces during system overhauls to prevent dust accumulation from affecting signal baud rates.

FAQ

Q: What does the TM LED on the 3500/22-01-01-01 module mean when lit?
A: Indicates Trip Multiply mode, where alarm limits are temporarily increased for startup conditions.

Q: How do I configure the 3500/22-01-01-01 via USB interface?
A: Connect via USB-B cable and use 3500 configuration software at up to 115.2 kbaud.

Q: Can the 3500/22-01-01-01 communicate with configuration and System 1 software simultaneously?
A: Yes. It supports parallel protocols for data acquisition and configuration display.

Q: How does alarm suppression work on the 3500/22-01-01-01?
A: Activated via rear dry contact closure (<1 mAdc) to prevent false alarms during transitions.

Q: What precautions are needed for 3500/22-01-01-01 in high-humidity environments?
A: Supports up to 95% humidity, but requires no condensation and preferably a controlled cabinet.
