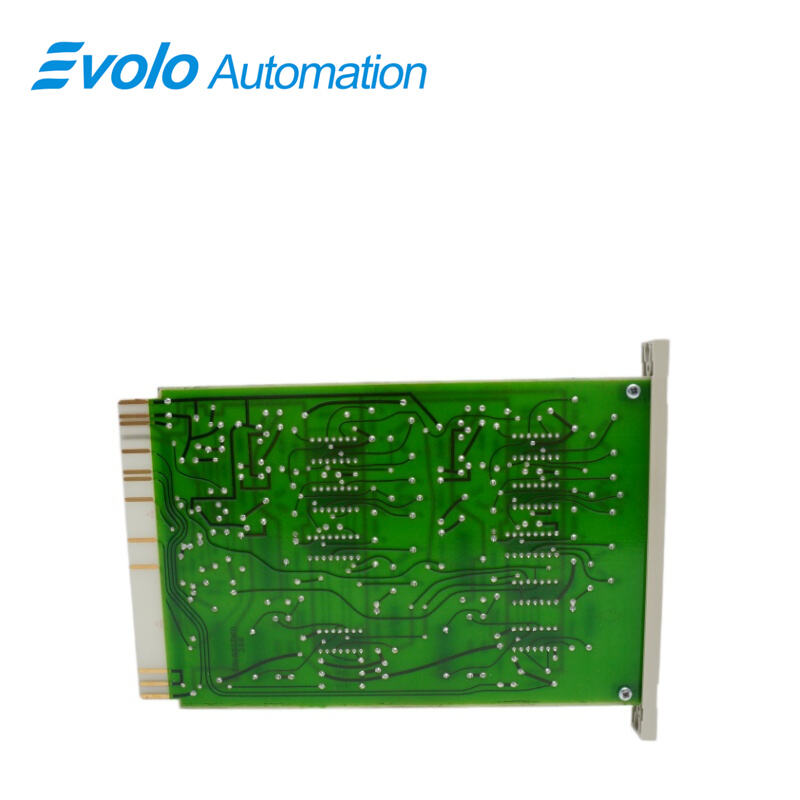

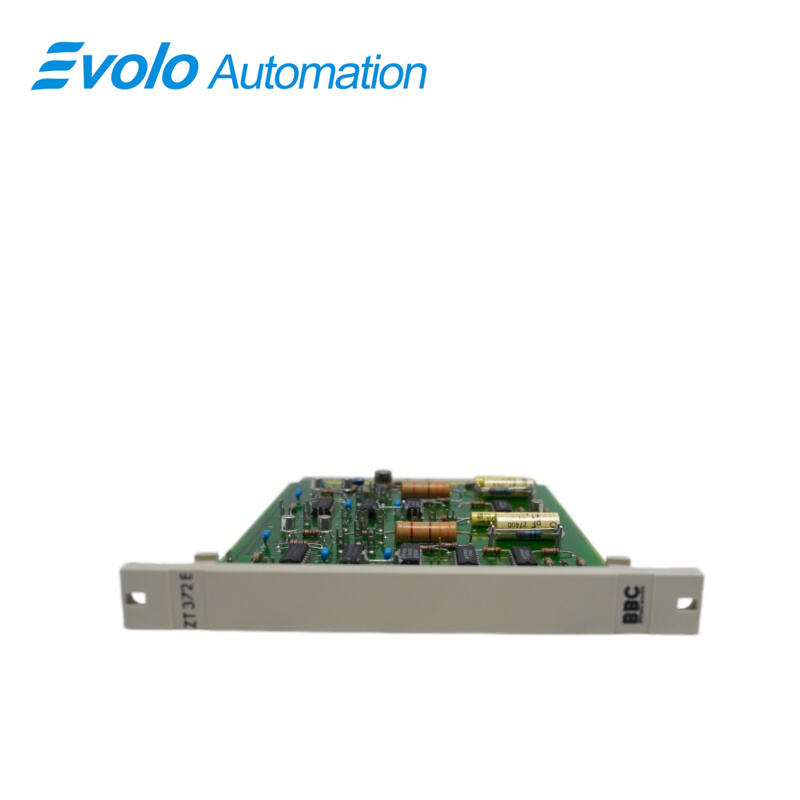

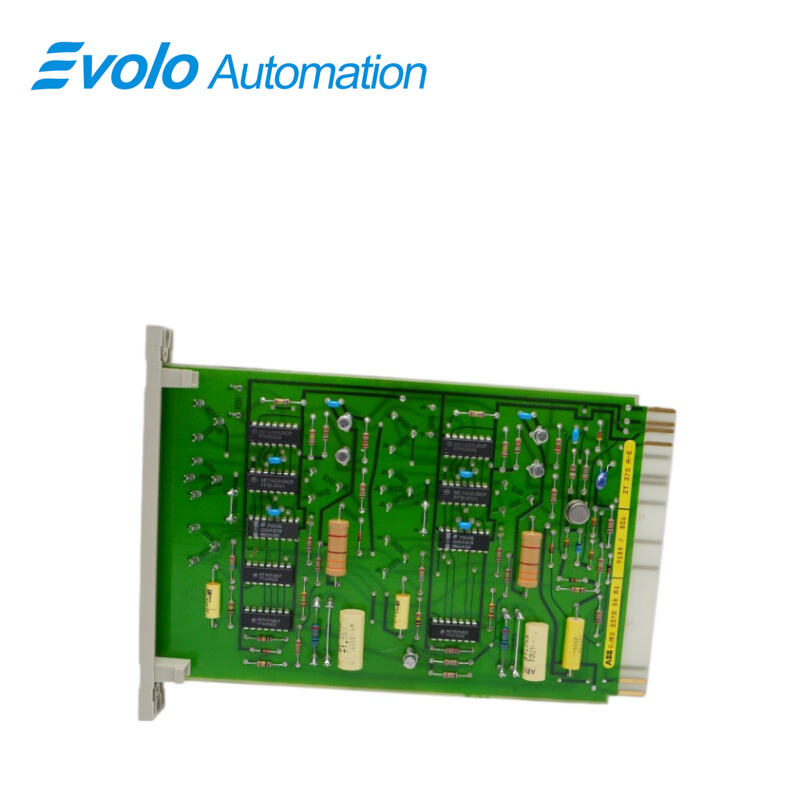

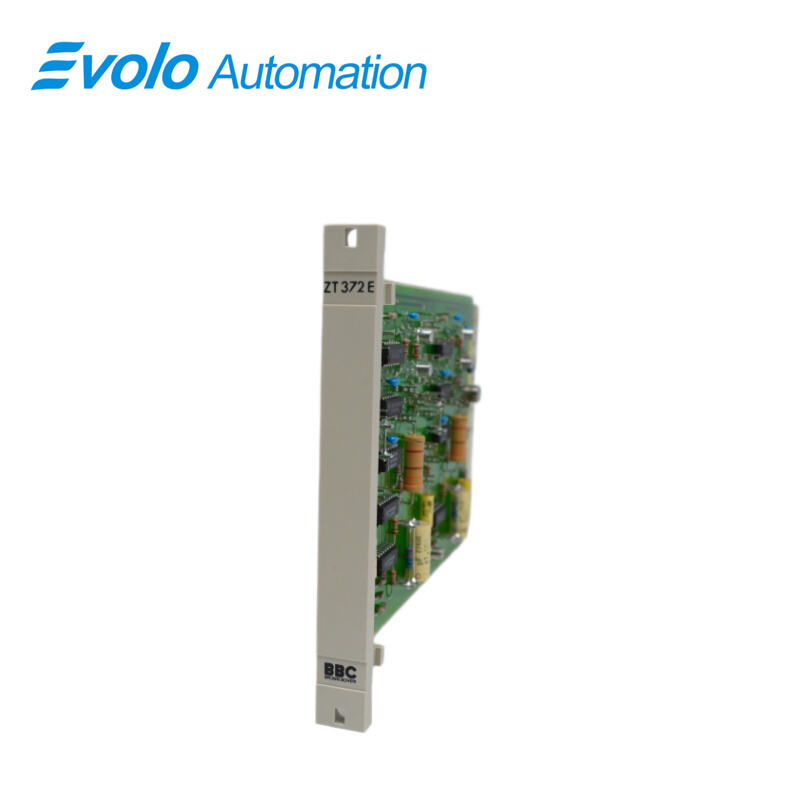

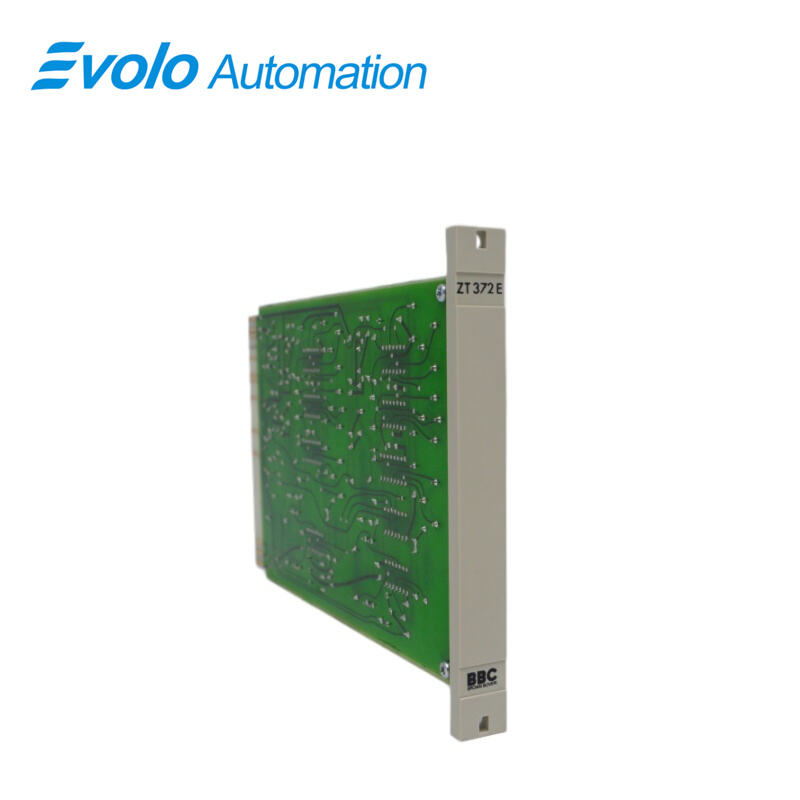

ZT372 A-E GJR2237800R1 ProControl Module

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	ZT372 A-E GJR2237800R1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The ZT372 A-E GJR2237800R1 is a ProControl Module with multiple functions, including data acquisition, logic control, and signal processing. Its compact design and high-performance capabilities make it suitable for integration into complex control systems without compromising space or functionality.

Applications

Intelligent Electronics Factory: Used for micro-workstation control in semi-automated production lines, managing cylinder sensors and solenoid valve actions via a 4-input, 4-output interface.

Precision Machine Tool Factory: Deployed in the auxiliary control loop of CNC machine tools, utilizing a response time of ≤ 10ms to achieve rapid feedback of emergency stop or limit signals.

Logistics Sorting Plant: Integrated into the branch control nodes of belt conveyors, uploading sorting status to the main control system in real time via an RS-485 interface.

HVAC Plant: Used for fan and valve linkage control in environmental monitoring systems, maintaining stable operation even in high-temperature machine room environments up to +70°C.

Environmental Water Treatment Plant: Responsible for remote start/stop control of small pump stations, using screw terminal wiring to ensure connection reliability under equipment vibration conditions.

Troubleshooting and Maintenance

Troubleshooting: If the I/O status does not update, check if the DC 12V power supply polarity is reversed; if communication packets are lost, verify if the RS-485 shield is grounded and check if the screw terminals are loose.

Maintenance Recommendations: Due to the module's compact structure, routine maintenance should focus on checking for signs of oxidation on the terminals and ensuring the DIN rail clips are securely fastened to prevent loosening.

FAQ

Q: Can multiple ZT372 A-E GJR2237800R1modules be connected to the same RS-485 bus?
A: Yes, multiple modules can be easily networked by setting different communication addresses, enabling larger-scale I/O expansion.

Q: What improvement does a response time of ≤ 10ms have on the actual control of the ZT372 A-E GJR2237800R1 module?
A: The extremely short delay ensures synchronization in high-speed motion control, effectively reducing the cumulative error of mechanical movements and improving production accuracy.

Q: What are the safety advantages of the screw terminal wiring method for the ZT372 A-E GJR2237800R1 module?
A: Screw terminals provide stronger resistance to vibration pull-out than plug-in interfaces, making them particularly suitable for industrial environments with continuous micro-vibrations.

Q: Can the ZT372 A-E GJR2237800R1 still operate normally under unstable DC 12V power?
A: This module is designed to have a certain tolerance to voltage fluctuations, but to ensure logic accuracy, it is recommended to use it with a regulated power supply.

Q: How can the wall-mounted installation mode of ZT372 A-E GJR2237800R1 be used to optimize the layout of the electrical control cabinet?
A: For simple control boxes without guide rails, wall mounting allows direct use of side wall space, minimizing the occupation of the core area inside the cabinet.
